15.6’’ high-resolution LCD monitor Resolution: 1920 x 1080 Image Size: 1040*780 Open-angle: 0°-180° Magnetic latch closure Built-in stereo speaker Brightness and Contrast adjustable
1 year
The high spec resolution paired with TAI (Tissue Adaptive Imaging) results in superb, detailed imagery, particularly at depth, by continuously and automatically optimising the image. With a thoroughly thought-out design, the AX3 VET improves workflow efficiency whilst giving the clearest possible results. The Dual transducer ports will simplify workflow, whilst an extra screen above the keyboard provides a highly sensitive touch screen for easy setting modifications at your fingertips. All whilst still being ultra-light and compact for easy portability. The intelligent software provides dedicated pre-sets and measurement packages for veterinary applications, with a customisable user interface for personalised design, and multiple data management methods: DICOM, network, PDF, AVI, and BMP file export.

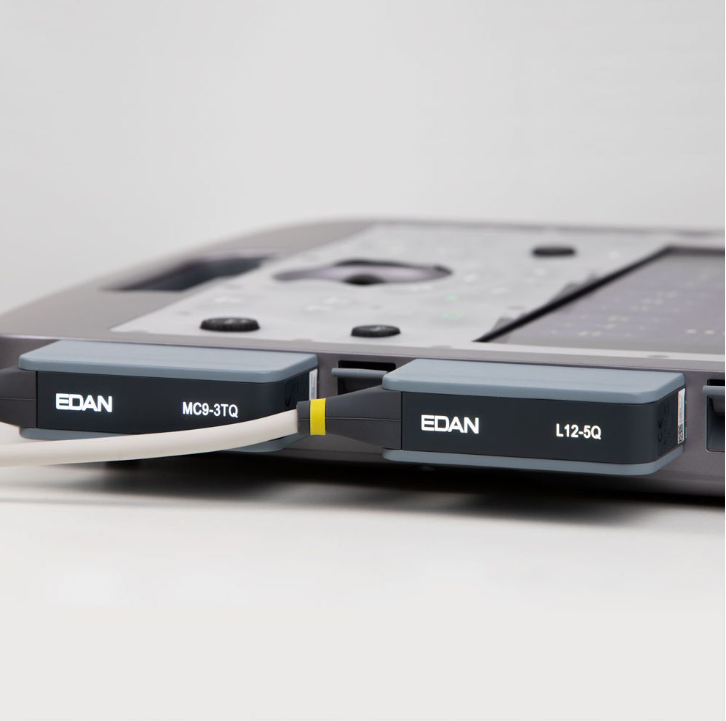

This machine is supplied with 2 probes, Linear L12-5Q (5-12MHz) & Micro-convex (5-10MHz)
Which Device is Right for Your Practice?
| Edan DUS60 Ultrasound | Edan U50 Ultrasound | Edan AX2 Ultrasound | Edan AX3 Ultrasound |
Full Keyboard USB & DICOM Export Color Ultrasound 2 Transducer Ports Touch Screen | Full Keyboard USB & DICOM Export Color Ultrasound 2 Transducer Ports Touch Screen | Full Keyboard USB & DICOM Export Color Ultrasound 2 Transducer Ports Touch Screen | Full Keyboard USB & DICOM Export Color Ultrasound 2 Transducer Ports Touch Screen |
Key Features:
Superb, detailed resolution, particularly at depth
Tissue Adaptive Imaging (TAI) continuously and automatically optimises imaging, allowing more focus on different kinds of animals.
High-sensitive touch screen for daily operation
Dedicated pre-sets and measurement packages for veterinary applications
Customisable user interface for personalised design
Multiple data management methods: DICOM, network, PDF, AVI, and BMP file export.
Dual transducer design to improve diagnostic efficiency
Unique dual-batteries design supports long continuous scanning, more than 2 hours

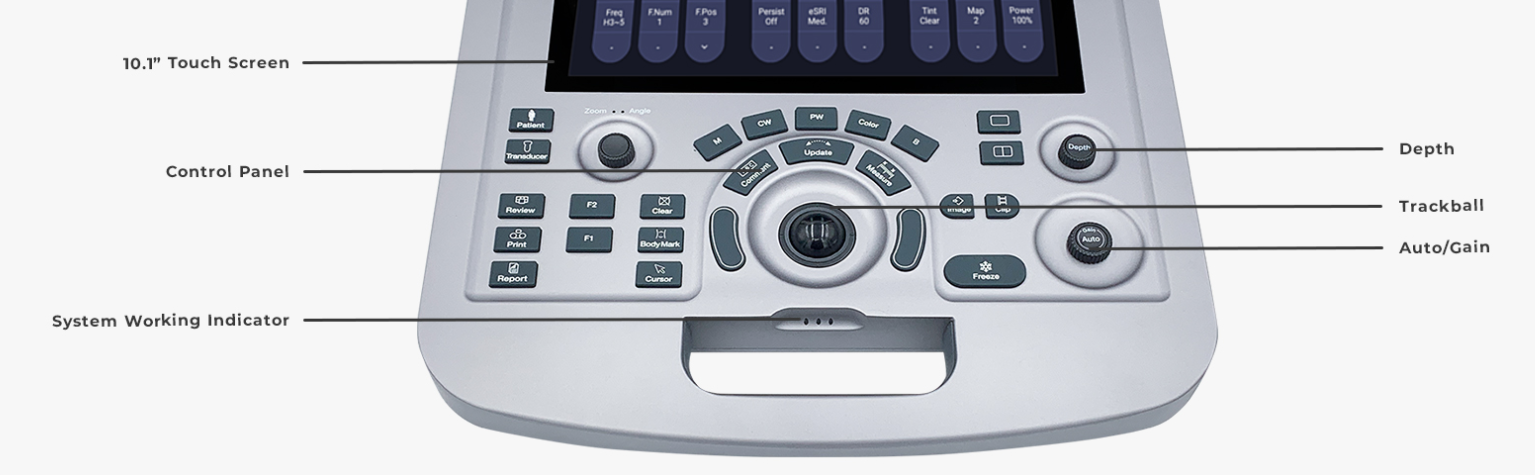

Ergonomic control panel with sensitive touchscreen.
Ultra-light and ultra-compact design for easy portability
AX3 VET System pre-defined exam presets:
- Large Canine
- Medium Canine
- Small Canine
- Large Feline
- Small Feline
- Bovine
- Ovine
- Equine
- Others
- Canine Obstetrics
- Feline Obstetrics
- Bovine Obstetrics
- Equine Obstetrics
- Other Obstetrics
- Equine Reproduction
- Small Cardiac
- Large Cardiac
- Small Parts
- Vascular
- Superficial
- MSK
- Equine MSK
- Equine Frog
- Equine Pastern
- Equine Tendon Ligament
- Equine Joint
Intelligent Workflow
High sensitive touch screen for daily operation
Dedicated presets and measurement packages for veterinary applications
Customizable user interface for personalized design
Multiple data management methods: DICOM, network, PDF, AVI, and BMP file export
Display Modes
Dual Imaging
>Available for B and Color(PDI/DPDI) mode.
>Displays two image side-by-side, two frozen or
one active/one frozen.
>Allows to switch between two images
Imaging Mode Combinations
>B+M
>B/C(PDI or DPDI), Single
>B/C(PDI or DPDI), Dual
>B+B/C(PDI or DPDI), Dual live
>B+PW (Duplex)
>B+PW (Update)
>B/C(PDI or DPDI)+PW (Triplex)
>B/C(PDI or DPDI)+PW (Update)
>B+CW (Update)
>B/C(PDI or DPDI)+CW (Update)
