Comparing the Mindray Vetus EQ to the Mindray Vetus E7 Ultrasound

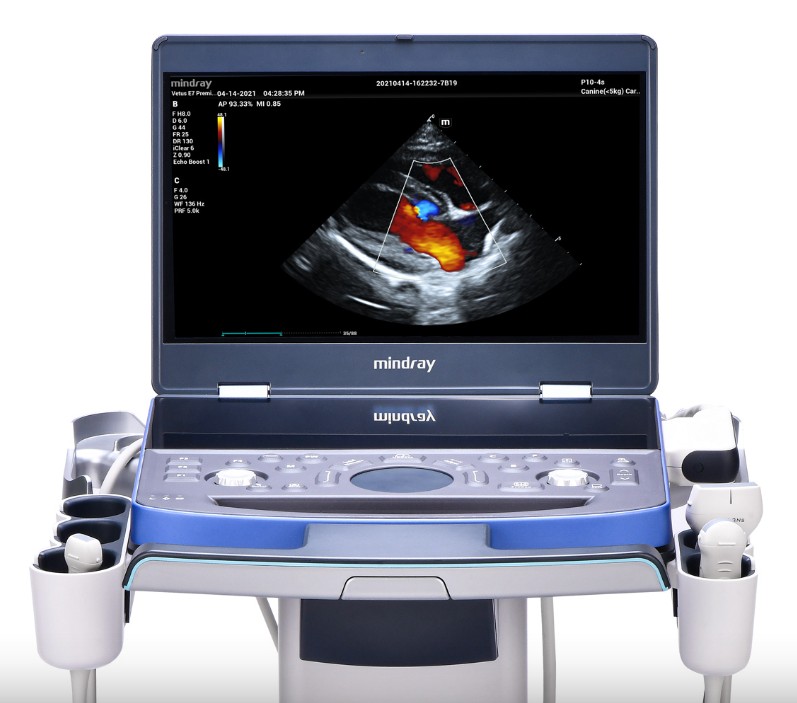

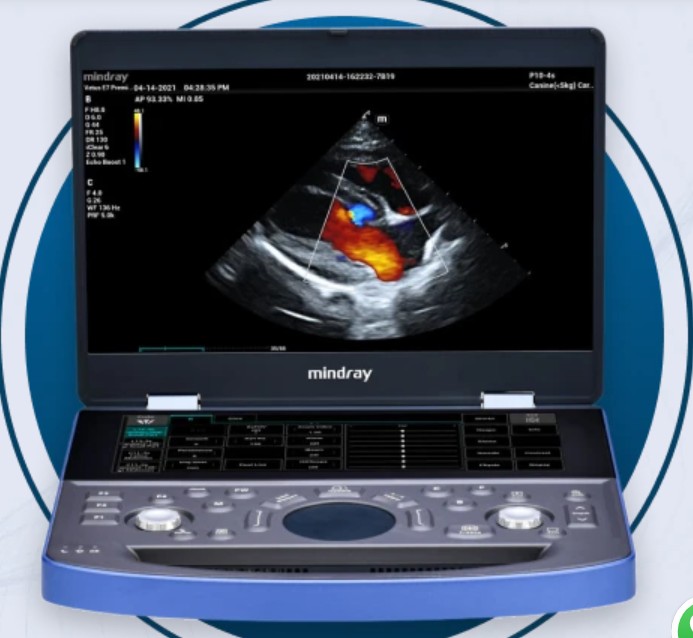

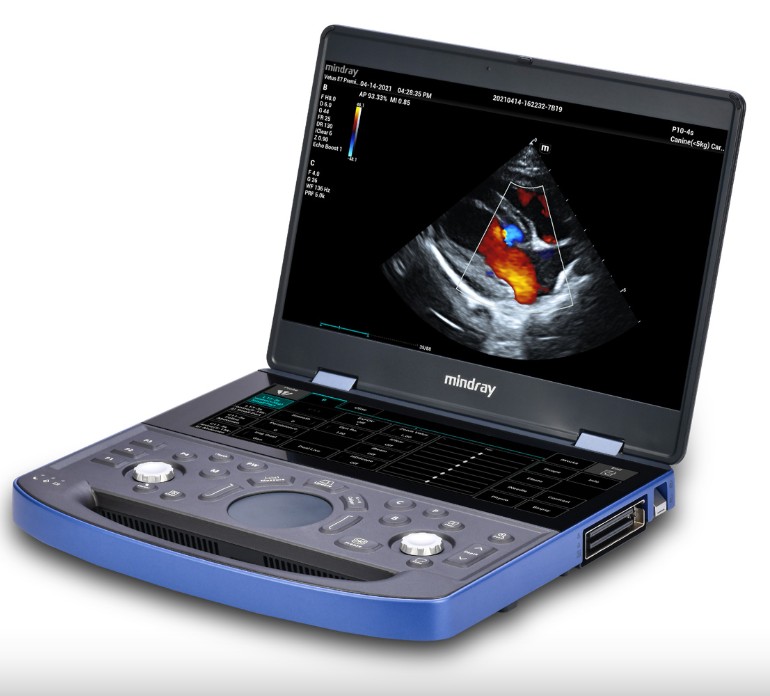

Introducing the Mindray Vetus E7, a revolutionary Color Doppler Echo System. This portable ultrasound system has amazed the veterinary ultrasound imaging industry with its exceptional image quality, depth, and penetration. Vetus E7 incorporates ZST+ technology, a solution commonly found in larger imaging systems and renowned for delivering premium veterinary imaging.
For small animals, such as feline, small-sized canine, and exotic small animals, the system offers:
Abdomen: Comprehensive evaluation of abdominal organs and structures.
Cardiology: Detailed analysis of the heart and major blood vessels.
Superficial & SMP: Examination of superficial tissues, muscles, and joints.
For large animals, including big-sized canine, equine, bovine, ovine, and exotic big animals, the system provides:
Abdomen: Evaluation of abdominal organs and structures.
Cardiology: In-depth analysis of the heart and major blood vessels.
Reproduction: Assessment of reproductive organs and monitoring pregnancies.
MSK & Tendo: Examination of the musculoskeletal system, including bones, joints, tendons, and ligaments.
Cutting-Edge Veterinary Transducer with 3T Technology
Enhances acoustic energy conversion
Delivers superior penetration and resolution
ComboWave technology for linear probes
Improved spatial and contrast resolution
Enhanced image uniformity
Three Screens for Clear Information Presentation
Main Display:
A 15.6-inch IPS display with a screen ratio of over 71%
External Display:
Allows viewing of the battery status, even when the system is turned off.
Wake up the system without contact.
Touch Screen:
A 12.3-inch IPS touch screen with a wide viewing angle.
Customized content display.
Key Features:
Cutting-Edge Transducer Technology:
Advanced Acoustic Acquisition: Transmits and receives a smaller number of larger zones, extracting more information 10 times faster than conventional methods.
Dynamic Pixel Focusing: Achieves extreme uniformity at the pixel level throughout the entire field of view, eliminating the need for focal position adjustment during patient exams.

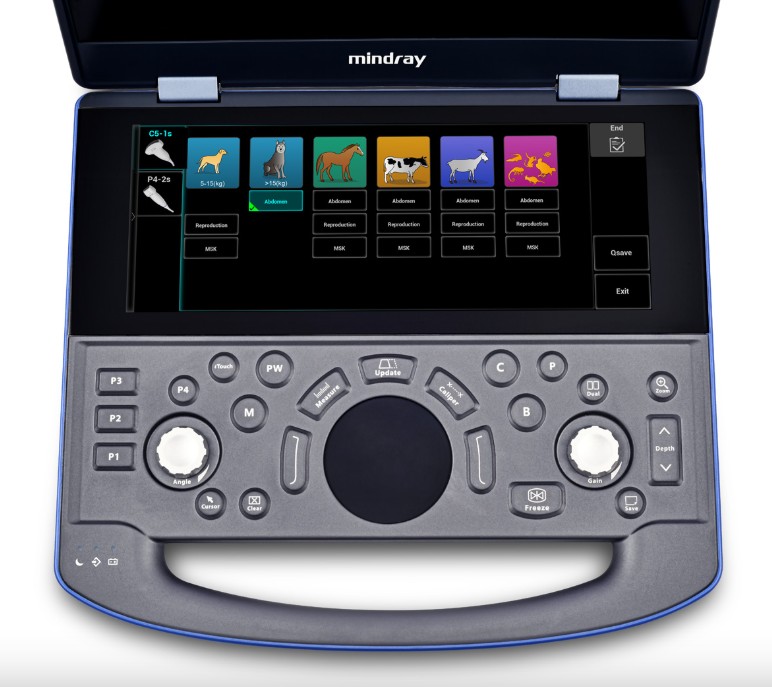

Dedicated Veterinary Image Presets:
Presets tailored to different animals' body characteristics (canine, feline, equine, bovine, ovine, and customized species)
Animals further subdivided by weight and body size for precise and easier diagnostics.
ZST Platform:
Highly integrated miniaturized ZST platform provides image clarity and advanced application potential.
First portable vet ultrasound powered by ZST with dedicated veterinary presets.

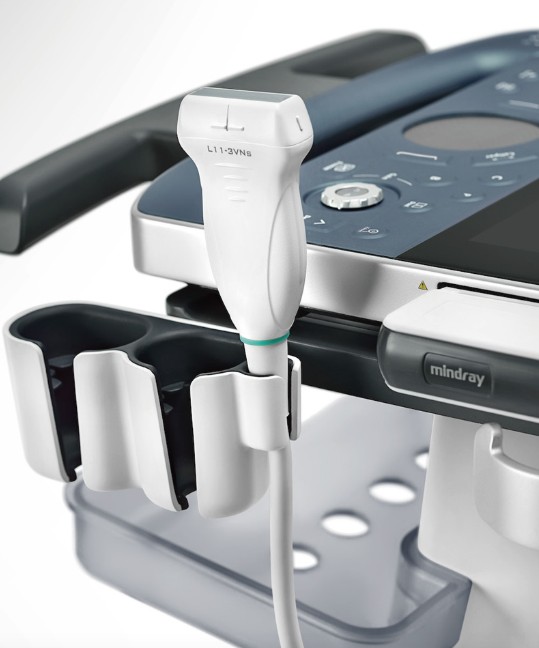

Mindray Vetus E7 Ultrasound Probes / Transducers
Mindray C5-1s Comprehensive Abdominal for Large Animal. Convex array transducer for abdominal and reproduction scanning in big animals.
Mindray C11-3s Micro-Convex Probe for abdominal scanning and basic cardiology in cats, small dogs, and exotic animals. One-probe solution: support both abdominal and basic cardiology.
Mindray P4-2s Phased Array Transducer. Good penetration phased array for Big Animal: Equine, Bovine (Over 40kg)
Mindray P8-2s Phased Array Transducer. Wide-frequency range for Small Animal: Canine (Between 5 - 40kg)
Mindray P10-4s Phased Array Transducer. High frequency for Small Animal: Feline (Less than 15kg)
Mindray L13-3Ns Comprehensive Abdominal for Small Animal. ABD,SMP for Small Dogs and Cats, MSK for Equine Application.
Mindray L14-6Ns High-frequency linear array for small parts and MSK.
Mindray L16-4Hs Tendon and MSK for Big animals.

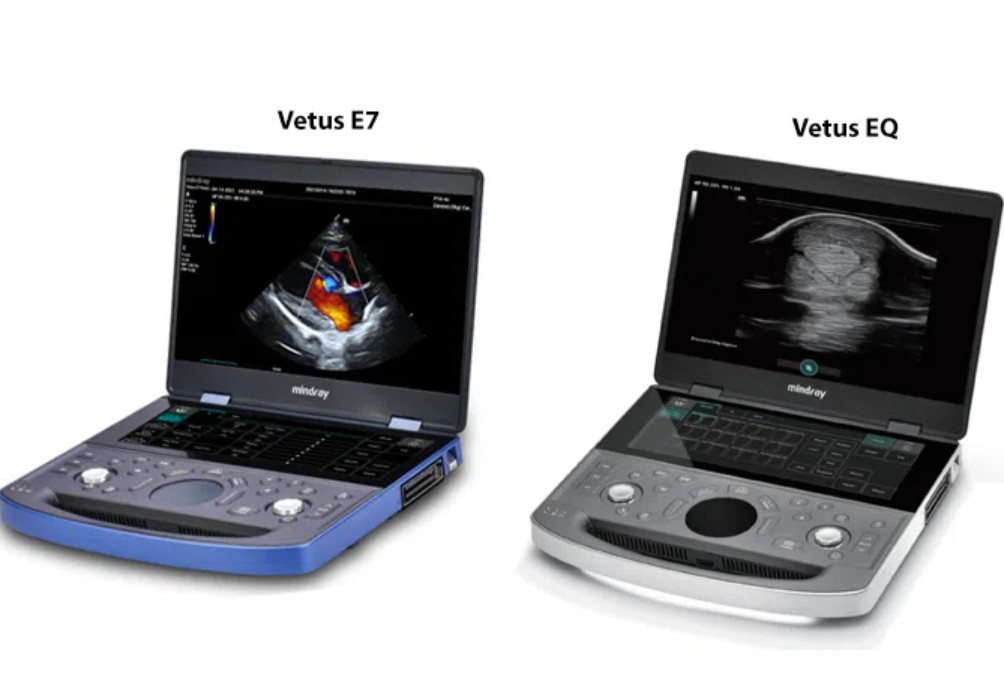

Key Differences Between the Mindray Vetus E7 and Mindray Vetus EQ
We have narrowed down the biggest key differences between the Mindray Vetus E7 and Vetus EQ model: application usage and its patient range. The Vetus EQ has equine dedicated image presets including equine abdominal, equine cardiac, equine MSK, and equine reproduction. So when it comes to choosing an ultrasound based on applications, keep in mind the Vetus EQ cannot run small animal presets. If you need to image more animals other than horses, we recommend the Vetus E7.
Hardware
The Mindray Vetus EQ comes standard with the iCover shell, unlike the Vetus E7, to protect it from dirt, water, and accidental falls or bumps. It also includes the traveling backpack (better suited for outdoor use) instead of the hard shell suitecase. The EQ has 128GB storage while the E7 has 256GB, fortunately, they are both solid state drives to maintain speed and ease of use.
Software
The Vetus E7 has multiple optional advanced functions while the EQ is limited to dicom, panoramic imaging, anatomical M-mode, curved anatomical M-mode, tissue Doppler imaging, TDI quantification analysis, Smart 3D, iNeedle needle enhancment, Auto ejection fraction, iVocal voice commands and a DVR module. The Vetus EQ also has iWorks scanning protocol but for equine MSK only. A quick note on iWorks, it has been shown to reduce exam time by 50% and keystrokes by 80% by showing you what to scan next in the chosen preset exam. The Mindray Vetus E7 has the option to add continuous wave Doppler, ECG, dicom MPPS, structured reporting and query retrieve, as well as, strain/strain rate, UWN+ contrast imaging, and UWN+ contrast imaging quantitative analysis.
Equine Ultrasound Price
On to the most important question you're probably wondering --- what is the cost difference? While we cannot list prices online, please contact us for a quote for the Vetus EQ here or E7 here! We can tell you there is a cost savings benefit in choosing the EQ as it does technically have fewer features. Therefore, if you are only going to be scanning horses, the Mindray Vetus EQ is the clear choice for equine ultrasound imaging.
Key Features for Equine Imaging
Both systems have great design features that make imaging any animal easier than the standard human ultrasound machine including:

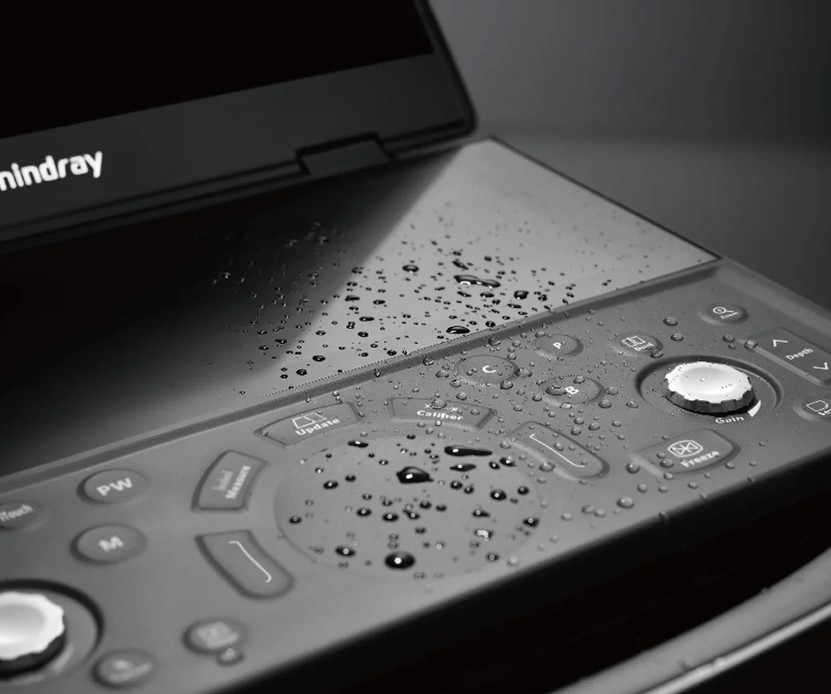

Sealed touch-pad to prevent hair and dirt build-up
Resists breakdown from harsh cleaning chemicals

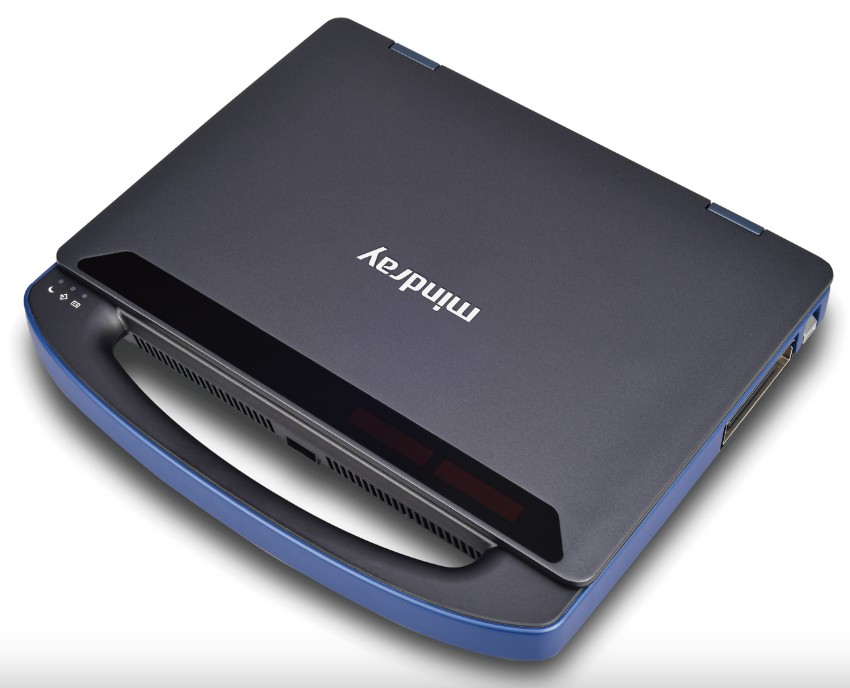

Ultra-thin and lightweight at 6lbs and 1.7 inches thick (an apple laptop is 4.8lbs and .66 inches)
ZST+ platform is 10 times faster than traditional ultrasound imaging platforms
U-Bank battery option supports up to 8 hours of continuous scanning
