Top-End Portable, high-resolution ultrasound Voice control & smart workflow tools Real-time Doppler & cardiac auto-measurements Up to 8-hour battery life Ideal for point-of-care use
7 days

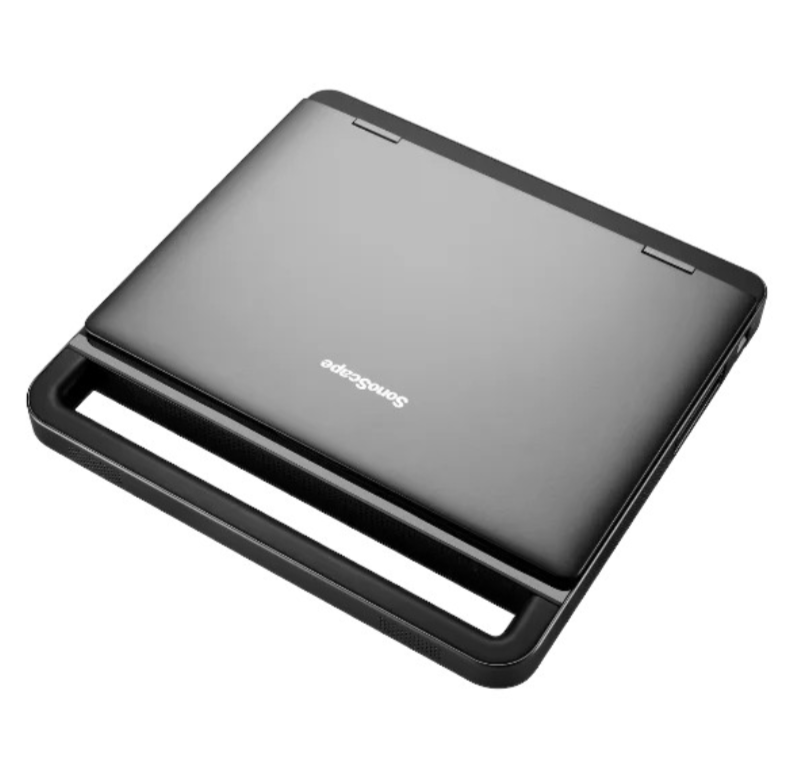

Sonoscape X11 ProPet Portable Veterinary Ultrasound
Quite possibly the best image in its class, been suggested that the X11 is better than all other Chinese ultrasound systems in a similar class. Needs to be seen to be believed.
It is indeed a marvel to use, an ever-increasing library of “how-to-do” SonoHelp guides for the novice veterinary sonographer and user-defined. Further assistance with the SonoAssistant feature
Information such as PDF reports and images can be directly transferred to your Windows PC shared folder via SonoTransfer.
Standard top-end software included and not limited to:
DICOM
Panoramic View
VisNeedle
μScan
Included Hardware Features:
Wifi
ECG
remote live assistance
HDMI output (+ USB-3 X3, S-Video)
The SonoScape X11 is a premium portable ultrasound system designed to deliver unmatched precision and efficiency across a wide range of clinical applications. Built on the advanced C-Field+® platform, the X11 combines high-end imaging capabilities with intelligent workflow tools, making it ideal for point-of-care diagnostics and bedside use.

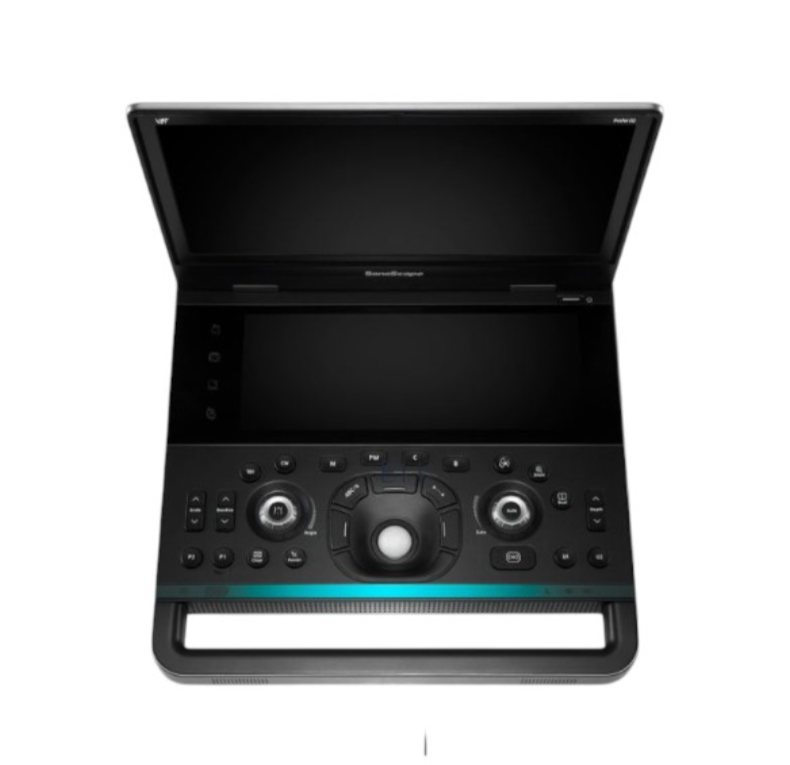

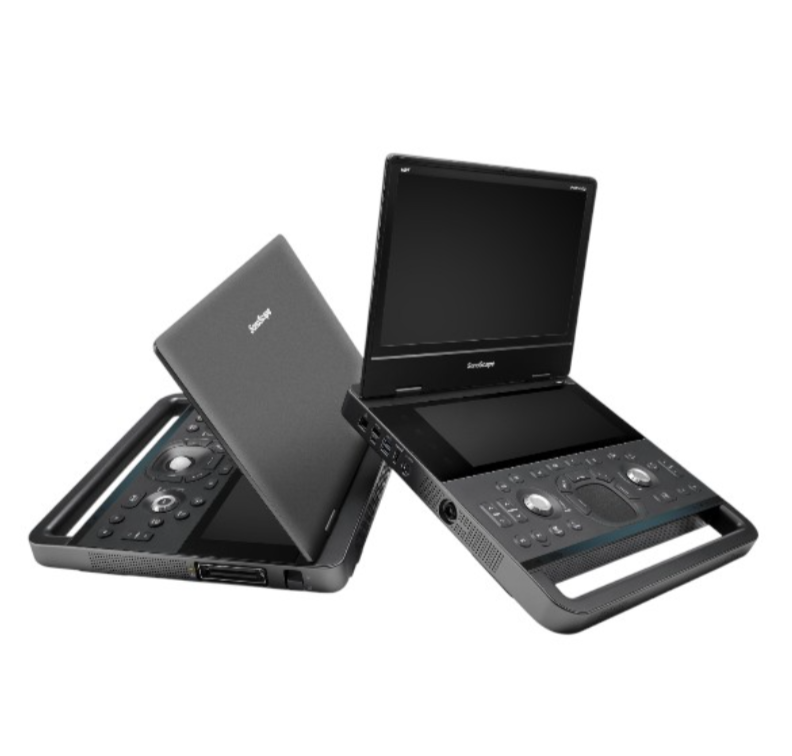

Its compact design includes a large, high-resolution display, a touchpad (X11) or trackball (E11) with adjustable sensitivity, and a magnetic charging port that enhances durability and ease of use. The system supports up to four probes, with automatic probe recognition and preset activation, streamlining the scanning process.
Key features include SonoExam, which records the entire scanning session for easy review, and SonoPage, a customizable interface that consolidates annotations, measurements, and body marks into one organized view. Voice command functionality allows hands-free control of key operations, while real-time spectral Doppler and automated cardiac measurements improve diagnostic accuracy and speed.

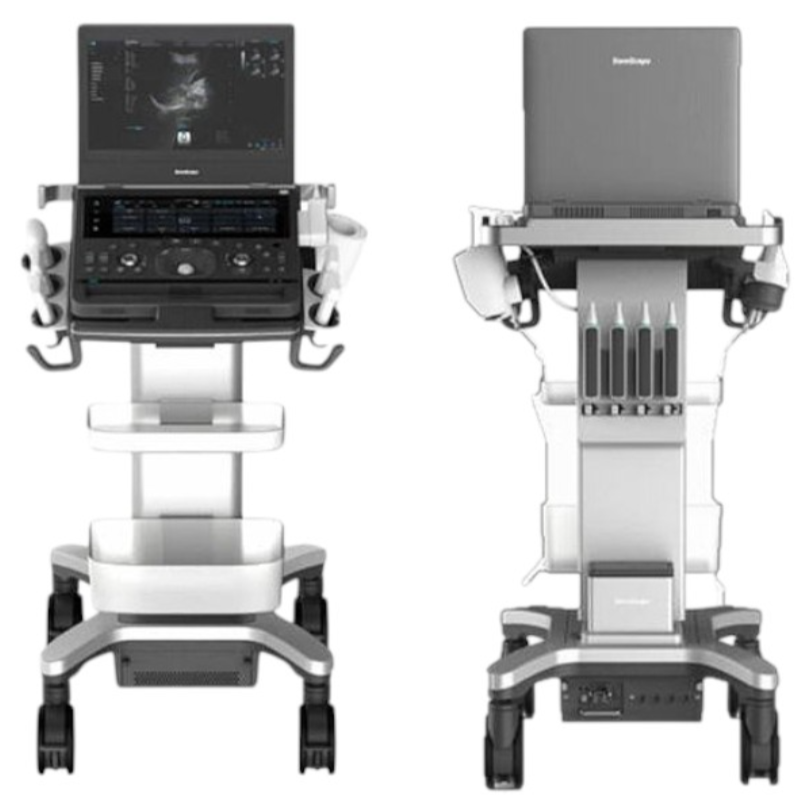

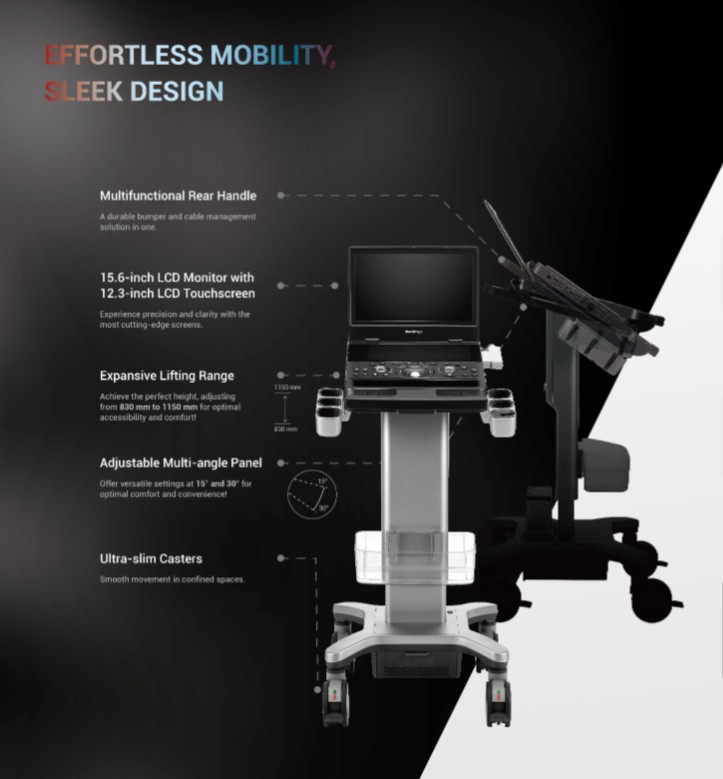

With up to 8 hours of battery life using the E-Pack and trolley setup, the X11 ensures uninterrupted workflow in demanding environments. Whether in general imaging, cardiology, or emergency care, the SonoScape X11 empowers clinicians with smart tools and reliable performance for confident decision-making
Display: 15.6″ high-resolution color LCD monitor + 12.3 Multi-gesture touch screen
Platform: C-Field+® imaging platform

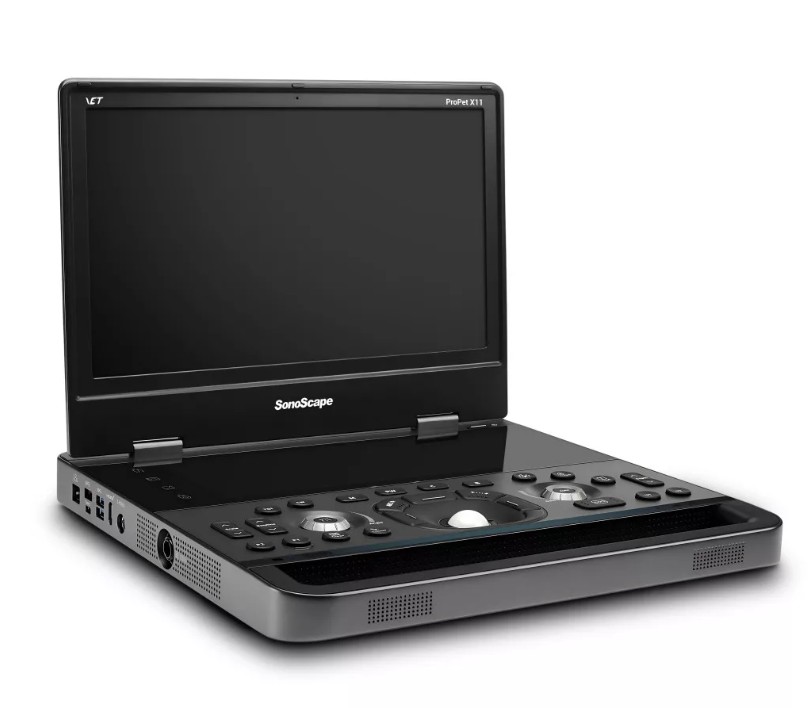

Design: Compact, portable laptop-style unit
User Interface: Touchpad (X11) or trackball (E11) with adjustable sensitivity, voice command support, and customizable SonoPage layout
Battery Life: Up to 8 hours with E-Pack and trolley setup. 1.5 Hours from built-in battery
Probe Support: 1 to 4 probe extender ports with auto recognition
Applications: General imaging, OB/GYN, cardiac, MSK, vascular, urology, GI, and point-of-care
Measurements: Real-time spectral Doppler, automated cardiac measurements, 2D cardiac analysis
Workflow Tools: SonoExam (auto scan recording), SonoHelp (clinical guidance), SonoAssistant (protocol support)
Weight: Approx. 6.5 kg
Dimensions: 378 mm × 352 mm × 114 mm
Connectivity: Magnetic charging port, USB, and DICOM support
Certifications: CE marked, BIHS validated
Sonoscape X11 probe
12L-B Linear Array Transducer (Composite Crystal)
C613 Micro-convex Array Transducer
C1-6A Convex Array Transducer (Single Crystal)
S1-5 Phased Array Transducer (Single Crystal)
L741V Intrarectal Linear Transducer

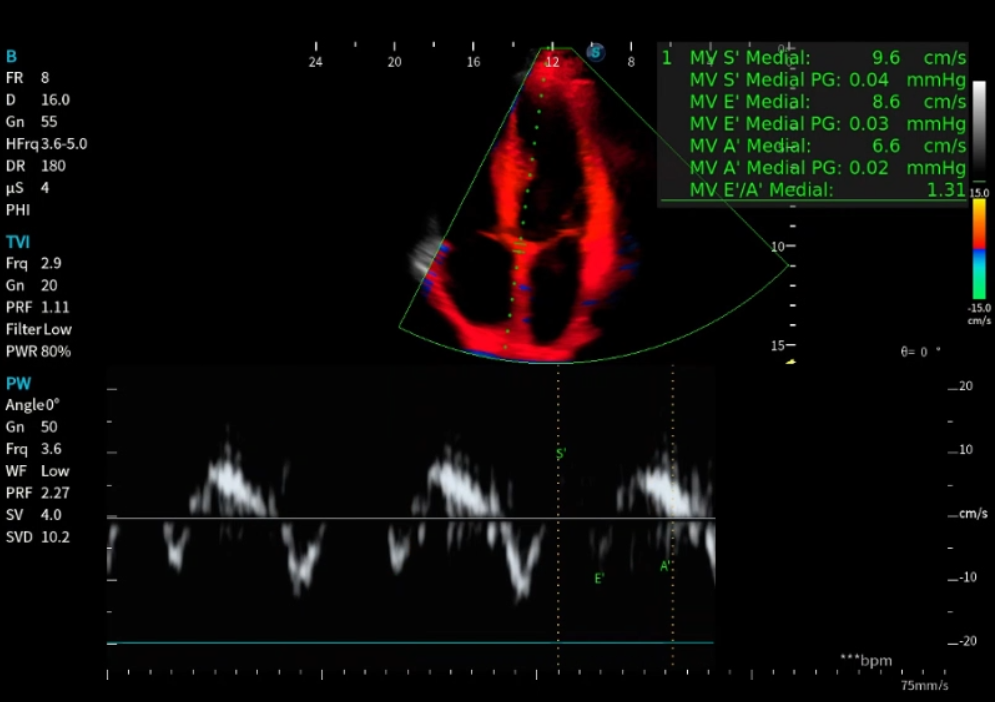

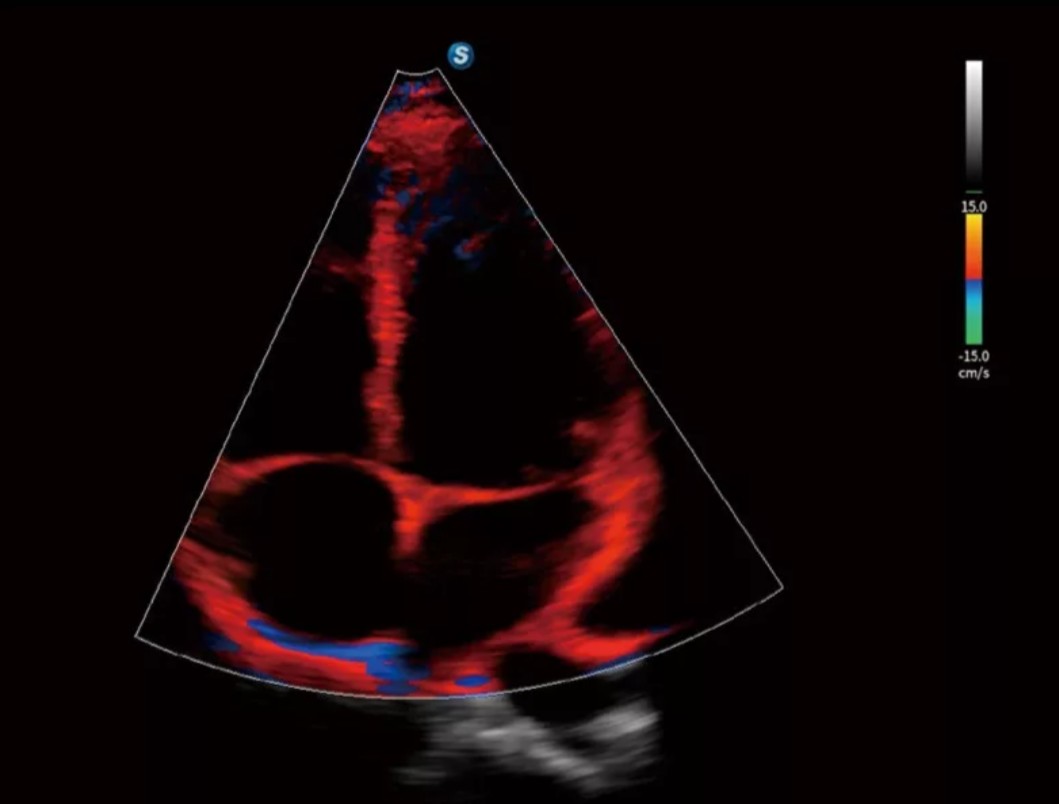

S-CV (TDI)
By automatically identifying cardiac structures and taking measurements during real-time scanning, S-CV frees physicians from the tedious task of repeated manual identification of cardiac structures and time-consuming measurements.

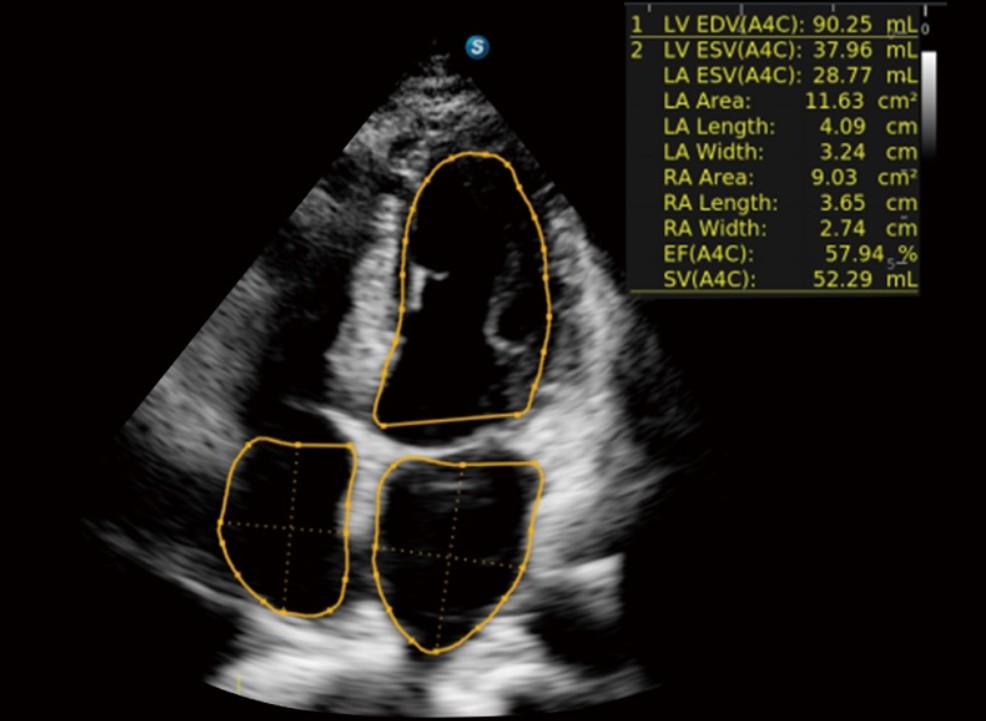

S-CV (measured)
Just freeze the image and select S-CV (measured). With one click, you can quickly get the most commonly used parameters, including EF, EDV/ESV and IVC diameter.

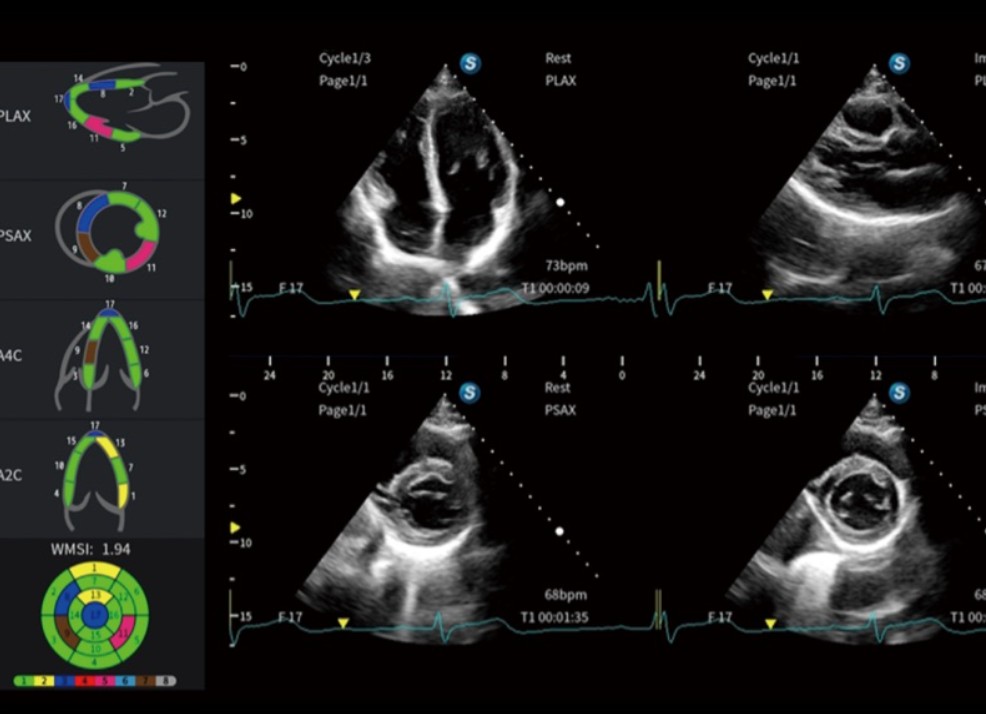

Stress-Echo
Das Stressecho misst die Herzfunktion und den Blutfluss unter Stressbedingungen und hilft dabei, koronare Herzkrankheiten zu erkennen und die Lebensfähigkeit des Herzmuskels für eine genaue Diagnose und Behandlungsplanung zu beurteilen.

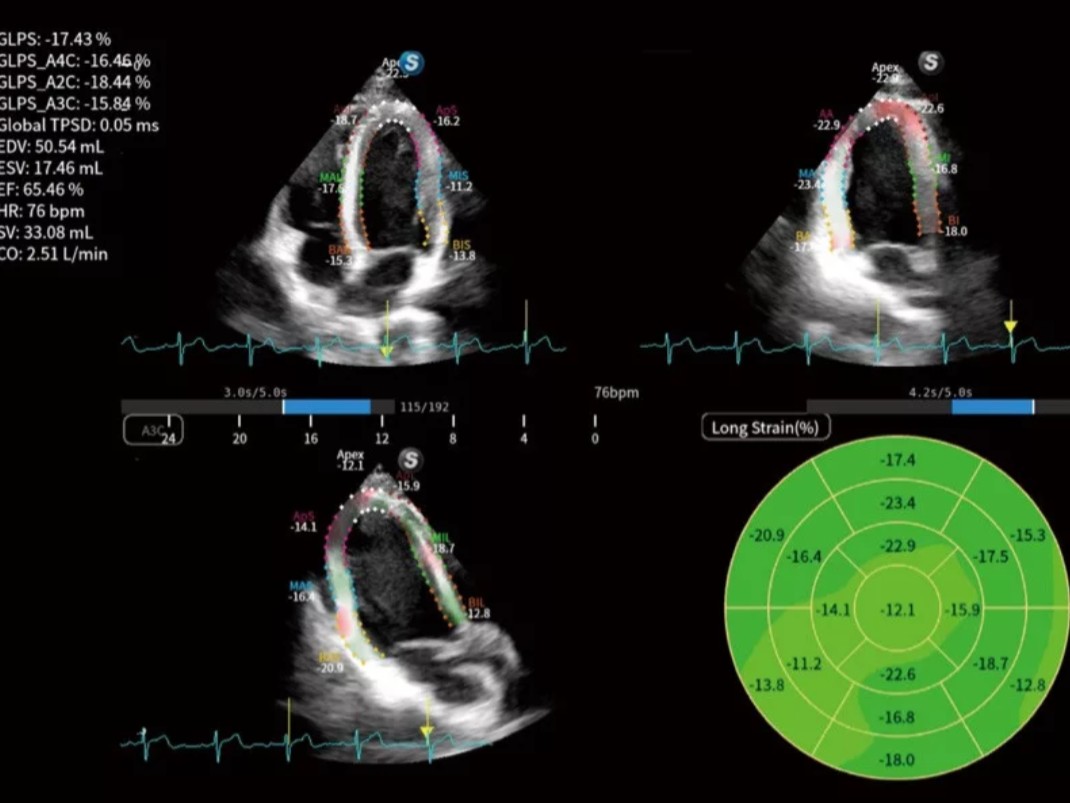

MQA
MQA supports the analysis of myocardial motion in multiple views and generates analysis curves for parameters such as tension, tension rate, velocity, displacement, etc.

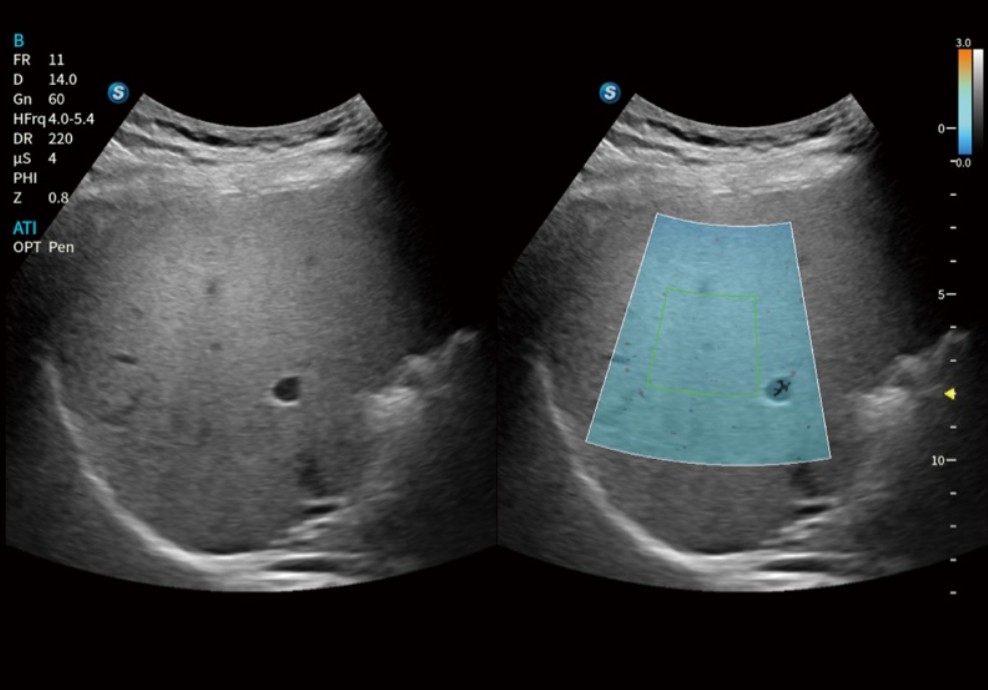

ATI
ATI (Acoustic Attenuation Imaging) allows quantitative assessment of fatty liver disease by measuring the attenuation coefficient and helps clinicians to assess the extent of fatty liver disease for reliable prognosis.
