3 probe connections (convex, linear, microconvex and endocavity probe) 78*352*114mm 6.4Kg
WLAN and Bluetooth DICOM 500 GB hard disk Height-adjustable trolley Stable, portable case
Quick start function Automatic brightness adjustment Automatic image optimization Auto IMT function Auto Trace Function

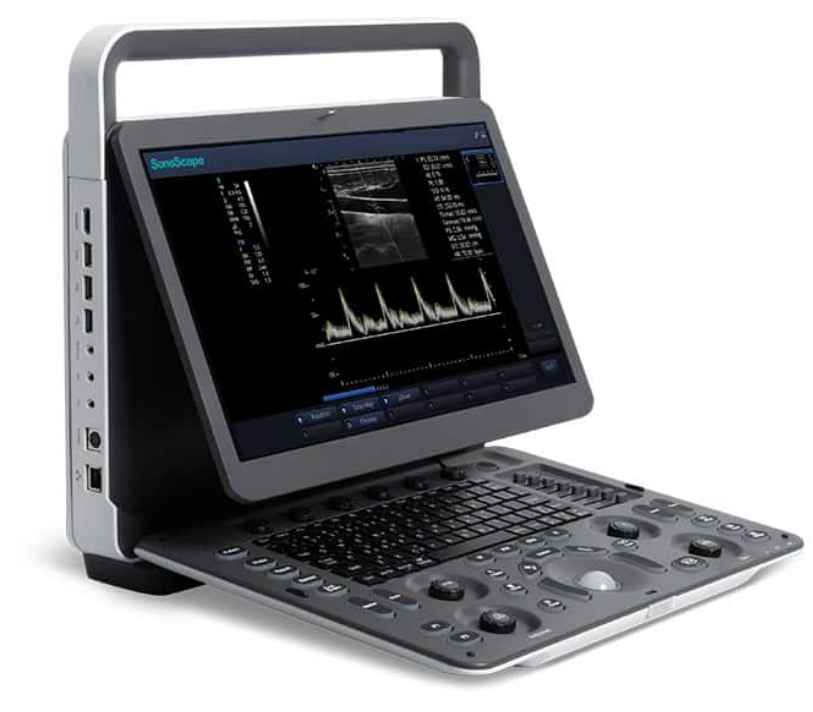

The SonoScape E1, a new portable black and white ultrasound system, is loaded with features that make it more than a match for other entry-level ultrasound equipment. It offers users not only good image quality, but also a smooth workflow.
Display: 15.6″ LCD monitor, tiltable with color module
Weight: approx. 8 kg (including battery)
Probes: 3 probe connections (convex, linear, microconvex and endocavity probe)
Image functions: THI, SCI, μ-scan, trapezoid imaging, 2D panoramic imaging, auto-IMT B-mode, M-mode
Memory: internal on HDD
Software: M-Tuning, DICOM 3.0 (Store, Worklist)
Connections: HDMI Video Out, S-Video OUT, LAN, Wi-Fi, Printer, Footswitch Optional: equipment cart, foot switch
Efficient diagnostics
μ-Scan, Speckle Reduction Imaging (spurious pixel suppression) and edge sharpening
Spatial Compound Imaging
PIH – Pulse Inversion Harmonic
Wide scan area – Larger image detail
PW Doppler
Chroma – Highlighting of image details
B-Steer for the linear probe
Ergonomic design
2 probe ports
Lightweight and compact
Flicker-free 15.6-inch HD LED monitor
Tiltable monitor
Backlit keyboard and intelligent control panel
Long battery life of up to 90 minutes.
Probes
Linear array L746 (Vascular, Small Parts, MSK etc.), 4.0-12.0MHz/ 50mm
Convex array C361 (Abdominal, Obstetrics, Gynecology) 2.0-6.0MHz/ R60mm
Endocavity EC9-5 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/R8mm
Micro-convex array C613 (Cardiology, Pediatrics), 4.0-13.0MHz/ R14mm
Endocavity 6V1 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/ R11mm
Linear array L741(Vascular, Small Parts, MSK etc.), 4.0-16.0MHz/ 46mm
Endocavity linear array L741V, 12-5 MHz/ 46mm
Linear array 10I2 (Intra-operative), 4-16 MHz/ 25mm
Standard Hardware include:
E1 main unit
15.6" High Resolution LCD color monitor (with auto-adaptive LED backlight)
Two transducer connector
USB 2.0/Hard Disk 500 G
Adaptor
Standard battery
Closed size: 378×352×114mm
Weight: 6.4 kg
Standard Software include:
Imaging modes: B/ 2B/ 4B/ M
Dynamic Multi-beam Technology
Tissue Harmonic Imaging
Pure Inversion Harmonic Imaging
Tissue Specification Imaging
Spatial Compound Imaging
Widescan: Trapezoid Imaging
μ-Scan: 2D speckle reduction technology
TEI Index
DICOM 3.0
Auto: Auto optimization for B/ M/ PW
TGC: Time gain compensation
Zoom
Standby Mode
Show Gallery
2D Steer
Auto IMT
Biopsy Guide
Optional configurations:
PW & Auto trace
Duplex
LGC: Lateral gain compensation
Convex Extended Imaging
Vis-Needle
B Mode Prospective Saving
2D Panoramic Imaging
Wifi Module
Accessories
Trolley
Backpack
Large Capacity Battery
Color ink-jet printer: HP Officejet Pro 8000/HP Office jet Pro K5400
B/W video printer: SONY UP-D897/SONY UP-X898MD
Footswitch
External DVD
Bluetooth Controller
SonoScape E1 Our compact, lightweight hand-carried Black/White scanner with high resolution imaging through easy-to-use logical controls designed for smooth workflow with quick ‘boot-up’ time. The E1 provides very affordable imaging at entry level with many advanced features including Pulse Wave doppler and Auto trace functions.
