285 mm x 215 mm x 93 mm 3.2KG
Lithium-Ion battery,14.4 V,6.6 Ah,95 Wh. 8 hrs of backup power Delivered Tidal Volume Adult 100 to 2500 mL,Pediatric 50 to 300 mL (cm H2O)
43 +/- 3 dBA*** Sound Pressure Level 35 +/- 3 dBA*** Data Monitoring Optional SpO2,Optional FiO 2

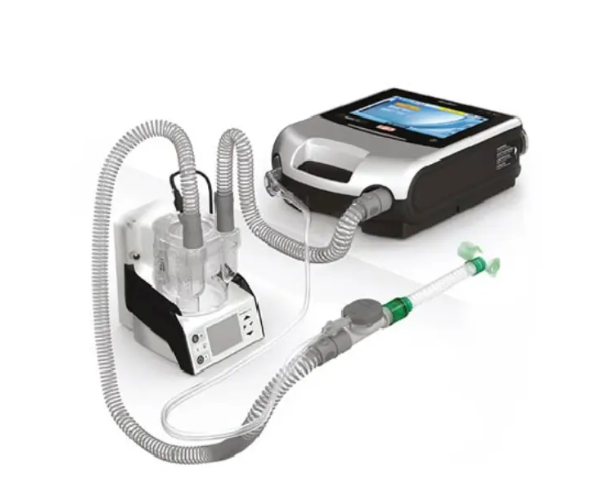

ResMed’s Astral 150 life support ventilator offers excellence in invasive and non invasive ventilation without compromise. From initial setup to everyday use, Astral offers greater freedom, confident care and designed efficiency to enrich life for you and your patients. Astral’s discreet and lightweight design coupled with 24 hour run time (with combination of internal and external batteries) provides greater freedom and makes patient transfers easier. It delivers excellence in leak and valve ventilation for invasive and non invasive applications as well as providing a full suite of therapy modes to suit adult and pediatric applications. With easy setup, simple servicing and an intuitive interface, Astral is designed to make ventilation support straightforward and efficient
Resmed Astral 150 Portable Ventilator Features:
Comes with all the standard features of Astral 100, plus FiO2 monitoring and double limb circuit capabilities
Through the ResMed Connectivity Module (RCM), Astral can connect to AirView™, a ResMed patient monitoring tool, giving you access to key patient data
Offers an impressive power-to-weight ratio
Easy learning curve for clinicians and caregivers
Responsive algorithms deliver adaptive, personalized ventilation as the disease progresses
When safety and security are paramount
ResMed Astral™ features remote monitoring capabilities that provide peace of mind for you and your patients while they’re at home. And when life brings unexpected changes, its lightweight design and up to 16 hours of continuous portable power give patients the confidence they need to pick up and go.
Easy to use
For clinicians and caregivers alike, Astral is easy to operate due to its intuitive interface and user-friendly features, including big button technology, program naming options and quick setup assistant. We make life support ventilation straightforward and efficient, which means less time spent on new device training and more time for patient care.
So smart, yet so simple
Astral features simple, yet sophisticated technologies for both invasive and non-invasive ventilation. One versatile ventilator provides flexible therapy options, including ResMed iVAPS™ with optional AutoEPAP, a mode well-suited for COPD patients. And with its remote patient monitoring capabilities, you can align with your team of HMEs, clinicians and physicians to optimize patient care.
Resmed Astral 150 Portable Ventilator Specifications:
| Indications for use | Life support for patients over 11 lbs (5 kg) |
| Single circuit with leak | √ |
| Single circuit with valve | √ |
| Double circuit | √ |
| Valve circuit therapy: CPAP, (A)CV, P(A)CV, P-SIMV, V-SIMV, PS | √ |
| Leak circuit therapy: CPAP, (S)T, P(A)C, iVAPS3 and optional AutoEPAP4 | √ |
| Mouthpiece ventilation therapy: (A)CV , P(A)CV, PS/SVt | √ |
| Manual breath | √ |
| Sigh breath (recruitment) | √ |
| Apnea ventilation | Volume and pressure |
| Preset programs | 4 |
| Delivered pressure (cmH2O) | 2–50 (leak circuit)0–50 (valve circuit) |
| Delivered tidal volume (mL) | Adult: 100–2500 mLPediatric: 50–300 mL |
| Respiratory rate | Adult: Off, 2–50 bpmPediatric: Off, 5–80 bpm |
| SpO2 monitoring | Optional |
| On screen | 30 days of summary data Real-time pressure and flow (25 Hz) |
| ResScanTM (via download) | 365 days of summary data 7 days of detailed data |
| AirViewTM (RCM required) | 365 days of summary data 7 days of detailed data |
| ALARMS | A WIDE RANGE OF SETTABLE ALARMS ARE AVAILABLE INCLUDING FIO2 AND SPO2 WHEN CONNECTED |
| DIMENSIONS |
| Weight | 7.1 lbs (3.2 kg) |
| Dimensions (L x W x H) | 285 mm x 215 mm x 93 mm |
| Internal battery | Lithium-Ion battery, 14.4 V, 6.6 Ah, 95 Wh. 8 hours of backup power |
| Sound power level | 43 +/- 3 dBA: as measured according to ISO 80601-2-12:2011 |
| Sound pressure level | 35 +/- 3 dBA: as measured according to ISO 80601-2-12:2011 |
ResMed’s Astral 150 life support ventilator offers excellence in invasive and non invasive ventilation without compromise. From initial setup to everyday use, Astral offers greater freedom, confident care and designed efficiency to enrich life for you and your patients.
