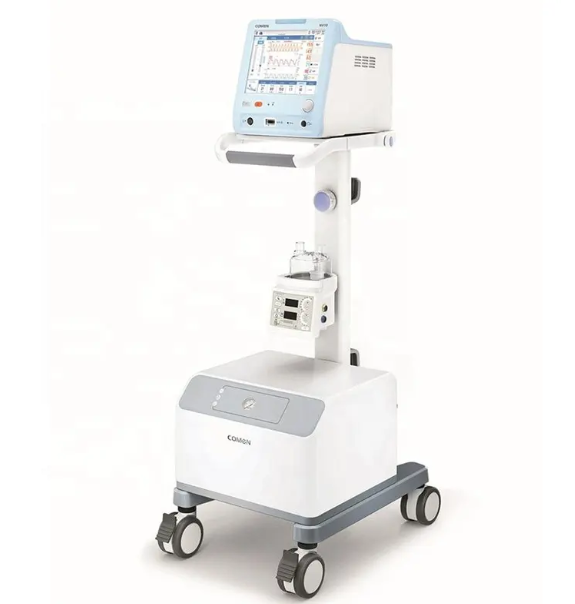

NV10 Neonatal Ventilator
Increase NIV Confidence Further than Ever
COMEN NV10 includes a complete NIV set with specialized ventilation tools for neonates and children, expanding the ventilation strategies to protect each spontaneous breath. It offers a robust ventilation system and elevates oxygenation level at all stages.
HFNC + ROX – ROX index to optimize ventilation strategy.
nCPAP + Apnea Auto-relief – Preset compulsory pressure-controlled ventilation after apnea detected
DuoVent – Increase mean airway pressure (MAP) while maintain free breath.
2 Sync SNIPPV + Back Up Vent – Selectable synchronization methods to catch the breath at all times.
NIPPV – Sustained alveolar ventilation during episodes of apnea
Single-limb nHFO – Patented diaphragm ocssilator with single-limb ventilation to create a safety net for NIV
Oscillation Therapy Revolution
Multiple Benefits of nHFO Raise Profile in Clinical Research and Practice
The advantages of non-invasive high-frequency oscillation encompass enhanced carbon dioxide elimination, reduced dead space during ventilation, and effective treatment of persistent pulmonary hypertension (PPHN) when used with nitric oxide. There is a growing amount of academic research focusing on the benefits of non-invasive high frequency ventilation in new-born.
Minimization of Work of Breath in Every Detail
A single-limb setup, as opposed to a dual-limb configuration with a Y-piece and doubled tubing cavity, effectively reduces dead space, thereby decreasing the work of breathing of patients.
Unique Oscillator Design
The generation mechanisms on the market today are diaphragm oscillation piston type, bi-directional jet and high frequency flow-interrupter with expiration assist. NV10 adopts the most recognized method, diaphragm oscillation, and applied Comen’s unique and advance design which provide a quieter and more powerful oscillator, Covering all the scenario in practice.
Sensitively Respond to Patients Every Breath
2 Sync Modes with Unique Algorithm
The abdominal sensor is designed for quick response and cost-effectiveness. The pressure sensor minimizes false activations due
Apnea management
Data indicates that preterm infants with a gestational age of less than 29 weeks have an asphyxia risk nearing 100%. Both nCPAP and SNIPPV modes employ dual methods with a variety of parameters to closely monitor a patient’s respiratory condition, ensuring timely detection of any signs of apnea from all monitored parameters.
Targeted Pressure as Needed
Leakage Compensation System
The NV 10 is equipped with a leakage compensation system up to 100% pressure compensatory, ensuring that patients receive the set pressure in the event of leakage.
