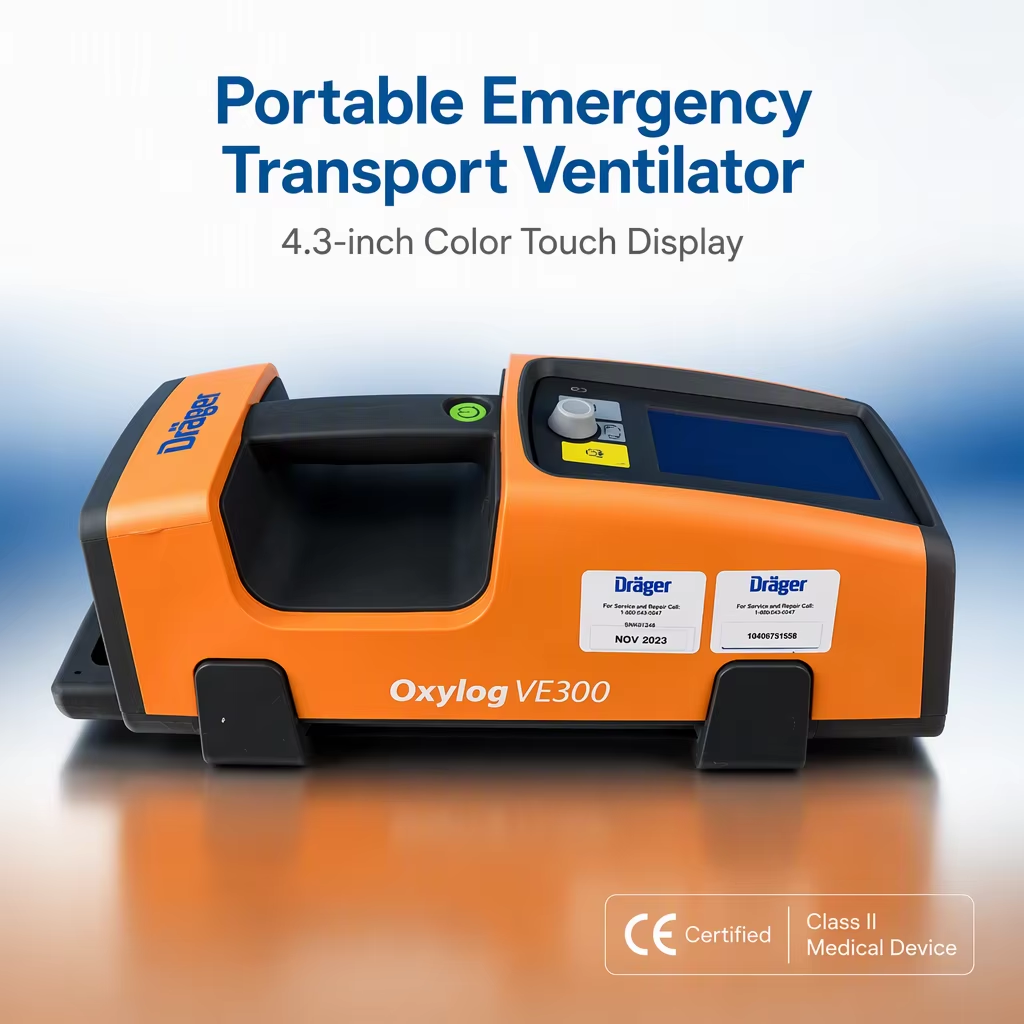

Draeger Oxylog EV300 Transport Ventilator Emergency Medical Equipment
The Dräger Oxylog VE300 is a portable emergency and transport ventilator designed to provide dependable respiratory support during pre-hospital care, emergency responses, and patient transfers. It is rugged, lightweight, and easy to operate — developed specifically for first responders, paramedics,
Specifications
Ventilation Modes : VC-CMV, VC-AC, VC-SIMV, PC-BIPAP, SPN-CPAP/PS with NIV, CPR mode
Tidal Volume Range : ≥50 mL
Operating Temp. : −20 °C to +50 °C

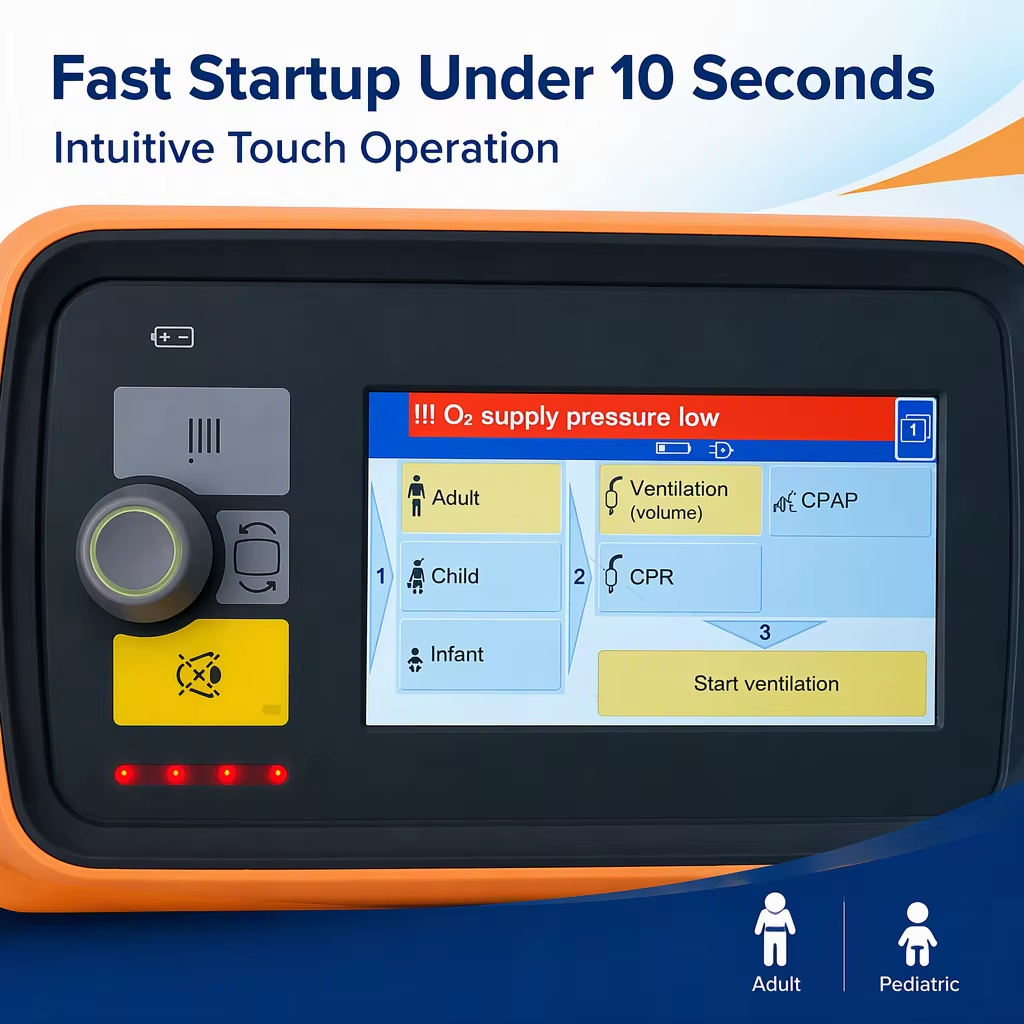

Startup Time : <10 s
Device Check Time : <1 min
Battery : Replaceable & rechargeable lithium-ion (~8–9 hrs)
Power Supply : 100–240 V AC
Display : Colour touchscreen with 180° rotation
Data Interfaces : Bluetooth, USB

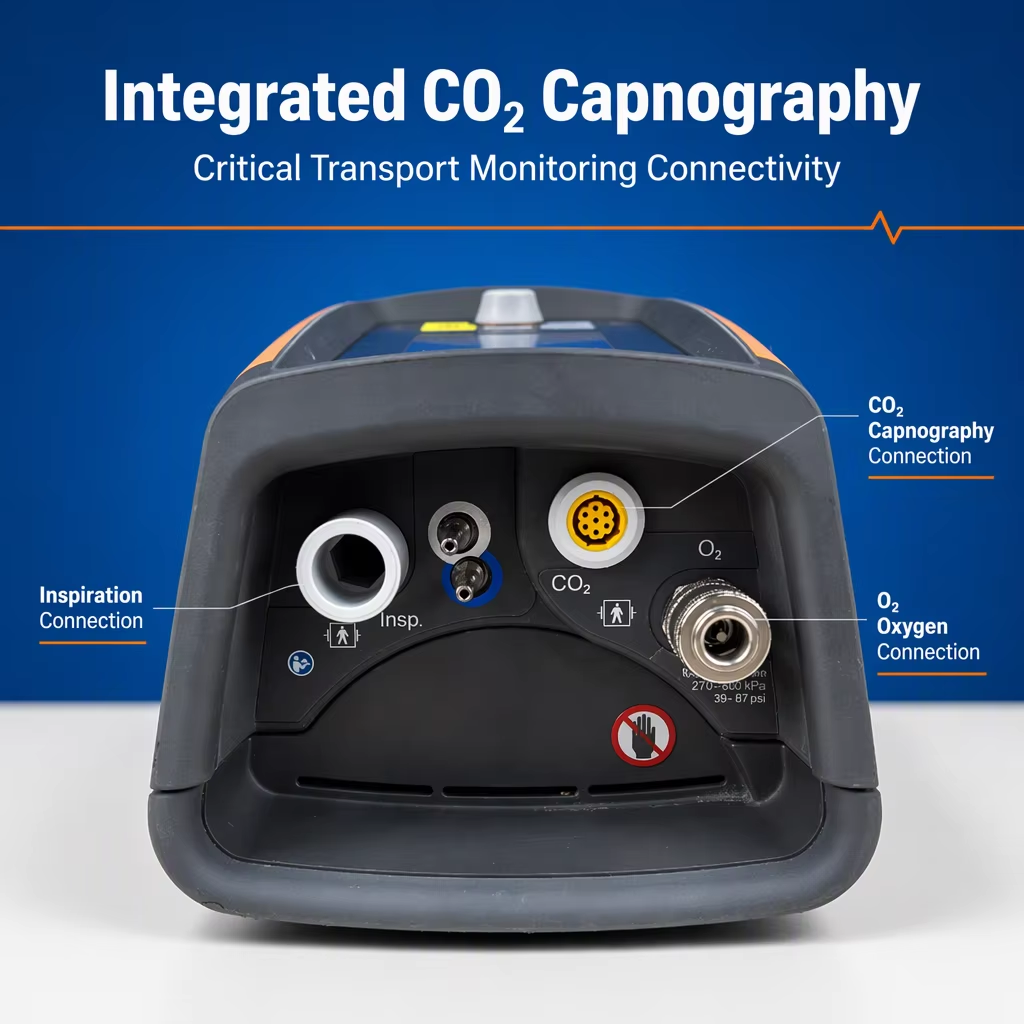

Capnography : Mainstream CO₂ monitoring
Weight : ~5.6 kg (varies by configuration)
Dimensions : Approx. 399 × 153 × 160 mm
Highlights
Rugged, portable & lightweight (≈3.3–3.6 kg depending on configuration) for demanding field use.
Fast ventilation start with preset parameters for adult, child, and infant patients.
Built for extreme environments with broad operating temperature range.
Integrated CPR mode enables ventilation during resuscitation.
Reliable long-life battery supporting extended transport missions.

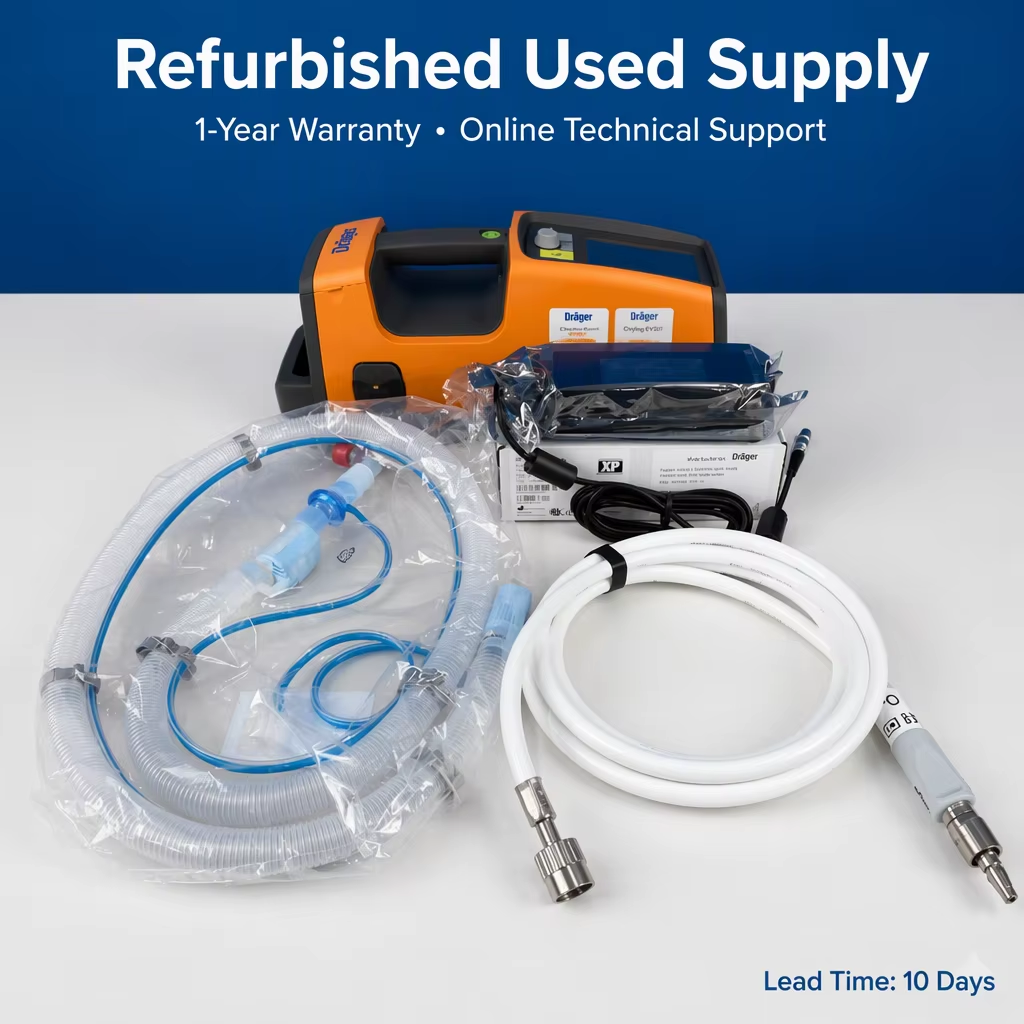

in the box
Dräger Oxylog VE300 Ventilator unit
Rechargeable lithium-ion battery
AC power adapter & power cable
Patient breathing circuit components (may vary)
Documentation (user manual & quick start guide)
Accessories (optional) — belt, stretcher mount, accessory bag, battery charger
Use Cases :
Pre-hospital EMS & rescue services
Inter-hospital transport
Critical care backup and mobile ventilation
Invasive & non-invasive support
Key Features :
Lightweight (3.6kg) and portable
Clear color touch screen
Flip-screen button for 180° display rotation
Volume-controlled ventilation (VC-CMV / VC-AC, VC-SIMV)
Pressure-controlled ventilation
Non-invasive ventilation (NIV with CPAP)
Spontaneous breathing and pressure support
Quick-start ventilation
Single-keystroke CPR-mode activation
Robust and ergonomic design
