Graphical with LCD backlight, 9.7 x 7.1 cm (3.8 x 2.8 in.) Compatible with ink jet and laser printers with HP PCL 5 or greater
190 to 1100 nm
Double beam—internal reference detector

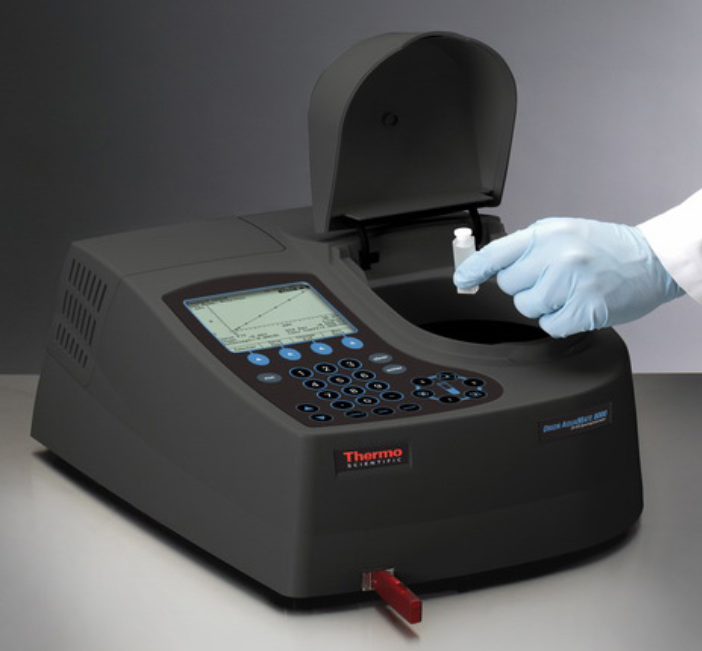

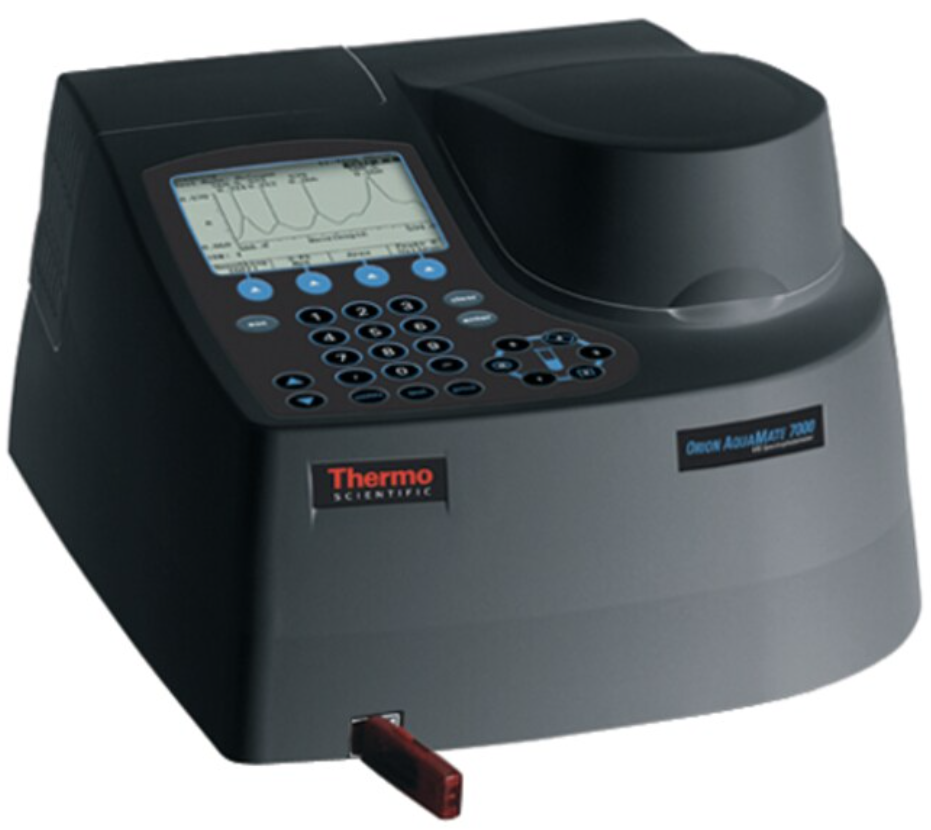

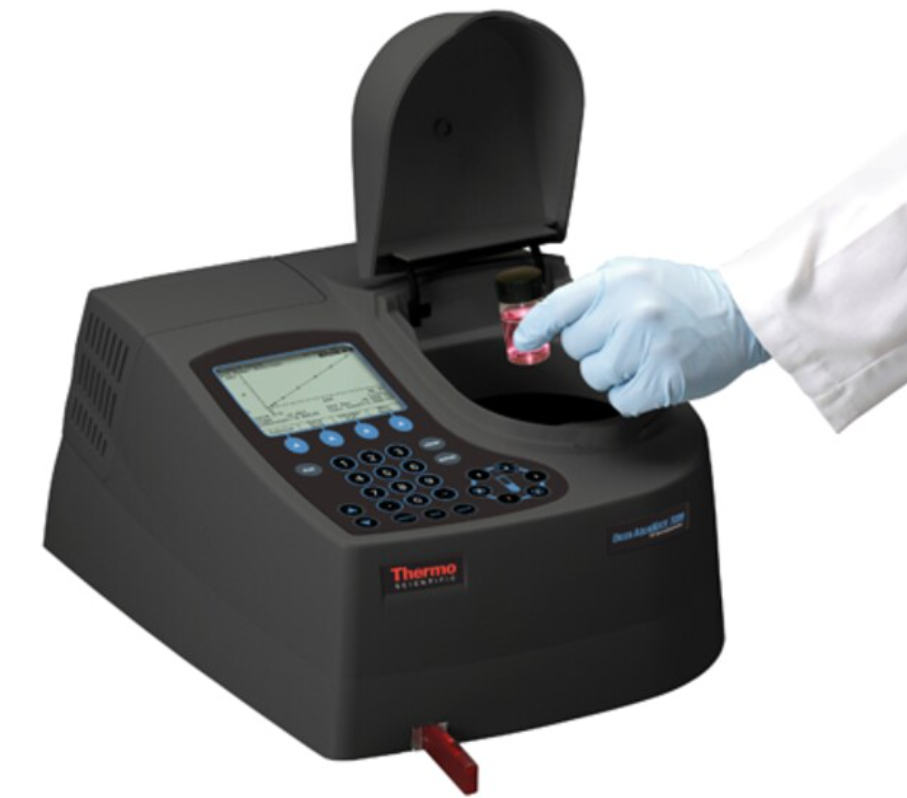

Thermo Scientific™ Orion™ AquaMate 8000 UV-Vis Spectrophotometer
Equip your lab with the accurate, easy to use Thermo Scientific™ Orion™ AquaMate 8000 UV-Vis Spectrophotometer to ensure the ideal instrument for water analysis and beyond
Equip your lab with the accurate, easy to use Thermo Scientific™ Orion™ AquaMate 8000 UV-Vis Spectrophotometer to ensure you have the ideal instrument for water analysis and beyond. This spectrophotometer offers 260 preprogrammed methods for ion concentration from absorbance plus wavelength scanning function and standard curve function for creating custom method using so virtually any brand of colorimetric reagent can be used. Utilize 190-1100 nm selectable wavelengths, 1.8 nm spectral bandwidth and vial flexibility with the included 3-position carousel for holding round and rectangular vials.
Pre-programmed Methods:
More than 260 pre-programmed methods offer easy and convenient measurements using Orion™ AQUAfast™, Merck™ or CHEMetrics™ chemistries
Pre-programmed methods can also be adapted for new chemistries or operators can create their own custom methods and calibration curves
Instruments allow a one-point adjustment on any preprogrammed method to correct for variations in batch reagent chemistries
Versatility:
Wide variety of vials sizes can be used, including 10mm square vials, 20 and 50mm rectangular vials and an adjustable round vial holder that accommodates 13, 16, and 24mm round vials
Three USB connections provide the options to store methods and data to a USB memory stick, transfer data to a computer, and print hard copy data to an external printer
System is compatible with ink jet and laser printers with HP PCL 5 or greater
Verification:
Performance verification tests ensure wavelength accuracy and instrument functionality
Each verification report gives the time, date and instrument serial number in accordance with GLP and GMP
Built-in wavelength accuracy test is compatible with either the internal lamp or external calibrated standards
Built-in test methods for stray light, noise and resolution are available to validate instrument performance further
Includes:
Methods on USB memory stick
Three-position cell holder
User documentation
Dust cover
USB cable
110V, 220V and 240V power cords
Technical parameter：
Accuracy (Photometric) ±0.005A at 1.0A; <0.00025 at 0.0A
Connections USB type A port for USB stick (front panel), USB type B port for computer (rear panel), USB type A port for printer (rear panel)
Detector Type Dual silicon photodiodes
Drift <0.0005A/hr
Height (Metric) 25cm
Includes Methods on USB memory stick; 6-position cell holder; 3-position cell holder; 1-position cell holder; User documentation; Dust cover; USB cable; 110V and 220V power cords
Keypad Sealed membrane with tactile response keys
Min. Data Interval 0.2; 0.5; 1.0; 2.0; 3.0; 5.0nm
Optical Design Dual beam—internal reference detector
Range (Photometric) -0.5 to 5.0 A ; -1.5 to 125 %T; ±9999 C
Stray Light <0.08 %T at 220nm and 340nm; <0.1 %T at 340nm and 400nm; <1.0 %T at 198nm
Wavelength Accuracy ±1.0nm
Wavelength Repeatability ±0.5nm
Wavelength Slew Speed 11,000nm/min
Width (Metric) 30cm
Compatibility Compatible with ink jet and laser printers with HP PCL 5 or greater
Description AquaMate 8000 UV-Vis Spectrophotometer
Display Graphical with LCD backlight—9.7 x 7.1cm (3.8 x 2.8 in.)
Electrical Requirements 100 to 240V 50/60Hz
Hertz 50/60Hz
Item Description AquaMate 8000 UV-Vis Spectrophotometer
Lamp Xenon flash lamp (5 years)
Noise <0.00050 at 1.0 A; <0.00080 at 2.0 A RMS at 260nm
Photometric Linearity Up to 3.5A at 260nm
Spectral Bandwidth 1.8nm
Voltage 100 to 240V
Wavelength Range 190 to 1,100nm
Wavelength Scan Speed 10 to 4,200nm/min
Weight (Metric) 8.6kg
