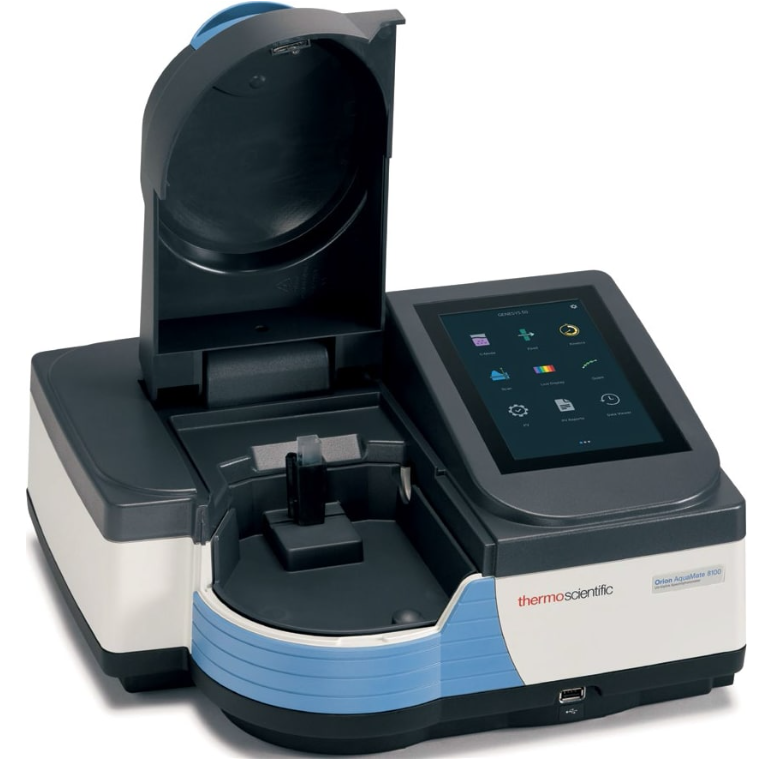

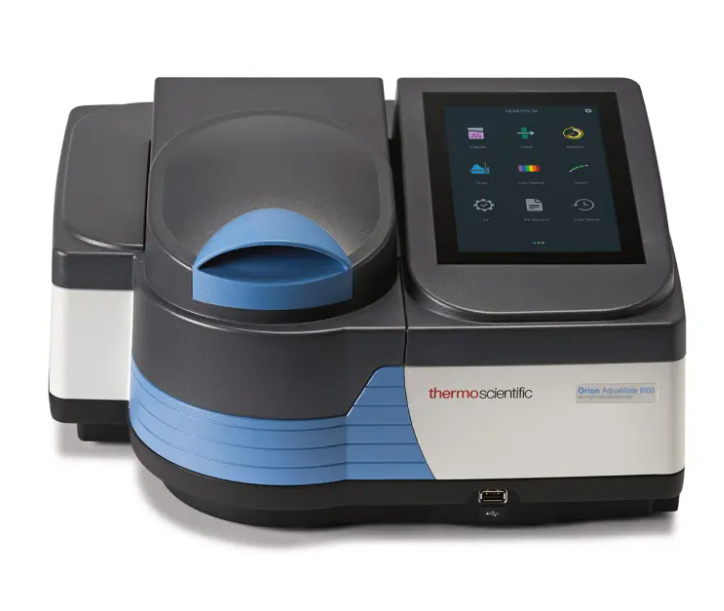

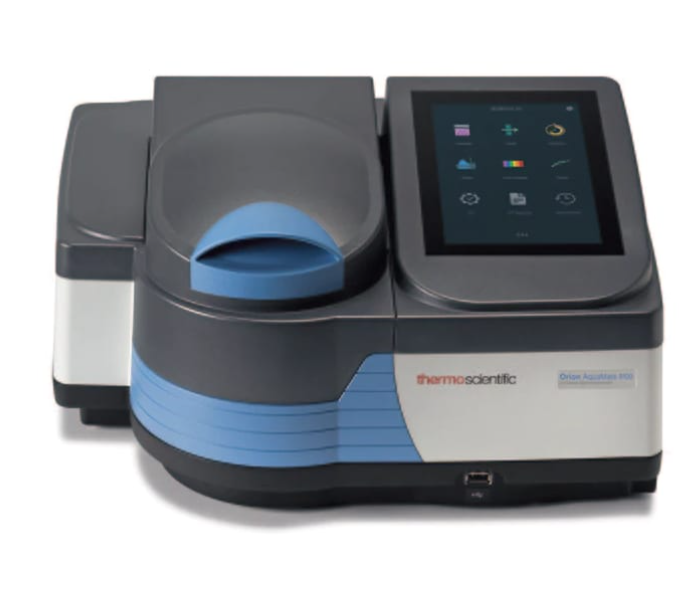

Thermo Scientific Aquamate 8100 - UV-Visible Spectrophotometer, 190 to 1100nm, Dual-beam
AquaMate AQ8100 and AQ7100 UV/VIS spectrophotometer
Equip your lab with the accurate, easy to use Thermo Scientific Orion AquaMate 8100 UV-Vis Spectrophotometer to ensure you have the ideal instrument for water analysis and beyond. This spectrophotometer offers 260 pre-programmed methods for ion concentration from absorbance, plus wavelength scanning- and standard curve function for creating custom methods using virtually any brand of colorimetric reagent. The XENON lamp provides excellent performance over the entire wavelength range of 190-1100 nm and the 1.8 nm spectral bandwidth yields optimal system resolution, permitting more light energy to reach the sample, thus resulting in lower detection limits and superior signal-to-noise performance. The instrument allows ultimate flexibility with three magnetically retained vial holder options that accommodate 12-25 mm round, 10 mm square and 20-100 mm rectangular vials. An adjustable round vial holder is also available that accommodates 13 to 24mm round vials.
AQUAMATE 8100 UV-VIS SPECTRO NA EU UK
UV-Visible wavelengths from 190 to 1100nm
Dual-beam optics and xenon flash lamp (no warm-up required)
2nm spectral bandwidth
Wavelength scanning at speeds up to 1,600nm per minute
Easy-to-use glove-friendly touchscreen user interface
260 preprogrammed test methods, and flexibility to program your own custom methods
Round, square, and rectangular vial holders
Intuitive operating software, including performance verification testing designed to meet GLP and GMP standards

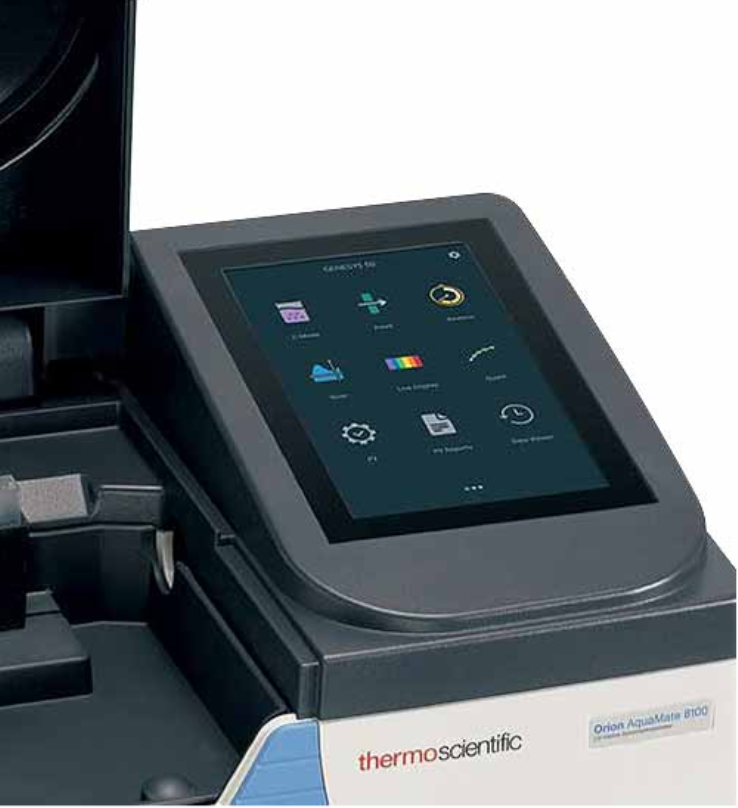

7-inch, high-resolution glove-friendly touchscreen interface
The AquaMate 8100 UV-Visible Spectrophotometer delivers unsurpassed data quality throughout the entire UV to the near-IR regions of the spectrum. Dual-beam optical geometry provides accurate measurements and the high-intensity, instant-on xenon lamp has a five-year lifespan. Superior signal-to-noise performance and fast wavelength scanning let you quickly and reliably acquire high-quality spectral data.
Pre-programmed Methods:
More than 260 preprogrammed methods offer easy and convenient measurements using Orion AQUAfast™, Merck™ or CHEMetrics™ chemistries
Preprogrammed methods can also be adapted for new chemistries or operators can create their own custom methods and calibration curves
Instruments allow a one-point adjustment on any preprogrammed method to correct for variations in batch reagent chemistries
Versatility:
Glove friendly 7-inch touch screen controller
Wide variety of vials sizes can be used, including 10mm square vials, 20 and 50mm rectangular vials and an adjustable round vial holder that accommodates vials and test tube from 12 to 25 mm OD
Verification:
Performance verification tests ensure wavelength accuracy and instrument functionality
Each verification report gives the time, date and instrument serial number in accordance with GLP and GMP
Built-in wavelength accuracy test is compatible with either the internal lamp or external calibrated standards
Built-in test methods for stray light, noise and resolution are available to validate instrument performance further
Flexible nm bandwidth
The Orion AquaMate 8100 UV-Visible Spectrophotometer balances regulatory compliance with sensitivity. A 2.0 nm spectral bandwidth provides optimal system resolution, permitting more light energy to reach the sample, thus resulting in lower detection limits and superior signal-tonoise performance.
Fast wavelength scanning
The Orion AquaMate 8100 UV-Visible Spectrophotometer is equipped with enhanced wavelength scanning technology that acquires high quality spectral data quickly. The instrument accelerates through wavelength scans at speeds up to 1600 nm/min. The exceptionally large photometric range allows accurate measurements of small absorbance changes even when using highly absorbing blank samples. Scan data can be analyzed to determine peak and valley wavelength. The scan data can also be saved to the USB memory stick.
Spectrophotometer (life sciences) template
Spectroscopy Type (Spectrophotometer) UV-Vis
Beam Type (Spectrophotometers) Double
Wavelength Max (Spectrophotometers) 1100 nm
Wavelength Min (Spectrophotometers) 190 nm
Lamp Type (Spectrophotometers) Xenon
Scanning (Spectrophotometers) Yes
Voltage (Life Science) 100-240 VAC
Test Equipment General Attributes
Warranty 1 YEARS
Safety Approval CE
Interfaces I/O LAN / Ethernet, Wifi, USB
Product Weight 16.5 LBS
Product Height 7.67 IN
Product Length 13.97 IN
Product Width 15.15 IN
Manufacturer Specs
Accuracy (Photometric) ±0.002A at 0.5A
Certifications/Compliance CE / TUV
Detector Type Dual Silicon Photodiodes
Display 7-inch color touchscreen, fixed, high definition, 800 × 1280 pixels
Photometric Accuracy Instrument ±0.002A at 0.5A±0.004A at 1.0A±0.008A at 2.0A
Printer Snap-on printer included
Wavelength Accuracy ±0.5 nm
Applications Water and Waste Water Analysis
Baseline Flatness ±0.002A

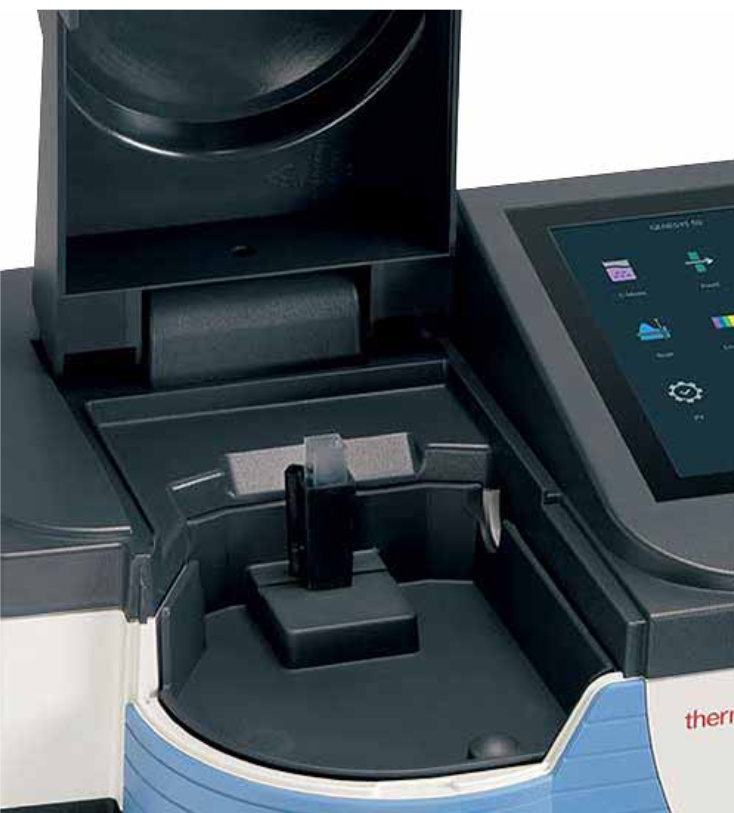

Compartments Accessible from the top, front, or side Able to accommodate cells up to 100 mm cells Available accessory for test tubes up to 25 mm diameter and 150 mm height Removable, washable sample compartment liner with magnetic placement and hold-down
Connections Single USB-A supports flash memory devices for method and data storage expert data to network or PC via USB, or EthernetPrint via USB, Ethernet or Wi-Fi USB adaptor available
Depth (Metric) 35.5 cm
Description AquaMate 8100 UV-Vis Spectrophotometer with North America, European, and UK Power cord
Dimensions (L x W x H) 35.5 x 38.5 x 19.5 cm
Drift <0.0005A/Hr (At 500 nm after 1-hour warmup)
Electrical Requirements External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100- 240 volts, 50 -60 Hz
Height (Metric) 19.5 cm
Interface Glove-friendly touch-screen
Keypad Glove-friendly touchscreen
Lamp Xenon Flash Lamp (>5 years typical)
Length (Metric) 35.5 cm
Noise (RMS at 500 nm 60 consecutive measurements) ≤0.00020A at 0A at 260 and 500 nm ≤0.00030A at 1A at 260 and 500 nm ≤0.00040A at 2A at 260 and 500 nm
Optical Design Dual-beam
Photometric Display -3A to +5A
Photometric Range -2A to +3.5A
Photometric Repeatability ±0.001A at 1A measured at 1.0A at 546 nm
Sample Volume (Metric) Multiple
Scan Speed Slow, medium, and fast - up to 1600 nm/min
Spectral Bandwidth 2 nm
Stray Light < 1.0%T 198 nm (KCl) , <0.05%T at 220 nm (NaI), <0.03%T at 340 nm (NaNO2)
Type Uv-Vis
Wavelength Data Interval 0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm
Wavelength Range 190 nm 1100
Wavelength Repeatability < ±0.2 nm
Wavelength Scan Speed Slow, medium, and fast - up to 1600 nm/min
Weight (Metric) 7.5 kg
Width (Metric) 38.5 cm
Warranty 1 Year
Unit Size Each
