Jenway spectrofotometer 7410 VIS Description
Introducing the NEW 74 Series Spectrophotometers
7" High Definition colour touchscreen display
Android operating system
Internal memory for methods and results (10GB onboard storage)
Multiple USB ports for data storage and printer connectivity
Multi-language options including English, French, German, Spanish and Italian
Extensive range of accessories available 3-year warranty (including xenon lamp)

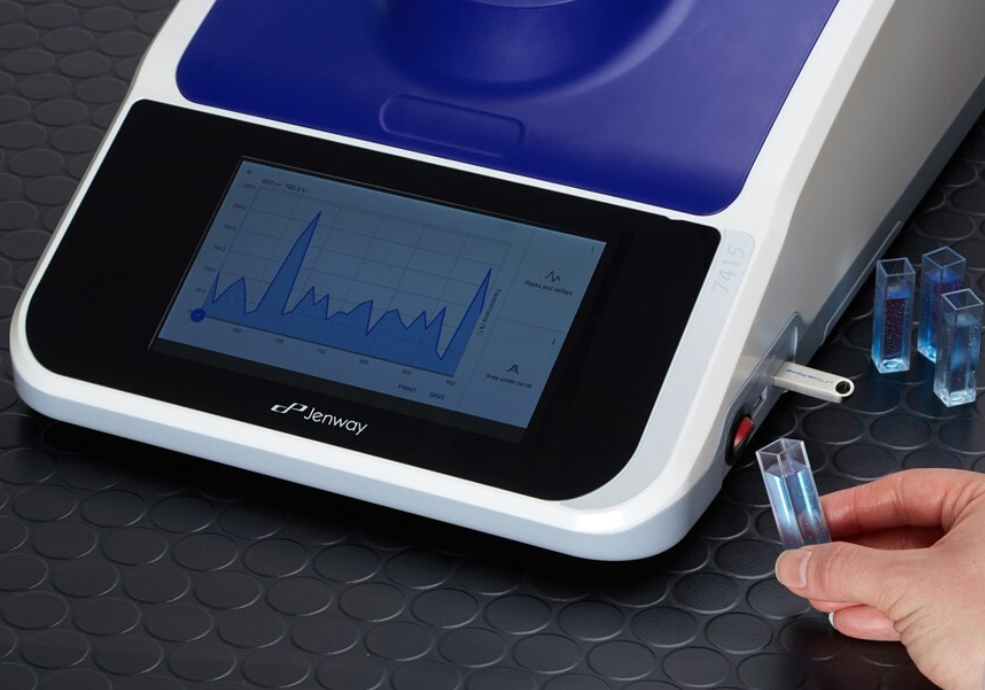

The large 7" High Definition colour touchscreen enables users to zoom in and out and select points all by simply touching the screen. The touchscreen interface is fast and responsive even when wearing gloves.
The large 7" High Definition colour touchscreen enables users to zoom in and out and select points all by simply touching the screen. The touchscreen interface is fast and responsive even when wearing gloves.

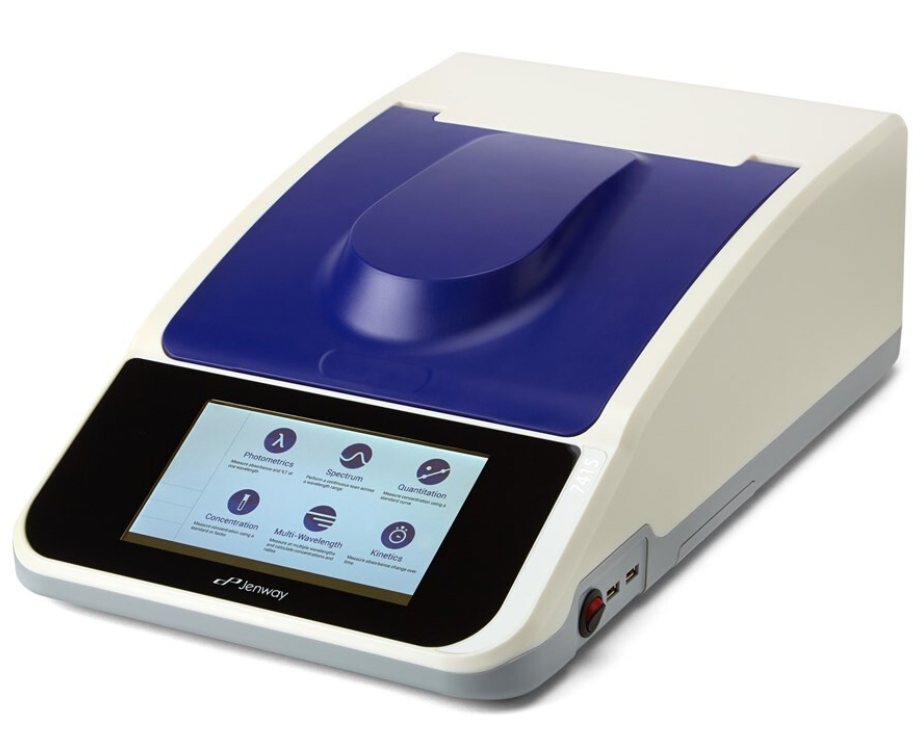

Model 7410 uses a tungsten halogen lamp for measurements in the visible spectrum from 320 to 1000nm. This spectrophotometer offers measurement modes for simple photometrics; concentration calculated using a single standard or a factor; quantitation with the ability to create a calibration curve using up to 20 standards; full spectrum scanning; multi-wavelength, where up to 4 wavelengths can be measured simultaneously and kinetics, to monitor the change in absorbance over time.
The 7410 visible, scanning spectrophotometer is fitted with a 10x10mm cuvette holder and is supplied with instruction manual and universal power supply.
Full product specification.
Wavelength Range: 320 to 1000nm
Light source: Tungsten halogen lamp
Accuracy: ± 2nm
Repeatibility: ± 0.5nm
Spectral bandwidth: 5nm
Photometric Transmittance: 0 to 199.9%
Photometric Absorbance: -0.300 to 2.500
Photometric Accuracy: ±1%T, ±0.01Abs at 1.000 Absorbance
Concentation Calibration: Blank with a single standard or factor
Quantitation Calibration: Blank with up to 20 standards
Quantitation Curve fit algorithms: Quadratic, quadratic through zero, linear, linear through zero, interpolate
Kinetics Analysis: Concentration, rate of change, initial and final absorbance/%T
Spectrum Range: 320 to 1000nm
Spectrum Scan interval: 1, 2, 5 or 10nm
Spectrum Analysis: Absorbance or transmittance, peak and valleys and area under the curve
Internal memory: 10GB
External memory: Limited by attached mass storage device
Outputs: USB Type A x 2, USB Type B x 1, Ethernet connection (RJ45)
Size (w x d x h): 280 x 500 x 156mm
Weight: 9kg
Manufacturer Specs
| Jenway 7410 General Specifications | |
| Cloud Connected | YES |
| Stray Light | <0.5% at 340nm |
| Source Lamp | Tungsten halogen |
| Beam Type | Single |
| Bandwidth | 5 nm |
| Min Wavelength (nm) | 320 |
| Max Wavelength (nm) | 1000 |
| Wavelength Accuracy | ± 2nm |
| Wavelength Reproducibility | ± 0.5nm |
| Pathlength (mm) | 10-100 |
| Min Photometric - Transmittance (%T) | 0 |
| Max Photometric - Transmittance (%T) | 199.9 |
| Min Photometric - Absorbance (A) | -0.3 |
| Max Photometric - Absorbance (A) | 2.5 |
| Photometric Accuracy | ±1%T, ±0.01Abs at 1.000 Absorbance |
| Detector | Silicon photodiode |
| Concentration | -300 to 9999 |
| Data Logging Capability | 10GB |
| Output | USB Type A x 2; USB Type B x 1; Ethernet RJ45 |
| Display Type | Touchscreen |
| Materials of Construction | White ABS Plastic |
| Width (cm) | 28 |
| Height (cm) | 15.6 |
| Depth (cm) | 50 |
| Power (VAC) | 100 to 240 |
| Power (Hz) | 50/60 |
| Description | Scanning Visible Spectrophotometer with CPLive™ Cloud Connectivity |
Tech Specs
Spectrophotometer (life sciences) template
Spectroscopy Type (Spectrophotometer) Vis
Beam Type (Spectrophotometers) Single
Wavelength Max (Spectrophotometers) 1000 nm
Wavelength Min (Spectrophotometers) 320 nm
Lamp Type (Spectrophotometers) Tungsten-Halogen
Scanning (Spectrophotometers) Yes
Voltage (Life Science) 100-240 VAC
Test Equipment General Attributes
Warranty 3 YEARS
Safety Approval CE
Interfaces I/O LAN / Ethernet, USB
