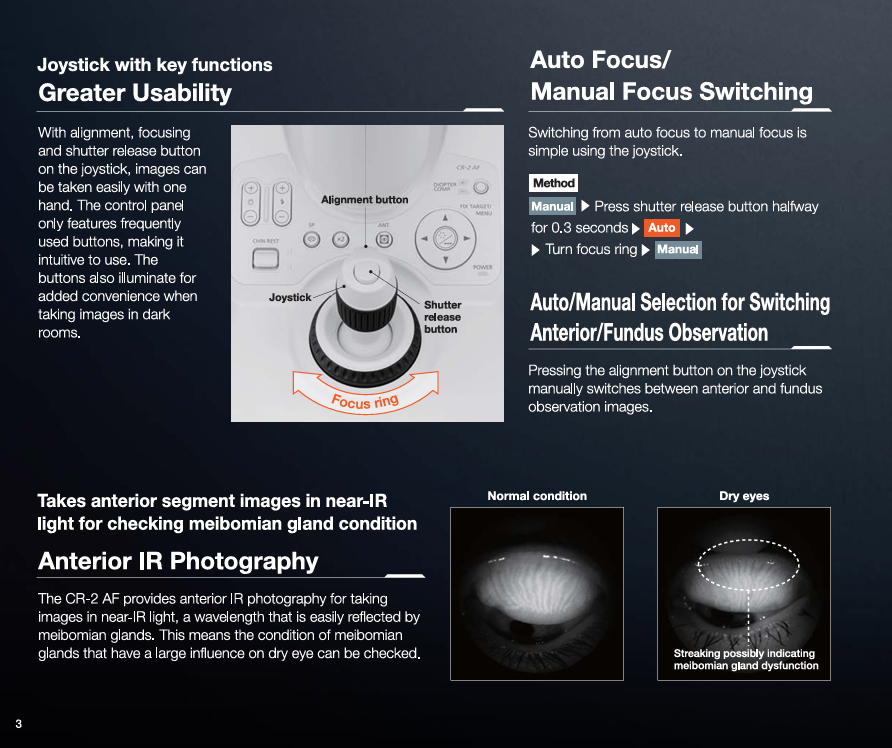

Infrared Anterior imaging Multifunctional joystick Low flash photography Short reaching distance Portability 2X magnification
305 x 500 x 513 mm 19.9Kg
Canon CR-2 AF Fundus camera Non-Mydriatic Retinal Camera
The CR-2 Plus AF is an Auto focusing Non Mydriatic Camera with Fundus AutoFluorescence (FAF) With the added auto functions, taking images with a Canon retinal camera has never been easier! The FAF photography mode will provide information on changes of the retina that can’t be made visible with standard colour photography. The 5 photography modes: Color, Red Free, Cobalt, FAF and Anterior Segment make the CR-2 Plus AF a very versatile retinal camera. It is equipped with a unique dedicated EOS camera for the highest image quality.
CR-2 AF
The CR-2 AF Digital Non-Mydriatic Retinal Camera features the latest in Canon retinal imaging technology and enhancements in a compact and light weight design. The CR-2 AF also provides autofunctionality with contrast enhancement. It can be installed and takes up minimal space. For added convenience, the CR-2 AF camera can remain mobile for easy transportation when needed using an optional hard shell transport case, sold separately.
General
Type of Photography Color, Digital Red-Free, Digital Cobalt, Fundus Autofluorescence (FAF)
Angle of View 45° (35° SP Mode)
Magnification 2X Digital
Minimal Pupil Size 4.0 mm (3.3 mm SP Mode)
Focus Adjustment Type Split-line Adjustment
Patient Diopter Compensation Range Without Compensation Lens: -10 to +15D
With "-" Compensation Lens: -31D to -7D
With "+" Compensation Lens: +11D to +33D
Light Source Observation: Infrared
Photography: Xenon tube
Canthus Mark 420 mm From Base
Internal Eye Fixation LED Dot Matrix
External Eye Fixation White LED (Sold Separately)
Working Distance 35 mm
Working Distance Adjustment Anterior Observation: Double Image Match Method
Fundus Observation: Working Distance Dots
Sensor Resolution 18.0 Megapixels
Camera Dedicated EOS Camera for CR-2 PLUS (Bundled)
Monitor 3.0 inch LCD Monitor
External Monitor (Optional)
Auto Function Automatic Exposure
Mount Movement Front and Back 70 mm
Side to Side 100 mm
Up and Down 30 mm
Chin Rest Movement 60 mm
Electrical and Environmental
PC Interface USB 1.1, USB 2.0
Power Supply AC 100-240V 50/60Hz
Operating Environment Temperature: 50° to 86° Fahrenheit (10° to 35° Celcius)
Humidity: 30% RH to 90% RH (No Condensation)
Atmospheric Pressure: 800 hPa to 1060hPa
Physical Characteristics
Dimensions (W x D x H) 12 x 19.7 x 20.2 inches
(305 x 500 x 513 mm)
Weight 43.9 lbs (19.9 kg)
