Digital retinal camera (mydriatic and non-mydriatic)
Mydriatic: 5.1mm 4.3 mm when SP function is selected Non-mydriatic: 4.3mm 3.8mm when SP function is selected
320mm x 531 mm x 577 mm Approx, 26kg (57lbs)

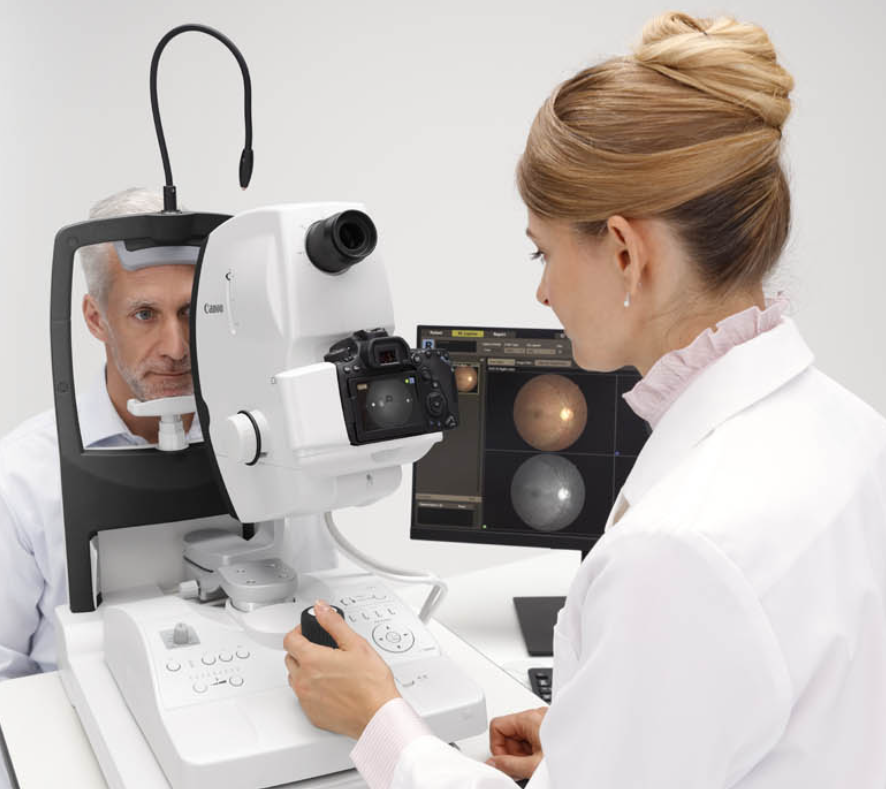

The CX-1 digital retina camera is a fully digital hybrid retinal camera system with mydriatic and non-mydriatic modes. High-quality diagnostic image capturing is easier and more efficient than ever. By simple push-button operation, change modes and adjust functions to deliver comfortable procedures to the patient for concurrent eye examinations.
One-touch selection of Myd/Non-Myd
A canon first – with one touch switch between mydriatic and non-mydriatic imaging modes. A single push of the “Myd/Non-Myd” button initiates the automatic adjustment of the inner mechanism. The operator can effortlessly utilize different functions within seconds and perform several concurrent ocular tests.
Superior image quality
High-precision canon optics achieve retinal imaging of the highest quality. Wide angles of view for both Myd and Non-Myd observation are exceptionally clear with higher resolution, even when magnified to double the original size using”2x Mode.”
Intelligent monitor assistance
The onboard EOS camera’s LCD monitor provides several features to assist in efficient image acquisition, such as automatic magnification during focusing for clear split line observation. Magnification size options for the monitor enhance effective examination.
Intuitive operation

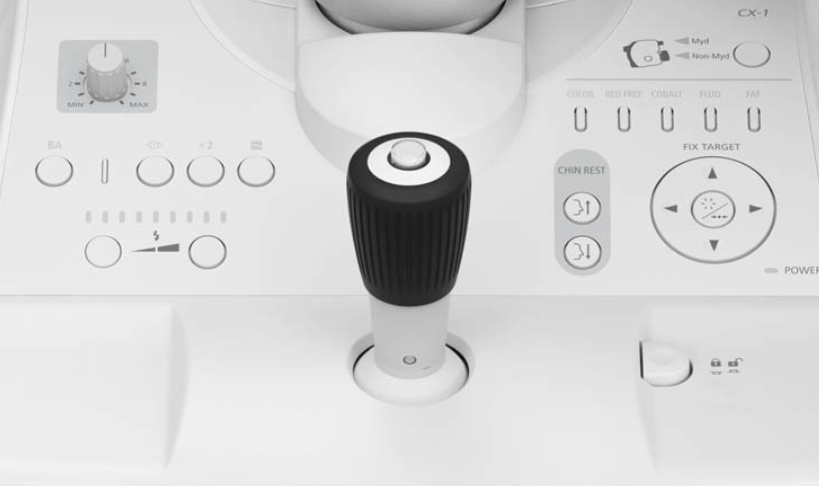

The configuration of the controls is based on simplified operation, workflow efficiency, and ergonomic design. During either Myd or Non-Myd observation, select freely from the five available shooting modes for optimal exam combinations. The entire control panel faciliatess smooth procedural transitioning where several steps were once required manually, the CX-1 needs only the touch of a button for adjustments to occur. the bundled control software provides even further usability.
Stereo image management
The LCD monitor displays guides which automatically determine the base length for acquiring successful stereo image. These capture images can be displayed simultaneously on the provided PC software. The pairing can be subsequently be stored and managed as a pair, so as to eliminate the need to look for corresponding files.
SPECIFICATION
| Type | Digital retinal camera (mydriatic and non-mydriatic) |
| Types of photography | Color, FA, Red Free, Cobalt, FAF |
| Retinal observation | Mydriatic: optical viewfinder Non-mydriatic: camera unit monitor |
| Angle of view | Mydriatic: 50 degrees Non-mydriatic: 45 degrees |
| Magnification | 2X (digital) |
| Minimum pupil size | Mydriatic: 5.1mm 4.3 mm when SP function is selected Non-mydriatic: 4.3mm 3.8mm when SP function is selected |
| Mounted digital camera | Dedicated digital camera by Canon EOS technology |
| Sensor | 15.1 megapixels CMOS |
| Patient’s diopter | Without compensation lens: -10D to +15D |
| Compensation range | With “-“ compensation lens: -31D to -7D With “+” compensation lens: -11D to +33D |
| Working distance | 35mm form the front of objective lens |
| Working distance adjustment | Working distance dots on retina |
| Fixation target | Mydriatic: external type (standard), internal type (optional) Non-Mydriatic: internal fixation target (LED dot matrix, green) |
| Light source | Mydriatic: halogen lamp for observation, xenon tube for photography |
| Range of base movement | 65mm front and back, 110mm side to side, 30mm up and down |
| Panning range | 30 degrees to the right and left |
| Tilting range | 15 degrees up, 10 degrees down |
| Operating environment | Temperature: 10 degrees celcius to 35 degrees celcius Humidity: 30% RH to 80% RH |
| Dimensions (W x D x H) | 320mm x 531 mm x 577 mm (12.6in x 20.9in x 22.3in) |
| Weight | Approx, 26kg (57lbs) |
