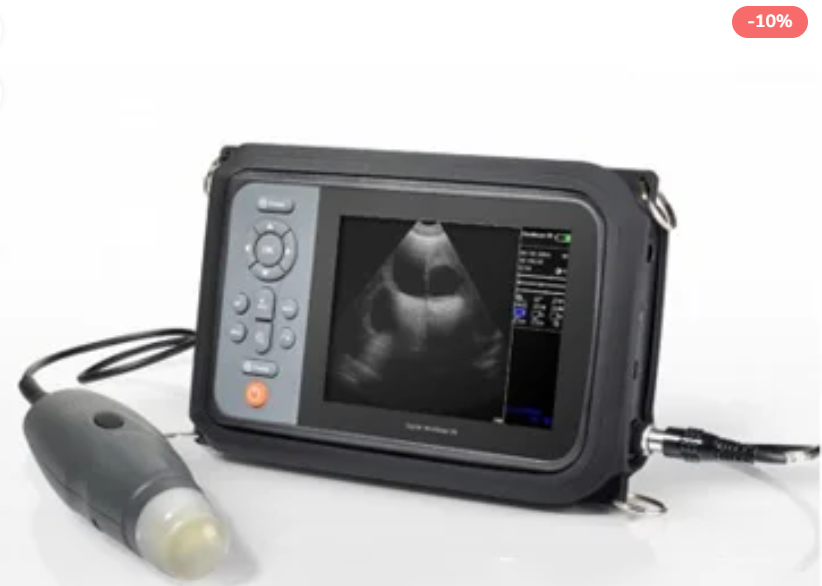

Sonovet-ID Veterinary ultrasound scanner with RFID technology handheld ultrasound scanner 6"color Display,
Portable RFID veterinary ultrasound machines Combined LF/UHF rfid metal tag for animal
Sonovet ID vet/animal ultrasound scanner,for pigs,poultry,poultry foot,sheep,cats,dogs,cattle
1.6" color Screen
High-resolution PVC mirror ensures batter performance for waterproof and dustproof
Level 7 waterproof professional design
RFID technology built-in probe with an effective short distance of 8-13 cm
The panel and probe are designed with double freezing keys to provide customers with more convenient
It is designed strictly according to the international standard software of animal eat tag system to freely input and output the data
Large-capacity IF card can be built in with multiple language instructions
Software can be customized by clients’s need.
Exclusive Features of RFID vet ultrasound scanner
New modem appearance
RFID Reader composed
Level 7 waterproof probe
FREEZE key on probe
TF card allow data

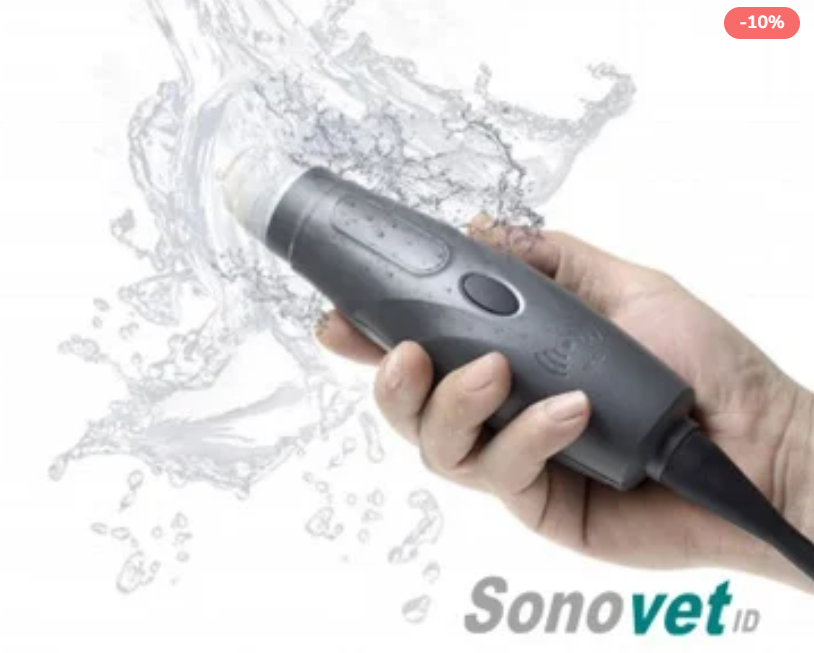

Probe of RFID veterinary ultrasound scanner Sonovet ID
Professional design with 7 level waterproof
Negative pressure controlling is built in ensuring no air bubble generated while is working
RFID starting button on it
FREEZE key are designed both on keyboard and the probe
2D/3D/4D probe
RFID veterinary ultrasound scanner Specifications
Display mode: B,B+B
Monitor: High resolution 6 inch color LCD
Probe: 3.5~5.0 MHz Professional 7 level waterproof
Max depth: 250mm
Gray level: 256 levels
Measurements:distance,Circumference and vellum
Animal OB:
Swine: HL,Sheep:USD,
Horse： BL,SL,HL
Act: HD,BD,Dog:BD,GSD,HD,BD
Battery:rechargeable Li,more than 3hrs
NW:
GW:5
Package:37 x 26 x 17Cm

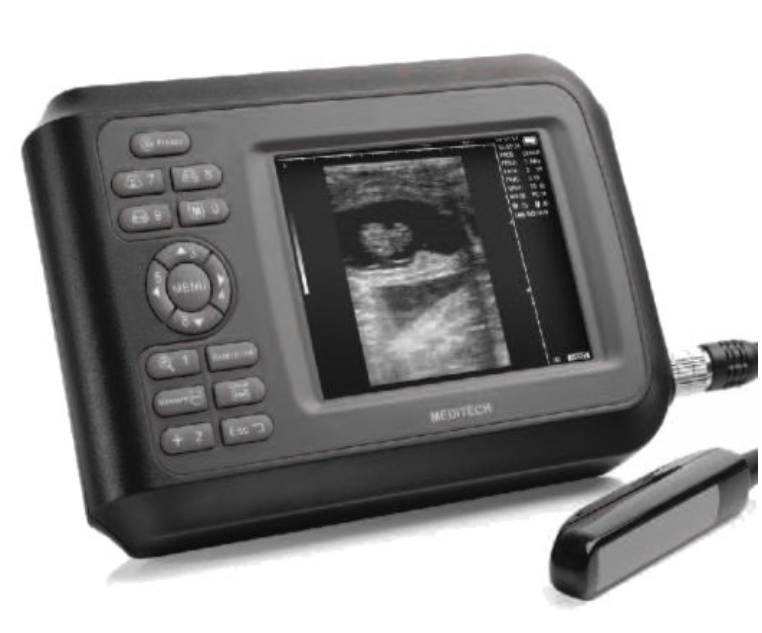

Sonovet palm veterinary ultrasound,weighting only 1.3KG,is distinguishable by its bright and clear image quality.The interchangeable probes offer a wide range of diagnostic applications. Light, Easy and more accurate diagnosis at the point of animal pregnancy at anytime, anywhere, for Vet hospital and outdoor.Battery powered veterinary ultrasound scanner is small and compact.
It is light, excellent for veterinary applications anywhere in the field. Very user friendly!
Monitor: 5.5 inch TFT Screen , (Option: 7 inch)
Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
256 frames for cine-memory
64 image permanent storage
Full digital beam-forming technology
probe automatic identification
Gama correction,histogram
Scanning angle adjustment
USB 2.0For real-time picture uploading to PC
Scanning Method: Convex, Micro-convex, Linear, rectal
Display Mode: B,B+B,4B,B+M,M
Gray Scale: 256 levels
Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
4 focusing combination select-able
4 different coded-color available
15 difference kinds of body marks with difference calipers.
Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
PC software to transfer images to the PC (option)
PAL-D output
Mouse interface
Standard configuration:
main unit + L60/6.5MHz rectal linear
Options:
R40/3.5MHz convex probe
R20/5.0MHz micro-convex probe
L40/7.5MHz linear probe
