185 to 900 nm or 220 to 1400 nm (when the ISR-2600Plus Integrating Sphere Attachment is used)
+/-0.1 nm (656.1 nm D2), +/-0.3 nm (all range)

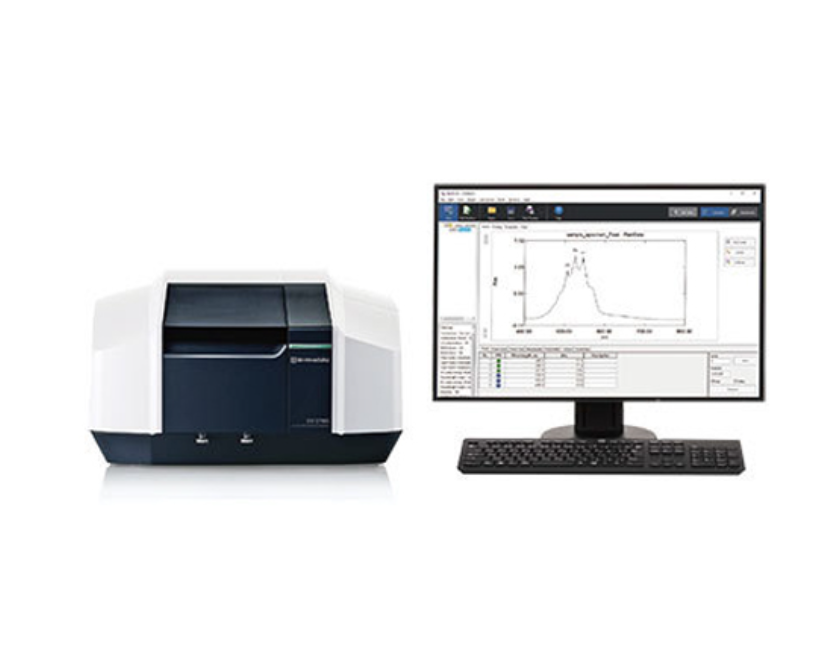

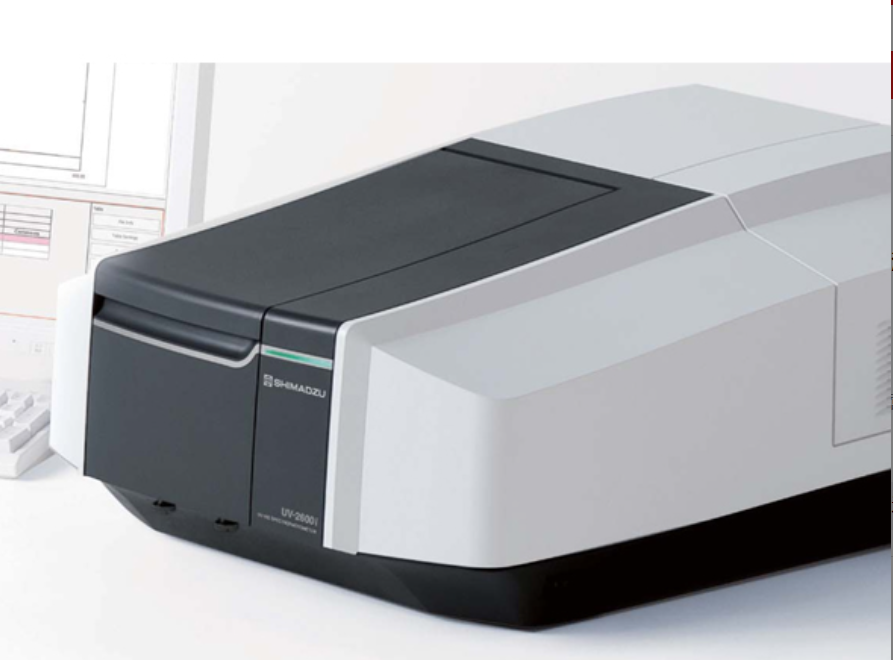

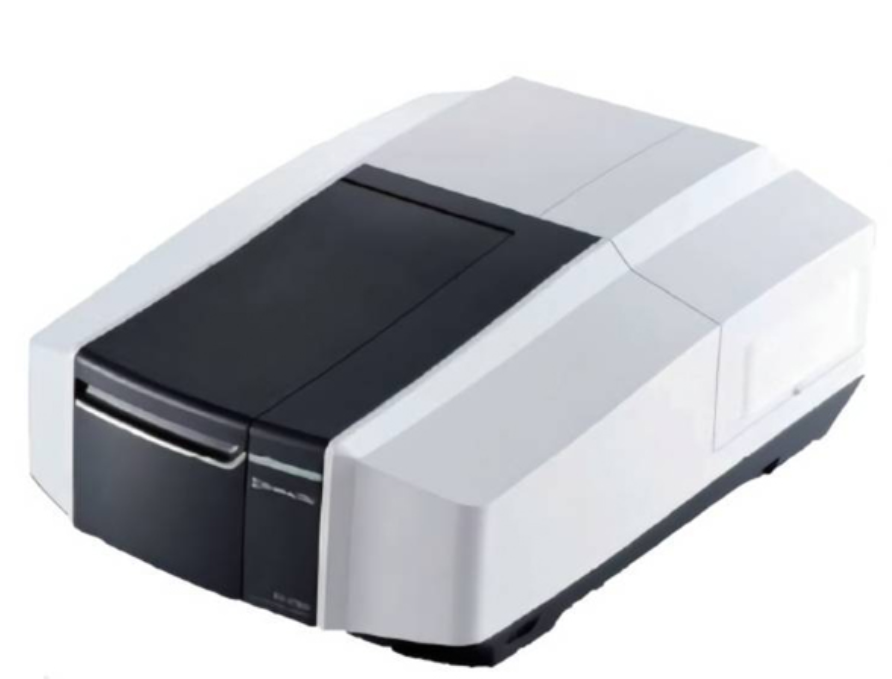

UV-2600i Research-Grade UV-Vis Spectrophotometer from Shimadzu
The compact UV-2600i is a universal, research-grade spectrophotometer that can be used in a wide range of fields, and easily expanded to suit the measurement objective. By using the optional integrating sphere, the measurement wavelength range of the UV-2600i can be extended to the near-infrared region of 1400 nm.
Validation software is provided as standard for the instrument, so equipment performance can be easily checked in daily inspections and when data accuracy becomes a concern.
Features
Equipped with a single monochromator, providing low noise performance across a wide wavelength range
Enables near-infrared measurements (up to 1400 nm)
A compact 450 mm width size, reducing the required installation space by 28 %
Achieves 10 % energy savings compared to other Shimadzu systems
Validation software is included as standard
Freely expandable to suit the measurement objective
Existing system accessories can also be used
Automated data processing

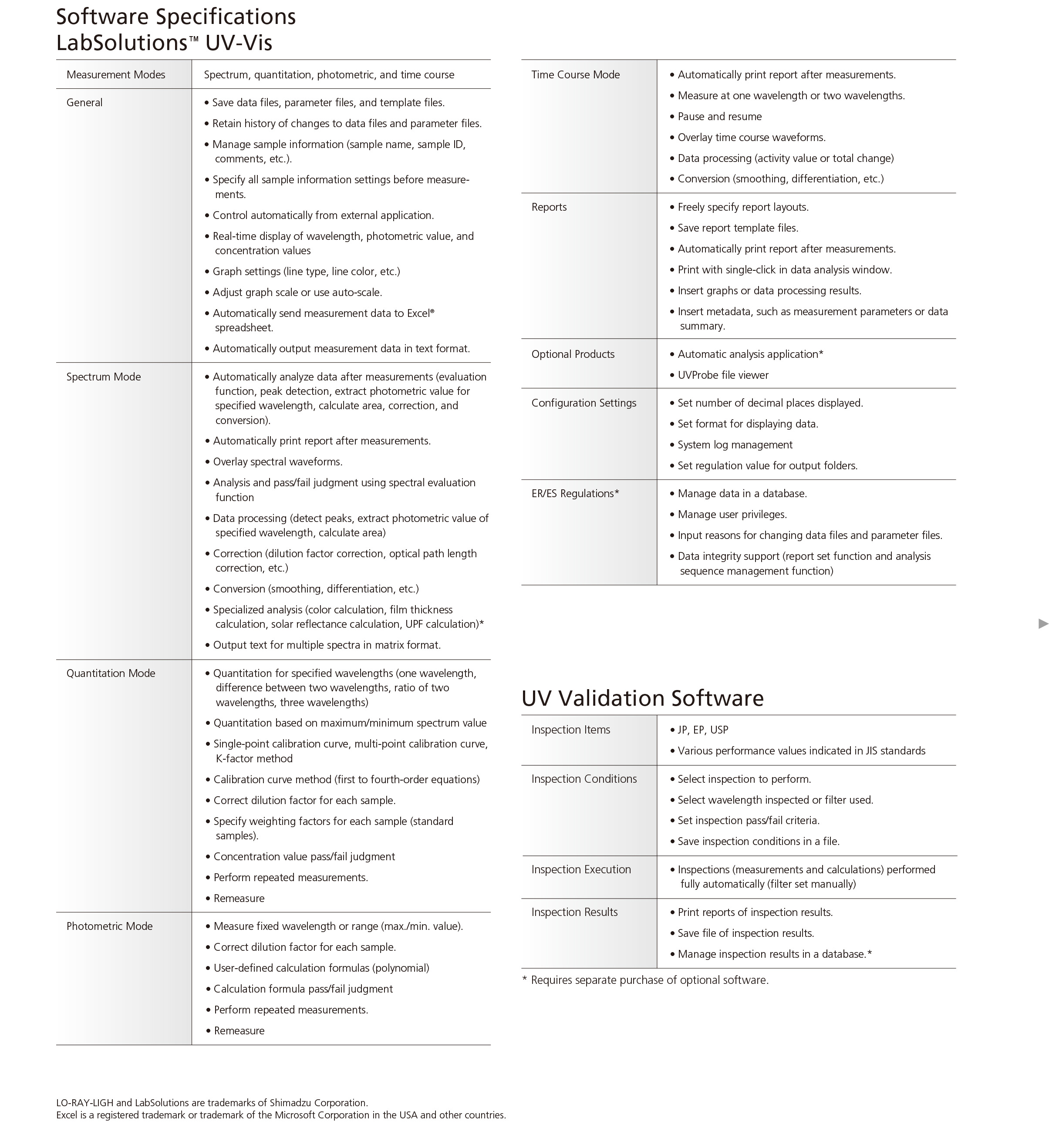

LabSolutions UV-Vis control software is included with the UV-2600i. Measurement modes include photometric, spectrum, quantitation, kinetics, time course and bio-methods. With a proper software compliance package, the UV-2600i and the software setup can provide total data integrity, users administration and audit trail to fully comply with FDA 21 CFR Part 11 compliance.

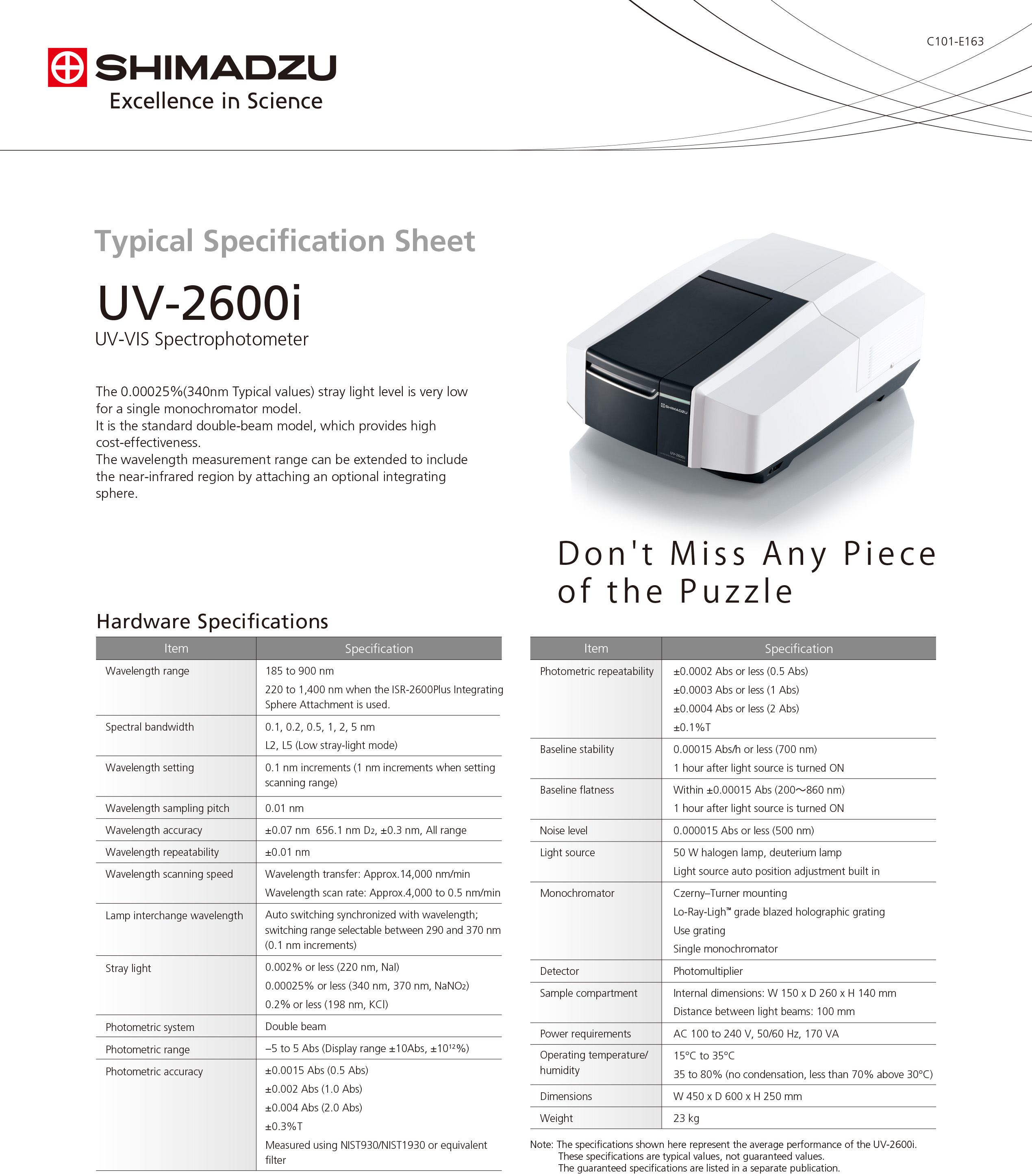

Product Details
| Item | UV-2600i Research-Grade UV-Vis Spectrophotometer |
| Company | Shimadzu |
| Catalog Number | UV-2600i |
| Type | UV/Vis |
| Wavelength Range | 185 to 900 nm or 220 to 1400 nm (when the ISR-2600Plus Integrating Sphere Attachment is used) |
| Wavelength Accuracy | +/-0.1 nm (656.1 nm D2), +/-0.3 nm (all range) |
| Scanning Speed | 4000 to 0.5 nm/min |
| Spectral Bandwidth | 0.1, 0.2, 0.5, 1, 2 or 5 nm |
| Optical System | Double Beam, Single Monochromator |
| Light Source | 50 W Halogen Lamp, Deuterium Lamp |
| Resolution | 0.1 nm |
| Touch screen | yes |
| Min bandwidth | 0.1 |
| Quantity | EA |
