185 - 3300 nm
Ultraviolet/visible region ±0.2 nm Near inefrared rgion ±0.8 nm
1020×660×275mm 96KG

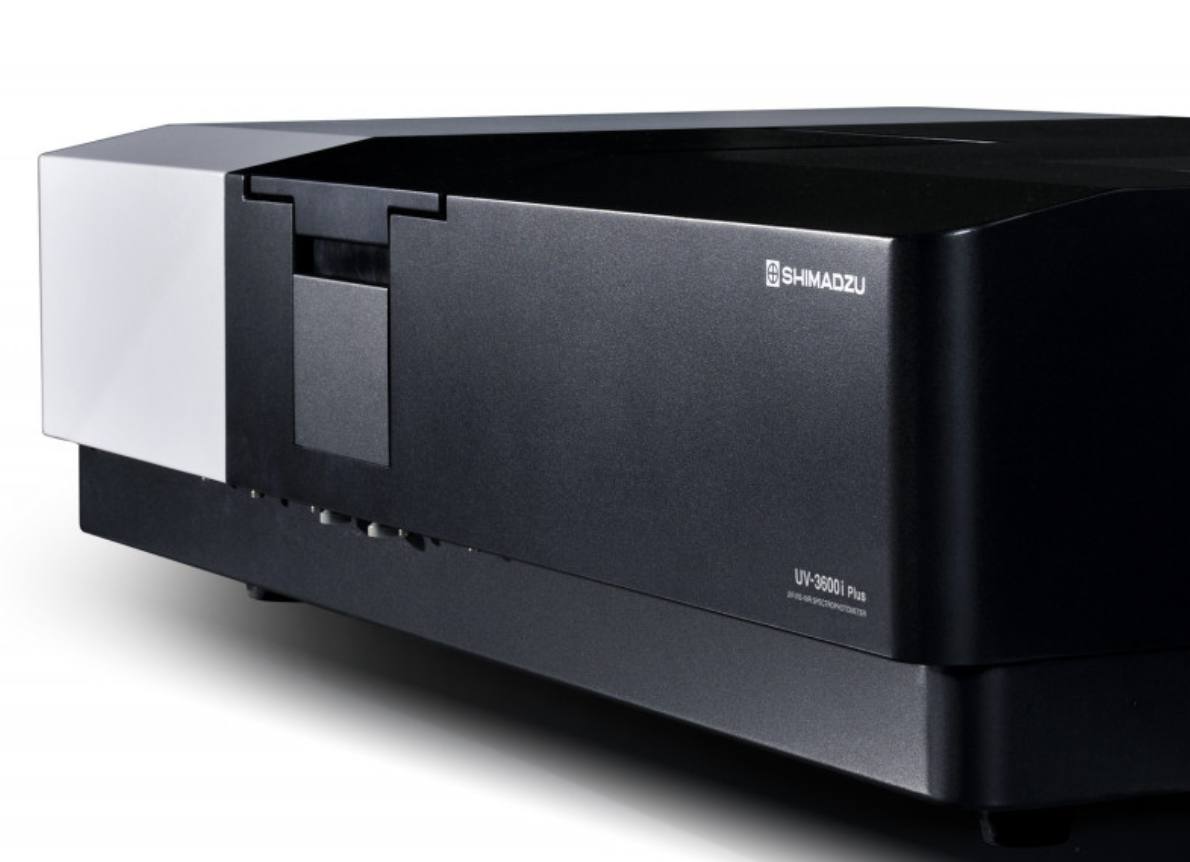

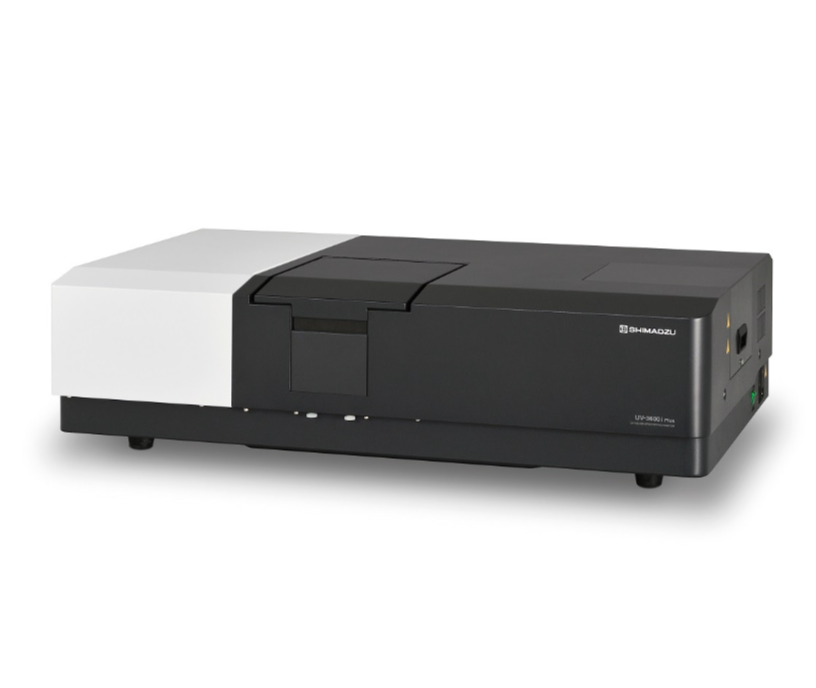

UV-VIS-NIR Spectrophotometer UV-3600i Plus
With the UV-3600i Plus from Shimadzu, the world's first three-detector UV-VIS-NIR spectrophotometer manufacturer, PMT (photomultiplier tube) is used in the ultraviolet and visible regions, InGaAs and cooled PbS detectors are used in the near infrared region.

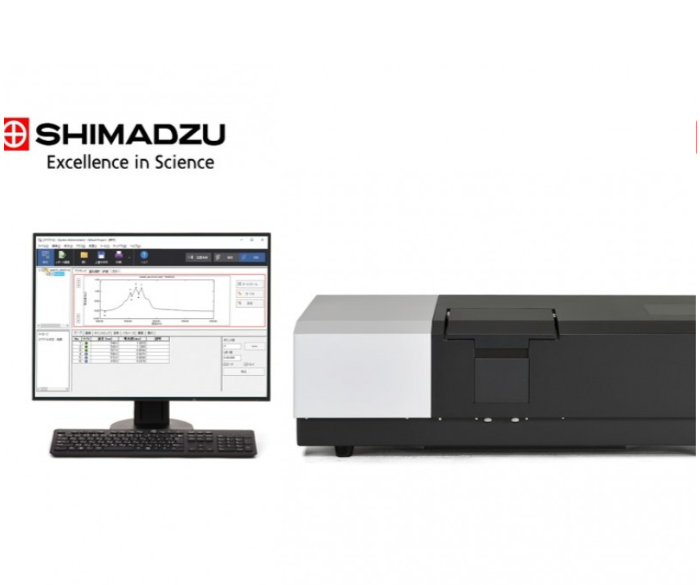

The UV-3600i Plus UV-Vis Spectrophotometer features a large multi-purpose sample chamber and integrated sphere insert, plus three detectors for high precision measurement of solid samples. LabSolutions UV-Vis spectrophotometer software is a next-generation Shimadzu UV control software that tracks analysis efficiency. The easy-to-use LabSolutions UV-Visible software is included as standard.
Perfect for a Wide Variety of User Applications
The ultraviolet - visible region spectrophotometer series spectral evaluation function provides unique pass/fail evaluations for quality control. During measurements, data can be automatically exported to Excel in real time to use macros to automatically obtain desired values.
UV - VIS - NIR

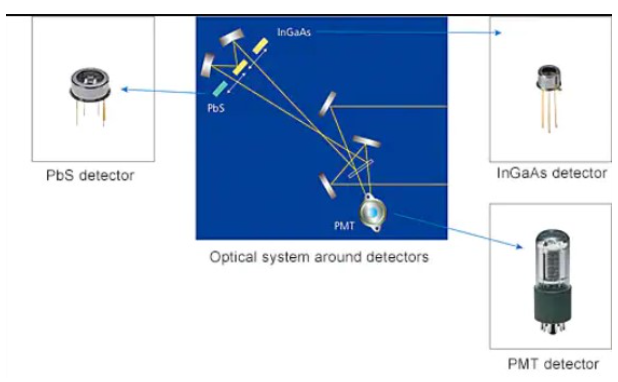

Highest Sensitivity in Class with Three Detectors

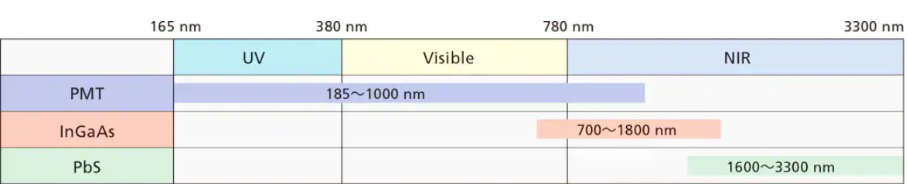

Relationship between Detectors and Measurable Range
Switching between the photomultiplier tube and the InGaAs detector is possible in the range of 700 to 1,000 nm (the default switchover wavelength is 830 nm). Switching between the InGaAs detector and the PbS detector is possible in the range of 1,600 to 1,800 nm (the default switchover wavelength is 1,650 nm
The UV-3600i Plus spectrophotometer provides precise transmittance or reflectance measurements in the ultraviolet to near-infrared regions. The level of sensitivity in the near-infrared region is significantly enhanced by using the combination of an InGaAs detector and a cooled PbS detector for this region. Spectra can be obtained without interruption for the entire range, with a high level of sensitivity and precision.
High Resolution, Ultra Low Stray Light Wide Measurement Wavelength Range
UV-3600i Plus UV-VIS-NIR triple detector spectrophotometers are equipped with a high performance, grating dual monochromator and achieve low stray light level with high resolution. The wavelength range is 185 to 3,300 nm. This instrument can perform spectrophotometry for a variety of sample types, from those requiring high resolution, such as gas samples, to liquid samples with high concentration.
Linearity up to Absorbance Level 6

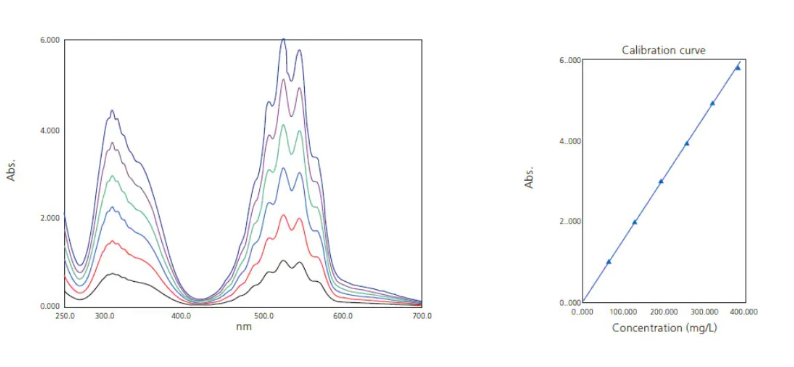

The figure on the left in the image below shows the spectra obtained by measuring an aqueous solution of KMnO4 at six concentration levels. A mesh filter was placed on the reference beam side and a differential method was used to measure up to absorbance level 6. The use of negative absorbance allows measurement with little noise even at high absorbance levels. The figure on the right shows the calibration curve using peak absorbances around 525nm for aqueous KMnO4 solution, showing that linearity is maintained up to absorbance level 6.
Covers Wide Wavelength Range from Ultraviolet to Near-Infrared
The wavelength range of 185 to 3,300 nm enables measurement over the ultraviolet, visible, and near-infrared regions. In addition, the acquired spectra exhibit little noise across the entire range.
The figure in the below shows a spectrum obtained by measuring toluene in the range of 185 to 3,300 nm using a cell with an optical-path length of 2 mm. Spectra in the ultraviolet, visible, and near-infrared regions can be obtained.
UV 3600i Plus
Applications of UV-VIS-NIR Spectrophotometer
Electrical, Electronics and Optics
High-absorbance measurement of polarizing films
Reflection measurement of multilayer films
Absolute reflectance measurement of highly reflective mirrors
Spectral characteristic measurement of beam splitters
Relative emission measurement of LEDs
Transmittance measurement of quartz plates
Absolute reflectance measurement of anti-reflection coatings
Transmittance measurement of functional films
Diffuse reflectance measurement and band gap measurement of semiconductor materials
Transmittance measurement of solar cell cover glass, etc.
Chemicals
Transmittance and color measurements of plastic materials
Reflectance measurement of silica-based white powered materials
Thickness measurement of thin films
Near-infrared measurement of organic solvents
Haze measurement of Plastics
Pharmaceuticals, Cosmetics, and Life Sciences
Cosmetic color measurement and ultraviolet screening measurement
Measurement of drugs containing crystallization water
Measurement of moisture in plants
Measurement of various amino acids
Quantitation of proteins and nucleic acids
Near-infrared measurement of pharmaceutical components
Foods
Diffuse reflectance measurement of wheat flour
Quantitation of vitamins, food additives, and minerals
Quantitation of phenol elution in containers and packaging materials
Construction / Transportation Equipment
Transmittance measurement of window glass and window glass films
Reflectance measurement of paints and building materials
LiDAR collision avoidance sensor evaluation system
Textiles
Transmittance and reflectance measurements and ultraviolet screening measurement of textiles
Color measurement of textiles
