The Z-901 features an all-new ergonomic design, a 0.5 lb. weight reduction down to about 3.5 lbs. (1.6 kg), improved heat dissipation, and completely updated software and processing electronics.
2.7″ high brightness, color touchscreen, readable in all lighting conditions
10.75″ x 2.375″ x 8.625″ 3.87 lbs. with battery
@SciAps Z-901 Li Lithium Analyzer Handheld LIBS Analyzer - Sale !!
The world’s only handheld that analyzes lithium in rocks, ores, and powders.The Z-901 features an all-new ergonomic design, a 0.5 lb. weight reduction down to about 3.5 lbs. (1.6 kg), improved heat dissipation, and completely updated software and processing electronics.In use globally for lithium exploration projects, with no travel restrictions or licensing headaches.
The Z-901 features an all-new ergonomic design, a 0.5 lb. weight reduction down to about 3.5 lbs. (1.6 kg), improved heat dissipation, and completely updated software and processing electronics.

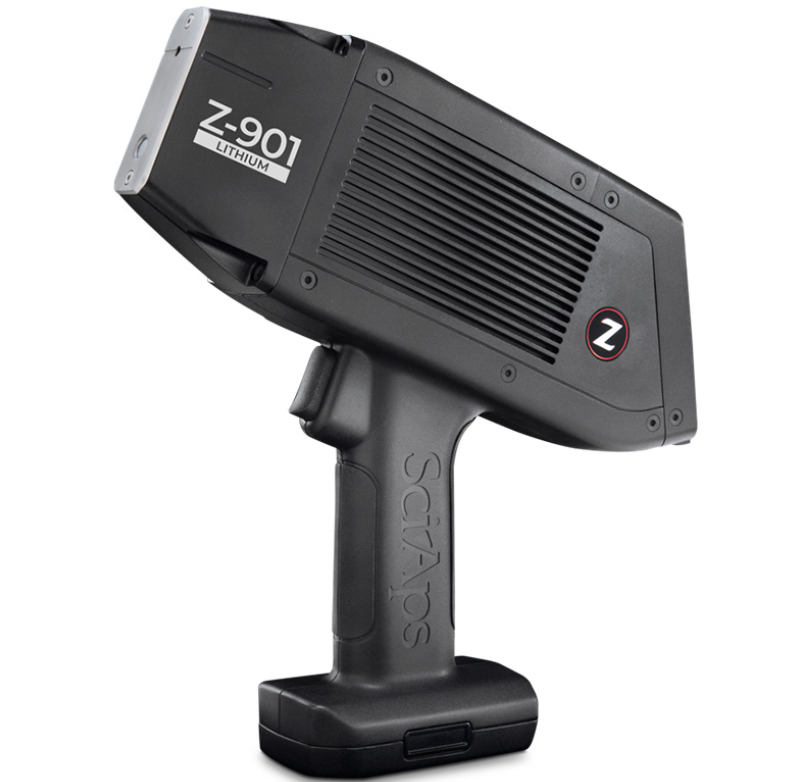

SciAps Z-901 Lithium LIBS Analyzer
Purpose-built handheld LIBS for measuring lithium in rocks and brines. Factory calibrated for lithium in pegmatite, clays and micas, including rel‐evant base elements in the 350-675 nm range. SciAps also offers the Z-902 Lithium, containing a second spectrometer to extend the analytical range down to 210 nm for users testing brines for other elements, including boron, magnesium, calcium, and potassium.
Features
LIBS Sensor – advanced spectrometer design for high resolution and wide range
Internal Camera – precise targeting of analysis location
Macro Camera – photo documentation of samples, reading barcodes and QR codes
Report Generation – full-featured, with available cloud data management and reporting
Narrow Snout – tapered for welds or difficult-to-access test locations
Laser Safety Sensor – patented sample sensor allow Class 1 operation, subject to LSO approval
Intuitive Android – operating system, with app based software
High Resolution Display – rear-facing display for easy viewing
Specification :
Display : 2.7″ high brightness, color touchscreen, readable in all lighting conditions.
Rear facing display for easy results viewing.
Power : On-board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power.
Processing electronics : ARM Quad Cortex -A53 1.2 GHz Memory: 2 GB LPDDR3, eMMC 16 GB
Data storage : Results Storage: 32 GB SD card
Connectivity : Built on Google’s Android platform for real-time data exporting, including built-in WiFi (IEEE 802.11b/g/n), Bluetooth (BR/EDR+BLE), GPS and USB-Cto connect to virtually any information management system.
Sample viewing : Integrated camera and laser target indicator for viewing sample before and during analysis for proper sample alignment. Includes second “macro camera” for scanning QR or bar codes and for photo-documentation and report generation.
Laser raster : On-board Y stage for rastering laser to discrete locations for targeted analysis or averaging.
Atmosphere : SciAps proprietary Opti-Purge provides an inert argon environment improving spectral signal to noise ratio and improving performance in the UV range.
Calibration check : 316 stainless steel standard for automated calibration and wavelength scale validation.
Drift correction : On-board automated drift correction software with factory-provided or user-provided reference materials.
Regulatory : CE, RoHS, USFDA registered. Class 3b laser. Sample sensor on board, allows for operation under Class 1 conditions, subject to local LSO approval.
Spectral range : 350–675 nm
Calibrations : Li in pegmatites, Li in clay, Li in mica-schists. Additional matrix matched
calibrations can be built by operator using Profile Builder software for PC and tablet.
Security : Password protected; Multi-user support with configurable access settings
Dimensions : 10.75″ x 2.375″ x 8.625″
Weight : 3.87 lbs. with battery
