Fluorine - Uranium Wide Range of Available Calibrations
50kV-4W Rh target X-ray source Large area graphene window SDD detector Selectable measurement spot size 3 mm or 8 mm Helium purge and optional portable vacuum pump 5 position automatic filter changer Manual filter / secondary target option Integrated processor and data storage Interactive touch screen display Internal sample camera Wi-Fi and USB connectivity EasyCal software package for empricial user calibration

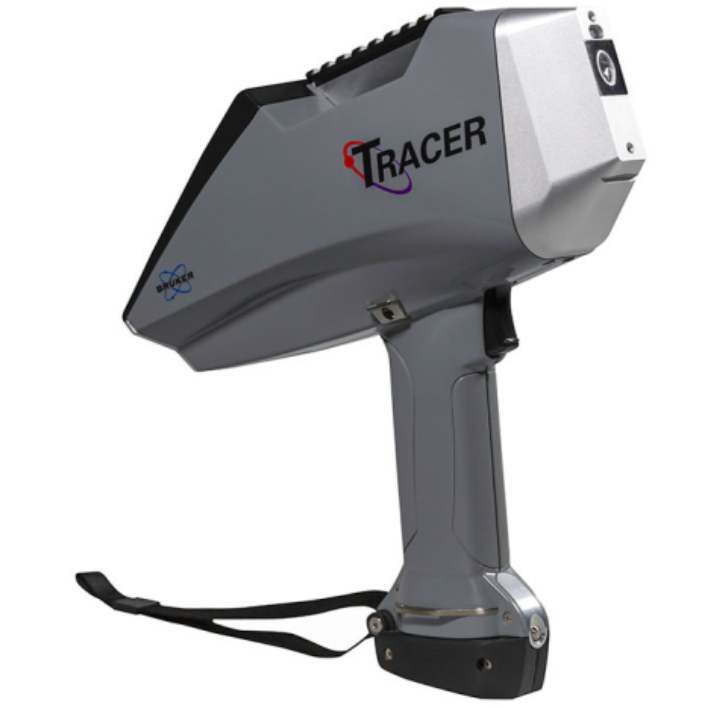

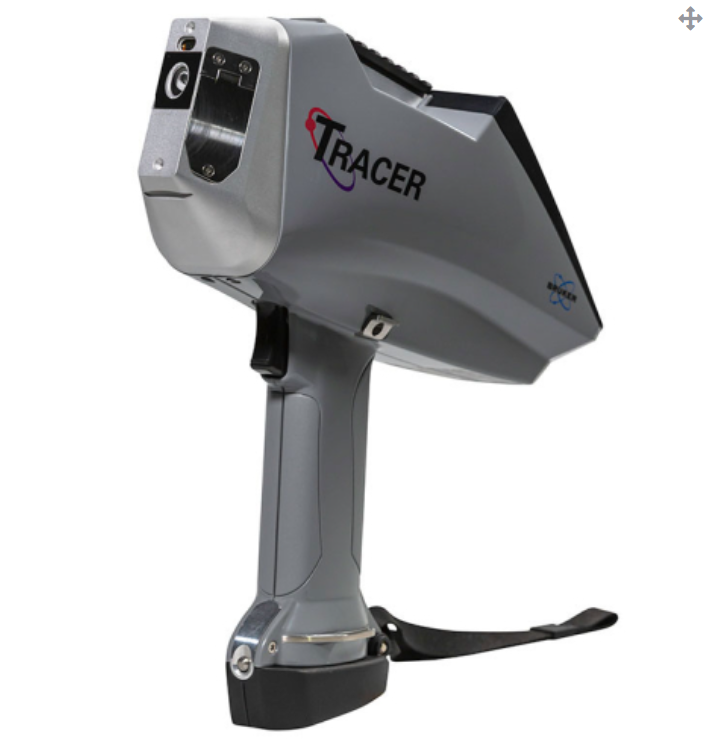

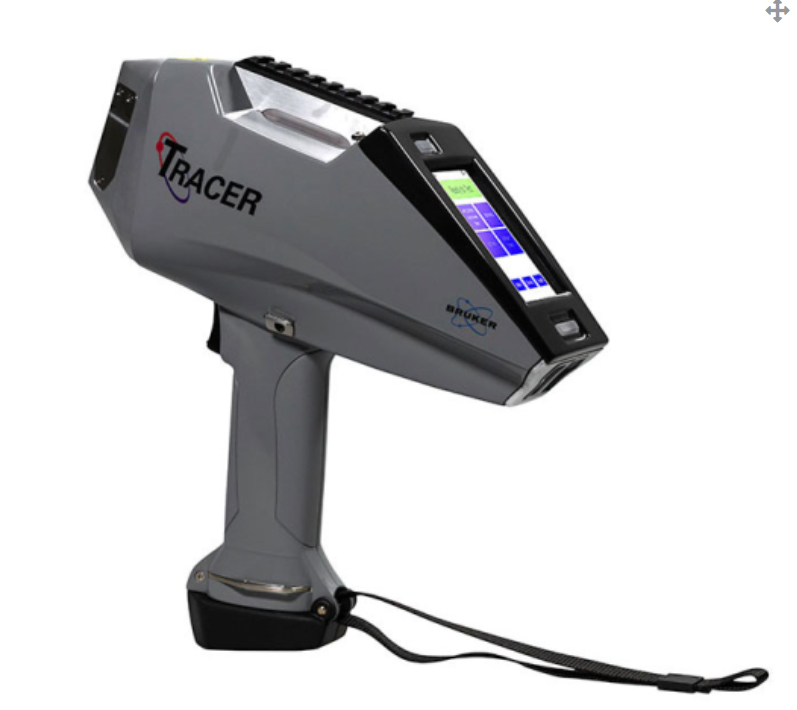

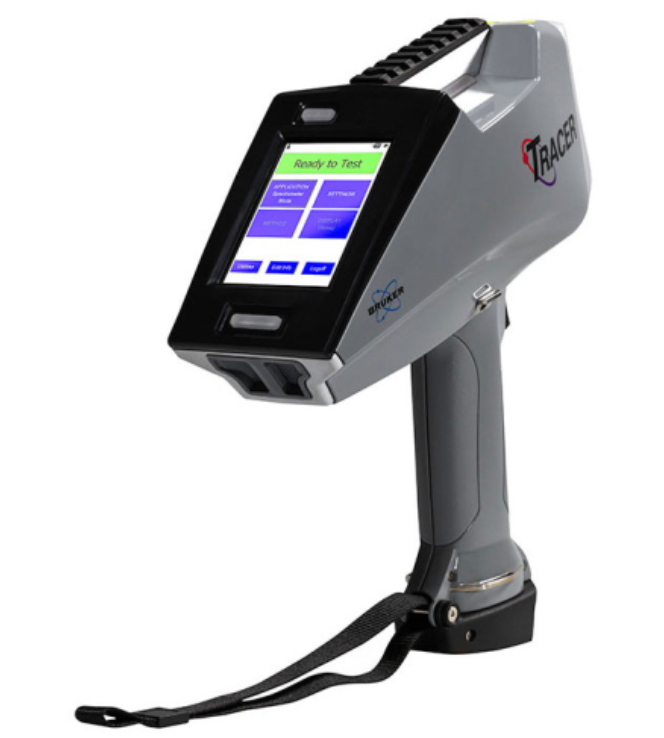

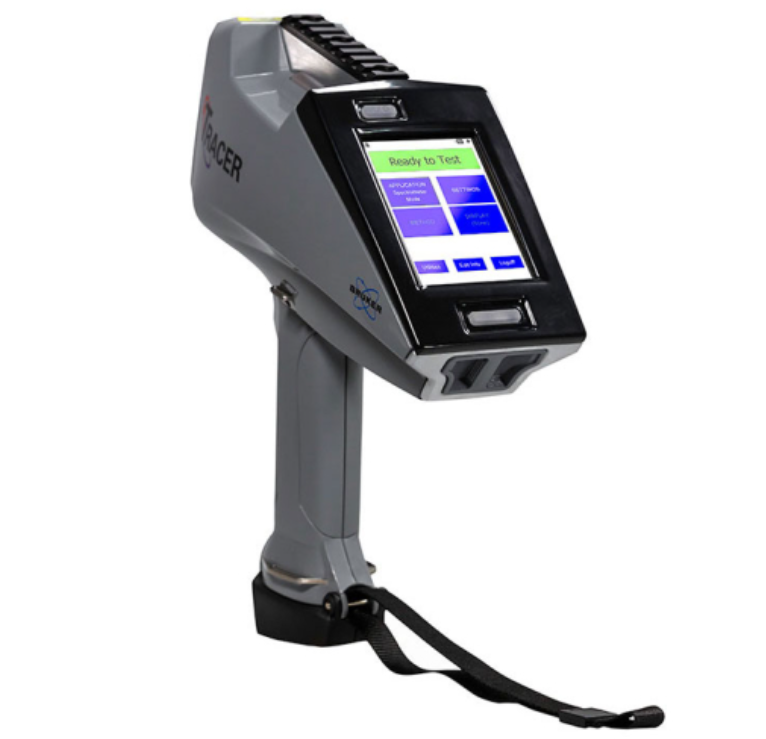

@ Bruker TRACER 5 Handheld XRF Analyzer - Sale !! The Bruker TRACER 5g XRF is a handheld, portable spectrometer ideal for elemental analysis in the field and in laboratory-like settings. Specifically designed for methods development, research and complex material analysis, the TRACER 5g detects elements from Fluorine to Uranium (with a He atmosphere) and analyzes elements from Sodium to Uranium.
TRACER 5 Benefits at a Glance:
SDD detector with 1um Graphene window for the ultimate light element performance
Measurement atmosphere options for even more sensitivity: Air, vacuum or Helium flush
Excitation filters: User designed manual filters and integrated 5 position filter wheel
Internal camera for exact aiming
Live spectra directly on the TRACER 5 and on PC
PC Connectivity: Wi-Fi or wired USB
User controlled current and voltage: achieves maximum sensitivity)
he Bruker TRACER 5g XRF is a handheld, portable spectrometer ideal for elemental analysis in the field and in laboratory-like settings. Specifically designed for methods development, research and complex material analysis, the TRACER 5g detects elements from Fluorine to Uranium (with a He atmosphere) and analyzes elements from Sodium to Uranium.
Latest Technology for Advanced Materials Applications
Geoscience users have long seen the TRACER 5g as unique in its ability to provide elemental information in analyzing ores, cores, drill cuttings, soil and sediment.
The TRACER 5g features a 1 μm graphene detector window, an integrated touchscreen display, 50kV X-ray tube, SharpBeam™ front end geometry (for maximizing count rate and light elemental sensitivity), large area silicon drift detector (SDD) with CUBE™ technology (maximizes count rate and light element sensitivity), selectable spot sizes (including 3 and 8 mm collimators) and is capable of operating in air, helium or vacuum environments.
Integrated Camera
The TRACER 5g offers an internal VGA CCD camera with adjustable lighting with the ability to store up to 5 photos per assay.
Connectivity
The TRACER 5g offers Bluetooth, Wi-Fi and USB connectivity. Data can be stored on a thumb drive and transferred to PC as needed.
Software
Each TRACER 5g ships with ARTAX™ software for advanced XRF spectral analysis and also allows for the handling of large data sets and remote control of the instrument. EasyCal™ software is also included for off-line user-created single phase/beam empirical calibrations.
Applications
Exploratory Geology - Analyze Geochemistry including ores, cores, drill cuttings, soil and sediment.
Food Safety - Quality analysis or raw or finished product, hazardous analysis, foreign body identification and fortificants.
Plant & Soil Health - Quality analysis of fertilizers/nutrients and heavy metals analysis
Material Science and Research - Across disciplines including chemistry, physics, agronomy, geology, and biology.
Education - In labs or field use including qualitative and quantitative analysis.
Other Applications - Analyzing alloys, precious metals and environmental assessments.
Includes:
Bruker TRACER 5g 4W Portable Handheld XRF Analyzer
Manual filter kit: Blue and empty (for user-based filter) filter holder, hex wrench, mini PELICAN™ case
Internal VGA CCD camera with adjustable lighting and ability to store up to 5 photos per assay
Proximity safety sensor
Wi-Fi to PC, Bluetooth connectivity and USB port; portable router, USB cable and memory stick
EasyAccess™ Rail for use of optional Tripod, Smartphone mount or universal accessory mount
Relaxed Grip Strap™ for comfort/security
Precious Metals Single Phase Calibration; calibrated in air with 8 mm collimation.
Bruker Instrument Toolbox (BIT) software package for reporting, qualitative spectral analysis, live spectrum functionality and remote instrument control.
ARTAX™ software for advanced XRF spectral analysis with remote control of instrument and capability for large data sets
EasyCal™ software for off-line user created single phase/beam empirical calibrations
Two (2) high performance Li-Ion batteries with smart charger
5 spare clear windows and 5 spare vacuum gridded windows
Carry-on shipping case with custom foam and wheels
1 year warranty
