Anodized Aluminum Construction Dimensions Height: 279 mm / Diameter: 80 mm Weighs 1.7 lbs. (775 grams) only Smart Handle with Awesome Features Stand-alone One-button operation SLAM Spatial Awareness Technology Scans up to 420,000 Points per Second One-Year Warranty
Height: 279 mm / Diameter: 80 mm 650 g (775 g including battery)

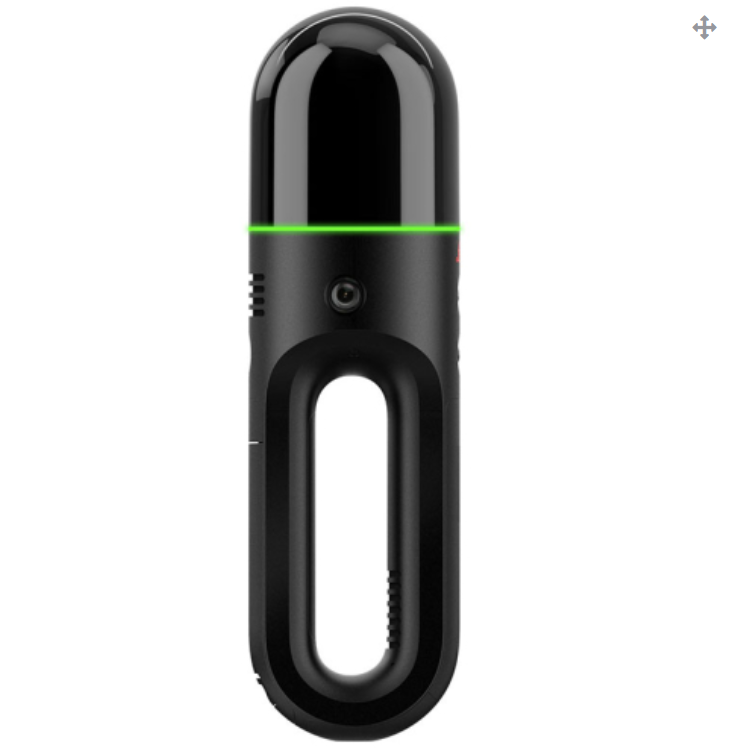

#New Leica BLK2GO Handheld Imaging Laser Scanner - Sale !!The BLK2GO is handheld, wireless and lightweight, designed for fast capture reality 3D environments on the move while the user is in motion, and continuously creates a digital representation of reality in the form of 3D point clouds. It captures images and dimensionally accurate point clouds in real-time using Simultaneous Localisation And Mapping [SLAM] technology and visual inertial navigation to accurately record your trajectory through space.
Handheld Imaging Laser Scanner
The blk2go handheld imaging laser scanner recreates spaces in 3d as you move. It captures images and dimensionally accurate point clouds in real-time and uses slam technology to record your trajectory through space.
Fast
Scan as you go with no interruptions. The digital reality capture of the space around you happens in real-time as you move through it.
Agile
Scan over and under objects, through rooms and doorways, around corners, and up and down stairwells. Using slam spatial awareness technology, blk2go knows where it is and where it has been in space.
On The Go
The blk2go is wireless and lightweight, designed to capture reality on the move, anywhere you go.
Seamless capture
Like a torch for visualizing three-dimensional reality, the blk2go automatically builds 3d point clouds while in motion. From the moment you begin a scan session until the moment you turn off the blk2go, all imagery and 3d data are combined.
Unbound
No tripod. Onboard data collection. Continuous scanning on rechargeable battery power.
DUAL AXIS LiDAR DOME
The smallest dual axis LiDAR available with best-in-class accuracy, enclosed in a fully protected and encapsulated dome that scans up to 700,000 points per second. Both axes constantly spin while scanning.
MULTICAMERA VISION SYSTEM
The BLK2GO’s vision system is a 12 megapixel detail camera for brilliant high-contrast imagery plus three panoramic cameras for visual navigation via SLAM, point cloud colorization, and capture of panoramic imagery.
HE GRANDSLAM
The GRANDSLAM (Simultaneous Localization and Mapping) is a combination of high-speed dual axis LiDAR, multicamera vision system, and an inertial measurement unit that makes the BLK2GO self-navigating.
LIGHTWEIGHT ALUMINUM CONSTRUCTION
Weighing in 775 grams (1.7 lbs.) with battery, the BLK2GO’s matte-finish aluminum construction allows for excellent dexterity and freedom of movement.
THE SMARTEST HANDLE
The BLK2GO’s handle contains WLAN connectivity, a rechargeable battery capable of 45 minutes of continuous scanning, data storage for six hours of scans, a USB-C port for fast data transfer, and edge computing.
ADVANCED LIGHTGUIDE
The multicolored and multisegmented lightguide that encircles the BLK2GO is simple, intuitive, and communicative to users of all skill levels. It provides user guidance while scanning and communicates the device status and data quality.

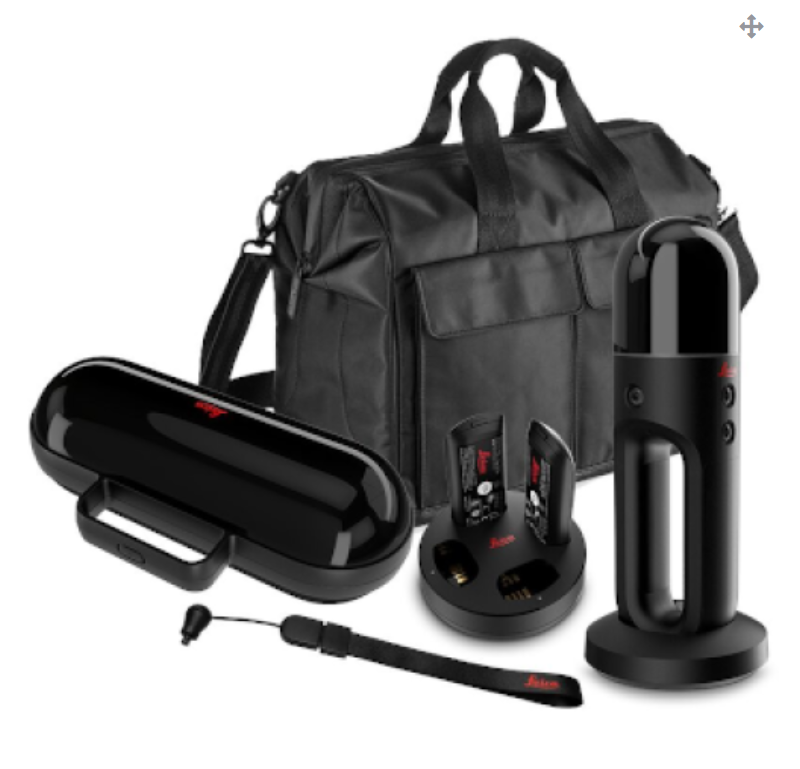

BLK2GO System Package consisting of:
1x BLK2GO Scanner
1x BLK2GO Transportation Case
3x GEB821 Li-Ion Battery

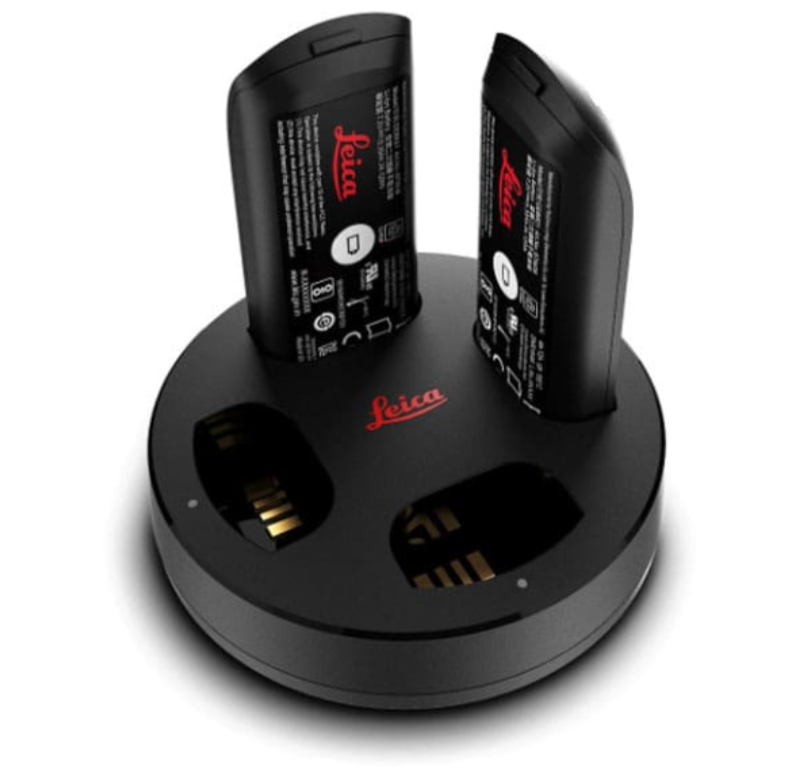

1x GKL821 Multicharger incl. AC-Adapter
1x BLK2GO Table Stand
1x GEV278 USB C Cable
1x BLK2GO Wrist Strap
1x BLK2GO Quick Guide
1x BLK2GO QR Card
1x BLK2GO USB Documentation Card
1x Reality Cloud Studio, 1TB Usage, 1Year Subscription
Technical Specifications
| Housing | Black anodized aluminium |
| Dimensions | Height: 279 mm / Diameter: 80 mm |
| Weight | 650 g (775 g including battery) |
| Transport cover | BLK2GO transportation case |
| Stand-alone operation | One-button operation |
| Mobile device | BLK2GO Live app for iPhone (iOS 12.1 or later) including: live 2D and 3D visualization while scanning, device status and data management |
| Communication | Wireless (app connection) |
| Internal memory | 24 hours of scanning (compressed data) / 6 hours (uncompressed data) |
| Battery | Exchangeable, rechargeable Li-Ion battery (Leica GEB821) 45-50 minutes |
| Laser class | 1 (in accordance with IEC 60825-1) |
| Wavelength | 830 nm |
| Field of view | 360° (horizontal) / 270° (vertical) |
| Range | Min. 0.5 - up to 25 m |
| Point measurement rate | 420,000 pts/sec |
| High resolution camera | 12 Mpixel, 90° x 120°, rolling shutter |
| Panoramic vision system | 3-camera system, 4.8 Mpixel 300° x 135°, global shutter |
| Relative accuracy* ** | 6-15 mm |
| Absolute position accuracy indoor * *** | 20 mm |
| Robustness | Designed for indoor and outdoor use |
| Operating temperature | +5 to +40 °C |
| Dust & humidity protection | IP54 (IEC 60529) |
| Data transfer | Wireless and USB 3.0 |
| Desktop software | Leica Cyclone REGISTER 360 and Cyclone REGISTER 360 (BLK Edition) |
