Selectable measurement mode Fully-automated measurement mode*1 3D measurement mode Reliable pachymetry function*2 Enhancing patient comfort Flexible and space-saving design A variety of options to meet your need
305 (W) x 492 (D) x 493 (H) mm 20 kg
@NIDEK Non Contact Tono/Pachymeter NT-1p/Non Contact Tonometer NT-1/1e NT-1p: Automated Contactless Tonometer-Pachymeter for Precise and Comfortable Measurements The NT-1p is a contactless tonometer-pachymeter with an innovative design, fully automated from the beginning to the end of the measurement process. A product of NIDEK's expertise and technological knowledge, the new NT-1P model combines automation, user-friendliness, and ergonomic features for an optimal and comfortable clinical examination for the patient.
Features
Selectable measurement mode
Fully-automated measurement mode*1
3D measurement mode
Reliable pachymetry function*2
Enhancing patient comfort
Flexible and space-saving design
A variety of options to meet your need
*1 Available for the NT-1p and NT-1
*2 Pachymetry is available for the NT-1p. For the NT-1, the corrected IOP is displayed by entering the patient‘s central corneal thickness.

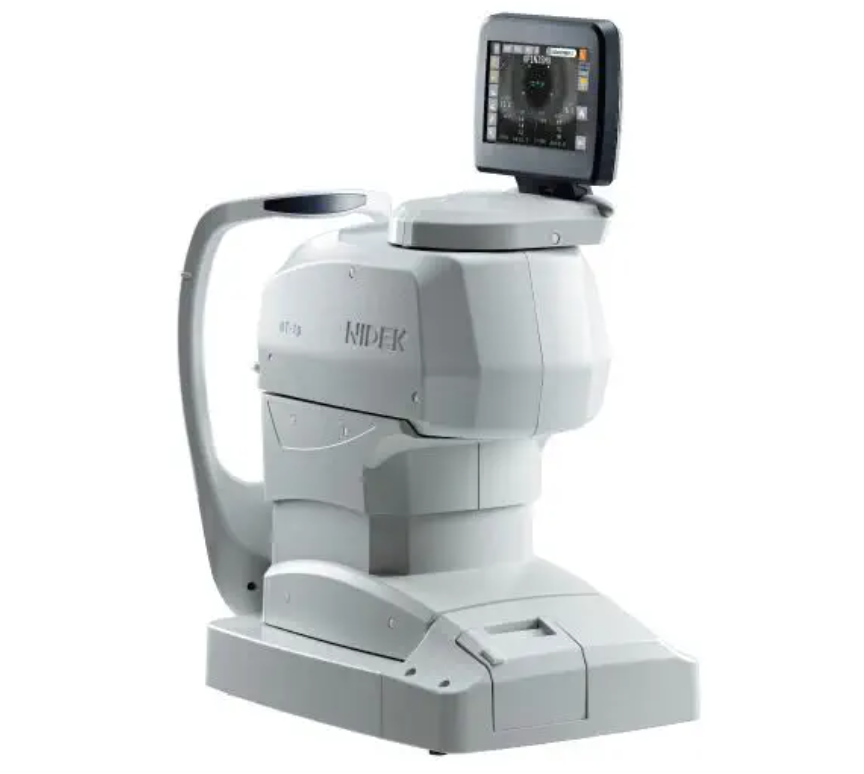

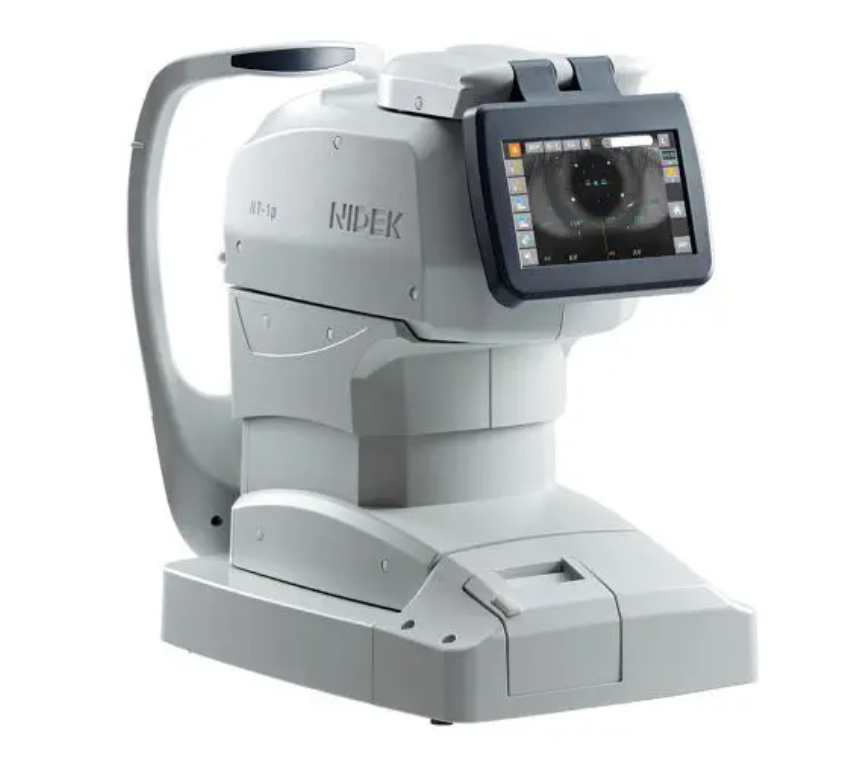

The NT-1p is a contactless tonometer-pachymeter with an innovative design, fully automated from the beginning to the end of the measurement process. A product of NIDEK's expertise and technological knowledge, the new NT-1P model combines automation, user-friendliness, and ergonomic features for an optimal and comfortable clinical examination for the patient.

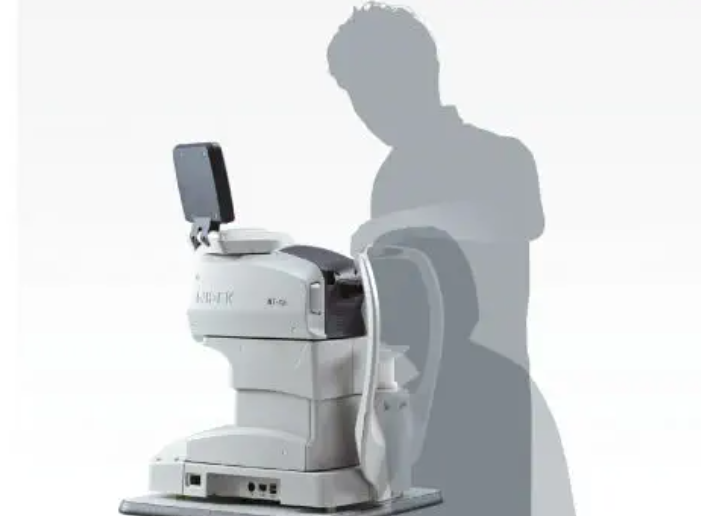

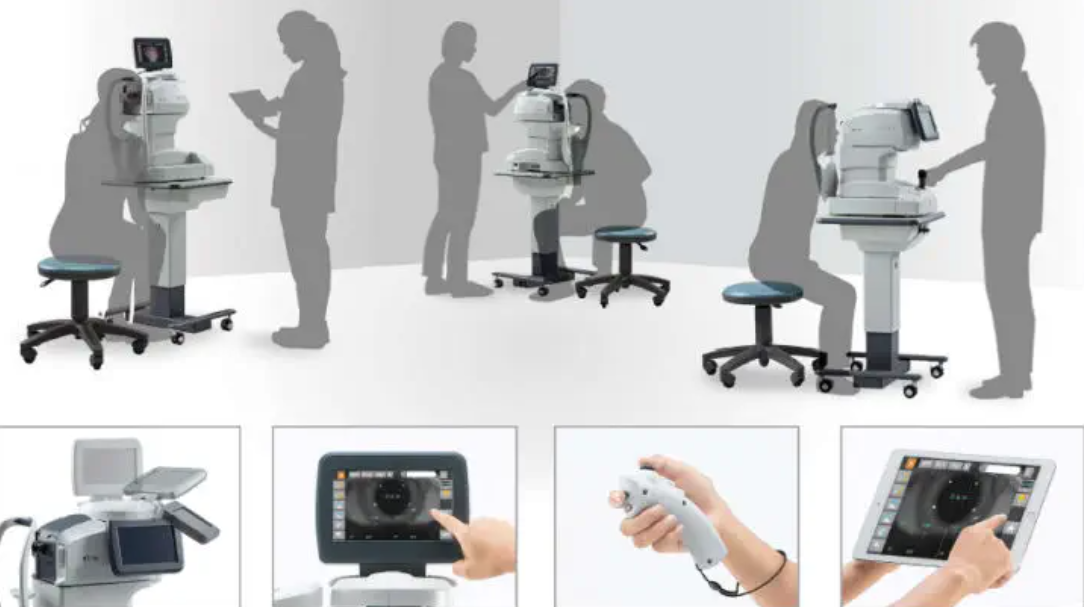

With a large tilting and swiveling screen, the NT-1p offers exceptional installation flexibility, adapting to various situations and the specific needs of patients and clinics. This functional feature allows optimal customization of the device.
Regarding the measurement of intraocular pressure (IOP), the NT-1p uses the same principle as air-puff tonometers, measuring the force needed to deform the eye and deducing the pressure. However, the NT-1p stands out by automatically compensating for the patient's central corneal thickness, ensuring more accurate IOP values.

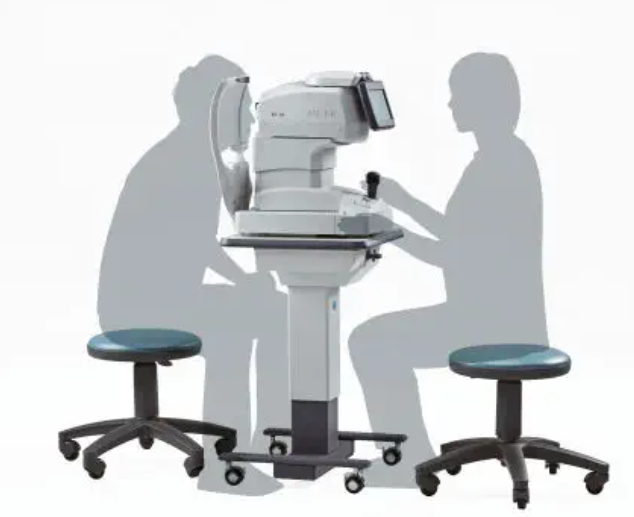

The joystick, in addition to the touch screen, provides the operator with the ability to make fine adjustments to facilitate alignment, even on eyes with poor fixation. The four-direction button on this new joystick allows smooth movement of the measuring unit forward, backward, right, and left.
Patient comfort is a priority with APC (Automatic Puff Control) technology, which automatically adjusts the air puff's power based on the patient's intraocular pressure, optimizing comfort and reducing noise during measurement.
Fully automated device
Manual measurement mode possible (via display and/or joystick)
Voice instructions from the speackers
Non-contact tonometer and pachymeter (model NT-1p only)
Automatic and instantaneous correction of intraocular pressure (IOP) according to central corneal thickness
Eye Tracking and automatic triggering of measurements
Presence of a joystick for manual measurement
soft and comfortable airflow thanks to the APC ( Automatic Puff Control).
Technical Details
Dimensions: 305 (W) x 492 (D) x 493 (H) mm
Weight: 20 Kg
Power Supply: 100-240V, 50/60 Hz
Power Consumption: 100VA
Screen: 7 inches
IOP Range: 1 to 60 mmHg
