12〞TFT color touch screen (detachable) AC100~240 V, 50 Hz/60 Hz
12.5 kg (Main Unit) 25 kg (Cart)
2 Year
PRODUCT DESCRIPTION

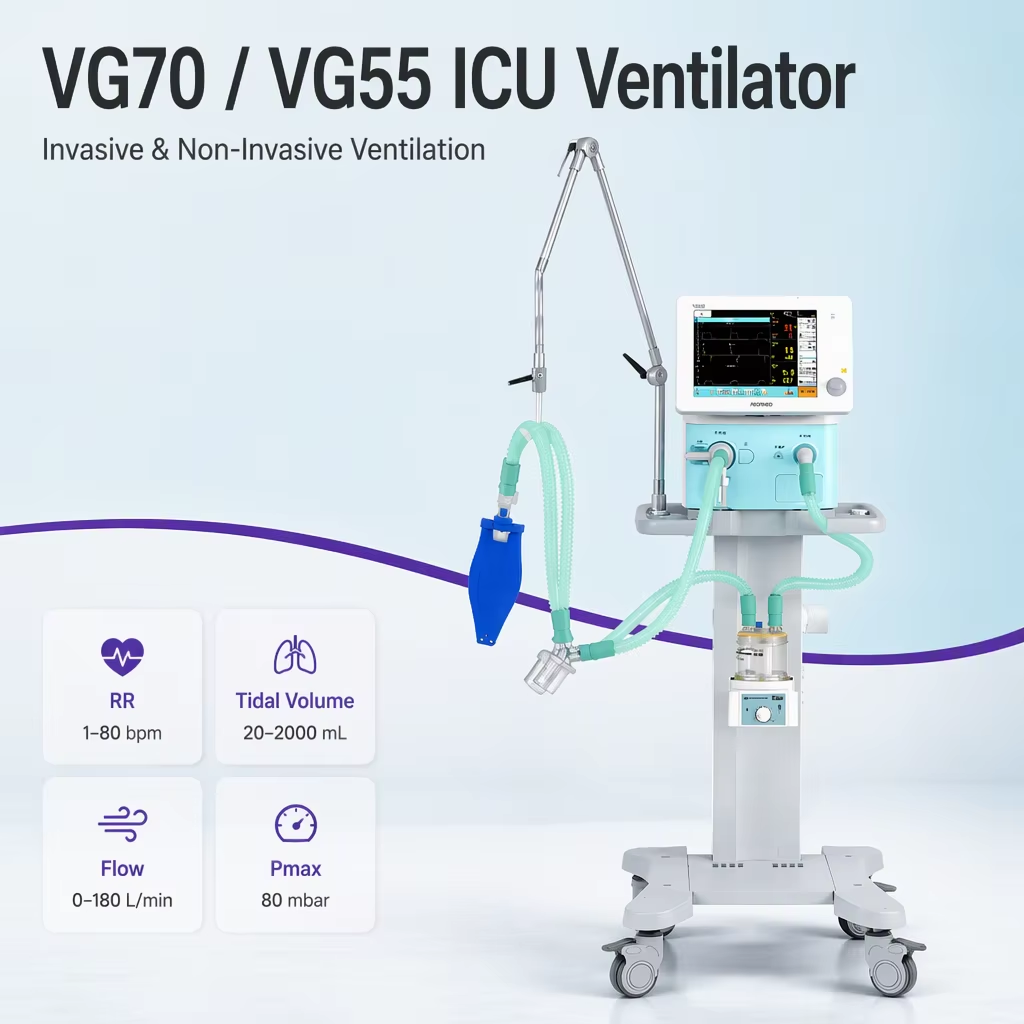

The VG70 is a comprehensive transportable ICU ventilator including lung protective ventilation modes such as BIVENT and PRVC.

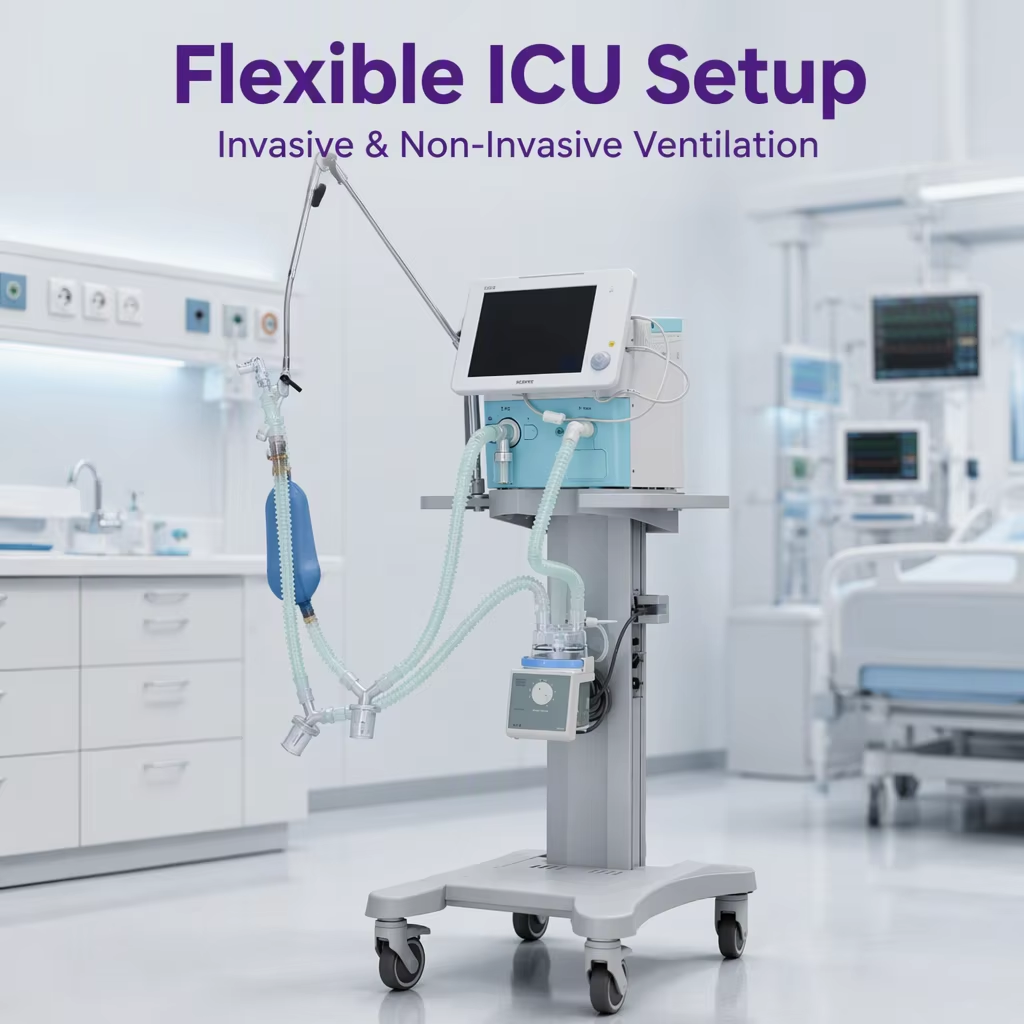

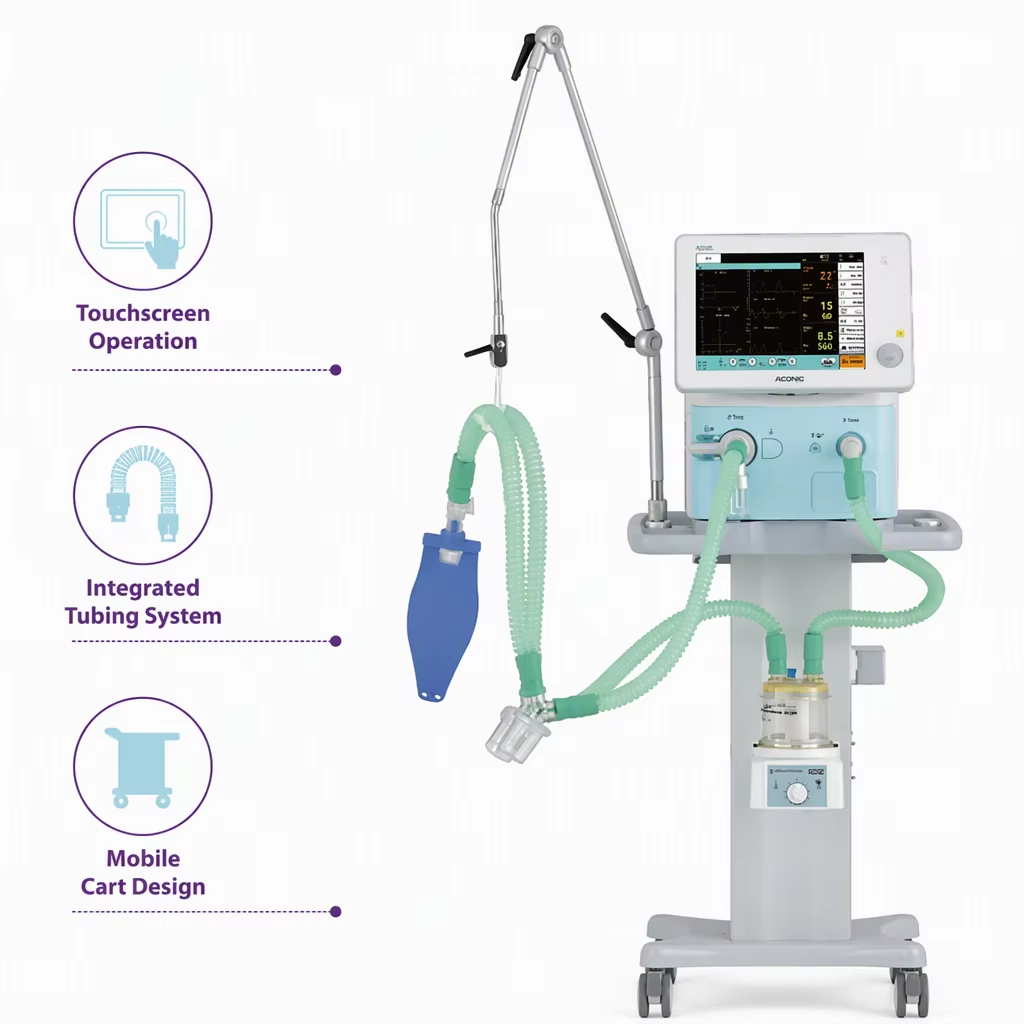

The VG70 has flexible configuration allowing for trolley, bed or ceiling pendant mount. As a cost effective solution the VG70 has a metal based autoclavable exhalation valve with a nonconsumable design built in flow sensor and its ventilation software is upgradeable with the available USB port.
The VG70's optimal ventilator synchrony leads to greater patient comfort, the Leak compensation system precisely controls the tidal volume of each breath delivered to the patient by adjusting compensation dosage automatically.
The VG70 is an optimal combination of invasive and non-invasive ventilator. As noninvasive ventilation is used increasingly in a wide range of clinical situations, we offer a dual solution. The VG70 combines the advantages of a flexible noninvasive ventilator with a full-featured invasive ventilator for the ICU.
TECHNICAL SPECIFICATIONS
VCV(A/C) PCV(A/C) PRVC SIMV(VCV)+PSV
SIMV(PCV)+PSV SIMV(PRVC)+PSV SPONT/CPAP+PSV
BIVENT+PSV NIV/CPAP NIV-T NIV-S/T
Apnea Ventilation Smart Suction Manual Breath
Insp/ Exp Hold ETCO2 Measurement
Nebulization Wave form Freeze
TECHNICAL FEATURES
| Screen: | 12〞TFT color touch screen (detachable) |
| Supply Gas | O2, 0.28~0.6 MPa |
| Power Supply | AC100~240 V, 50 Hz/60 Hz |
| Communication Interface | RS-232 Port, Nurse call Port, Ethernet Port |
| Dimension (WxDxH) | 322 mm x 375 mm x 366 mm (Main Unit) 547 mm x 675 mm x 950 mm (Cart) |
| Weight | 12.5 kg (Main Unit) 25 kg (Cart) |
| Type | Electronics |
| Configuration | on casters |
| Tidal Volume: | 20~2000 ml |
| Respiration Rate: | 1~80 bpm |
| Tinsp: | 0.2~9 s |
| Tslope: | 0~2 s |
| Tpause: | 0~4 s |
| I:E Ratio: | 1:10~4:1 |
| FiO2: | 21%~100% |
| Trigger Sensitivity: | Pressure (-20~0 cmH2O, above PEEP) Flow (0.5~20 LPM) |
| PEEP: | 0~35 cmH2O |
| Psupport: | 0~70 cmH2O |
| Pinsp: | 5~70 cmH2O |
Monitoring
| Pressure Value: | Ppeak, Pplat, Pmean, Pmin, PEEP |
| Volume / Flow Value: | Vti, Vte, MV, MVspont |
| Time Value: | ftotal,fspont, I:E |
| Real Time Curves: | Pressure-Time, Flow-Time, Volume-Time wave forms Pressure-Volume, Volume-Flow, Flow-Pressure loops |
| Gas Monitoring: | FiO2, ETCO2 |
| Calculated Values: |
|
| Alarm |
|
Stable Condition Phase
PRVC and BIVENT employ lung-protective strategies, delivering intelligent ventilation
Comprehensive lung mechanics monitoring include compliance, airway resistance, PEEPi and time constant

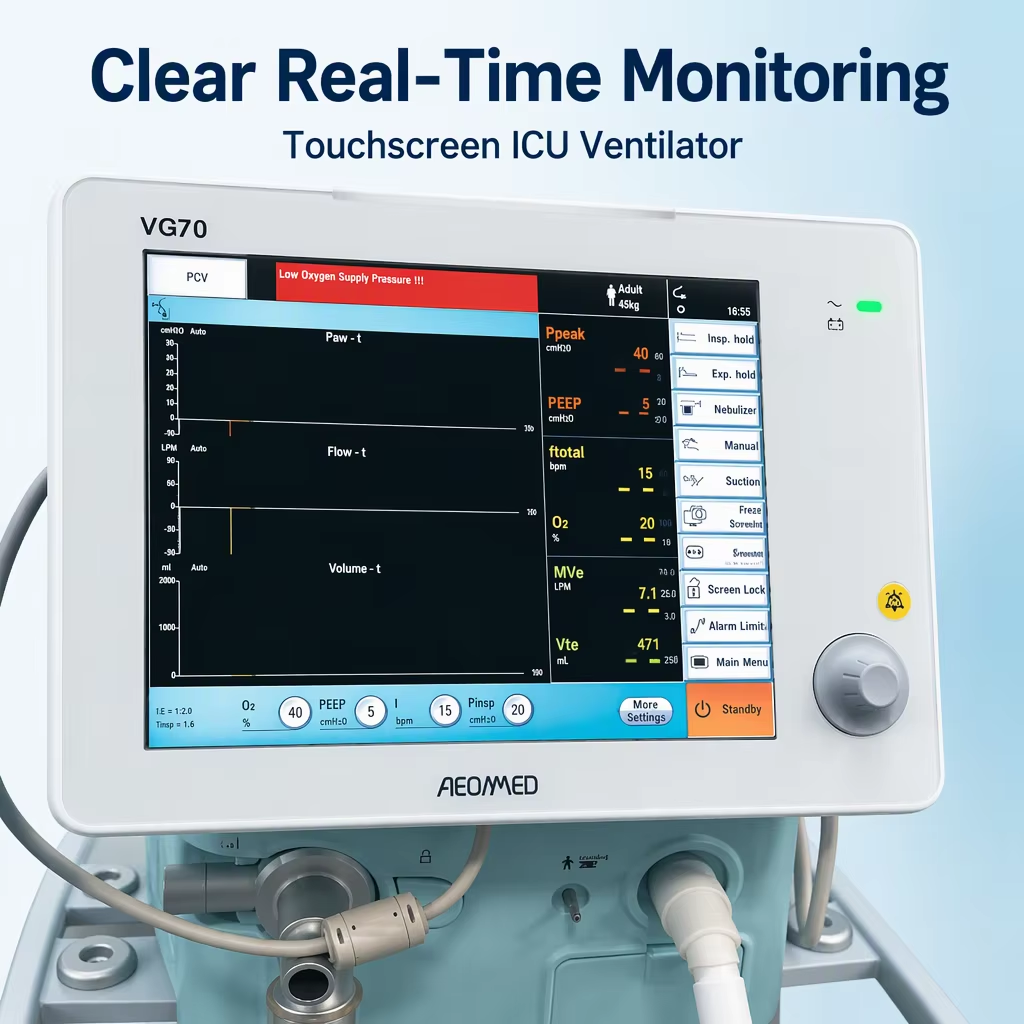

Three waveforms & three loops with user-friendly display provide a continuous monitoring of the patient’s condition
Weaning Phase
Various ventilation modes enhance the weaning process
The unique trigger and leakage compensation system safeguard each and every patient breath resulting in smooth and comfortable breathing, avoiding extra workload on the patient and promoting recovery
RSBI and WOB provide accurate reference for weaning
Rehab Phase
Data export port provides connection to hospital monitors and Patient Data
Management Systems
Provides pressure support for the patient when spontaneous breathing is present
Upgradeable ventilation system software, with an available USB port
