Wavefront technology Intelligent shape modification Smart edging or torque management system (TMS) Truescan: true high curve tracer
WIDTH: 360 mm (14,2 in) DEPTH: 565 mm (22,2 in) HEIGHT: 590 mm (23,2 in) WEIGHT: 29,5 kg (65 lbs)

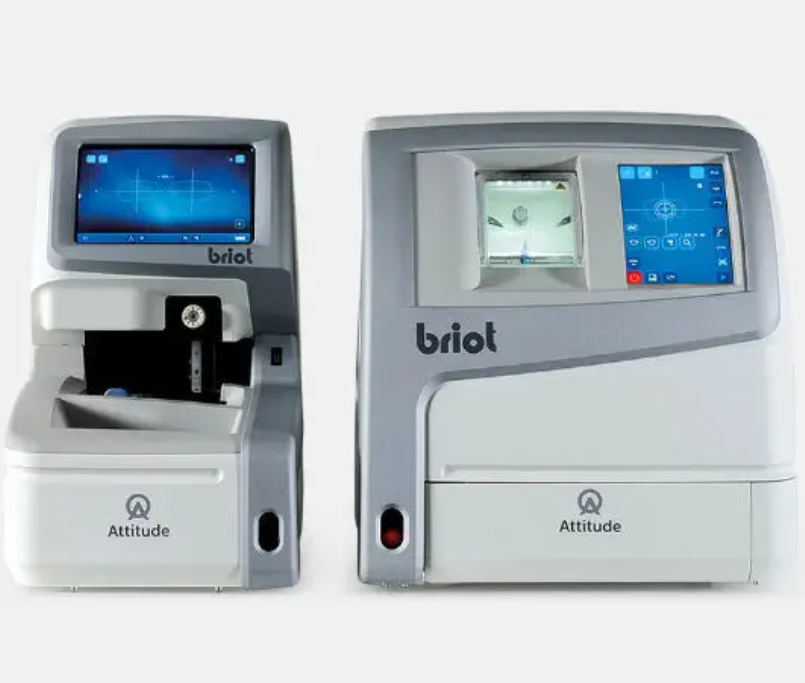

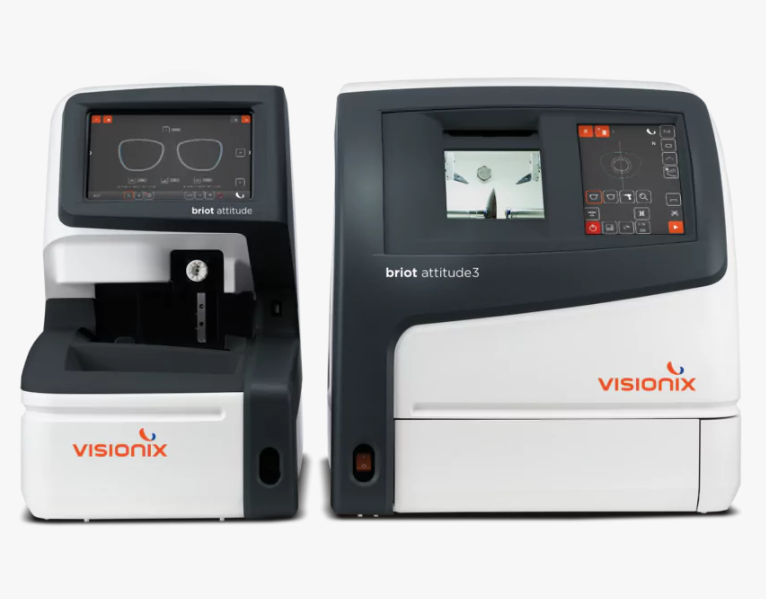

@Visionix Briot Attitude 3 Automatic Lens Edger & Blocker，The Briot Attitude 3 edging system raises the bar for what is possible in your in-house finishing workshop and offers a truly customized eyewear experience. The Attitude 3’s incredible accuracy and speed makes it the perfect lens processing solution for any modern optical practice.
Wavefront technology
The Attitude blocker combines the best of both worlds with parallax free centering and wavefront technology. With Shack Hartmann technology, the actual lens design, layout, and power map are visible. With this information, the best visual correction for the wearer can be taken into account during the centering and blocking process.
Intelligent shape modification
When performing modifications to the shape, Briot Attitude blocker shows the actual lens map in the background. This allows the user to see where the power channels will be located within the new shape or size, and enhances the wearer’s visual comfort and lens performance.
Smart edging or torque management system (TMS)

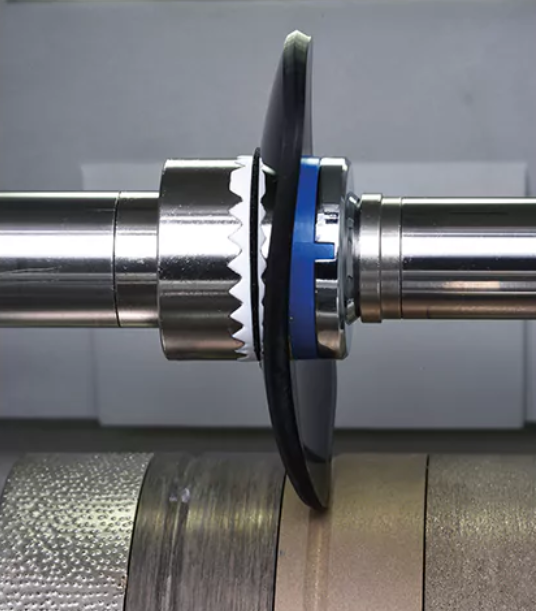

Briot Attitude 3 intelligently adjusts its edging cycles to the thickness of the lens and material.
New sensors and improved software maintain constant pressure on the lens, thus reducing edging time with no risk of misalignment, especially on hydrophobic lenses.
Truescan: true high curve tracer
Leveraging its TrueFit® technology, Briot Attitude takes into account the curvature of the lens and frame while optimizing the bevel placement, ensuring the best balance of proper fit and quality aesthetic. The lenses move naturally into place without forcing or lengthy retouching. You can also work on delicate wood frames without risk of breakage.
Dimensions
WIDTH: 360 mm (14,2 in)
DEPTH: 565 mm (22,2 in)
HEIGHT: 590 mm (23,2 in)
WEIGHT: 29,5 kg (65 lbs)
VOLTAGE: 100 V-240 V / 50 Hz-60 Hz
Meets following directives CEM 2004/108/CEE,
EN 55022 « Classe B »,
EN 61000 – 6 – 2; EN 61000 – 6 – 3,
2006/95/CEE, EN 61010-1
Standards UL Version US 115V:
UL 61010-1; CAN/CSA-C22.2 N°61010
Briot Attitude 3 Edger
Torque Management System (TMS) advanced edging cycle
Plastic Version: Four 90 mm edging wheels: all plastics (CR 39, polycarbonate, Trivex, high index), bevel and rimless finishing, bevel and rimless
polishing, tilted bevel wheel.
Mineral Version: Four 90 mm edging wheels: all plastics and mineral, bevel and rimless finishing including TBS, rimless polishing, TBS wheel.
Integrated drilling function: Countersunk holes, notches, blind or open oblong blind, or open oblong holes, special rectangular functions.
Tiltable drilling angles depending on program from 0° to 30°.
Tracing prior to roughing with accuracy of 50 μ. Feeling front and rear curvature and lens thickness.
Visual preview of lens on request, before starting roughing cycle.
Bevels width / height options: Normal, Mini-Bevel, Tilted Bevel, Mini-Tilted Bevel, Partial Bevel.
6 differents bevels : front face, percentage, Truefit, δ (base curve),automatic, customized.
Minimum edging diameters: rimless finish 17 mm, grooved finish 18.2 mm,bevel finish 18.6 mm, safety bevel finish 21 mm.
Grooving Programs: front face, percentage, customized (manual), automatic with adjustable depth and width. Grooving angle adjusted
automatically according to the curve and the height of the lens.
Customized safety bevel (front face, rear face).
Partial Processing (Bevel-Groove / Groove-Groove / Bevel-Flat / Flat-Groove)
Frame / Demo Lens Tracing
Frame tracing, demo lenses, patterns and edged lenses.
Special technology to measure wrap frames.
TrueScan: recognition of the 4 frame dimensions including the frame groove position, giving better fit of the lens into the frame.
Tracing right eye and / or left eye: transfer of one side only or both eyes.
Measurement of the frame PD and bridge.
Shape displayed on screen (scale 1, 2).
Maximum measurable diameter 70 mm.
Gravitech® 2.0 superior optical recognition system including accurate drill hole detection
Digiform included: advanced shape modification with overlayed lens and map display
Intuitive shape axis modification
Extensive, alphanumeric Library including 5000 Jobs & 10000 Shapes (Patterns, Drilled Shapes, etc.) with advanced search functions.
Automatic data transfer from the blocker to the edger.
Create new shapes from existing ones using the useful drill import & export functions
Centering & Blocking
Supported Decentration Types ½ PD, D x – D y, boxing height or frame height.
Decentering: 0.05 mm step.
Automatic Detection of Single Vision, Bifocal and Progressive Lenses
Power Measurement based on Wavefront Technology for Single Vision Lenses
Mapping including Power Measurement Point-to-Point for Progressive and Single Vision Lenses
Controlled blocking pressure.
Connections
Serial (RS232) and Ethernet (LAN) connection available
Communication according to the VCA Protocol (Version 3.10)
