Number of jobs: 5 000 Number of shapes: 10 000 Number of Frame Manufacturers / Folders: 100
WIDTH: 325 mm (12.8 in) DEPTH: 305 mm (12 in) HEIGHT: 435 mm (17.1 in) WEIGHT: 11 kg (24.3 lbs)

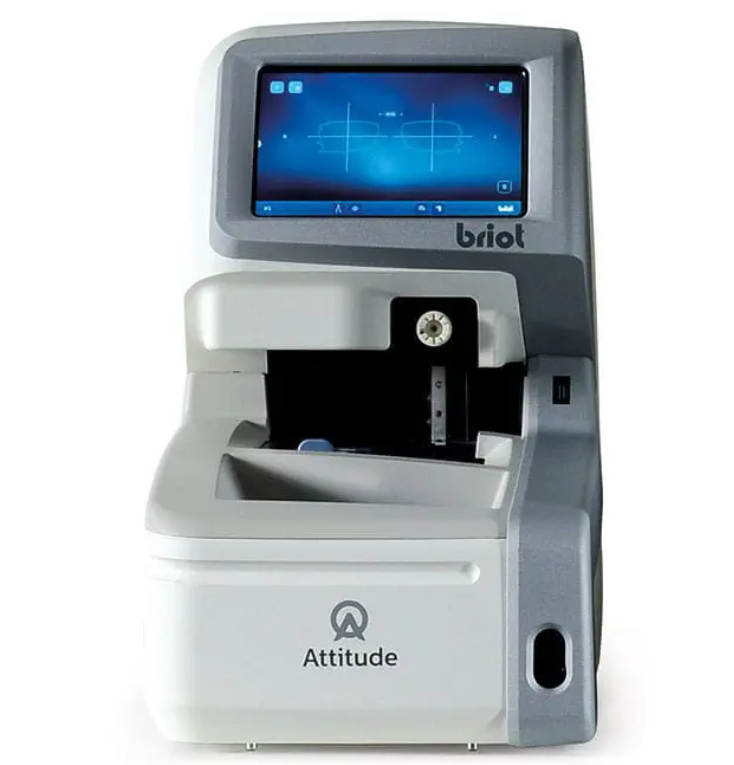

@Visionix Briot Evolution Patternless Lens Edger the Visionix Briot Evolution Patternless Lens Edger. This advanced tool changes lens processing in today’s optical labs. This advanced edger combines precision engineering with state-of-the-art automation, delivering flawless performance and exceptional efficiency.
The Evolution Patternless system removes the need for traditional pattern designs. This allows for a smoother and more flexible workflow. It can adapt to any lens shape or design.
With a dynamically adjustable lens drilling / grooving tool up to 30° and Briot’s Best-Fit® Technology, the Evolution ensures that the lens has an exceptional finish. The lens edger includes five different bevel options and 5 different grooving modes, allowing you unrivaled versatility. Edge lenses faster and more efficiently with less noise using the Alta Evolution.
Full 3D tracing for any curved frame
Briot Couture offers the only tracer on the market able to create a 3D model of the entire frame, including thickness, shape and groove placement. So you can offer the most creative designs to your customers with total precision.
Choose the base curve before ordering
Traditionally, choosing the base curve before ordering can be complicated, because you don’t know how the lens will fit with the frame. But with Briot Couture 3D visualization, it’s now a whole lot easier. You and your customers can preview the predicted results together and decide appropriately – a unique possibility with first-fit precision.
Delicate fits without retouching
Leveraging its TrueFit® technology, Briot Couture takes into account the curvature of the lens and frame while optimizing the bevel placement, ensuring the best balance of proper fit and quality aesthetic. The lenses move naturally into place without forcing or lengthy retouching. You can also work on delicate wood frames without risk of breakage.
Full control of edging, even with difficult curves
With 3D pre-visualization, you’ll see how the lens fits into the frame beforehand and benefit from a complete view of the final result. If needed, you can make precise changes without trial and error to obtain a perfect fit, especially in the curved parts of the frame. In the grinding section, Briot Couture offers a unique inclined bevel that enhances the finish.
Avoid slippage with hydrophobic lenses
Briot Couture intelligently adjusts its edging cycles to the thickness of the lens and material. But now with significant innovation: new sensors and improved software maintain constant pressure on the lens, thus reducing grinding time with no risk of misalignment, especially on hydrophobic lenses.
Dimensions
WIDTH: 325 mm (12.8 in)
DEPTH: 305 mm (12 in)
HEIGHT: 435 mm (17.1 in)
WEIGHT: 11 kg (24.3 lbs)
Features
Database
Number of jobs: 5 000
Number of shapes: 10 000
Number of Frame Manufacturers / Folders: 100
Optical Trace
Powered by patented GraviTech® in HD
Maximum «A» Dimension: 70mm
Maximum «B» Dimension: 60mm
Shape Modification

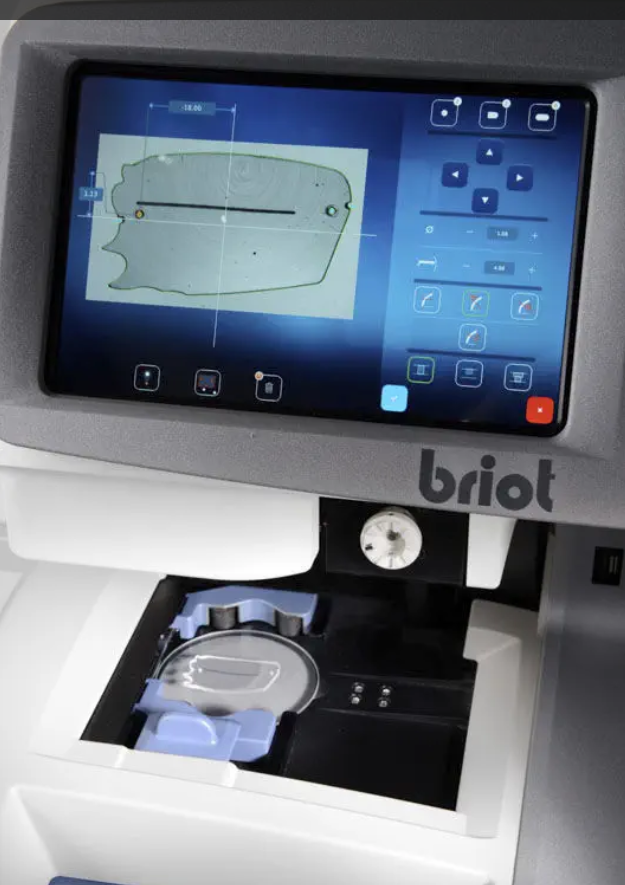

Automatic Drill Hole Detection
Easy Drill Hole Modification and Placement
Centering/ Blocking
Parallax Free Decentration and Blocking
High Definition Camera
Highlight and Visualize Laser engravings
3D Pupillary Distance Correction
Finishing
Industrial Grade Brushless Motor for fast and quiet operation.
Four 90mm wheels that edge all materials including CR39, Polycarbonate, Trivex®, High-Index, and Glass.
Integrated drilling functions including countersunk holes, notches, blind, and oblong holes. The drilling angle adjusts dynamically from 0-30°.
Front and backside lens curvature measurement accuracy of 50 microns.
Visual preview of lens before starting the roughing cycle.
5 different bevel program modes including Percentage(default), Base curve, Controlled Bevel(manual), and Automatic.
Variable chuck pressure based on lens material and coatings.
Minimum edging diameters: Rimless Polish = 17mm, Grooved Polish = 18.2mm, Bevel Polish = 18.6mm, Polish with Safety Bevel = 21mm.
This needs to be positioned above edging diameters.
5 different grooving modes including Percentage(default), Base curve, Controlled Bevel(manual), Automatic.
Front and backside safety bevel.
Includes a High Curve wheel for Sport and thicker plastic frames.
Only available for pure plastic processing (no mineral)
