Search for more information
Single Vision, Bifocal, Trifocal, Progressive (Markings or Engravings) Parallax-free digital manual centering Manual blocking
DEPTH: 23.6 in (600 mm) HEIGHT: 17.9 in (455 mm) WEIGHT: 151lb (68,5 Kg) VOLTAGE: 230 V-50 Hz, 115 V-60 Hz
Visionix Briot Perception 3 Optical Lens Edger Visionix introduces the next-generation all-in-one edging systems: the Briot Perception 3 delivering exceptional results for finishing workshops, combining reliability and accessibility. Also available in grooving version only.
New controled edging cycle
The new edging mode features an advanced anti-slippage cycle, keeping the ophthalmic lens stationary during edging to prevent misalignment or damage. Paired with Visionix’s recommended double-sided pads, it ensures greater stability and precision. Adjustable edging wheel speed, combined with these pads, provides safe handling
of high-value lenses and delivers flawless finishes with enhanced control.
Gravitech

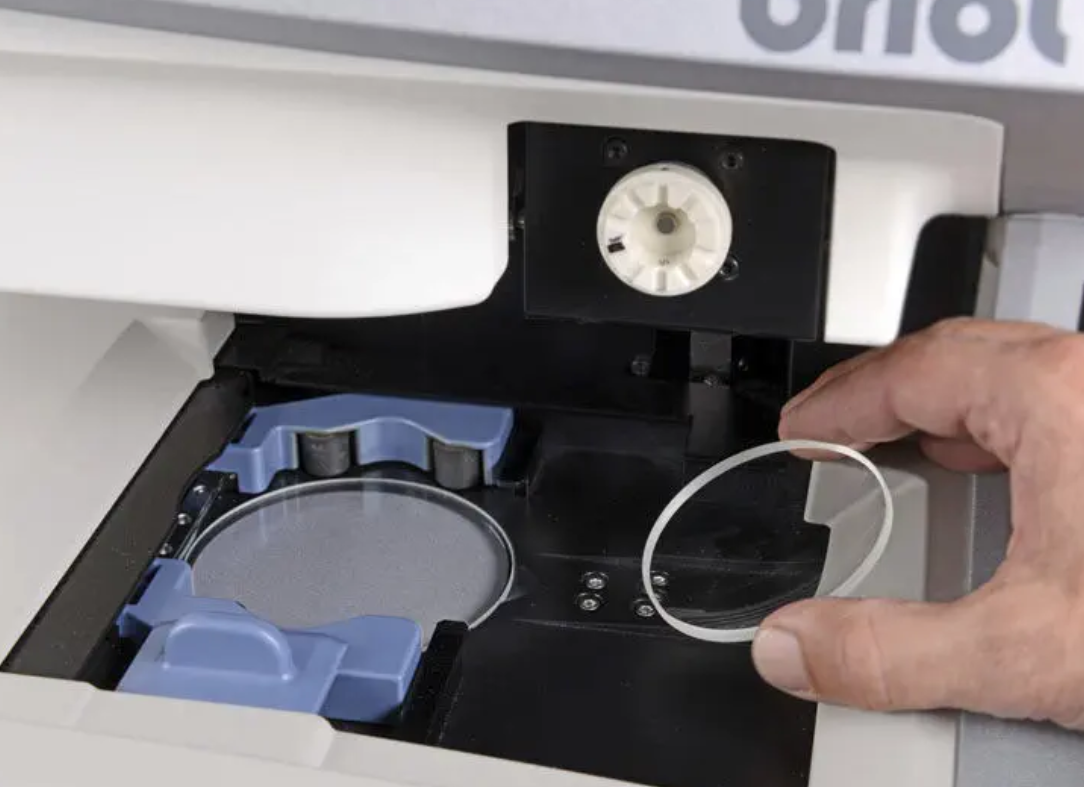

With Gravitech-powered tracing, you can easily scan a demo lens in a few seconds with accuracy that is superior to a mechanical tracer.
Drill mounts made easy
Never before has it been easier to do drill mount work. With Gravitech®, you don‘t have to waste time manually programming drill-mounts. Just scan the demo lens, and the drill mount holes are instantly recognized with minimal adjustment needed.
Easily see lens markings and engravings

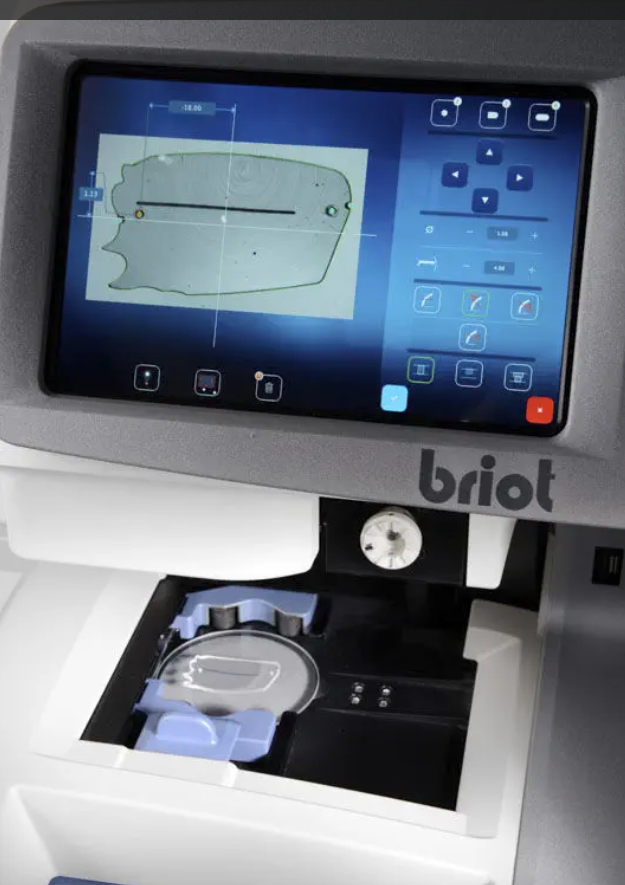

With its high definition optical camera, the Briot Perception 3 makes sure you will see laser engravings on progressive lenses clearly and easily.
Tilted 10° drilling and grooving
Add rimless and semi-rimless eyewear options without having to break the bank. With the Briot Perception 3 , you can kick those costly lab bills to the curb.
Guaranteed French Origin
Briot Emotion 3 was designed by our engineers in Normandy, France, and assembled in our local workshops with the greatest care. Each component is crafted with rigorous quality-control protocols at each stage of the process.
Manufacturer's warranty
And all parts are guaranteed for up to 2 years and backed by rapid intervention, ensuring you maximum uptime and a long lifecycle for your machine.
Tracing
Smooth manual frame clamping
Optical Tracing of all kinds of demo lenses with patented GraviTech® Technology
Automatic Drill Hole Detection
Shape Creator for freedom in designing shapes
Shape- Administration
Job-Memory: 2,000 Jobs (incl. Centring and Edging Parameters)
Shape-Memory: 10,000 Shapes with easy USB Database Import / Export
Shape Modification: A / B / ½B / Circumference / Shape-Axis
Centering
Single Vision, Bifocal, Trifocal, Progressive (Markings or Engravings) Parallax-free digital manual centering
Manual blocking
Edging
Processing of Glass, CR39, High Index, Polycarbonate and Trivex®
Both sided measuring of the lens with one touch probe
Different types of bevels, including new mini bevel
Polishing of Flat and V-Bevel
The new edging mode features an advanced anti-slippage cycle
Grooving / Drilling
Grooving with a fixed angle of 10° incl. different programs
Variable Groove width and depth
Chamfering: Front in one step / Back in 3 steps
Fixed 10° drilling angle for holes, slots and notches (for Perception 3 only)
Communication
OMA V3.10
Remote Tracing Capability
