Sintering and glazing of ZrO 2 materials (eg IPS e.max ZirCAD); Crystallization and glazing (e.g. IPS e.max CAD). The Programat CS4 cannot be used as a ceramic kiln for ceramics in the dental laboratory.
depth – 430 mm, width – 310 mm (with stand – 390 mm) height – 570 mm

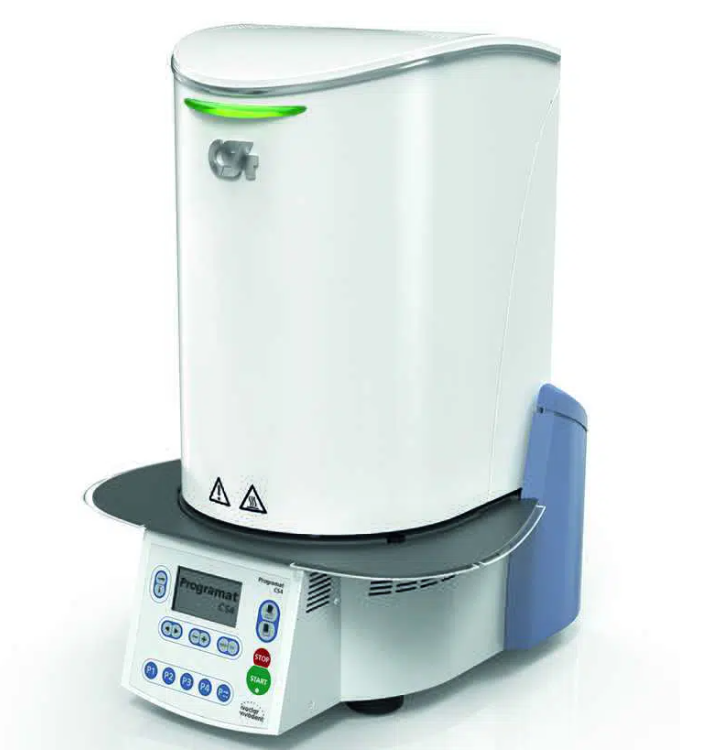

Programat CS4 – furnace for zirconium oxide sintering, glazing, and crystallization
Programat CS4 furnace is ideal for sintering, crystallizing, and glazing restorations in the dental office. Programat CS4 is a multi-purpose COMBO furnace for dental practice, suitable for crystallizing IPS e.max CAD and sintering of IPS e.max ZirCAD (Zirconia).
The speed sintering program allows zirconia restorations to be manufactured directly in the dental practice in a single session. A arranged membrane-sealed keypad with a graphic display enables easy operation. Both pre-set and individual programs for third-party materials are available. Programat CS4 is a stand-alone furnace that features an open system.
Advantages:
Fast sintering of IPS e.max ZirCAD
Crystallization of IPS e.max CAD
Glaze program for IPS e.max ZirCAD, IPS e.max CAD, and IPS Empress CAD
High processing capacity (up to six units)
Open system

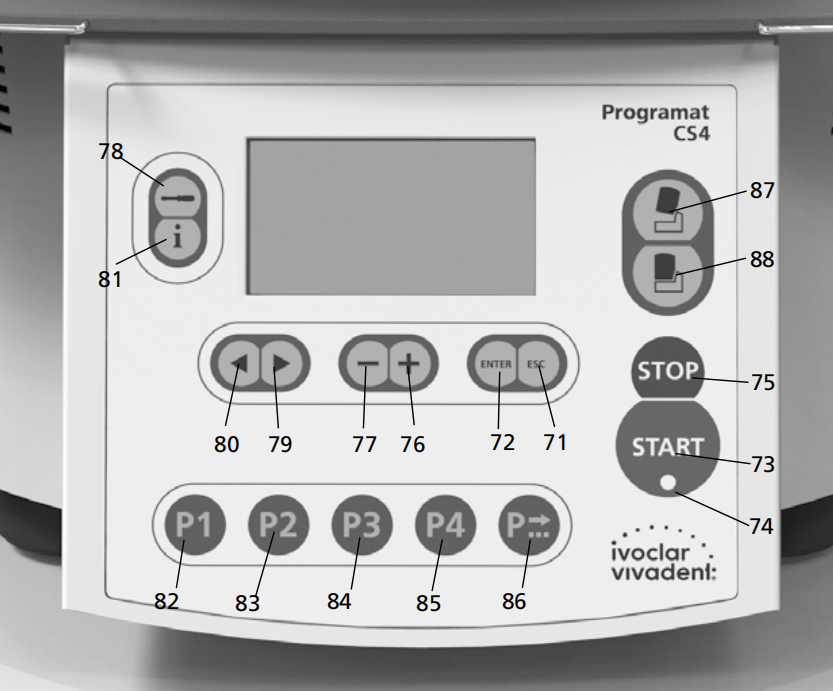

Simple and language-independent operation due to the proven combination of the membrane-sealed keypad and graphic display
Power Saving Technology
Compact design
Possibility of on-site temperature calibration
OSD (Optical Status Display)
Remote control via PC/laptop using PrograBase3 software
Key features
The firing chamber can be heated up to 1600 ° C;
The electronics with the corresponding software controls the sintering program;
There is a constant comparison between the actual and the set temperature;
The sintering table can accommodate up to 6 single restorations at the same time
Features of the model
Fast sintering process (it is possible to manufacture ZrO2 restorations in one medical appointment, maximum – six units at a time);
Glaze firing and crystallization (cost-saving, as usually different furnaces, are required for sintering, glaze firing, and crystallization);
Precise temperature (precise temperature control for glaze firing, crystallization, and sintering).
Application
Sintering and glazing of ZrO 2 materials (eg IPS e.max ZirCAD);
Crystallization and glazing (e.g. IPS e.max CAD).
The Programat CS4 cannot be used as a ceramic kiln for ceramics in the dental laboratory.
Specifications

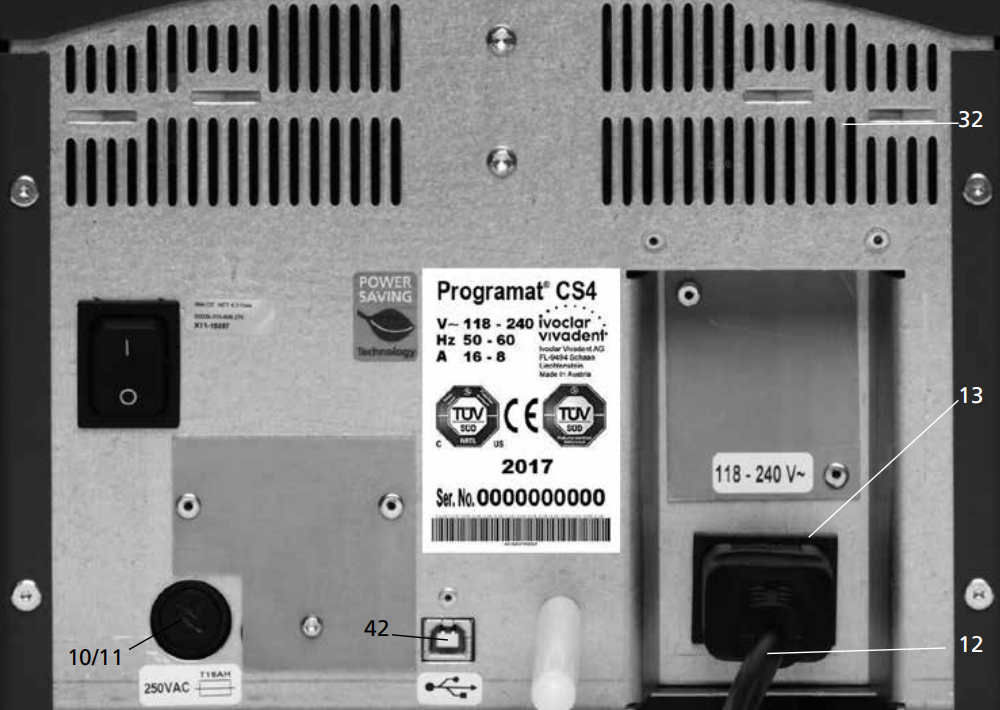

Power supply: 118-240 V / 50-60 Hz
Overvoltage category: II
Pollution degree: 2
Allowable voltage fluctuations: + – 10%
Maximum current consumption: 16A @ 118V, 8A @ 240V
Electrical fuses: 250 V / T 16 A (heating element)
Fuse size: diameter 5 x 20 mm
Closed oven dimensions: depth – 430 mm, width – 310 mm (with stand – 390 mm), height – 570 mm
Useful chamber volume: diameter – 80 mm, height – 80 mm
Maximum firing temperature: 1600 ° C
Weight: bottom 10 kg, furnace head 17 kg
Equipment
The lower part of the oven is electronically controlled;
Furnace head with sintering chamber;
Sintering table;
Object stand;
Network cable;
Table fork;
Cleaning brush;
Crystallization table.

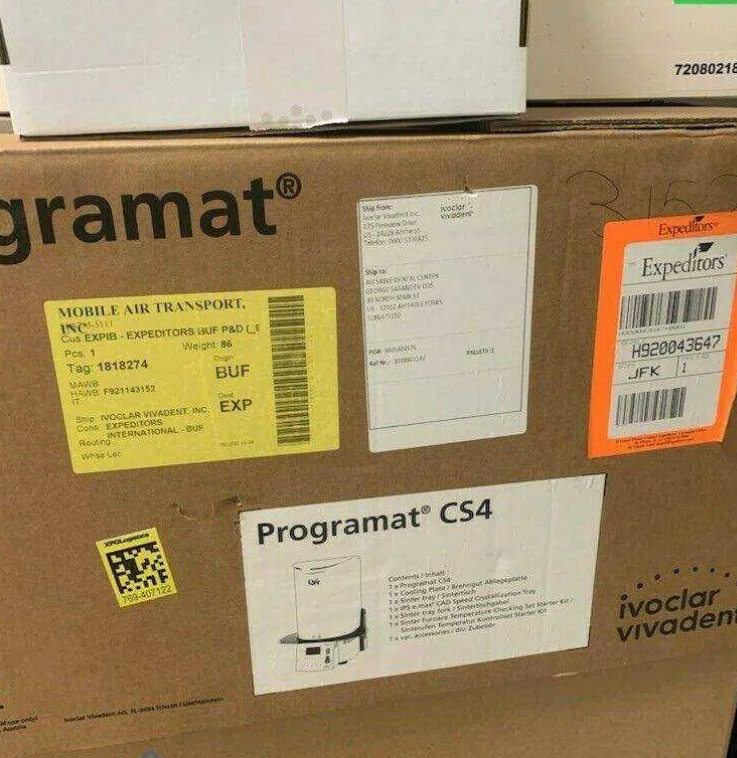

Delivery forms
Programat CS4
Power cord
Sintering Furnace Temperature Checking Set Starter Kit – Operating Instructions
Sinter tray
Sinter tray fork
IPS e.max Speed Crystallization Tray
USB download cable
var. accessories
Instructions for Use
Warranty Card
