Depth: 495 mm Width: 320 mm / 395 mm (with cooling tray) Height: 320 mm
Diameter: 90 mm Height: 80 mm

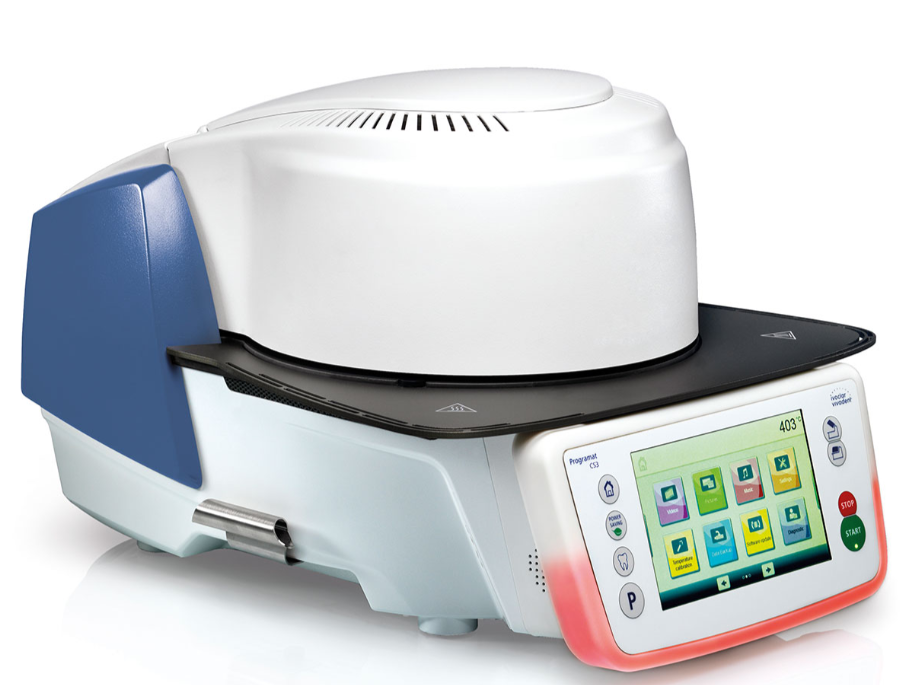

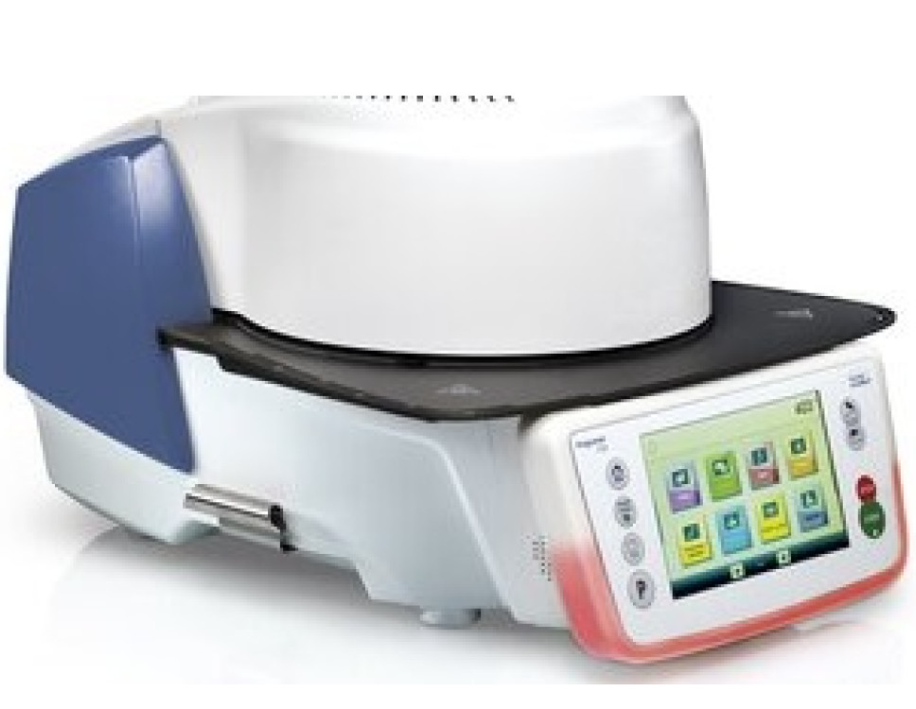

#Programat Ivoclar CS3 Porcelain Dental Ceramic Furnace
The Programat CS3 was developed specifically for the crystallization of IPS e.max CAD restorations. The furnace is operated via a 7-inch color touchscreen display featuring an operating concept developed specifically for dental practices and a proven membrane-sealed keyboard. The Programat CS3 features over 30 individual programs and pre-set Ivoclar Vivadent programs, including the Speed program, which allows crystallization of IPS e.max CAD restorations in just 15 minutes.
The patented digital color analysis tool, "Digital Color Assistant" (DSA), allows users to instantly determine the color shade. This software compares the color of the element to be analyzed with three preselected colors from a single image. Dedicated image editing software automatically determines the element to be analyzed and which three elements from the color chart should be used. The closest matching color is then displayed on the screen.
The proven QTK muffle furnace technology ensures even heat distribution within the baking chamber. This not only results in optimal baking results but also extends the service life of the heating elements. Furthermore, the new vacuum pump control system with a double valve ensures quiet and energy-efficient operation.
Advantages:
The baking and crystallization oven features an integrated DSA function for digital tooth color analysis.
Color touchscreen combined with a proven membrane keyboard.
Design specifically developed for dental practices.
QTK2 silencer technology with SiC bottom reflector
Automatic temperature calibration at two reference points (ATK2)
Energy-saving technology
OSD display
WLAN package for WIFI data transmission (software update, PrograBase x 10
Modern interfaces (USB, Ethernet, SD card)
Dual-valve vacuum pump for quiet and energy-efficient operation
Delivery form
– Programat CS3
– Power cord
– Vacuum hose
– Programat Firing Tray Kit 2
– IPS e.max CAD Speed Crystallization Tray
– Automatic Temperature Checking Set ATK 2 (test set)
– USB download cable
– Operating Instructions
– Programat WLAN Kit
– DSA Holder Kit
– Various accessories
Recommended accessories:
– IPS e.max CAD Crystallization Tray
– Temperature Checking Set ATK 2
– Vacuum pump VP5, VP3 easy
