85 x 60 x 58 mm

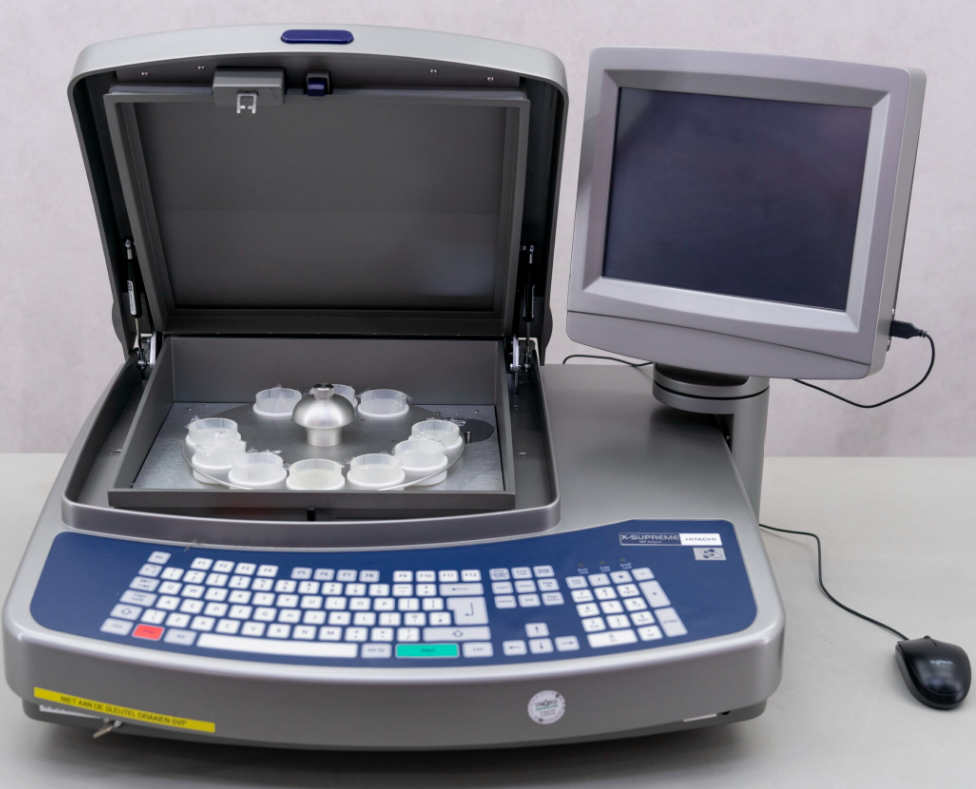

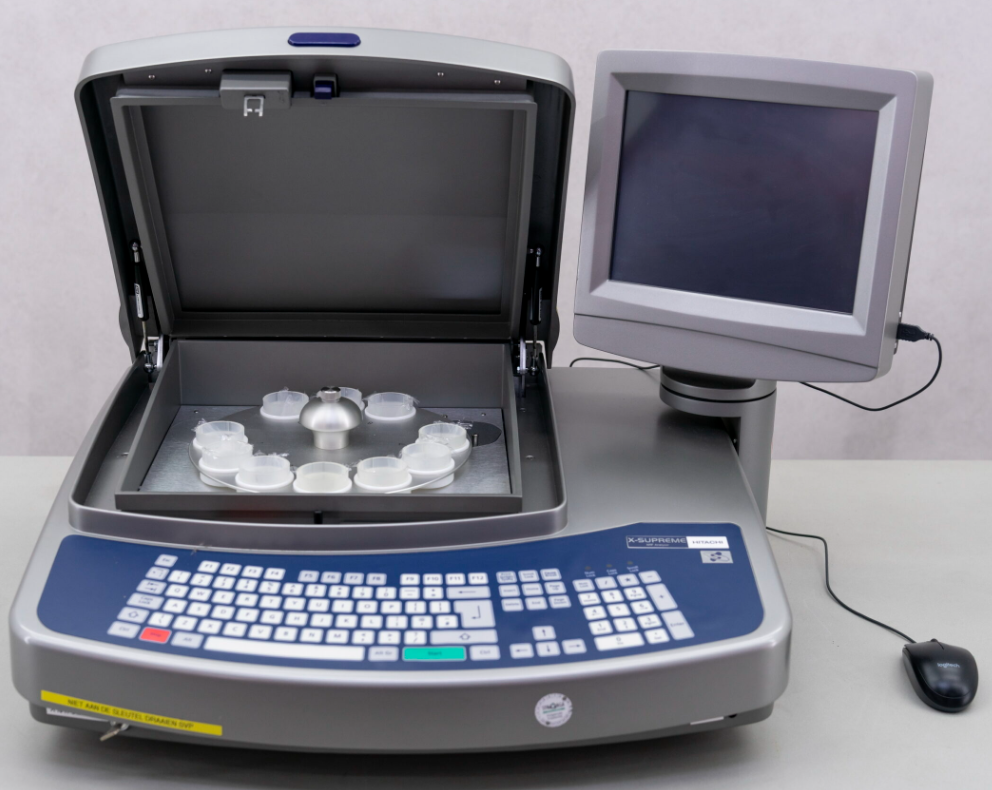

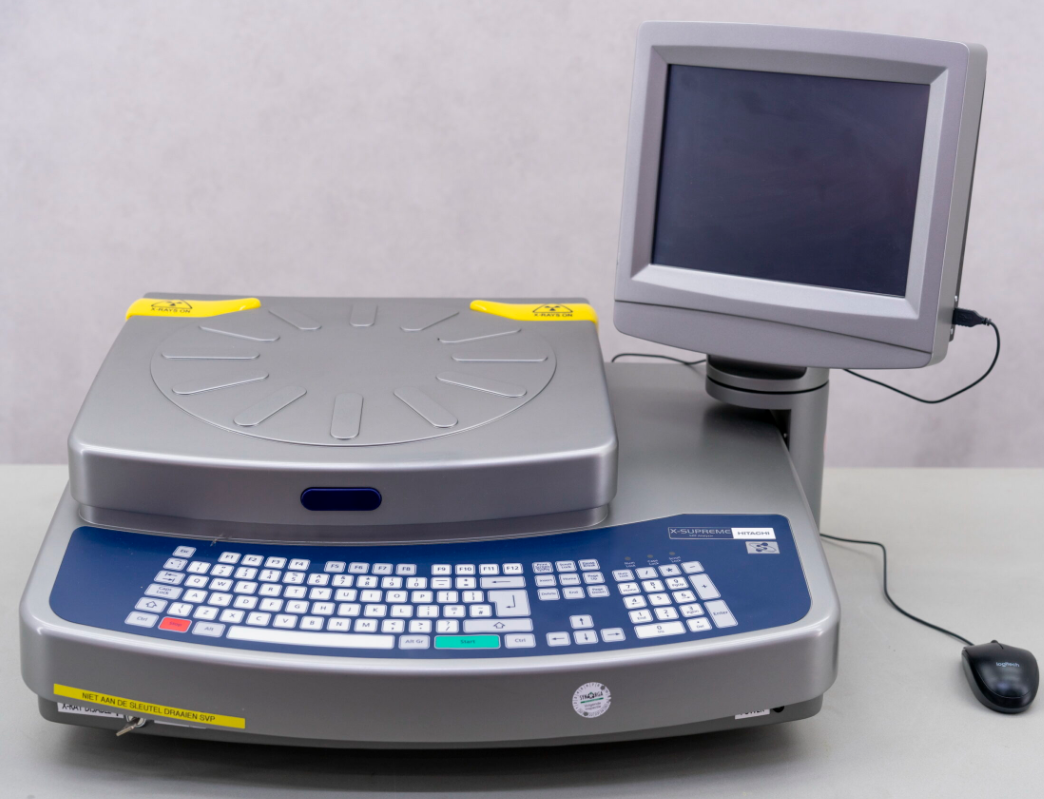

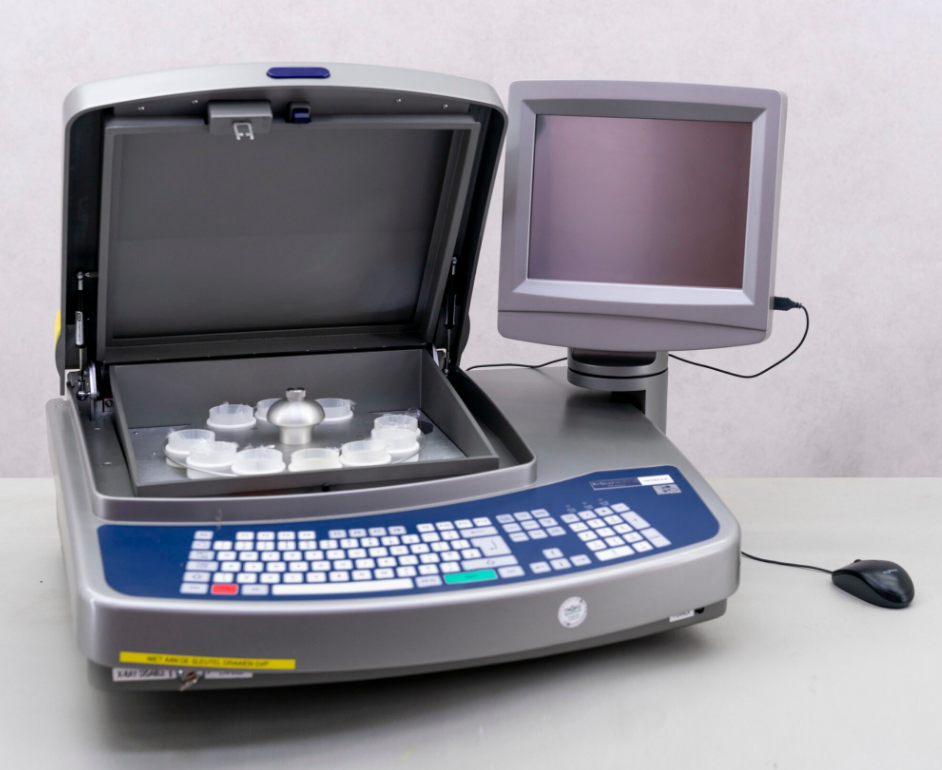

#X-Supreme8000 Benchtop Bulk Analysis (XRF) For reliable quality control at the push of a button, The X-Supreme8000 is the ultimate benchtop XRF analyser for materials such as petrochemicals, polymers, minerals and general chemicals in production environments and laboratories.
Getting consistent, accurate analysis from production control instruments helps any process run more effi ciently. Performance and flexibility The X-Supreme8000 makes it easy to get reliable, repeatable results by combining application-optimised hardware with software that is simple but powerful.
To take a measurement, the operator simply prepares the sample, loads it into the auto sampler and presses the start key. Results are displayed on-screen, including pass/fail messages and instructions on how to handle a sample that is out of specifi cation. For added fl exibility the X-Supreme8000 allows advanced users to easily develop custom calibrations by following the step-by-step method creation guide.
Customised Applications
Minerals and mining
Petrochemicals - fuels, lubricating oils
Wood pressure treatments
Cement
Food and cosmetics
Plastics and polymers
Education
Meeting the ever increasing requirement for minimal or no sample preparation and unattended operation, the powerful EDXRF X-Supreme8000 can be used by non-laboratory operators.
Hitachi's powerful Silicon Drift Detector (SDD) and high reliability X-ray tube technologies guarantee precise multi-element analysis at concentrations from high percentage down to ppm levels of detection, covering elements Na11 to U92 in the periodic table.
Wide range of Sample Types
Solids
Liquids
Powders
Pastes
Films
Features and benefits:
Unattended operation to save you time and costs
10 position sample carousel for unattended operation
Optional large trays for holding 51.5mm diameter steel ring for cement application, or 47mm diameter filter samples
Minimum bench space
Integrated PC – compact
Large, easy to read colour graphics for clarity and ease of use
Touch screen display (optional) for simple and rapid data input
Rugged and robust design for harsh environments
Sealed membrane keypad resistant to dust, oils, solvents etc.
Secondary easy-to-change safety window for liquids/power analysis protects the instrument in the event of sample leakage
X-Supreme method Wizard
Simple step-by-step setup
Straightforward editing (click the image on the right to expand)
Preloaded and customisable methods
Routine analysis (for production staff)
Helpful hints on-screen for advice on good practice

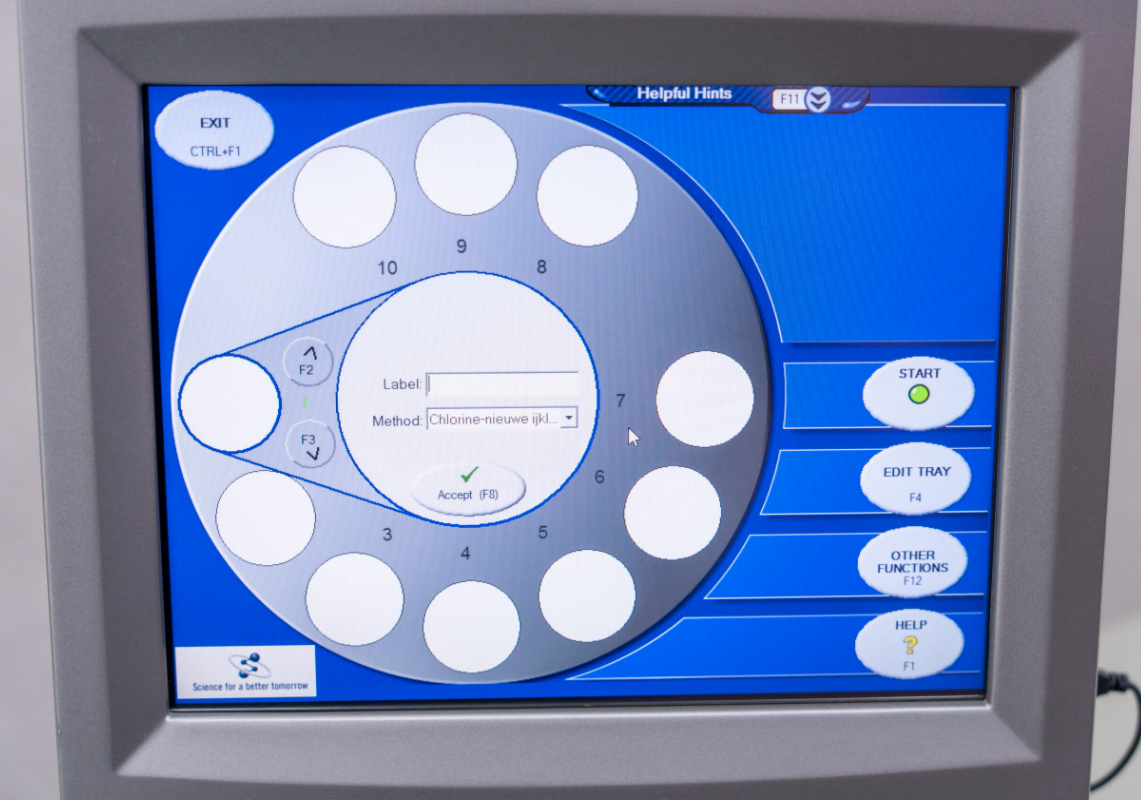

SMARTCHECK software allowing operation ‘by anyone’ (click the image on the right to expand)
Easy to use software for production staff and powerful features for advanced operators
Data can be automatically displayed, printed, stored locally or on a network drive
Technical specifications:
Voltage: 220-240 V
Power: 120 W
Element range : Na-U
Sample tray capacity : 10
Membrane keypad with two-row display : MS Windows, optional touch screen
Atmospheric compensation : No
High-resolution detector : Yes
Helium purge for improved analysis of Na – CI : Yes
One touch to start measurement : No
Automatic data storage : Yes
Cloud-based data backup with LiveConnect : No
Factory-loaded calibrations for selected applications : Yes
Outer dimensions (W) x (D) x (H): 85 x 60 x 58 mm
