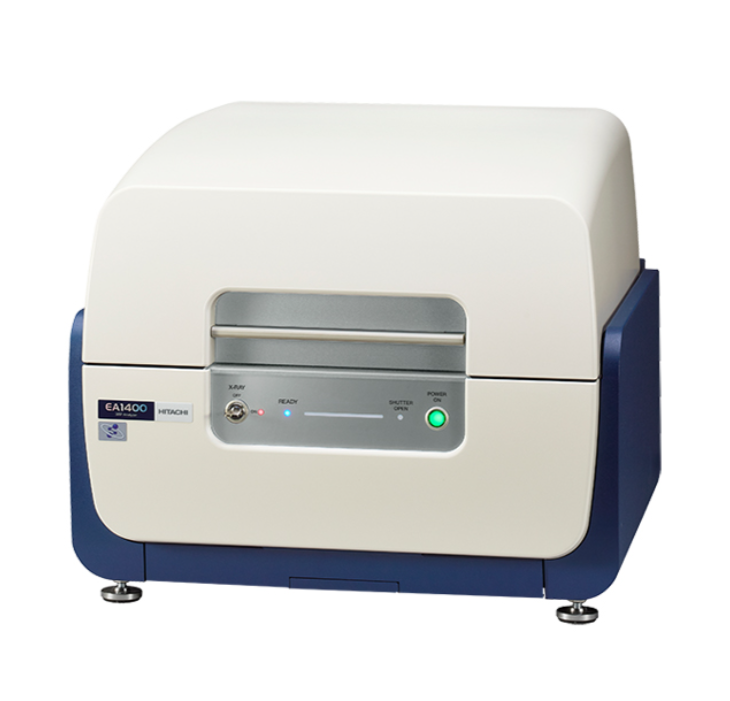

#Benchtop XRF analyzers for RoHS | EA1000AIII and EA1400
Specifically designed for RoHS (Restriction of Hazardous Substances) the EA1000AIII and EA1400 benchtop XRF analyzers have been trusted for over 15 years to deliver consistent results for businesses who need to conform to this directive. With easy and quick measurement for RoHS you can ensure you will be able to meet the requirements for environmental regulations.
Why choose Hitachi XRF RoHS analyzers?
Easy to operate
Optional 12-position carousel for unattended analysis
Flexible calibrations to adapt to new RoHS standards
Automatically highlights what you’re analyzing for glanceable results
Quick measurement
Large chamber to fit a variety of samples
Visual and audio measurement indicator
Option to add coatings and elemental analysis
| EA1000AIII | EA1400 |
Benchtop EDXRF analyzer | Benchtop EDXRF analyzer |
Rapid RoHS compliance screening (Pb, Hg, Cd, Cr, Br) | Fast RoHS compliance screening (Pb, Hg, Cd, Cr, Br) |
Typical RoHS screening time: < 70 seconds (for plastics), < 340 seconds (for brass) | Typical RoHS screening time: < 35 seconds (for plastics), < 170 seconds (for brass) |
Automatic selection of calibration for RoHS screening | Automatic selection of calibration for RoHS screening |
Element range: Al (13) – U(92) | Element range: Al (13) – U (92), Na (11) – U (92) with vacuum option |
Materials analysis: fully qualitative and quantitative analysis using empirical and standardless (FP) calibrations | Materials analysis: fully qualitative and quantitative analysis using empirical and standardless (FP) calibrations |
Thin film (coating thickness) analysis (option) | Thin film (coating thickness) analysis (option) |
Sample type: solids, liquids, powders | Sample type: solids, liquids, powders |
Detector: Silicon PIN-diode | Detector: High resolution silicon-drift detector (SDD) for optimum spectral resolution and results accuracy |
Optimized measurement conditions with 5 programmable filters | Optimized measurement conditions with 5 programmable filters |
Analysis atmosphere: Ambient air | Analysis atmosphere: Ambient air, Vacuum for enhanced sensitivity (option) |
Analysis area diameter: 1mm, 3mm, 5mm (programmable) | Analysis area diameter: 1mm, 3mm, 5mm (programmable) |
Sample observation: color CCD camera | Sample observation: color CCD camera |
Single sample analysis, 12-position sample changer (option) | Single sample analysis, 12-position sample changer (option) |
Chamber size: 370(W) × 320(D) × 120(H) mm | Chamber size: 304(W) × 304(D) × 110(H)mm |
Data management: data and trend management software to ensure consistent product quality and compliance | Data management: data and trend management software to ensure consistent product quality and compliance |
Operation: Laptop or desktop PC | Operation: Laptop or desktop PC |

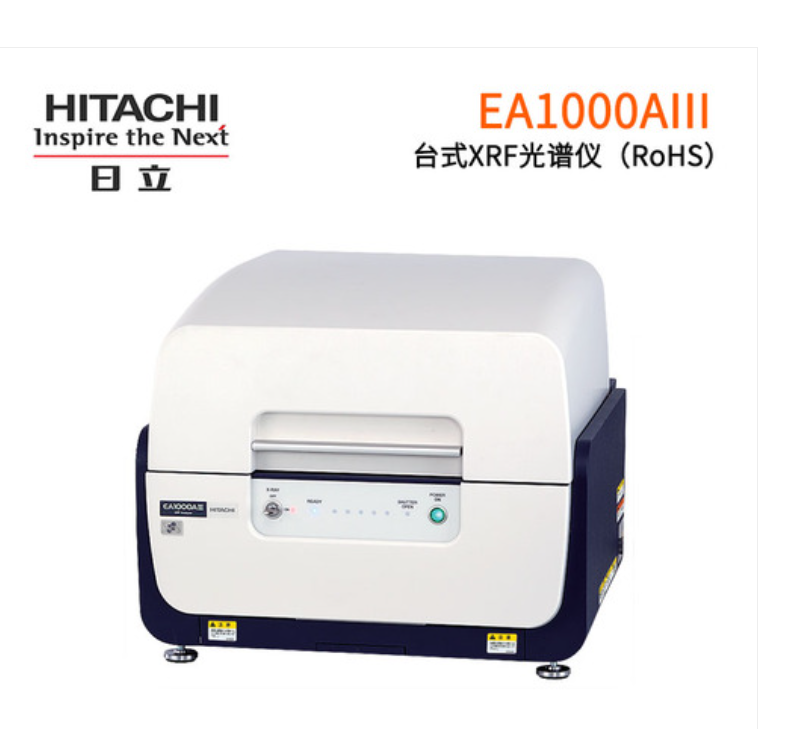

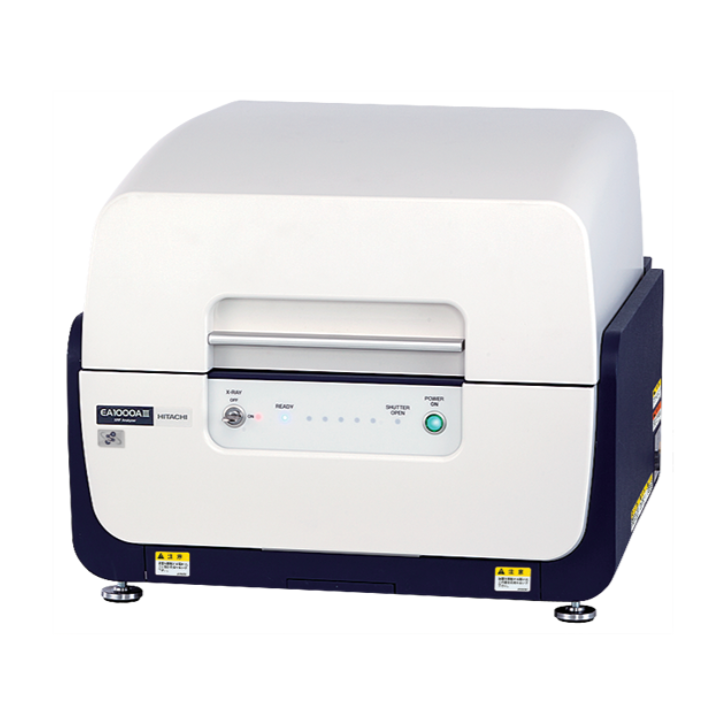

The EA1000A III X-ray Fluorescence Analyzer achieves better throughout by shortening the measurement time by 1/3 compared with our previous model. The precision control software, which was optional for the former models, is now standard, improving the cost effectiveness.
Low Cost Entry Model
Newly employed silicon semiconductor detector, speed-up of electric control system and mechanical drive system have shortened measurement time three times faster than the conventional model (SEA1000AII) while price remains about the same.
The EA1000AIII comes standard with Hazardous Substance Measurement Software Ver.2.
Options
Sample Changer (turret) that holds up to 12 samples
Film Analysis FP software
Film Analysis Calibration software
Spectrum Matching (Compares with the spectrum of registered standard samples)
Environmentally regulated substance measurement software Ver.1
Various types of standard sample (Standards samples for environmentally control, Pb free solder standard samples, Pb free solder film standard samples)
Signal tower
Printer
