#Hitachi PMI-MASTER Smart Portable Spectrometer
Spark mobile optical emission spectrometers (OES) excel at providing full chemistry of critical alloy elements at low detection limits that handheld X-ray and LIBS analyzers can’t: carbon, phosphorus, sulfur, boron, arsenic and tin in low alloy and stainless steels, and nitrogen in duplex steels.
That’s why spark OES is the most trusted and widely used method for creation and verification of MTR’s (mill testing reports) in the world. Our mobile and portable spectrometers also meet the world’s most stringent PMI metallurgical alloy chemistry testing requirements including API 5L testing, API RP578, ASME section IX B& PV, and ISO 17025.
Description:
When you need to reliably analyze steels and other alloying materials like aluminum, nickel, and copper in a safety-critical environment, you need an OES spectrometer that rapidly delivers the analytical performance you can trust first time.
Spark optical emission spectrometers excel at providing full chemistry of critical alloy elements at low detection limits that handheld X-ray and LIBS analyzers can’t: carbon, phosphorus, sulfur, boron, arsenic and tin in low alloy and stainless steels, and nitrogen in duplex steels. That’s why spark OES is the most trusted and widely used method for creation and verification of MTR’s (mill testing reports) in the world.

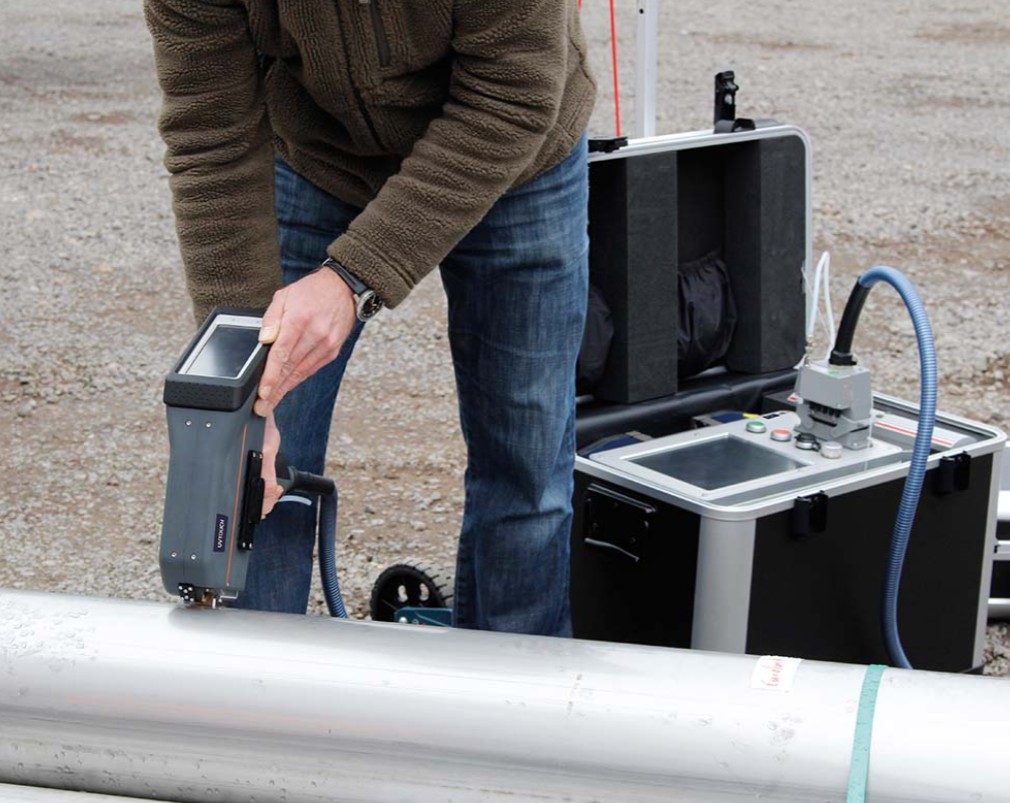

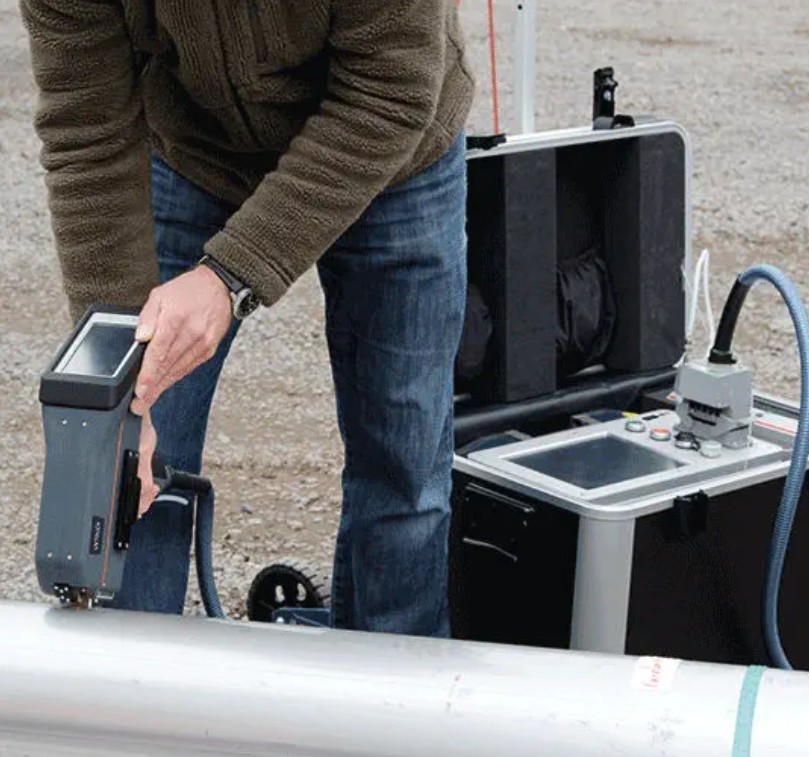

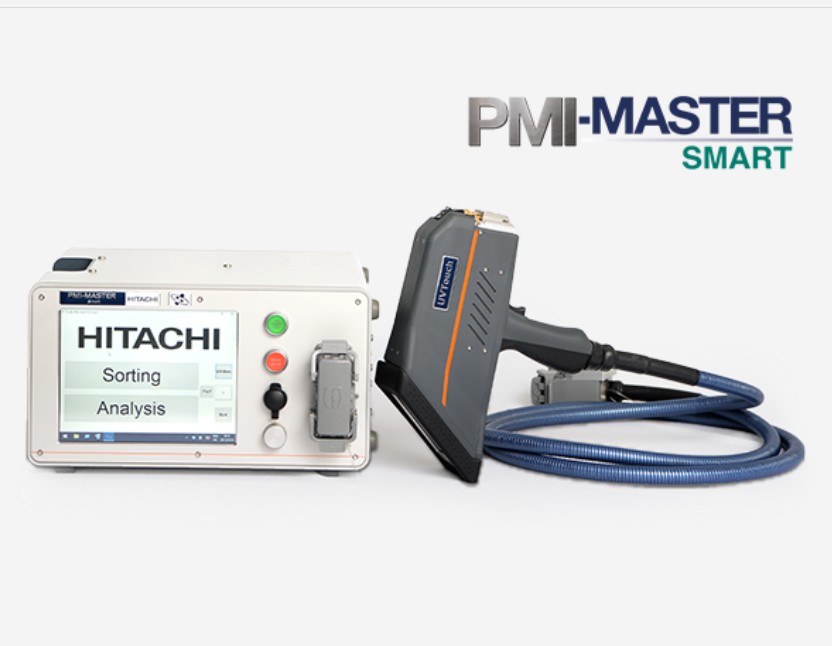

Hitachi High-Tech’s PMI-MASTER Smart OES analyzer, which is made in Germany, is light weight and compact, making it ultra-portable so you can easily take it where you need it; whether at height, in a ditch, material inspection areas outside and inside, or in a laboratory.
Our optical emission spectrometers meet the world’s most stringent PMI metallurgical alloy chemistry testing requirements including API 5L, ASME section IX B& PV, ISO 17025 and A2LA standards.
Why choose the PMI-MASTER Smart?
Results you can trust
Reliable low levels of detection not just for C but also P, S, B, As and Sn in low alloy stainless steel and N in duplex steels.
Easy to use
Easy to re-calibrate and stable measuring results even with temperature changes outside.
Hot sample measurements
Measure elements, including C and Si, reliably from hot surfaces up to 300°C.
Data management
Benefit from ExTOPE Connect cloud-based data management services, and easy to use and customized report generator. Share results to remote devices and export into other software.
Technical specifications
Multi-CCD optics in Paschen-Runge mounting and optimised pixel resolution
Wavelength range: 185-672nm
Computer system: Internal computer unit and touch screen user interface
Typical applications
Steel alloys
L grade segregation in stainless steel
C, P*, S*, Sn*, As*, B* analysis in steel
Al alloys ~ Al-Si ~ Al-Si-Cu
Cu-Sn ~ Cu-Zn
Cu, Ni, Zn, Co, Mg, Pb, Sn and Ti alloys
*With UVPro probe
Provide real portability through various transportation options.

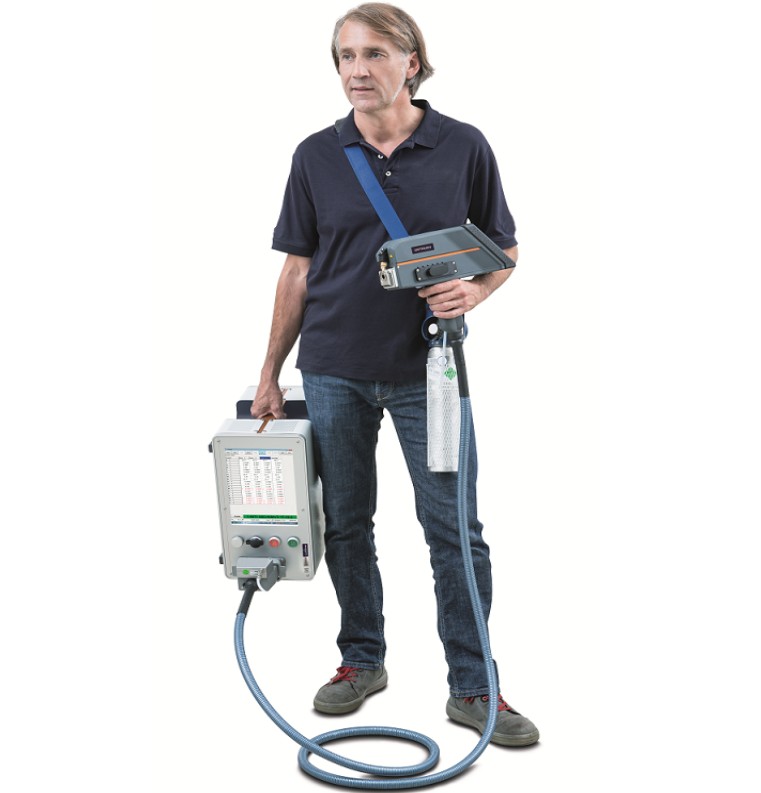

1) Portable mode
Easy to carry, weighs only 15 kg / 33 lbs, compact dimensions.

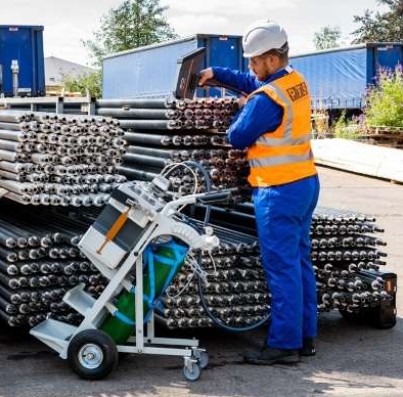

2) Transportation mode
Ready to ship in rugged stackable cases, drag with foldable trolley.
3) Backpack frame mode
To comfortably and safely carry the PMI-MASTER Smart on the back.

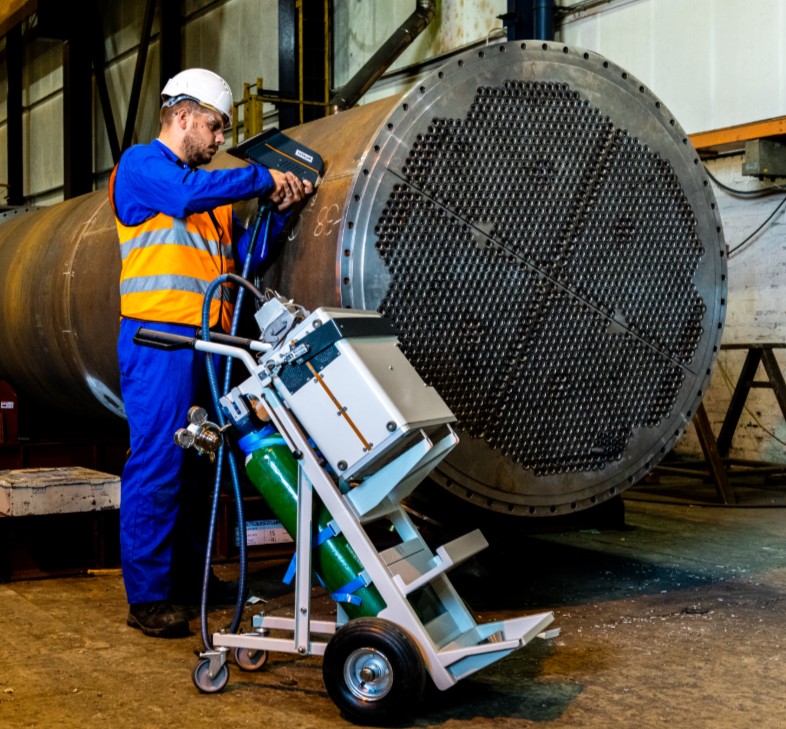

4) Mobile mode
When needed intensively within a certain area.

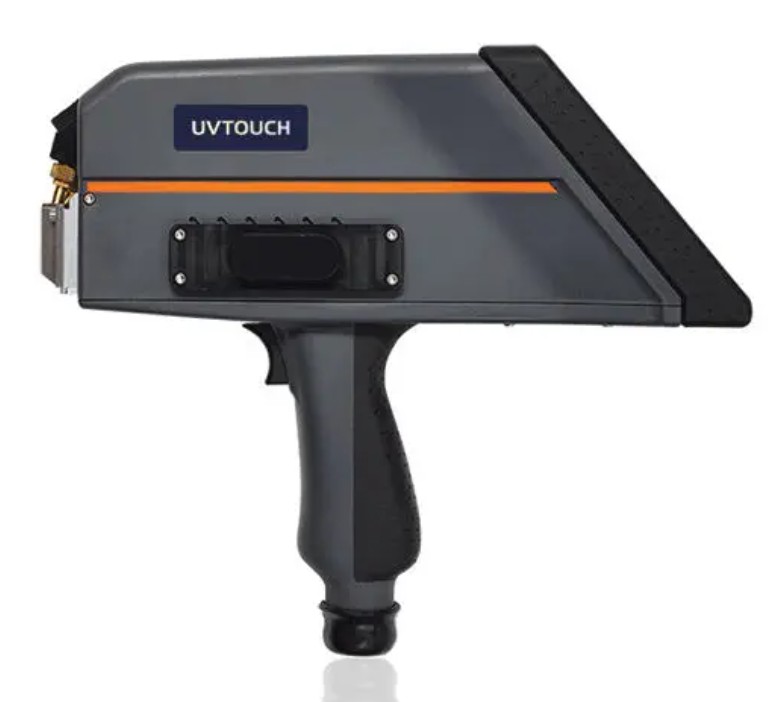

UVTOUCH PROBE
Low levels of carbon, phosphorus, sulphur, boron, arsenic and tin in low alloy and stainless steels.
L grade separation.
Nitrogen in duplex steels.
Display of analysis results.
Control the main spectrometer functions.
Extended wavelength range of probe’s optic: 165 to 210 nm.
Arc Probe
Ideal for the sorting of metals with arc in air atmosphere.
No Argon required.
Analysis in only 3 seconds.
For tubes, wires and small parts.
Spark Probe
Reliable spark analysis of standard elements, incl. C.
Robust construction.
Various sample adapters available.
Ten, including the brand database
A large-scale brand database is pre-installed in PMI-MASTER Smart, which can quickly and easily identify brands.
The brand database can provide more than 12 million records of more than one metal material in 69 countries and standards. It takes only a few clicks to update the instrument's brand database–there is no need to spend time searching for various specifications and brand catalogs.
GRADE Database included
The largest metals database for fast and easy grade identification is preinstalled on the PMI-MASTER Smart.
It offers more than 12 million records for over 339,000 materials from 69 countries and standards. You can update your instrument’s grade database with a few clicks – no time consuming research in norms and grade catalogues.
