B-mode: Black-and-white imaging for real-time anatomy visualization. M-mode: Motion mode for tissue motion over time. Color Doppler: Real-time blood flow imaging. Pulsed Wave Doppler: Speed and direction of blood flow measurements.
Lightweight Design: Weighs just 205 grams. Cordless Operation: Wireless data connectivity for seamless use with Apple® and Android™ devices. Extended Battery Life: Up to 50 minutes of continuous scanning, with quick recharge times.
Abdominal Imaging (Adult/Pediatrics) Urology (Adult/Pediatrics) OB-GYN Lung/Thoracic (Adult/Pediatrics) Cardiac and Hemodynamic Assessments Musculoskeletal (Conventional) Procedure Guidance (Adult/Pediatrics)

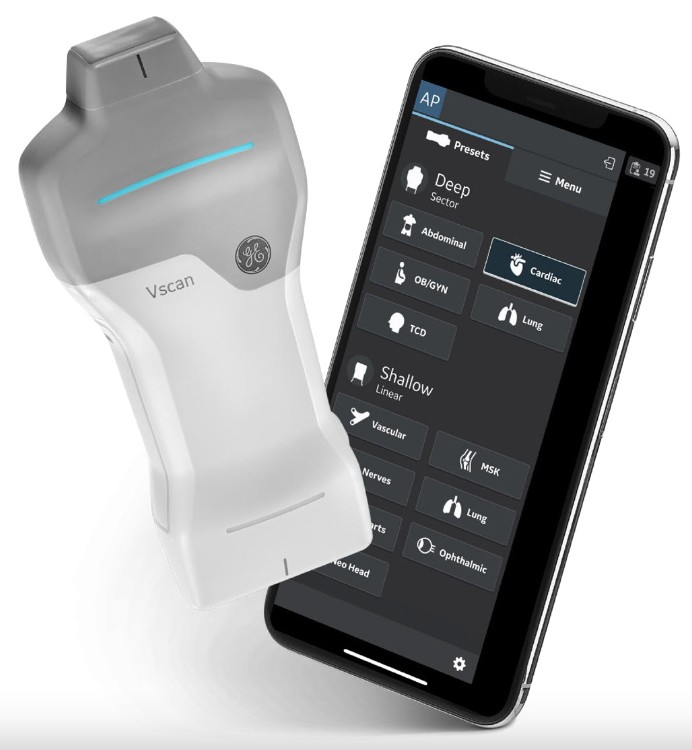

#Vscan Air CL, an innovative wireless handheld ultrasound featuring both curved and linear array transducers. This compact, lightweight device offers unparalleled imaging capabilities, making it an essential tool for any healthcare professional. Whether you need to perform abdominal imaging, obstetric assessments, vascular scans, or musculoskeletal evaluations, the Vscan Air CL delivers crystal-clear images anytime, anywhere.
Features
Black and white imaging
- Black and white mode to display anatomy
two-dimensional anatomy in real time
B mode
Color flow
- Superimposition of color codes for real-time
real-time blood flow imaging
Color Doppler
Spectral pulsed-wave Doppler
- Displays speed and direction of blood flow
to measure blood flow velocity.
PW
Motion mode
- Displays tissue movement over time
direction as indicated by the M mode cursor)
Data from 500 examinations can be stored on the mobile device.
- Data is stored in generic formats: jpg for still images, mpg for videos.
- Additional storage of binary image data can be selected. This data
This data could be useful for further image analysis in collaboration with GE HealthCare.
GE HealthCare.
- The data is organized as individual examinations with a collection of images and can be linked to patient identification.
images and can be linked to patient identification.
- All stored data can be recalled for review.
Supported DICOM services
- Checklist
- Modality worklist
- Storage
- Secure DICOM (TLS)
- Secure DICOMweb - STOW-RS (TLS)
Curved Array Transducer Ideal for:
Abdominal Imaging (Adult/Pediatrics)
Urology (Adult/Pediatrics)
OB-GYN
Lung/Thoracic (Adult/Pediatrics)
Cardiac and Hemodynamic Assessments
Musculoskeletal (Conventional)
Procedure Guidance (Adult/Pediatrics)
Linear Array Transducer Ideal for:
Peripheral Vascular
Lung/Thoracic (Adult/Pediatrics)
Small Organs (Adult/Pediatrics)
Musculoskeletal (Superficial and Conventional)
Nerves (Adult/Pediatrics)
Neck and Airway (Adult/Pediatrics)
Procedural Guidance (Adult/Pediatrics)
Ophthalmic
Cephalic (Neonatal)
Technical Details
128 physical channel beamforming
• Harmonic imaging for increased signal-to-noise ratio and reduced
artifacts from side lobes, grating lobes, and reverberations.
• Total scan time of 50 minutes with fully charged battery
(with 80% black and white, 20% color imaging)
• Recharge battery from 10% to 90% capacity in 75 minutes
• Start scanning faster with smart connect pairing, which keeps
your probe connected to your display device while charging.
• Dimension: 131 x 64 x 31 mm
• Weight: 205 +/- 3 grams
• IP67-rated
• Drop robustness: MIL-STD-810G, Method 516.7, Table 516.7-VII
• Storage mode enables you to store the probe up to 36 months
without significant battery degradation.
Curved array transducer
for deep scanning
Linear array transducer
for shallow scanning
• Specific clinical applications and exam types including: abdominal,
fetal/obstetric, gynecological, urological, thoracic/lung, cardiac
(adult and pediatric, 40 kg and above), vascular/peripheral vascular,
musculoskeletal (conventional), pediatric, interventional guidance
(includes free-hand needle/catheter placement, fluid drainage, nerve
block, and biopsy)
• Broad-bandwidth curved array:
2 - 5 MHz with center frequency of 3.3 MHz
• Number of elements: 128
• Footprint: 64 mm x 16 mm (lens)
• Viewing angle: 60°
• Depth: Up to 24 cm
• Specific clinical applications and exam types including: vascular/
peripheral vascular, musculoskeletal (conventional and superficial),
small organs, thoracic/lung, ophthalmic, pediatric, neonatal
cephalic, interventional guidance (includes free-hand needle/
catheter placement, fluid drainage, nerve block, vascular access,
and biopsy)
• Broad-bandwidth linear array:
3 - 12 MHz with center frequency of 7.7 MHz
• Number of elements: 192
• Footprint: 40 mm x 7 mm (lens)
• Depth: Up to 8 cm
By enhancing tissue definition, harmonic imaging delivers superior image clarity, even at great depths. What's more, with a total scan time of 50 minutes on a fully charged battery, and rapid recharging capability - from 10% to 90% in just 75 minutes - the Vscan Air CL guarantees uninterrupted performance when you need it most, enabling healthcare professionals to deliver exceptional patient care with confidence and efficiency.
