#Mindray Resona i9 Ultrasound Transducers / Probes

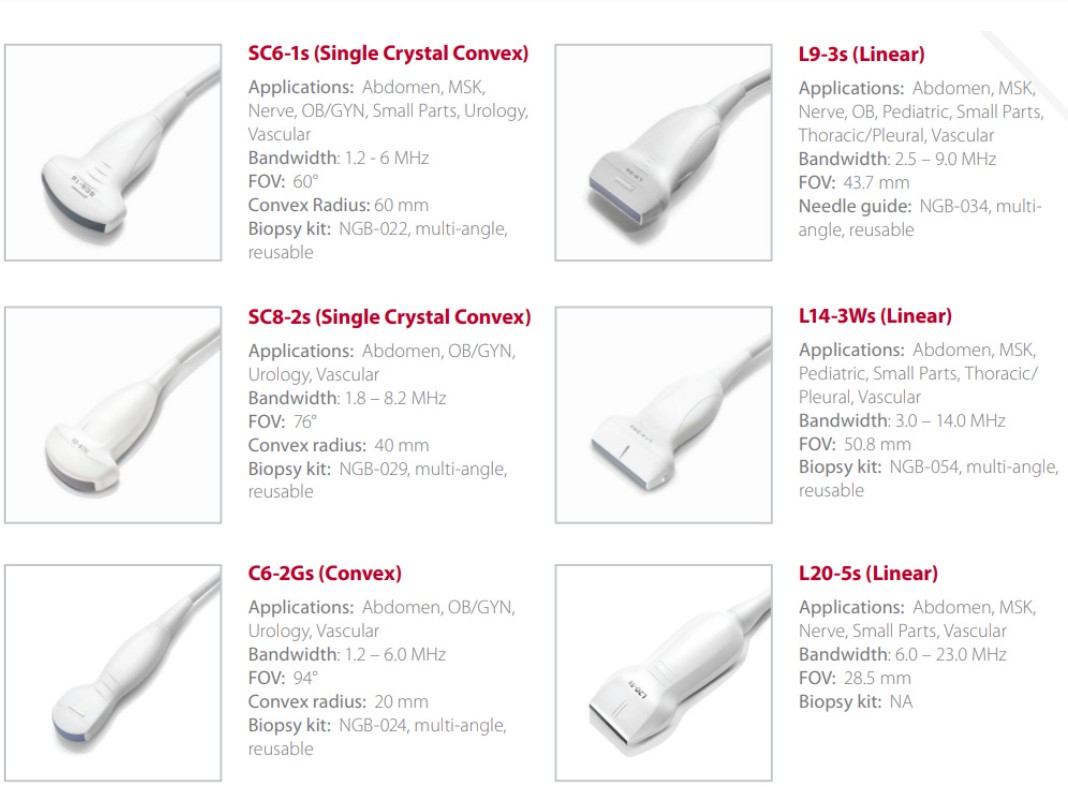

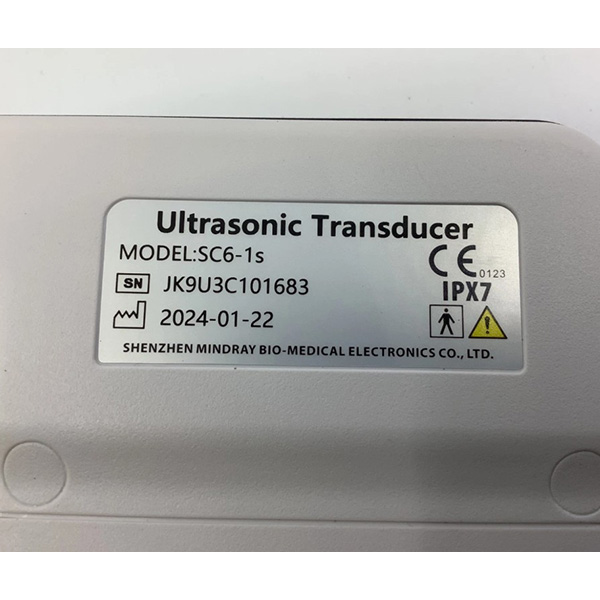

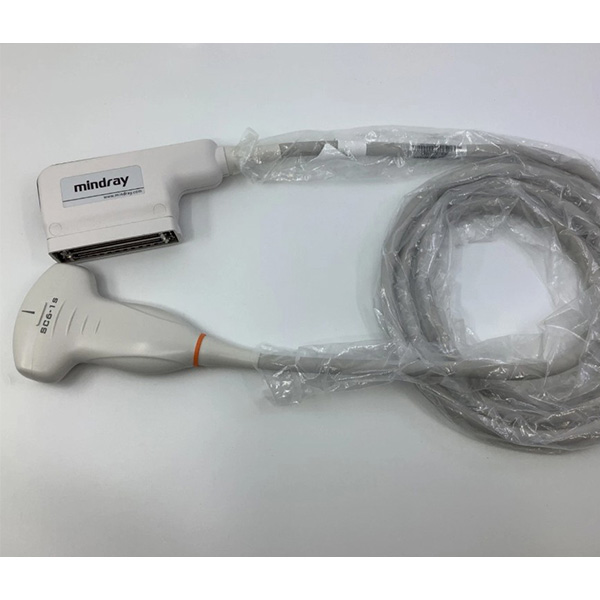

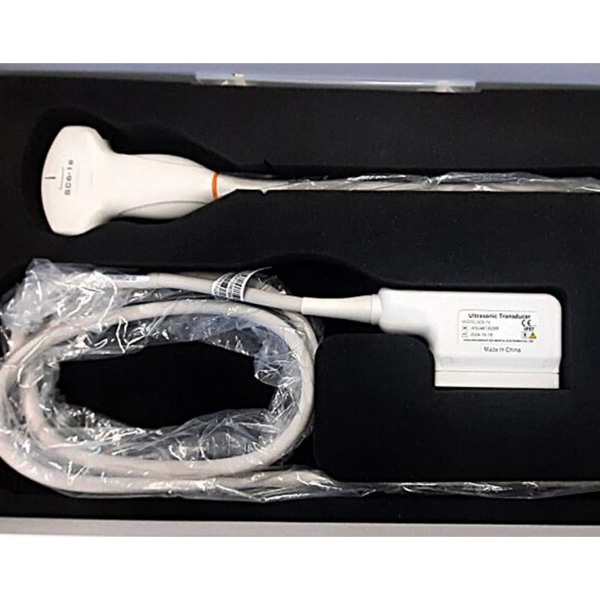

Mindray SC6-1s Single Crystal Convex Transducer
Applications: Abdomen, MSK, Nerve, OB/GYN, Small Parts, Urology, Vascular
Bandwidth: 1.2 - 6 MHz
FOV: 60°
Convex Radius: 60 mm
Biopsy kit: NGB-022, multi-angle, reusable

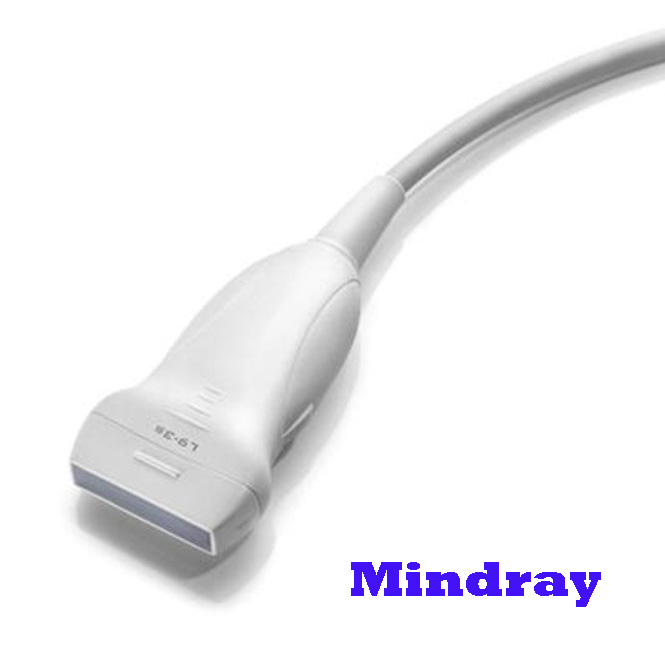

Mindray L9-3s Linear Transducer
Applications: Abdomen, MSK, Nerve, OB, Pediatric, Small Parts, Thoracic/Pleural, Vascular
Bandwidth: 2.5 – 9.0 MHz
FOV: 43.7 mm
Needle guide: NGB-034, multiangle, reusable
Mindray SC8-2s Single Crystal Convex Transducer
Applications: Abdomen, OB/GYN, Urology, Vascular
Bandwidth: 1.8 – 8.2 MHz
FOV: 76°
Convex radius: 40 mm
Biopsy kit: NGB-029, multi-angle, reusable
Mindray L14-3Ws Linear Transducer
Applications: Abdomen, MSK, Pediatric, Small Parts, Thoracic/Pleural, Vascular
Bandwidth: 3.0 – 14.0 MHz
FOV: 50.8 mm
Biopsy kit: NGB-054, multi-angle, reusable
Mindray C6-2Gs Convex Transducer
Applications: Abdomen, OB/GYN, Urology, Vascular
Bandwidth: 1.2 – 6.0 MHz
FOV: 94°
Convex radius: 20 mm
Biopsy kit: NGB-024, multi-angle, reusable
Mindray L20-5s Linear Transducer
Applications: Abdomen, MSK, Nerve, Small Parts, Vascular
Bandwidth: 6.0 – 23.0 MHz
FOV: 28.5 mm
Biopsy kit: NA

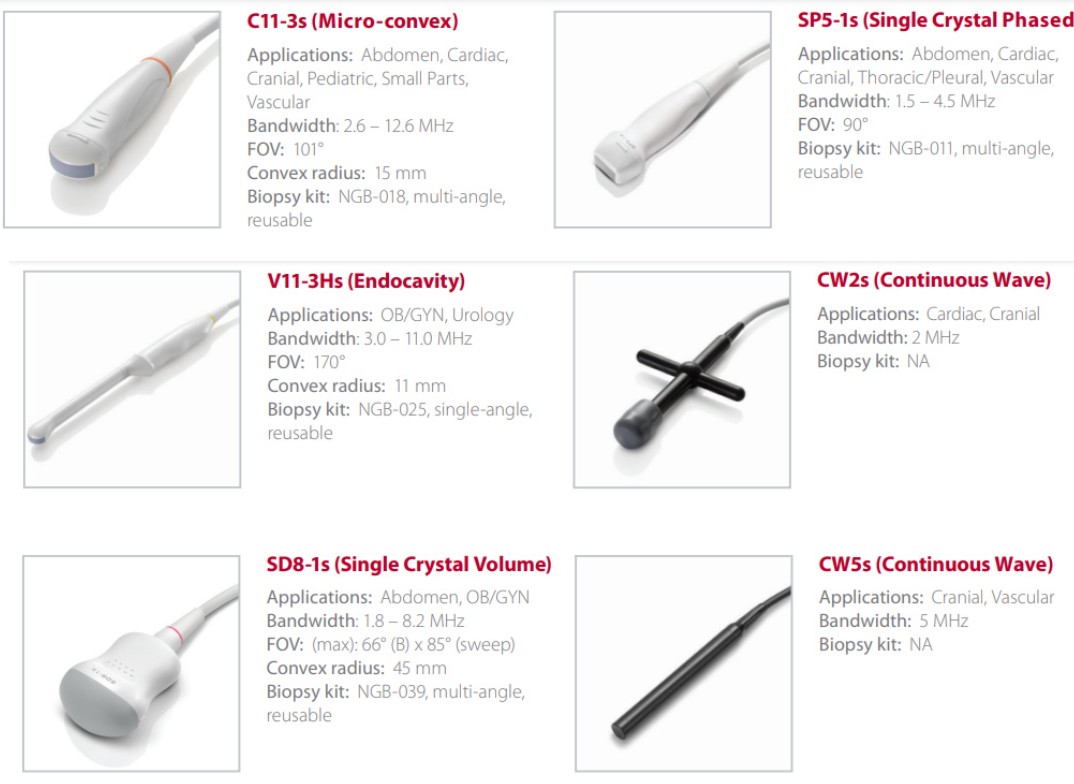

Mindray C11-3s Micro-convex Transducer
Applications: Abdomen, Cardiac, Cranial, Pediatric, Small Parts, Vascular
Bandwidth: 2.6 – 12.6 MHz
FOV: 101°
Convex radius: 15 mm
Biopsy kit: NGB-018, multi-angle,
reusable
Mindray SP5-1s Single Crystal Phased Transducer
Applications: Abdomen, Cardiac, Cranial, Thoracic/Pleural, Vascular
Bandwidth: 1.5 – 4.5 MHz
FOV: 90°
Biopsy kit: NGB-011, multi-angle, reusable
Mindray V11-3Hs Endocavity Transducer
Applications: OB/GYN, Urology
Bandwidth: 3.0 – 11.0 MHz
FOV: 170°
Convex radius: 11 mm
Biopsy kit: NGB-025, single-angle, reusable
Mindray CW2s Continuous Wave Transducer
Applications: Cardiac, Cranial
Bandwidth: 2 MHz
Biopsy kit: NA
Mindray SD8-1s Single Crystal Volume Transducer
Applications: Abdomen, OB/GYN
Bandwidth: 1.8 – 8.2 MHz
FOV: max: 66° B x 85° sweep
Convex radius: 45 mm
Biopsy kit: NGB-039, multi-angle, reusable
Mindray CW5s Continuous Wave Transducer
Applications: Cranial, Vascular
Bandwidth: 5 MHz
Biopsy kit: NA
Mindray DE11-3Ws Endocavity Volume Transducer
Applications: OB/GYN, Urology
Bandwidth: 2.0 – 9.0 MHz
FOV: max: 162° B x 120° sweep
Extended FOV: 187°
Convex radius: 10 mm
Biopsy kit: NGB-047, single-angle, reusable
Mindray P7-3Ts Transesophageal Transducer
Applications: Cardiac
Bandwidth: 2.3 – 7.2 MHz
FOV: 90°
Biopsy kit: NA
