#The table below lists available FUJIFILM Sonosite ultrasound transducers. Looking for something else? Browse Sonosite’s ultrasound machines and ultrasound accessories. Or view ultrasound training and education options. Need more help? Don't hesitate to contact us and we'll put you in touch with a point-of-care ultrasound expert.
C5-1 Ultrasound Transducer
Abdominal, Early Obstetrics, Gynaecology, Lung, MSK, Nerve, Obstetrics, Procedural Abdomen, Spine, VExUS

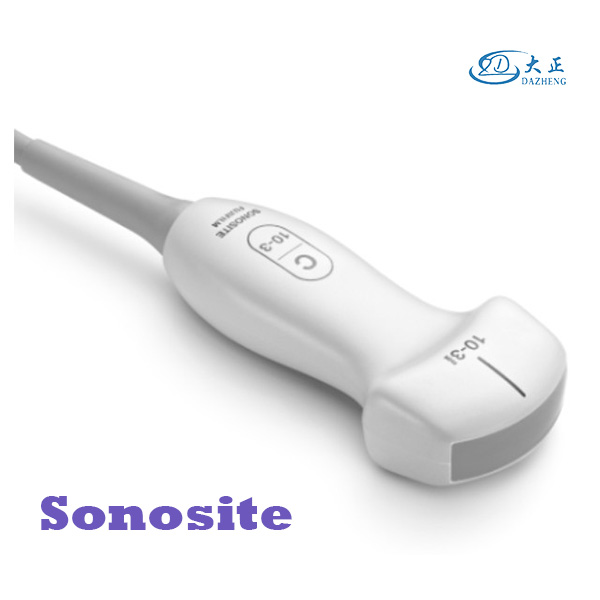

C10-3 Ultrasound Transducer
Abdominal, Gynaecology, Lung, MSK, Nerve, Spine, VExUS
Sonosite C8x Curved Transducer for Prostate, Transrectal
Frequency range 8-5 MHz with 13 cm scan depth
Sonosite C11x Curved Transducer for Abdominal, Arterial, Cardiology (Vet), Neonatal, Nerve, Venous
Frequency range 8-5 MHz. 13 cm scan depth with optional CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide

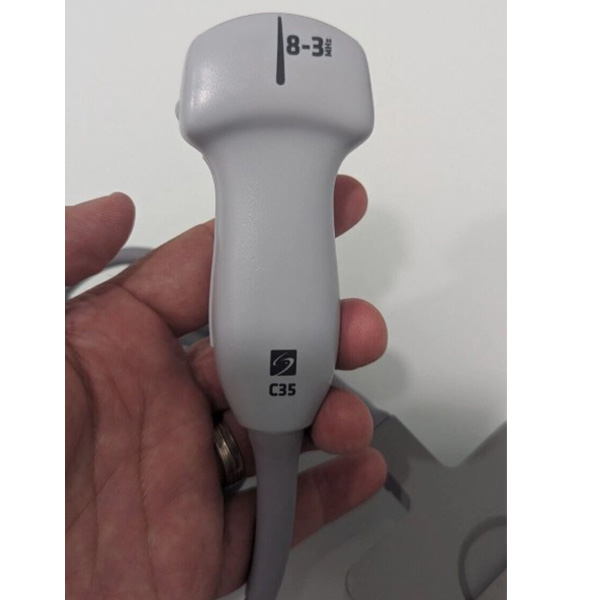

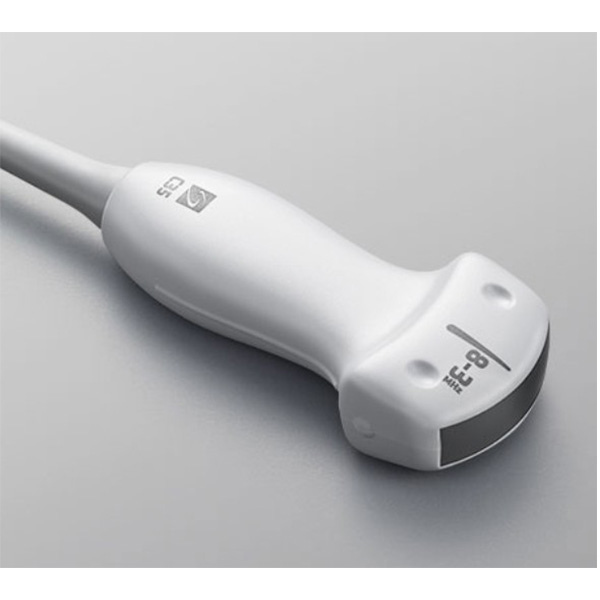

Sonosite C35x Curved Transducer for Abdominal, Musculoskeletal, Nerve, Obstetrics, Spine
Frequency range 8-3 MHz with 16 cm scan depth with optional CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
Sonosite HFL38xi Linear Transducer for Arterial, Breast, Lung, Musculoskeletal, Nerve, Ophthalmic, Vascular, Venous
Frequency range 13-6 MHz with 6 cm scan depth with optional CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
Sonosite HFL50x Linear Transducer for Breast, Musculoskeletal, Nerve
Frequency range 15-6 MHz with 6 cm scan depth with optional CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
Sonosite HSL25x Linear Transducer for Arterial, Lung, Musculoskeletal, Nerve, Ophthalmic, Venous
Frequency range 13-6 MHz Linear 6 cm scan depth

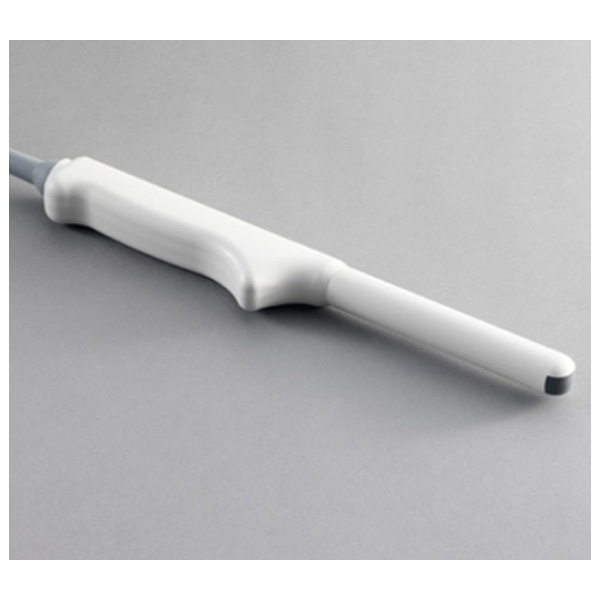

Sonosite ICTx Curved Transducer for Gynecology, Obstetrics
Frequency range 8-5 MHz with 13 cm scan depth with CIVCO Disposable Endocavity
Sonosite L25x Linear Transducer for Arterial, Lung, Musculoskeletal, Nerve, Ophthalmic, Venous.
Frequency range 13-6 MHz with 6 cm scan depth with optional CIVCO Infiniti Plus™ In-Plane Ultrasound, CIVCO AccuSITE™ Out-of-Plane Ultrasound Needle Guide available
Sonosite L38xi Linear Transducer for Arterial, Lung, Nerve, Venous.
Frequency range 10-5 MHz with 9 cm scan depth with optional CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
Sonosite P10x Linear Transducer for Abdominal, Cardiology (CW), Neonatal Cephalic.
Frequency range 8-4 MHz with 14 cm scan depth with optional CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
Sonosite P11x Phased Transducer for Venous, Vascular.
Frequency range 10-5 MHz with 12 cm scan depth
Sonosite rC60xi Curved Transducer for Abdominal, Gynecology, Musculoskeletal, Nerve, Obstetrics.
Frequency range 5-2 MHz with 30 cm scan depth with optional CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
Sonosite rP19x Phased Transducer for Abdominal, Cardiology, Lung, Obstetrics, TCD.
Frequency range 5-1 MHz with 35 cm scan depth with optional CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
Sonosite TEExi TEE Transducer for Adult Cardiology, Multiplane transesophageal 180° rotation of the imaging plane, providing a 360° field of view
Frequency range 8-3 MHz with 18 cm scan depth

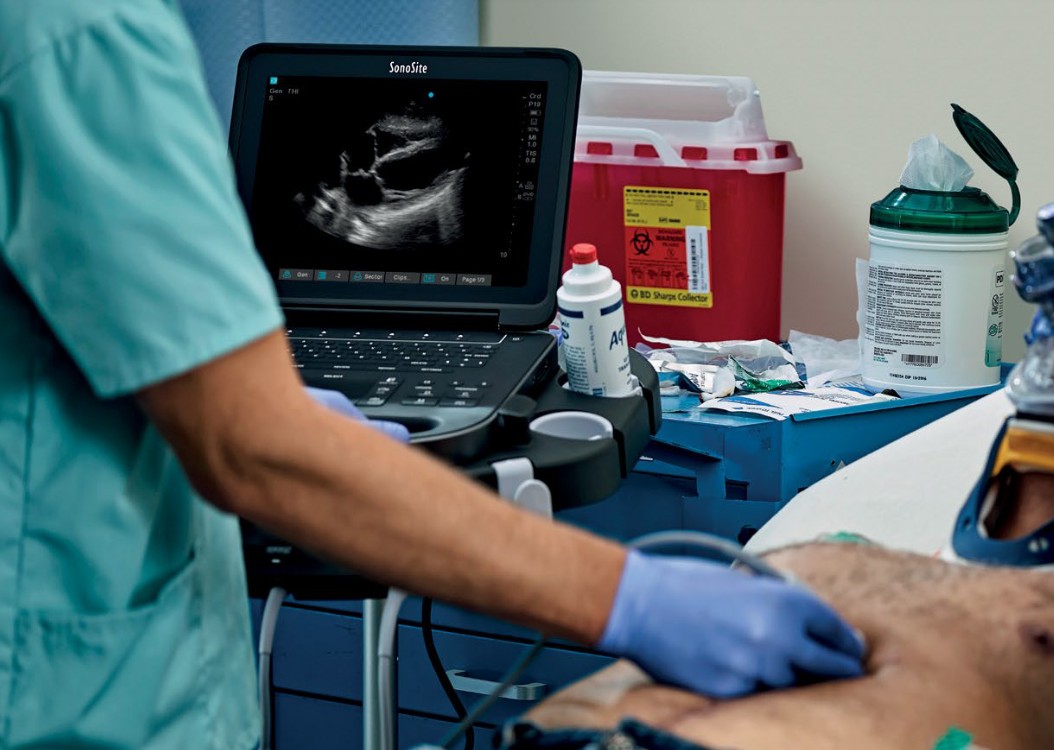

In the acute care environment, reducing the time to make an accurate diagnosis is a critical need. The Edge II features DirectClear Technology, a novel, patent-pending process that is available on select transducers. DirectClear elevates transducer performance by increasing penetration and contrast resolution. This contributes to an unsurpassed imaging experience for the bedside clinician.
Portable, suitable for use with or without the optional Sonosite Edge Stand
Wide-angle display featuring an anti-reflection coating ensures a clear view under varying lighting conditions
Streamlined interface for easy access to commonly used features. The trackpad, coupled with a select button, facilitates smooth navigation
Low-profile buttons utilize snap dome technology, making them easy to clean and providing tactile feedback
The silicone keypad is seamlessly sealed to the edge, preventing liquid ingress and enabling effortless disinfection
Rapid cold start scanning readiness in under 25 seconds
Optional Armored Cable Technology shields transducer cables from potential accidental damage
SONSITE EDGE II SYSTEM SPECIFICATIONS
System Weight: 9.21 lbs/4.18 kg with battery
Dimensions: 12.8" x 12.1" x 2.5"/ 32.6 cm x 30.7 cm x 6.4 cm (L x W x H)
Display: 12.1"/30.7 cm diagonal LCD (NTSC or PAL) with chemically etched glass layer
Viewing Angles: 85 degrees up/down/left/right
Architecture: All-digital broadband
Dynamic Range: Up to 165 dB
Gray Scale: 256 shades
HIPAA Compliance: Comprehensive tool set
IMAGING MODES
2D Imaging
Tissue Harmonic Imaging
M-Mode Velocity Color Doppler
Color Power Doppler PW
PW Tissue Doppler
CW Doppler angle
Correct after freeze
NEEDLE PROFILING
C35x - Nerve, MSK, Spine
HFL38xi – Nerve, MSK, Breast, Small Parts, Arterial, Venous
HFL50x – Nerve, MSK, Breast, Small Parts
L25x – Nerve, MSK, Arterial, Venous
HSL25x – Nerve, MSK, Arterial, Venous
L38xi – Nerve
rC60xi – Nerve, MSK
USER INTERFACE AND REMAPPABLE CONTROLS
Softkeys to drive advanced features
Programmable A and B keys: each can be assigned by the user for increased ease of use
Low profile keyboard, sealed completely to edge for maximum infection control
Track pad with select key for easy operation and navigation
Doppler controls: angle, steer, scale, baseline, gain and volume
Image acquisition keys: review, report, clip store, save
Dedicated AutoGain and exam keys to allow quick activation
Color controls: size/position, angle, scale, baseline and invert
TRANSDUCER TECHNOLOGY
Broadband/Multifrequency: DirectClear Technology (rC60xi, rP19x)
Armored Cable Technology (Optional on rC60xi, rP19x, L38xi, L52x)
Linear Array, Curved Array, Phased Array, Multiplane TEE and Micro-Convex
Center line marker for linear transducers
Exam types: abdominal, breast, cardiology, gyn, lung, musculoskeletal, neonatal, nerve, ob, ophthalmic, orbital, small parts, spine, superficial, TCD, arterial, venous
APPLICATION SPECIFIC CALCULATIONS
OB/Gyn/Fertility: Diameter/ellipse measurements, volume, ten follicle measurements, estimated fetal weight, established due date, gestational age, last menstrual period, growth charts, user-defined tables, multiple user-selectable authors, ratios, amniotic fluid index, patient report, humerus and tibia measurement and charts, HR, Fetal HR, MCA, UMBA, Ovarian Volume, Follicle Volume, Uterine Volume, Endometrial thickness
Arterial: Diameter/ellipse/trace measurements, volume, volume flow, percent diameter and area reduction, Lt/Rt CCA, ICA, ECA, ICA/CCA ratio, peak trace, ICA/CCA ratio, patient report, HR, Bulb, Vertebral Artery, TAP
Cardiac: LVO, Automated Cardiac Output package and patient report including: ventricular, aortic and atrial measurements; ejection fraction, volume measurements, Simpson’s rule, continuity equation, pressure half-time and cardiac output; IVC Collapse Ratio, LA/RA Volume, TAPSE, PA AT, TV E, A, PHT, TVI, MV time, Pulm Veins, LV Mass, TDI e', TDI a', HR, dP:dT, Qp/Qs
Ability to view EF and FS simultaneously
Transcranial Doppler (TCD): Complete TCD package including Time Average Peak (TAP)
