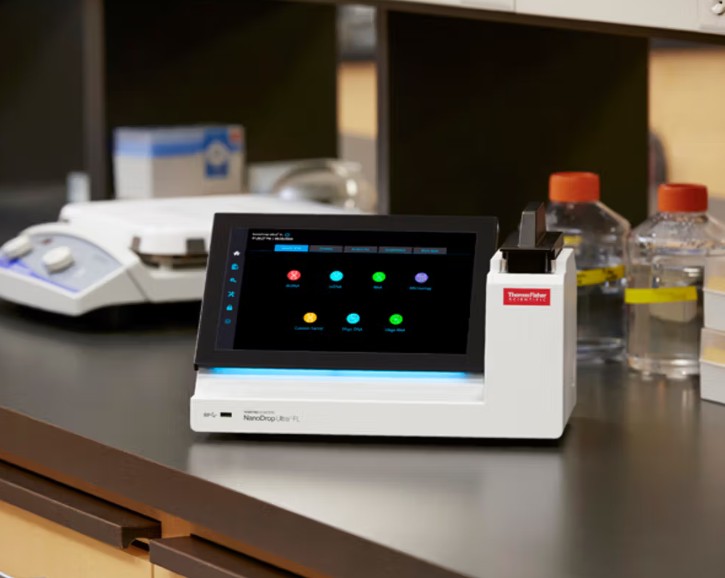

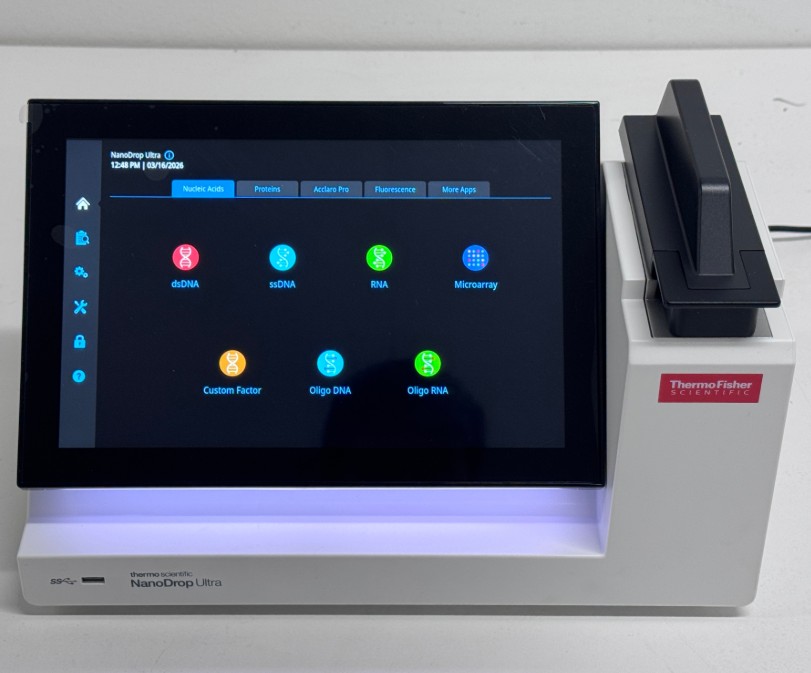

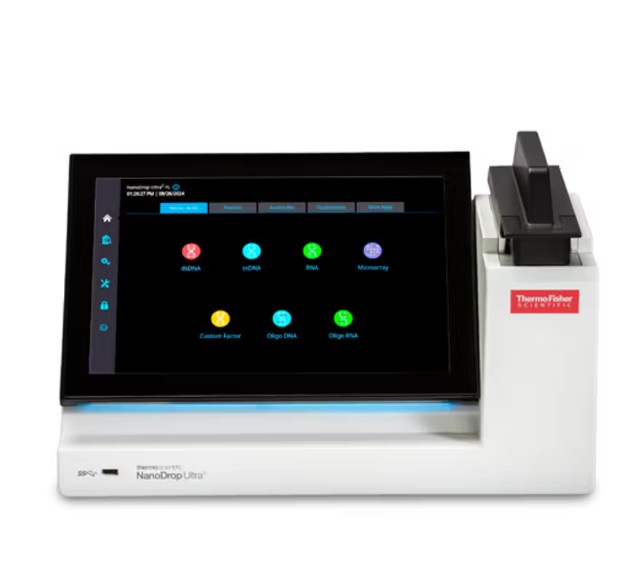

#The NanoDrop™ Ultra Microvolume UV-Vis Spectrophotometer and Fluorometer is a cutting-edge instrument designed to deliver exceptional accuracy and sensitivity for nucleic acid and protein analysis. It achieves this with minimal sample waste, analyzing volumes as low as 1.0 μL.
The Thermo Fisher Scientific NanoDrop™ Ultra C is the latest generation of microvolume spectrophotometer, including integrated cuvette reader. The unique Acclaro™ sample intelligence technology uses a sophisticated chemometric approach to identify and correct for copurified contaminants. This helps to reduce the likelihood of downstream reaction failure, saving time, money and troubleshooting.

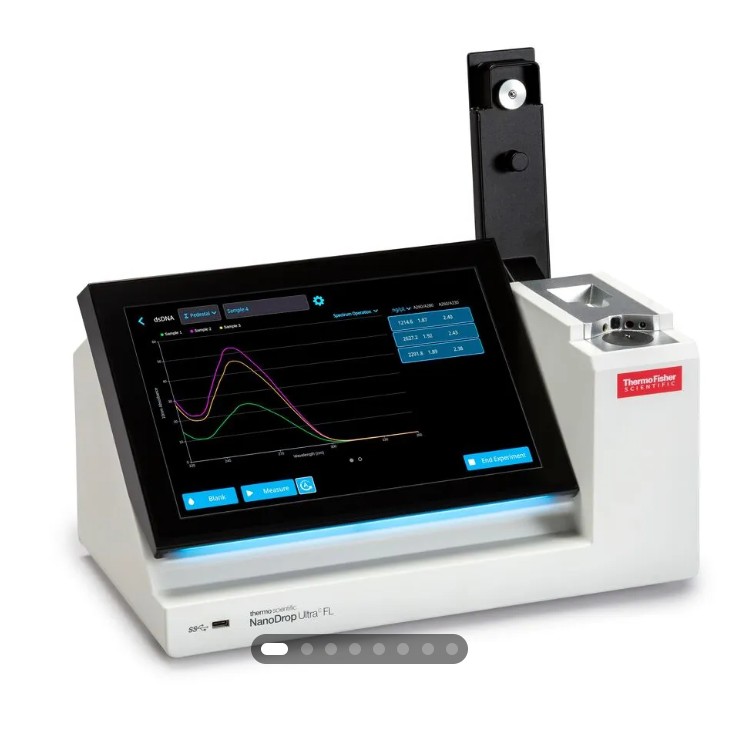

NanoDrop Ultra C microvolume spectrophotometer with cuvette reader
| Model | Description |
| NanoDrop Ultra | UV/VIS spectrophotometer with microvolume sample pedestal |
| NanoDrop UltraC | UV/VIS spectrophotometer with microvolume sample pedestal and cuvette position |
| NanoDrop Ultra FL | Combined UV/VIS spectrophotometer and fluorometer with microvolume sample pedestal |
| NanoDrop UltraC FL | Combined UV/VIS spectrophotometer and fluorometer with microvolume sample pedestal and cuvette position |
Operation

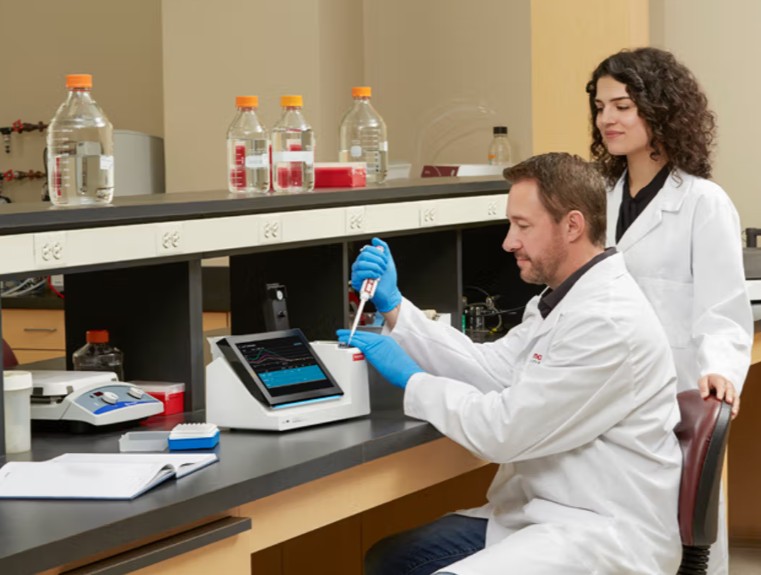

Familiar ‘pipette, measure and wipe workflow’
5 Auto-ranging measurement pathlengths
Measure up to 550 ABS without dilution
Auto blank and auto measure upon lowering sample arm
On-board guided troubleshooting
Camera detection of bubbles with alerts

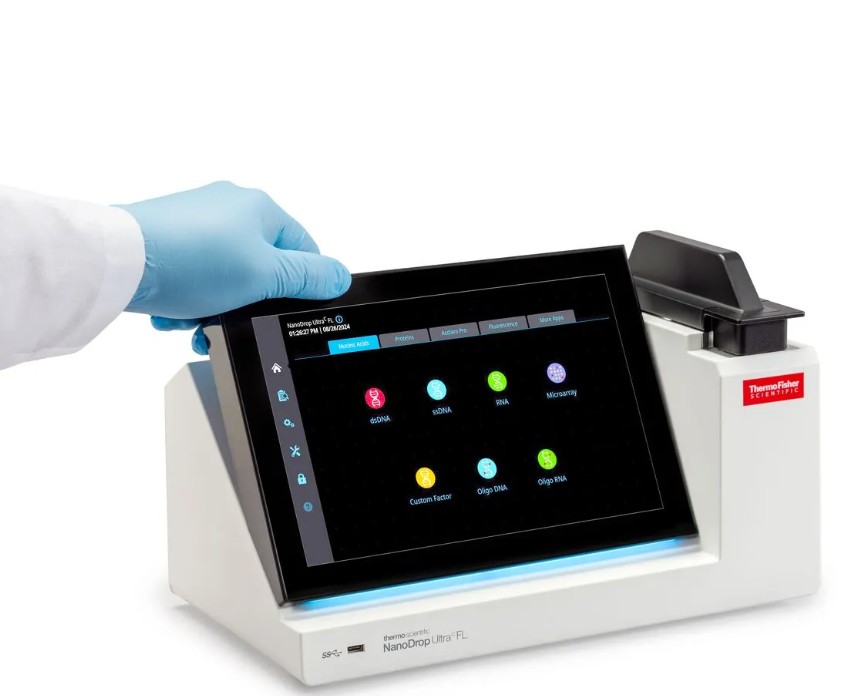

Ergonomic tilting 10.1 inch colour touchscreen interface

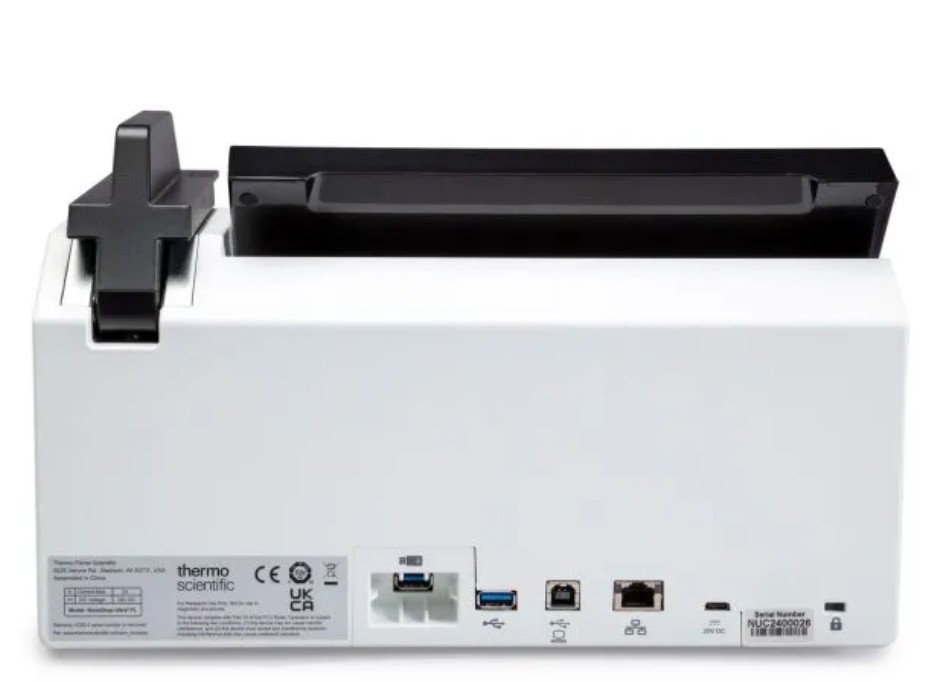

Flexible data export via front USBC port, rear USBA, ethernet or Wi-Fi
USB-C power input allows external battery operation
Direct Cloud export into Google Drive or Microsoft OneDrive
Optional 21 CFR part 11 compliant SciVault 2 software can be installed on local control or PC
RESTful API for seamless LIMS integration
Nucleic Acids
Measure between 1 - 27,500 ng/µl dsDNA without dilution
Spectral scans, concentration and purity ratios
Identification of copurified contaminants with concentration correction
DNA / RNA differentiation for mammalian, plant or bacterial origins
qPCR recipe calculator simplifies downstream reaction setup
Oligo calculator and nucleic acid labelling efficiency determinations
Proteins
Measure up to 820 mg/ml BSA or 400 mg/ml IgG without dilution
Protein A280 module for purified proteins
Detection of copurified nucleic acids with concentration correction
A205 module for quantification of peptides, or proteins lacking Trp or Tyr residues
Colorimetric assays for protein mixtures or cell lysates
Other Applications
Wide wavelength range (190 – 850 nm) for assay flexibility
OD600 for bacterial cultures
Custom method capability with on-instrument method editor
Potential applications include Gold Nanoparticle characterisation, glucose, haemoglobin and chlorophyll
NanoDrop Ultra Cuvette Function
The NanoDrop Ultra C includes an integrated cuvette reader, providing additional assay flexibility, including kinetic assays.
Measure cuvettes with the sample arm up for convenience
Integrated heater (37 ˚C) and magnetic stirrer
Four instruments to meet the needs of all labs:
NanoDrop Ultra
Pedestal absorbance
NanoDrop UltraC
Pedestal absorbance | Cuvette absorbance
NanoDrop Ultra FL
Pedestal absorbance | Pedestal Fluorescence
NanoDrop UltraC FL
Pedestal absorbance | Cuvette absorbance | Pedestal Fluorescence
Fluorescence assay for dsDNA and RNA quantitation
Pre-programmed dsDNA and RNA applications
dsDNA BR, dsDNA HS, RNA HS
Fluorometer mode for alternative dyes
• Blue Excitation: 430 – 495 nm
• Red Excitation: 600 – 645 nm
Reagent calculator aides in preparing reaction
Specifications
| Control Method | Local Control (10.1 inch touchscreen) or PC Control |
| Wavelength Range | 190 - 850 nm |
| Measurement Time | 7 Seconds |
| Pathlengths | 1, 0.2, 0.1, 0.05 and 0.03 mm (Auto-ranging) |
| Maximum Concentration | 27,500 ng/µl dsDNA, 820 mg/ml BSA or 400 mg/ml IgG |
| Photometric Range | 0.02 - 550 Abs (10 mm equivalent) |
| Absorbance Accuracy | 3% (at 0.97 A at 302 nm) |
| Power Consumption | 7 W (idle), 11-18 W (in operation) |
| Dimensions (W x D x H) | 32 x 18 x 28 cm |
| Weight | 4 Kg |
