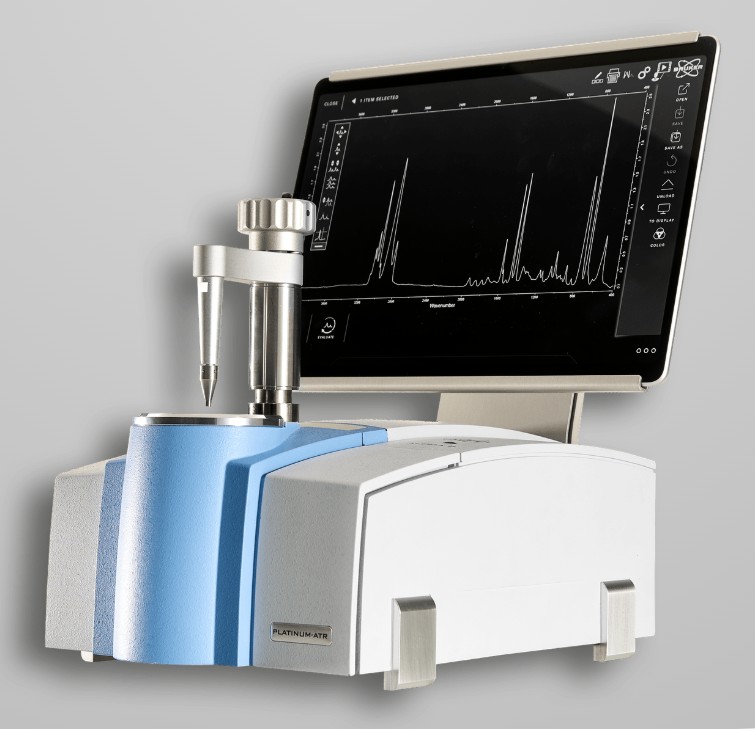

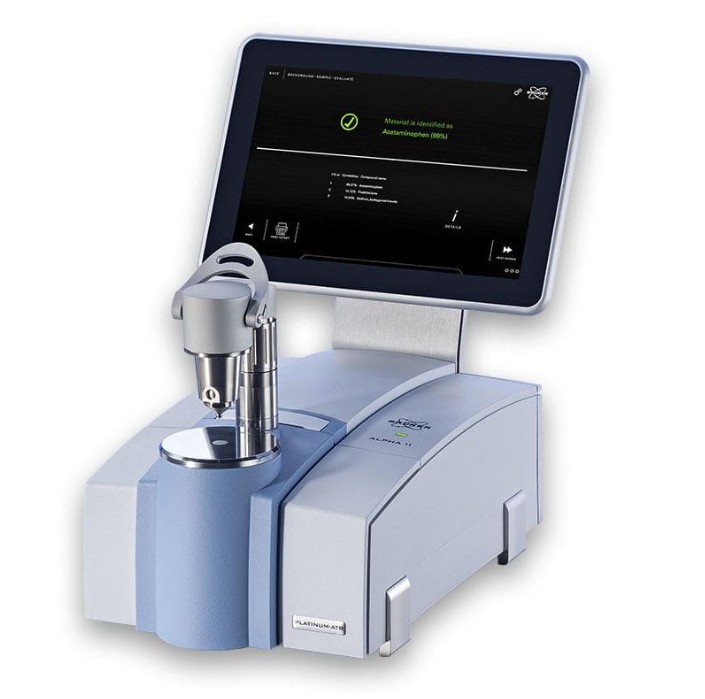

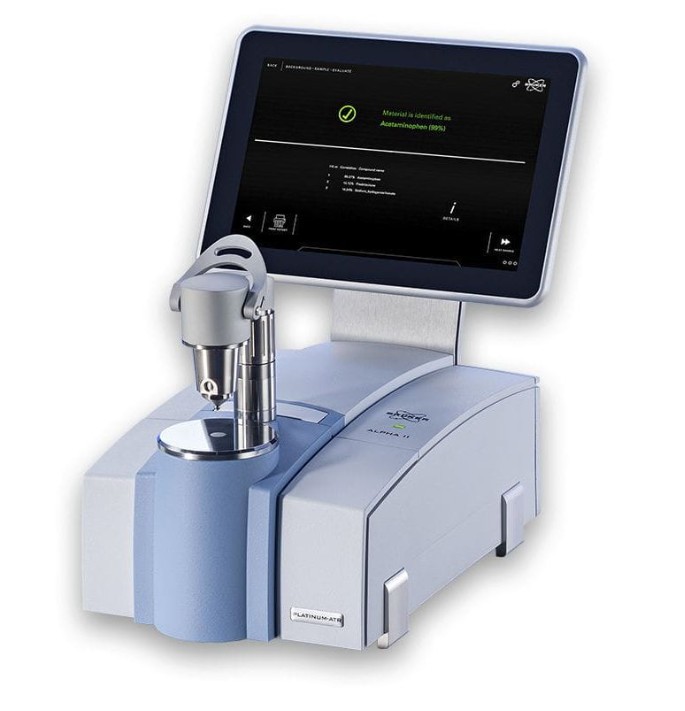

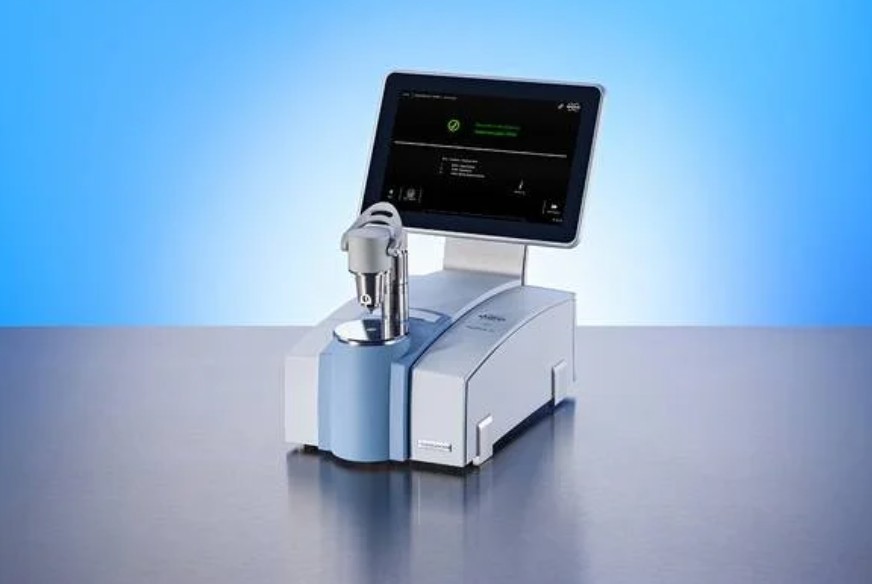

Compact and resilient design Easy adaptation to all sample types RockSolid™ interferometer (lifetime > 10 years) CenterGlow™ source (lifetime > 5 years) Diode laser (lifetime > 10 years) Intuitive operation and software Optional: integrated touch PC Optional: inert to high humidity Low energy consumption
350 to 8000 cm-1 with standard KBr beamsplitter 500 to 6000 cm -1 option High Humidity ZnSe optics
350 to 8000 cm-1 with standard KBr beamsplitter 500 to 6000 cm -1 option High Humidity ZnSe optics
#FTIR-ATR : Spectrometer Bruket Alpha II Platinum FT-IR

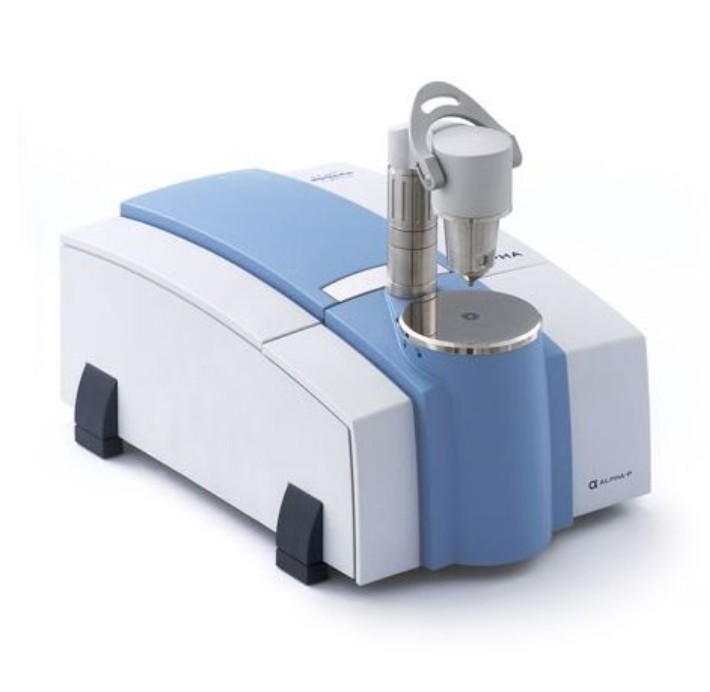

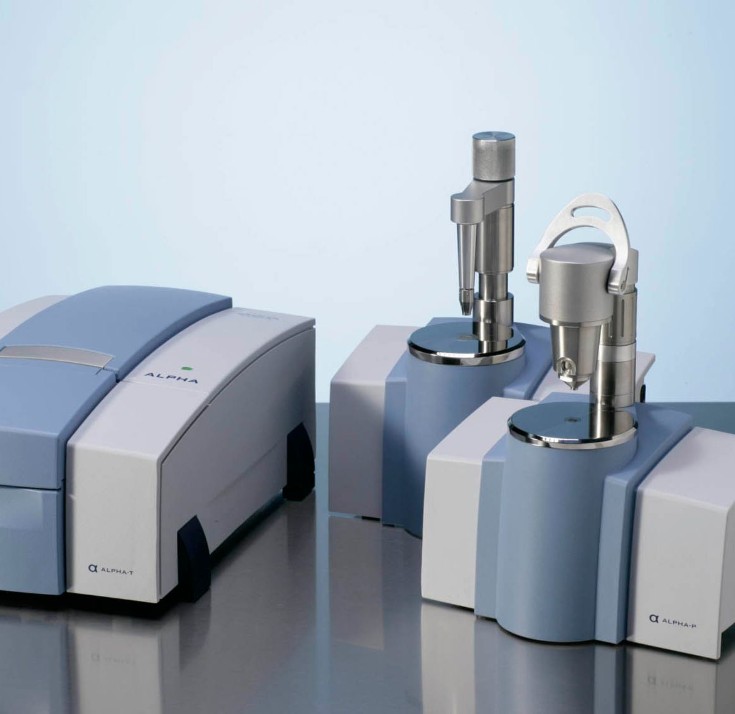

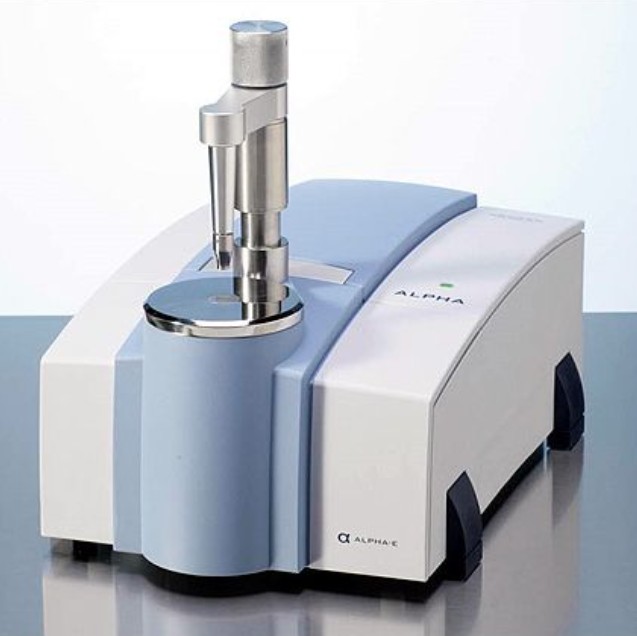

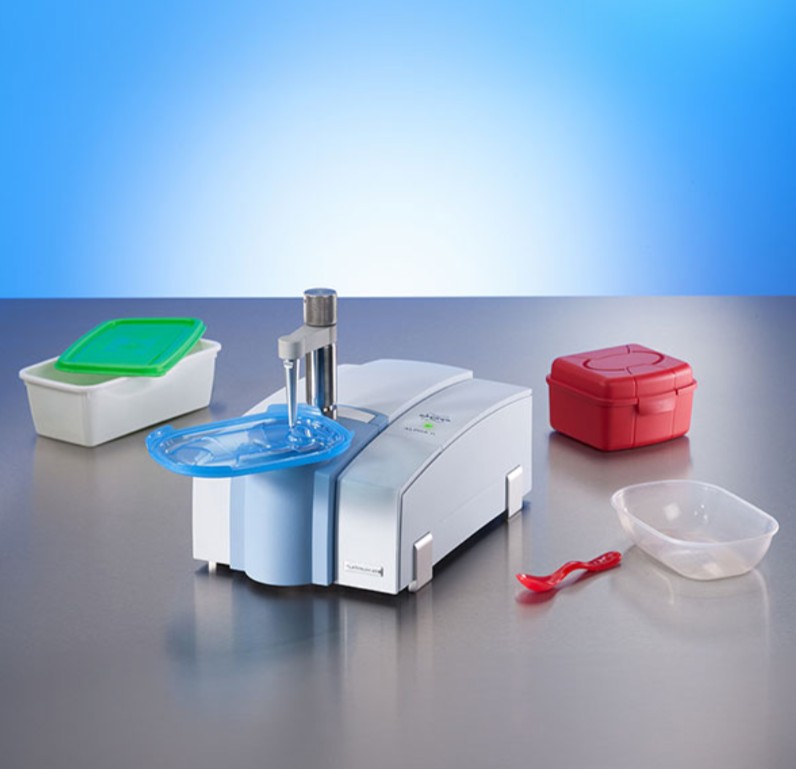

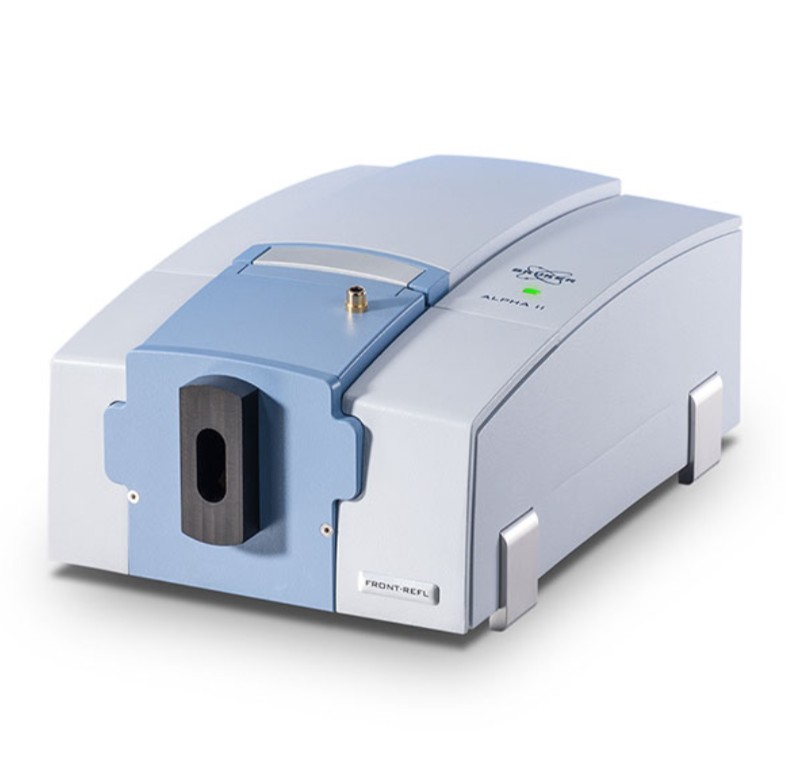

Fourier Transform Infrared Spectroscopy (FTIR) is a widely used technique for rapid material identification. With the aid of custom-built reference libraries, it can be used to verify or identify unknown materials in a matter of minutes. It is a non-destructive technique that requires limited to no sample preparation to perform analysis. The Bruker ALPHA II has a portable benchtop design with interchangeable modules to suit your sampling requirements. The ATR, DRIFT and External Reflection modules give the flexibility to analyse a wide range of sample types. It can be integrated into routine sampling or used for more targeted identification and verification.
By generating custom calibrations, the ATR module can be used to perform semi-quantitative analysis. This can provide valuable real-time information such as semi-quantitative mineralogy to complement chemical analysis on-site for rapid decision making.
Specification
Spectral Range:
350–8,000 cm⁻¹ (standard KBr optics)
500–6,000 cm⁻¹ (High Humidity option with ZnSe optics)
Spectral Resolution:
Better than 2 cm⁻¹, optional down to 0.75 cm⁻¹
Signal-to-Noise Ratio:
55,000:1 (4 cm⁻¹ resolution, 1 min measurement)
Interferometer:
Permanently aligned RockSolid™ cube corner interferometer
Calibration Laser:
Diode laser with high wavenumber accuracy and long lifetime
IR Source:
CenterGlow™ IR source with optimized light output
Detector:
Temperature-controlled DLaTGS detector
Wavenumber Accuracy:
<0.05 cm⁻¹ at 2,000 cm⁻¹
A/D Converter:
24-bit dynamic range
Sampling Accessories:

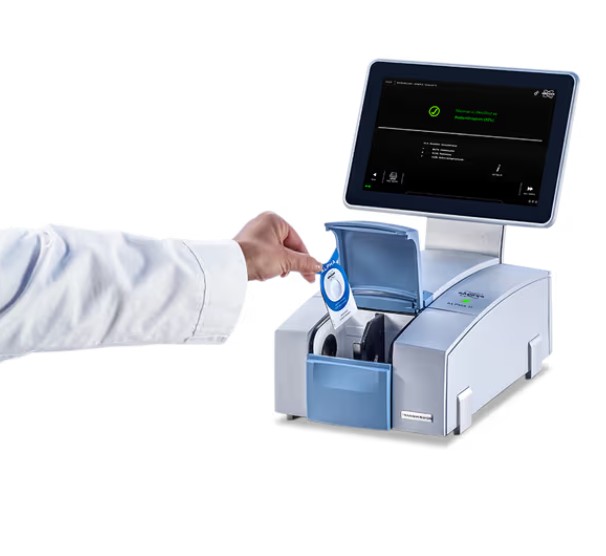

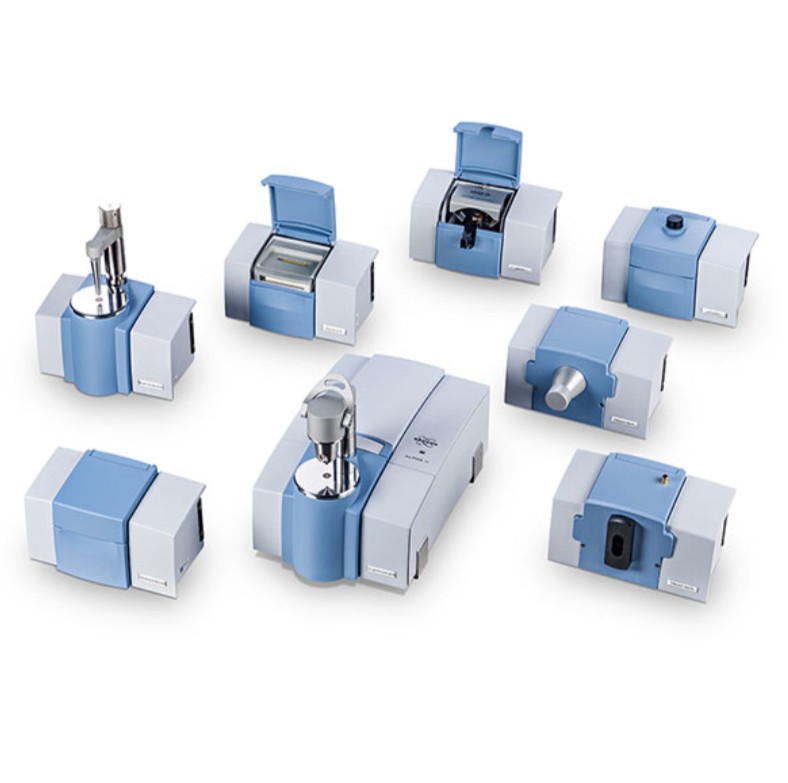

QuickSnap™ modules including Platinum ATR, transmission, and reflection units
ATR Crystal:

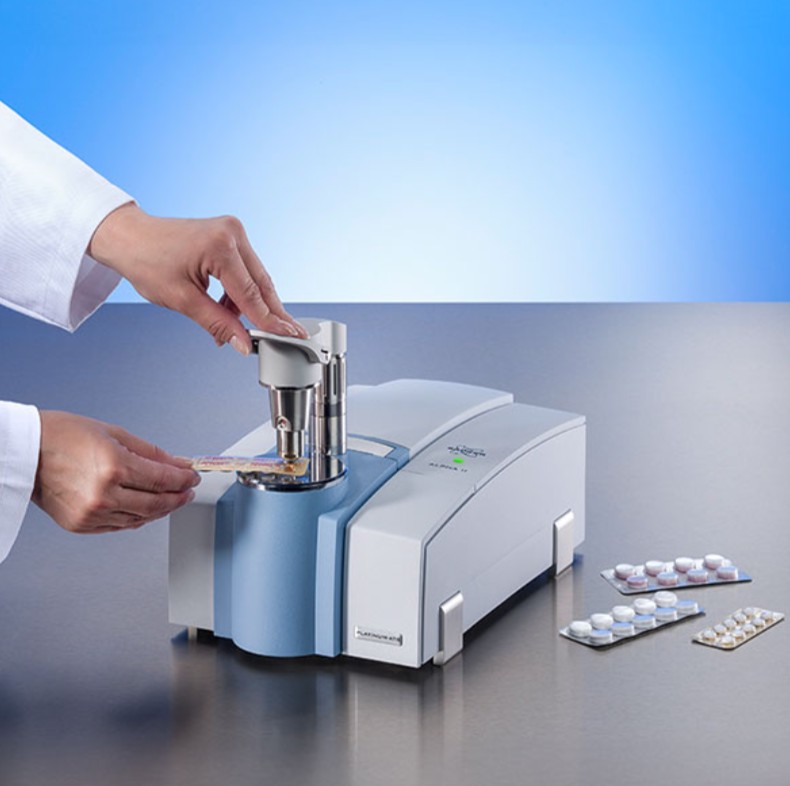

Single-reflection diamond ATR with high mechanical and chemical durability
| Item | ALPHA II FTIR Spectrometer |
| Catalog Number | ALPHA II |
| Spectral Range | 350 to 8000 cm-1 with standard KBr beamsplitter 500 to 6000 cm -1 option High Humidity ZnSe optics |
| Signal-to-Noise Ratio | > 55,000:1 |
| Resolution | Better than 2 cm-1, optional better than 0.75 cm-1 |
| Optical System | KBr windows and beamsplitter, optional High Humidity optics with ZnSe beamsplitter and ZnSe windows |
| Wavelength Range | 350 to 8000 cm-1 with standard KBr beamsplitter 500 to 6000 cm -1 option High Humidity ZnSe optics |
| Dimensions | (WxDxH) 208 x 330 x 260 mm |
Applications
The ALPHA II offers an optimal instrument design for almost all samples and therefore is immensely suitable for an extensive variety of applications.
One of the most vital applications of the ALPHA II refers to quality control in different industries. Here, the FT-IR spectroscopic analysis is mainly utilized for verifying the specifications and identity of raw materials and products. Additionally, the ALPHA II permits identification of unknown samples. This is mainly valuable for an efficient failure analysis, for example, when investigating a contamination which brought about a product defect.
In criminalistics, the possibility of determining unknown substances is employed in order to detect drugs and also trace evidence.
The availability of liquid cells and several other ATR options for the ALPHA II permit the performance of quantitative analysis with always the optimal measurement conditions for the respective sample type. Dedicated ALPHA II analyzers with internal calibrations are available and they perform the quantitative analysis of quality-related parameters in wine and also perform the determination of FAME in diesel.
The ALPHA II is predestined to be used for teaching because of its compact design and its intuitive usability.
傅里叶变换红外光谱 (FTIR) 是一种广泛用于快速材料鉴定的技术。借助定制的参考谱库，它可以在几分钟内验证或鉴定未知材料。这是一种非破坏性技术，几乎无需样品制备即可进行分析。Bruker ALPHA II 采用便携式台式设计，配备可互换模块，以满足您的采样需求。ATR、DRIFT 和外反射模块使其能够灵活分析各种类型的样品。它可以集成到常规采样中，也可以用于更有针对性的鉴定和验证。
通过生成自定义校准曲线，ATR模块可用于执行半定量分析。这可以提供有价值的实时信息，例如半定量矿物学信息，以补充现场化学分析，从而实现快速决策。
