Monitor: 15.6'' (344.16 x 193.59 mm) high-resolution LCD (1920 x 1080 pixels) Display with brightness / contrast / color temperature adjustment 1 in built active probe ports Integrated SSD (256 GB standard)/(1TB option) Integrated speakers
B-Mode, M-Mode, Color Doppler, Power Doppler, PW Doppler, CW Doppler (optional), Elastography (optional), B-Flow (optional), TVI (optional)
5Kg
#GE Versana Active Ultrasound for Veterinarians

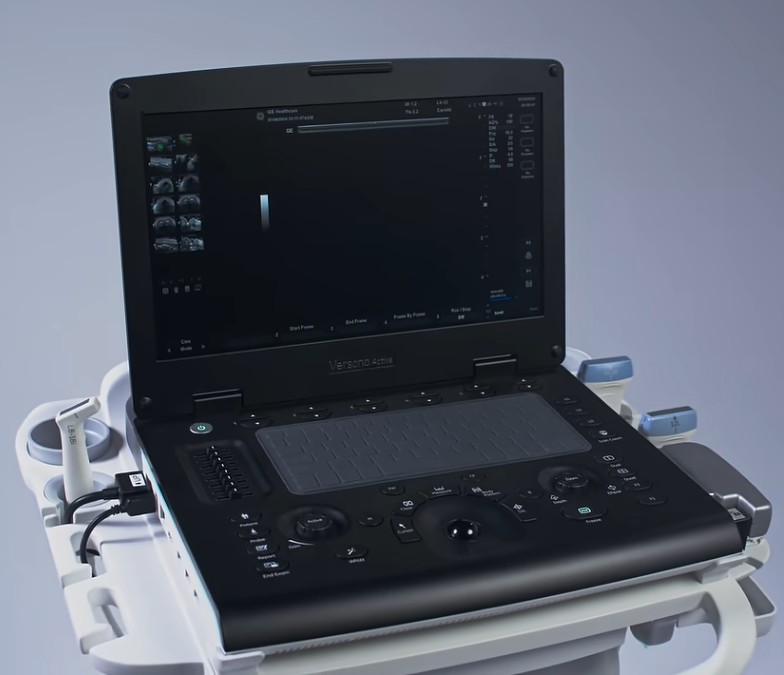

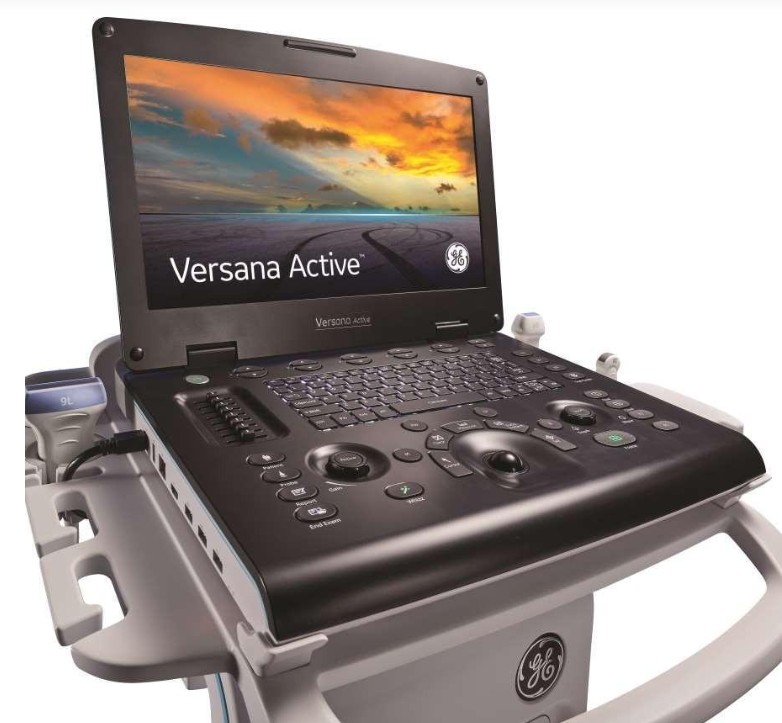

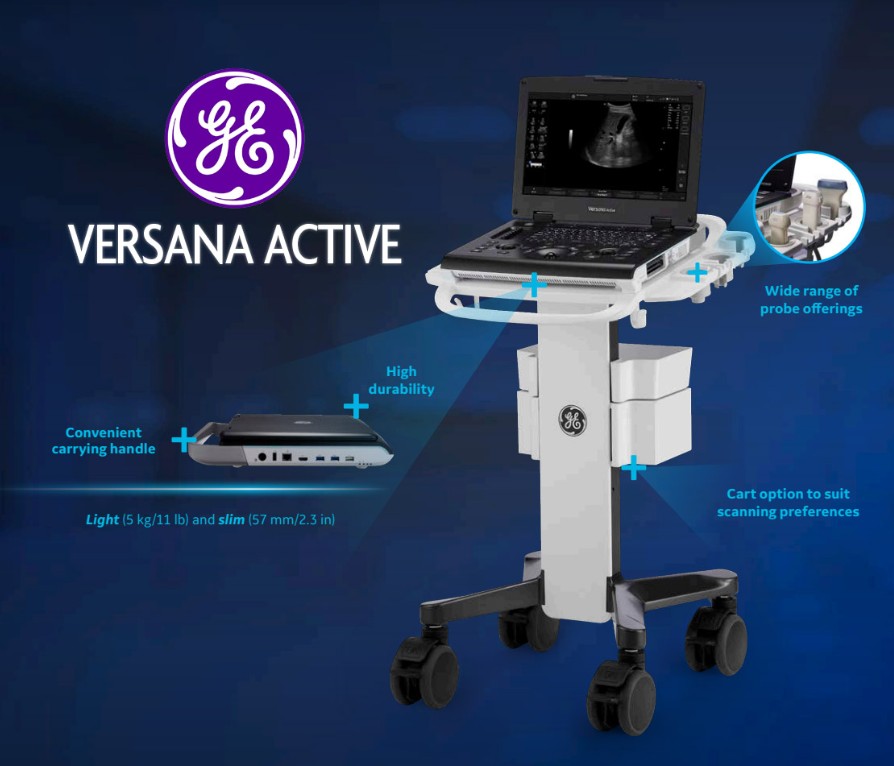

The GE Versana Active ultrasound system provides the imaging capabilities of a console in a portable, lightweight package. This enables healthcare professionals to actively bring the system to patients in various settings, including on-premises or remote facilities. It combines the agility of a laptop with the option to attach to a cart, making it adaptable for a wide range of everyday exams. Its portability simplifies transportation to clinics and veterinarian offices.
With the Versana Active ultrasound system, you can now deliver console-grade imaging in a compact, lightweight package. Designed for portability, this system makes it easier for you to reach patients in various settings, including on-site and in remote locations. This reliable system combines the agility of a laptop with the flexibility to attach to a cart, enabling you to easily navigate various healthcare environments. Ideal for a wide range of routine GP exams, the Versana Active system is incredibly portable and can be effortlessly transported to clinics and physician offices. This high-quality yet affordable unit is a testament to GE Healthcare's legacy of excellence in ultrasound imaging. Its design, workflow, and features are the result of extensive research and testing, ensuring that it meets the demanding requirements of healthcare professionals.
Technical Specifications
Weight:5 kg (with battery)
Display:15.3″ LED
Start time:2 seconds (from hibernation)
Applications: Abdominal, obstetrics, gynecology, small parts, musculoskeletal, vascular, urology, cardiac, transcranial.
Imaging technologies: Whizz, B-Flow, CrossXBeam, SRI-HD.
Storage:256 GB SD hard disk drive (1 TB option)
Ports:1 active port for probe
Feeding100-240 VAC, 50/60 Hz
Image modesB-Mode, M-Mode, Color Doppler, Power Doppler, PW Doppler, CW Doppler (optional), Elastography (optional), B-Flow (optional), TVI (optional)
GE Versana Active Standard Features:
Installation wizard
Whizz
CrossXBeam™
SRI-HD (High Definition Speckle Reduction Imaging)
B-Steer
Coded Phase Inversion Harmonic Imaging
Virtual Convex
Patient information database
Image Archive on integrated SSD
Raw Data Analysis
Voice comments
Real-time automatic Doppler calculations
OB Calculations
Fetal Trending
Multi-gestational calculations
Hip dysplasia calculations
Gynecological calculations
Vascular calculations
Breast Productivity
Urological calculations
Renal calculations
Cardiac calculations
On-board reporting package
MPEGvue
Network storage
Remote capability: InSite™ Exc
My Trainer
Scan Assistant
Standby
QAnalysis
Auto Bladder (Dynamic image optimization, Auto measurement and Auto annotation)
Sono Biometry (BPD/HC/AC/HL/FL)
DICOM® 3.0 Connectivity
Tricefy™ Uplink
Versana Active Optional Features:
CW Doppler
Anatomical M-Mode
Curved AMM
LOGIQ View
B-Flow (B-Flow color)
Tissue Velocity Imaging (TVI)
TVM
Scan Coach
Auto EF
Auto IMT
Breast Care
Thyroid productivity
Needle recognition
Follow-up tool
Versana Active Peripheral Options:
Sony UP-D898MD B/W thermal printer
Sony UP-D25MD Color thermal printer 1-pedal and 3-pedal type footswitch
USB stick
External USB HDD
DVD RW kit
USB Wireless adaptor
ECG Module

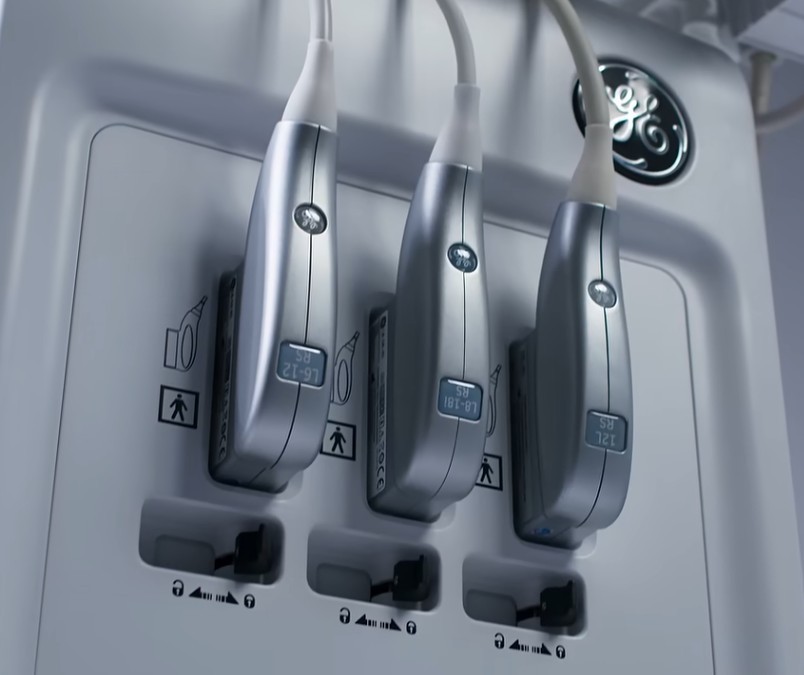

GE Versana Ultrasound Transducers / Probes:
3SC-RS Wide-band Multi-frequency Phased Array Probe
12S-RS Wideband Phased Array Probe
6S-RS Wideband Phased Array Probe
L6-12-RS Wideband Linear Array Probe
12L-RS Wideband Linear Array Probe
9L-RS Wide Band Multi-frequency Transducer
L8-18i-RS Wideband Linear Array Probe
4C-RS Wideband Convex Array Probe
8C-RS Wideband Micro Convex Probe
E8C-RS Wideband Micro Convex Probe
E8Cs-RS Wideband Micro Convex Probe
