The Z-903 is most widely used for mineral exploration including lithium in both hard rock and brines
190 nm to 950 nm
10.6 x 3.25 x 10.6 inches 2.2 Kg
SciAps Z-903 LIBS Analyzer is an innovative analysis technique that opens new doors and capabilities previously unknown. The development of complex applications in the geological, mining and environmental fields can nevertheless be a hindrance because they require internal resources and variable development time.
一部适用于所有元素的分析仪
SciAps Z-903 手持式LIBS 分析仪可完成其他可携式分析仪无法完成的任务。这种手持式仪器可以测量元素周期表中从H 到U 的每个元素。
该仪器使用与SciAps Z-901和Z-902型号相同的强大雷射，但其可将光谱仪范围从190 nm 扩展到950 nm。
扩展范围可测量H、F、N、O、Br、Cl、Rb、Cs 和S 的发射线
测量靠近675 nm 的更灵敏的锂线，以达到2-5 ppm 的侦测极限
测量较灵敏、无干扰的钾(K) 线，不受重铁干扰，而这是传统K 线的典型问题
SciAps Z-903 Geochem Analyzer
The SciAps Z-903 Geochem Analyzer is a cutting-edge handheld device designed for rapid and accurate elemental analysis in the field of geology and geochemistry. Developed by SciAps Inc., a leading provider of scientific instruments, the Z-903 offers advanced technology and portability, enabling geoscientists, environmental scientists, and researchers to make real-time assessments of various materials and samples.
大批量样品与微分析

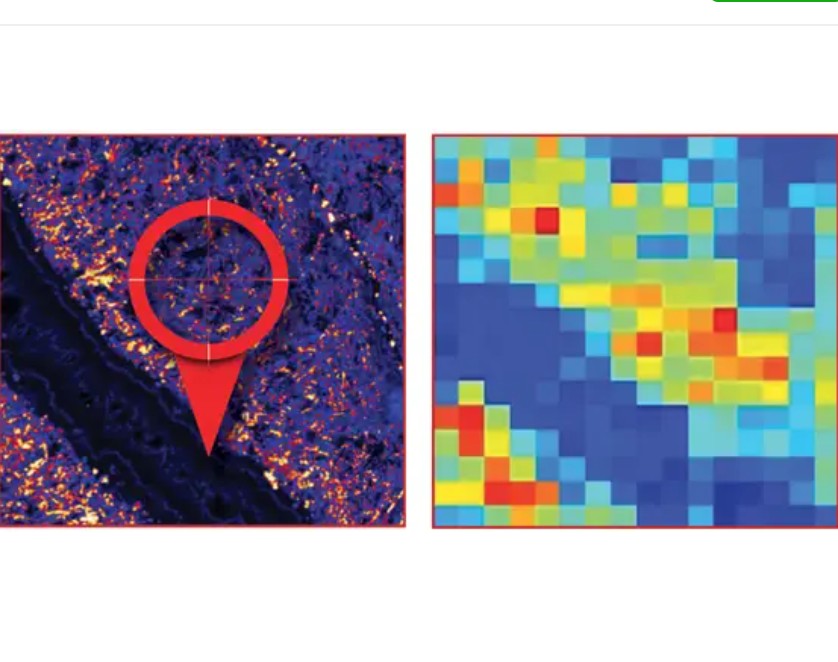

Z-903 是全球唯一有能力进行现场元素微量分析的手持式分析仪。使用者可以将光栅设定为网格图案，使用100 um 雷射光斑大小逐点建立元素热图。
对于大批量样品，可以将Z 设定为大批量样品结果中每个光栅位置的平均结果，就像手持式XRF 分析一样。
The SciAps Z-903 does what no other handheld analyzer can. It’s a portable analyzer that measures every element in the periodic table from H to U. SciAps Z-903 uses the same powerful laser as the other Z-900 models from SciAps, but with, more spectral range. extended from 190 nm to 950 nm. Includes Profile Builder software for PC or tablet for powerful desktop functionality.
完整的使用者控制
雷射打击模式、清洁脉冲和光谱仪设定，均受使用者控制。
分析仪中包括用于修改所有设定、比较光谱资料和产生定量校准曲线的先进软体。
Z-903 配备与其他所有SciAps 型号相同的Android 作业系统和直觉式应用程式驱动软体。

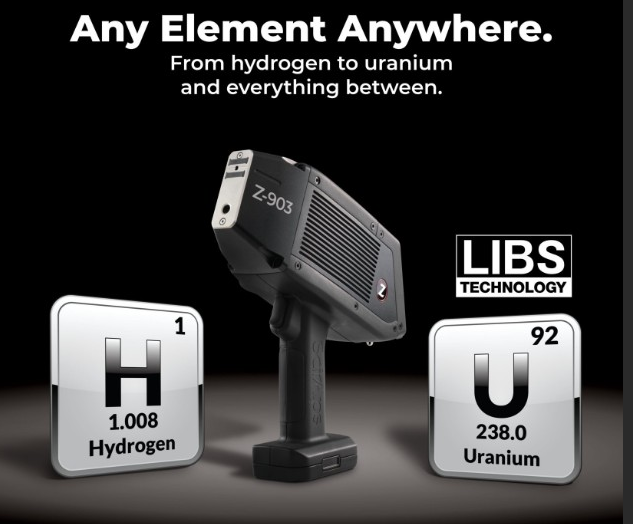

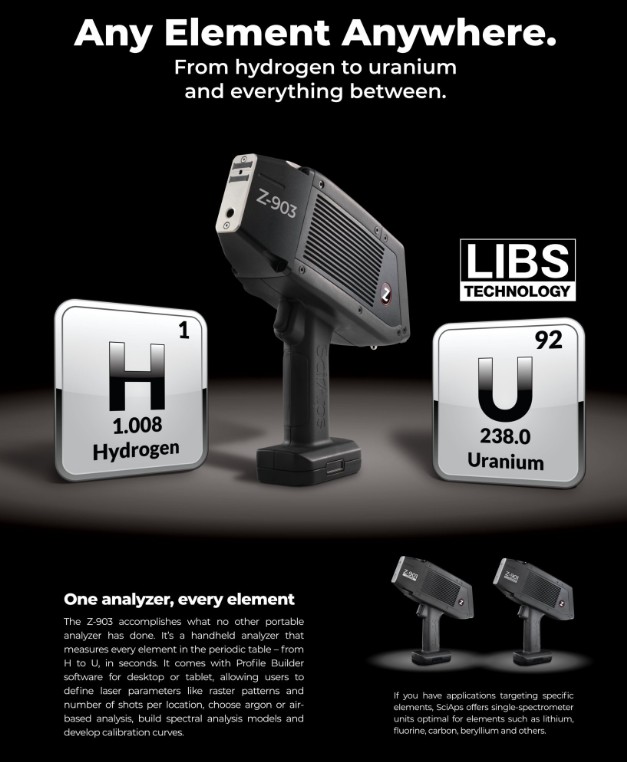

With one analyzer, every element
The Z-903 does what no other handheld analyzer can. This is a portable analyzer that measures every element in the periodic table – from H to U. It uses the same powerful laser as the other SciAps Z-900 models but with an extended spectrometer range from 190 nm to 950 n.
在全球范围内使用
Z-903 是矿产勘探领域使用最广泛的分析仪，包括硬岩和盐水中的锂。
由于元素范围广泛，此仪器也用于鉴识、验证、考古和石油/天然气勘探领域。
The extended range allows emission lines from elements H, F, N, O, Br, Cl, Rb, Cs and S to be measured. These lines cannot be measured with the other Z-900 series analyzers.
There are other benefits to the extended range. For example, it measures a more sensitive line for lithium near 675 nm to achieve limits of detection in the 2-5 ppm range.
It also measures a more sensitive, and interference-free line for potassium (K). The more traditional potassium lines have heavy iron interference, whereas the line used by the Z-903 is free of such interference.
In use globally
Z-903 is most widely used for mineral exploration, including lithium in hard rock and brine. It is also used in forensics, authentication, archaeology, and oil and gas exploration due to many factors.
Complete user control
Laser attack type, cleaning stroke, and spectrometer settings are all under the control of the user. The analyzer includes advanced software to modify all parameters, compare spectral data, and generate quantitative calibration curves. The SciAps Z 903 has the same Android operating system and intuitive application control software as all other SciAps models.

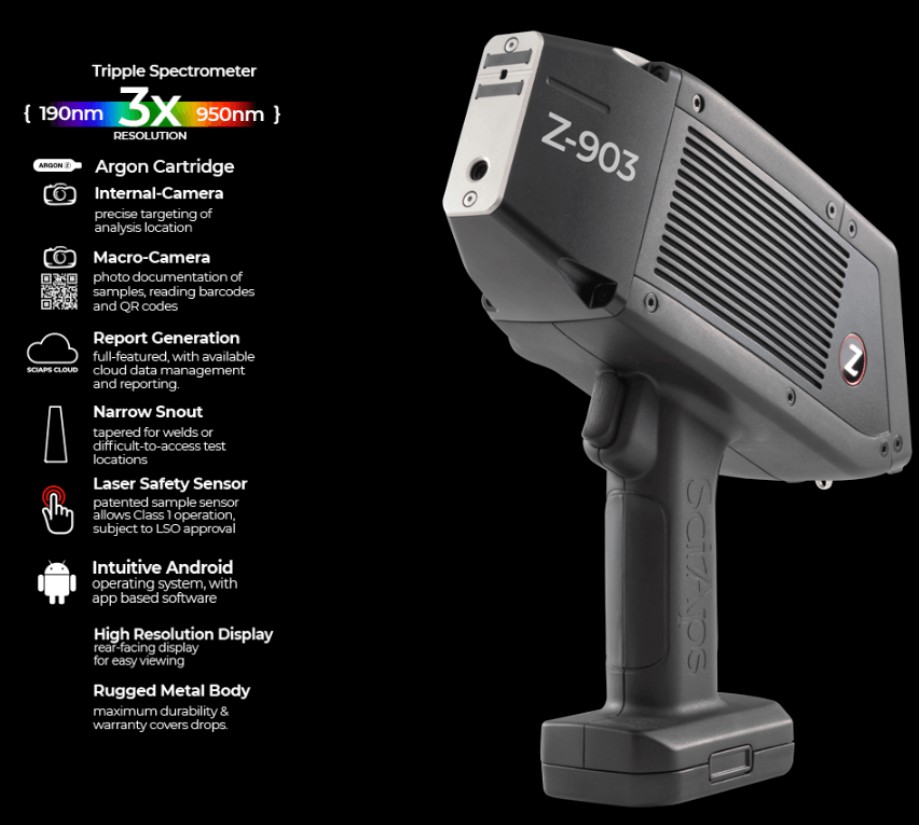

SciAps Z-903 Specifications:
Weight: 4.93 lbs. (2.24 kg) with battery
Dimensions: 10.6 x 3.25 x 10.6 inches
Display: 3.5″ high brightness, color touchscreen, readable in all lighting conditions. Rear-facing display for easy results viewing.
Power: On-board rechargeable Li-ion battery, rechargeable inside the device or with an external charger, AC power.
Processing Electronics: ARM Quad Cortex -A53 1.2 GHz Memory: 2 GB LPDDR3, 16 GB eMMC
Data Storage: Results storage: 32 GB SD
Connectivity: Built on Google’s Android platform for real-time data exporting, including built-in WiFi (IEEE 802.11b/g/n), Bluetooth (BR/EDR+BLE), GPS, and USB-C to connect to virtually any information management system.
Sample Viewing: Integrated camera and laser target indicator for viewing samples before and during analysis for proper sample alignment. Includes a second “macro camera” for scanning QR or barcodes and for photo documentation and report generation.
Laser Raster: On-board 3-dimensional stage for rastering laser to discrete locations for targeted analysis or averaging.
Atmosphere: SciAps proprietary Opti-Purge provides an inert argon environment, improving spectral signal-to-noise ratio and improving performance in the UV range.
Calibration Check: 316 stainless steel standard for automated calibration and wavelength scale validation.
Drift Correction: On-board automated drift correction software with factory-provided or user-provided reference materials.
Regulatory: CE, RoHS, USFDA registered. Class 3b laser. The sample sensor on board allows for operation under Class 1 conditions, subject to local LSO approval.
Spectral Range: 190 – 950 nm Calibrations Factory provided Geochem calibration and Profile Builder software allow users to build their own matrix matched.
Security: Password protected; multi-user support with configurable access settings.
| 重量 | 4.35 lbs. (1.97 kg) 含电池 |
| 尺寸： | 10.75 x 2.875 x 8.625 英寸 |
| 电功率 | 内建可充电式锂离子电池，可在装置内充电，或使用外部充电器、AC 电源 |
| 光谱带宽 | 190-950纳米 |
| 显示屏 | 3.5 吋高亮彩色触控萤幕，在任何条件下均可读取 面向后方的显示器，便于轻松检视结果 |
| 样品接口 | 分析前和分析期间的整合式摄影机和雷射目标指示器，提供正确的样品一致性 包括第2 个微距摄影机，用于扫描QR 码或条码，以及相片记录和报告产生 |
| 数据存储 | 结果储存装置： 32 GB SD |
| 处理电子设备和主机处理器 | ARM Quad Cortex -A53 1.2GHz 记忆体：2 GB LPDDR3、16 GB eMMC |
| 偏移量 | 内建自动偏移修正软体，附有原厂或使用者提供的参考材料 |
| 法规测试 | CE、RoHS、USFDA 注册。第3b 级雷射系统 内建样品感测器，允许在第1 级条件下运作，但须经当地LSO 核准 |
