10 Hz to 2000 Hz in 10 Hz increments
In stock
Olympus Epoch 650 Ultrasonic Flaw Detector (BC# 43888-L/T*) (2) BNC Cables AC Adapter/Charger Power Cord RS232 PC Interface Cable USB PC Interface Cable User Manual On CD-ROM Carrying Case (G)
Olympus Panametrics Epoch 650 Ultrasonic Flaw Detector| 奥林巴斯 Panametrics Epoch 650 超声波探伤仪
Economical Size, Quality Performance

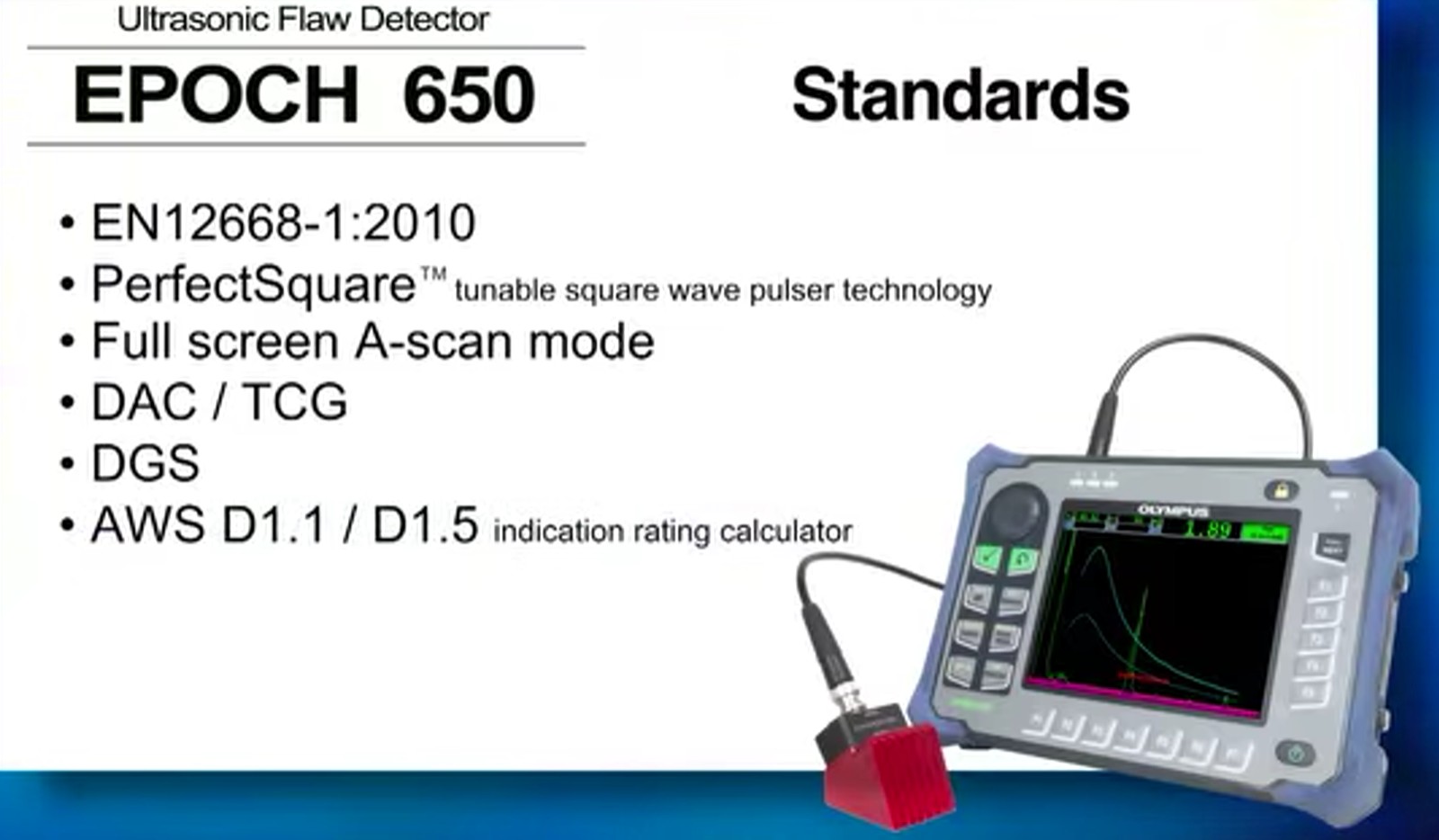

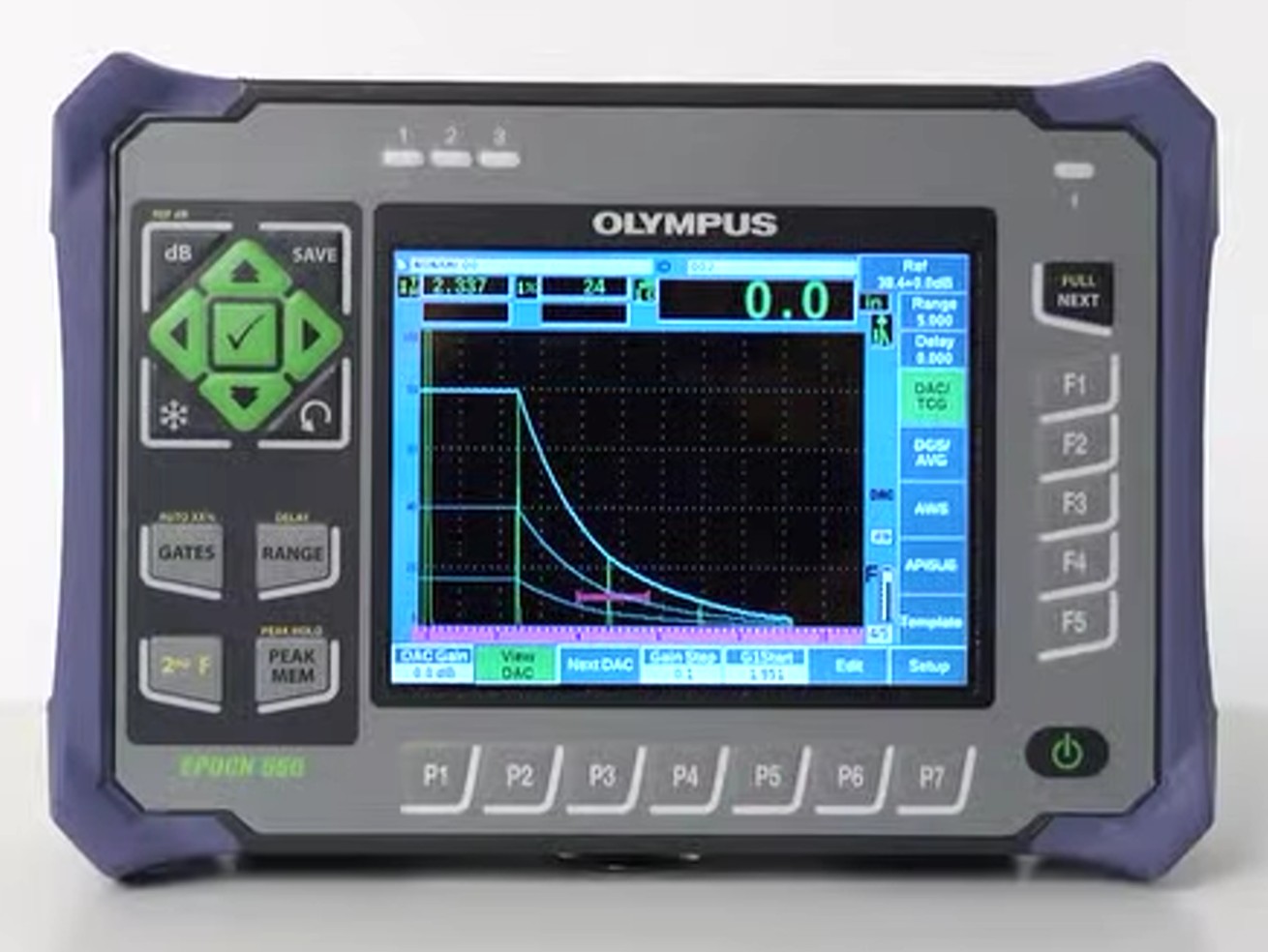

The large, full VGA transflective display combined with our patented digital high dynamic range receiver provides a stable, striking A-scan representation in any lighting condition. The EPOCH 650 is designed to meet the requirements of EN12668‑1 and allows a full range of standard and optional flaw detection features. Multiple onboard reporting tools and a comprehensive data filing system enable you to easily collect and report high quality inspection data. The rugged, ergonomic design allows use in nearly any inspection environment, while the flexible PerfectSquare™ pulser and highest number of digital filters in its class can tackle nearly any application.
这款大尺寸全VGA半透反射式显示屏，结合我们专利的数字高动态范围接收器，在任何光照条件下都能提供稳定清晰的A扫描图像。EPOCH 650的设计符合EN12668-1标准，并提供一系列标准和可选的缺陷检测功能。多种内置报告工具和全面的数据归档系统，让您轻松收集和报告高质量的检测数据。其坚固耐用的人体工程学设计使其几乎适用于任何检测环境，而灵活的PerfectSquare™脉冲发生器和同类产品中数量最多的数字滤波器，几乎可以应对任何应用。
EPOCH 650 数字超声波探伤仪融合了奥林巴斯业界领先的传统探伤技术，并兼具高度便携和直观易用的仪器特性。EPOCH 650 探伤仪采用高效的菜单和快捷键设计，让您能够轻松驾驭高品质的探伤平台。

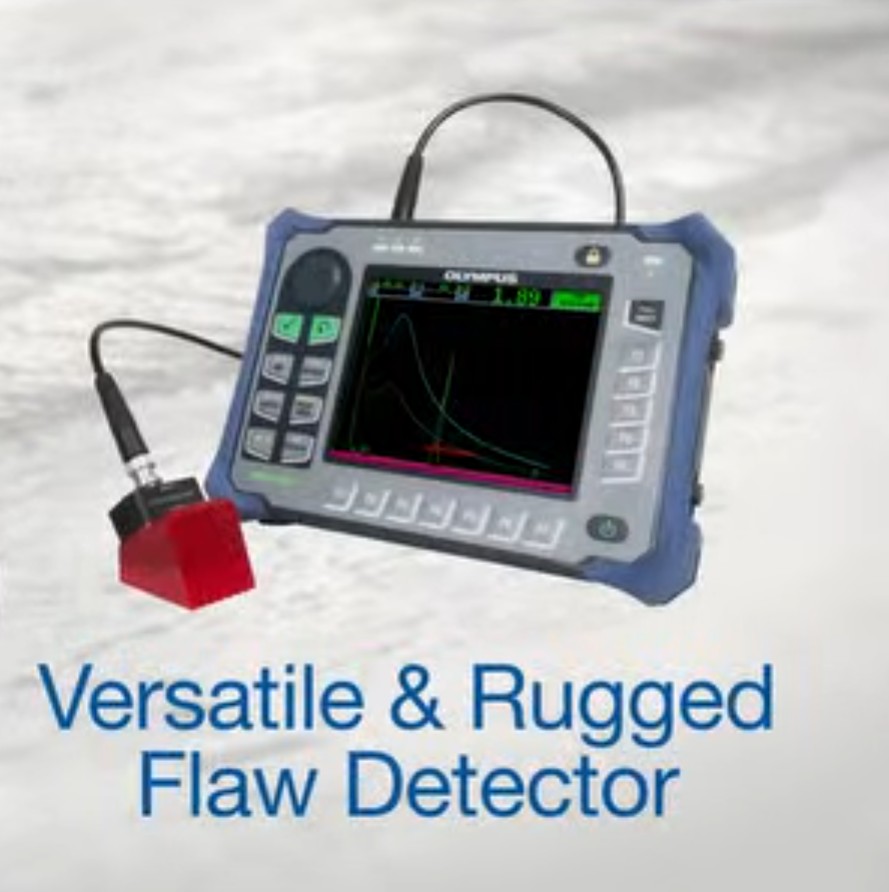

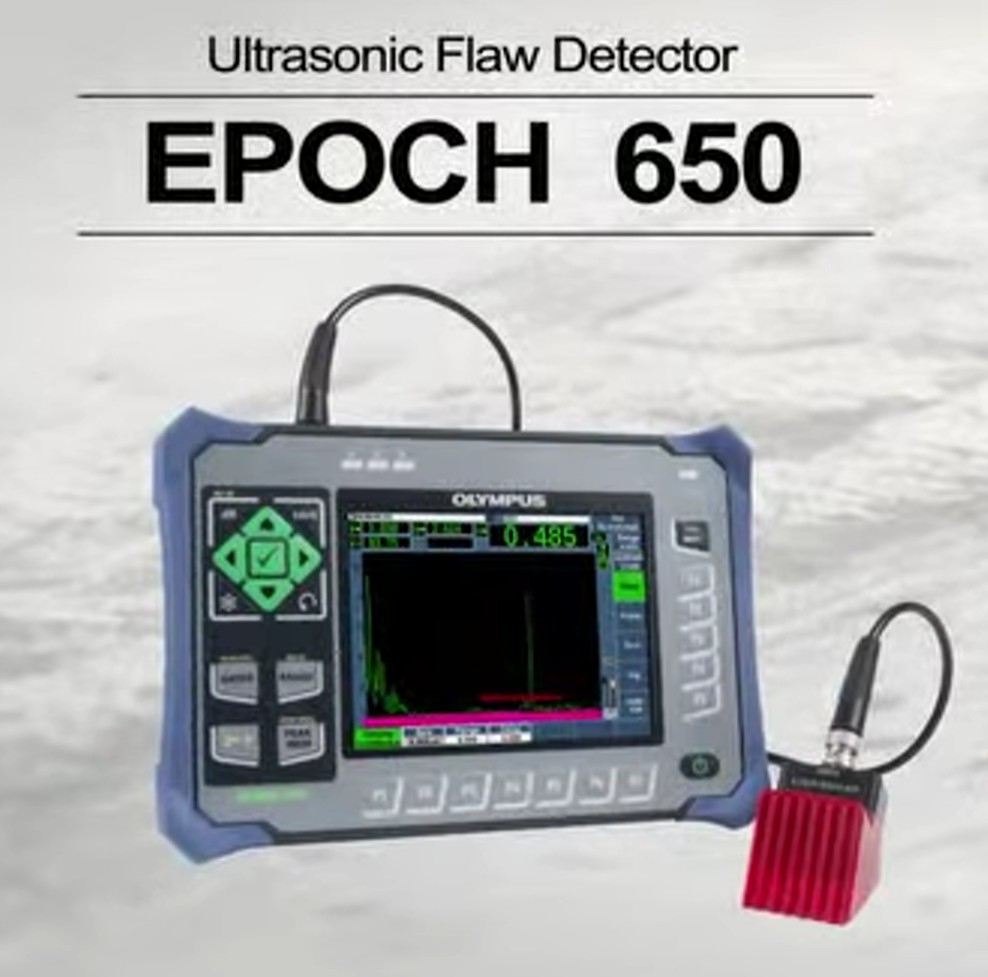

The EPOCH 650 Digital Ultrasonic Flaw Detector combines Olympus’ industry leading conventional flaw detection capabilities with the efficiency of a highly portable, intuitive instrument. The EPOCH 650 flaw detector’s blend of efficient menus and direct access keys allows you to take advantage of the highest quality flaw detection platform with exceptional ease of use.
Designed for All Inspection Environments
The EPOCH 650 is designed for use in nearly any inspection environment, from bench top testing in a laboratory to extreme outdoor and hazardous conditions. Designed for IP rating in either knob (IP66) or navigation pad (IP67) configurations, and tested to very high environmental and reliability standards, the EPOCH 650 allows users in any inspection environment to feel confident in both the performance and durability of the instrument.
适用于所有检测环境
EPOCH 650 的设计适用于几乎所有检测环境，从实验室的台式测试到极端户外和危险环境均可胜任。EPOCH 650 的旋钮式（IP66）和导航面板式（IP67）配置均符合 IP 防护等级，并经过极高的环境和可靠性标准测试，确保用户在任何检测环境下都能对仪器的性能和耐用性充满信心。
General Specifications
| PRF | 10 Hz to 2000 Hz in 10 Hz increments |
| Pulse Width | Adjustable from 25 ns to 5,000 ns (0.1 MHz) with PerfectSquare technology |
| Gain | 0 to 110 dB |
| Receiver Bandwidth | 0.2 MHz to 26.5 MHz at –3 dB |
| System Linearity | Horizontal: ± 0.5% FSW |
| Resolution | 0.25% FSH, amplifier accuracy ± 1dB |
| Reject | 0 to 80% FSH with Visual Warning |
| Amplitude Measurement | 0 to 110% full screen height with 0.25% resolution |
| Automated Calibration | Velocity, Zero Offset Straight Beam (First Backwall or Echo-to-Echo) Angle Beam (Soundpath or Depth) |
| Test Modes | Pulse Echo, Dual, or Through Transmission |
| Range | 3.36 mm to 13,388 mm (0.132 in. to 527.10 in.) at 5,900 m/s (0.2320 in./µs) |
| Velocity | 635 m/s to 15240 m/s (0.0250 in./µs to 0.6000 in./µs) |
| Zero Offset | 0 to 750 µs |
| Refracted Angle | 0° to 90° in 0.1° increments |
| Measurement Gates | 2 fully independent gates for amplitude and TOF measurements |
Measurements | |
| Gate (1, 2) | Thickness, Soundpath, Projection, Depth, Amplitude, Time-Of-Flight, Min./Max. Depth, Min./Max. Amplitude |
| Echo-to-Echo | Standard Gate 2-Gate 1, Optional IF Gate Tracking |
| Other measurements | Overshoot (dB) value for DGS/AVG, ERS (equivalent reflector size) for DGS/AVG, AWS D1.1/D1.5 A, B, C and D values, Reject Value, Echo to RefdB values |
| DAC/TCG | Standard |
| DAC points | Up to 50 points, 110 dB dynamic range |
| Special DAC modes | Custom DAC (up to 6 curves), 20-80% View |
| Curved surface correction | Standard OD or Bar correction for Angle Beam measurements |
包装清单：
奥林巴斯 Epoch 650 超声波探伤仪 (BC# 43888-L/T*)
（2）BNC电缆
交流适配器/充电器
电源线
RS232 PC接口电缆
USB PC接口线缆
用户手册（光盘版）
手提箱（G）
Included
Olympus Epoch 650 Ultrasonic Flaw Detector (BC# 43888-L/T*)
(2) BNC Cables
AC Adapter/Charger
Power Cord
RS232 PC Interface Cable
USB PC Interface Cable
User Manual On CD-ROM
Carrying Case (G)
