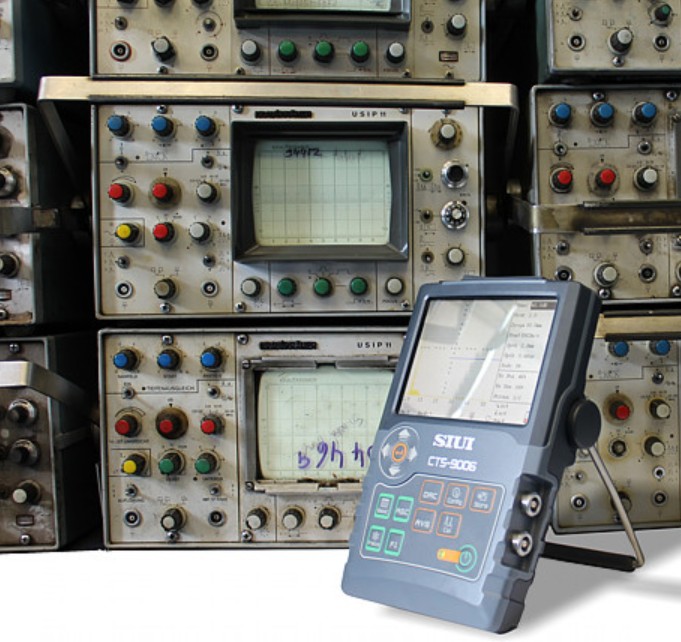

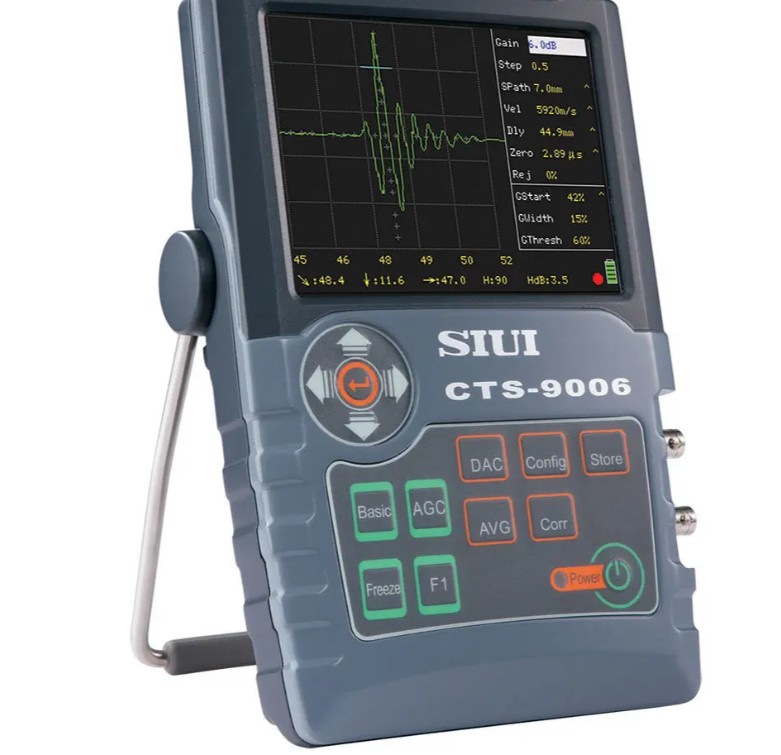

UT Flaw Detector CTS-9006 SIUI
SIUI CTS-9006 is universal digital ultrasonic flaw detector, for extraordinarilly affordable price.
The flaw detector is distinguished by wide range of of usage possibilities, compact size, low weight, very low energy consumption and simple operating.Dust and humidity protection is certainty – IP65.
SIUI CTS-9006, CTS-9006, SIUI CTS 9006, CTS-9006 Flaw Detector, SIUI Flaw Detector Price, SIUI Ultrasonic Tester
Ultrasonic Flaw Detector (超声波探伤仪)
Digital Flaw Detector (数字式探伤仪)
NDT Equipment (无损检测设备)
Ultrasonic Testing Equipment (超声检测设备)
Weld Flaw Detector (焊缝探伤仪)
Weld & Forging Inspection (焊缝与锻件检测)
Steel Structure & Pipeline Testing (钢结构与管道检测)
DAC AVG Curves Function (DAC/AVG 曲线功能)
Specification
maximum sampling rate 240MHz
Measurement resolution 0.1mm
Operating frequency range: 0.5~10MHz, detection sensitivity minimum 65dB
PRF 20 ~ 500Hz with 10 steps adjustable
5,7" colour TFT LCD display (320 x 240) with wide viewing angle, high brightness and high definition delivers every clear detail
AGC (Auto Gain Control)- function of automatic setting of echo intensification in the gate, the display size can be set by the user
AVG curves – function depicts 3 curves of different equivalent values according to the adjusted parameter of the spare flaws FBH of the flat bottom echo
DAC curves
measuring of the flaw height using the edge-peak echo method
B-Scan
RF (Radio Frequency) echo display – suitable for thick wall parts
selection from 3 colour schemes of the display for the best ability to read the display on direct sun
up to 7 minutes of dynamic record A-depiction and option to reveiw up to 1500 snapshots
memory for 500 measurements or setting of the device and the probe, unlimitedly expandable by USB flash disc
power supply 9~12 V (external source), 6~84 V (Li-ion battery)
operating time up to 8 hours
operating temperature -10~40°C
size 152x240x52mm
weight 1150g including batteries
Standard packing includes
device
manual
batteries
charger
direct singlealternating 2.5MHz probe with diameter 20mm
direct singlealternating 5MHz 50mm probe with built in steel block
CD with software
USB cable
calibrating certificate
