including alloy analysis, soil analysis, precious analysis, RoHS analysis
ppm—99.99% (different materials, with different analytical range)
660×510×350mm/68KG

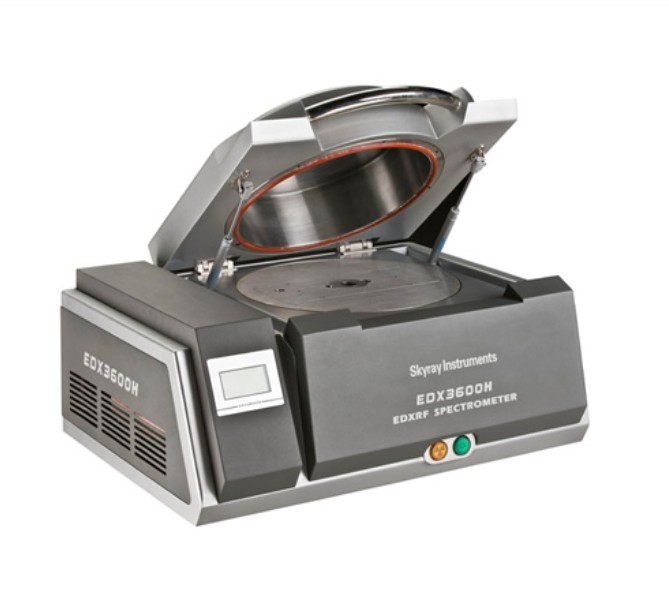

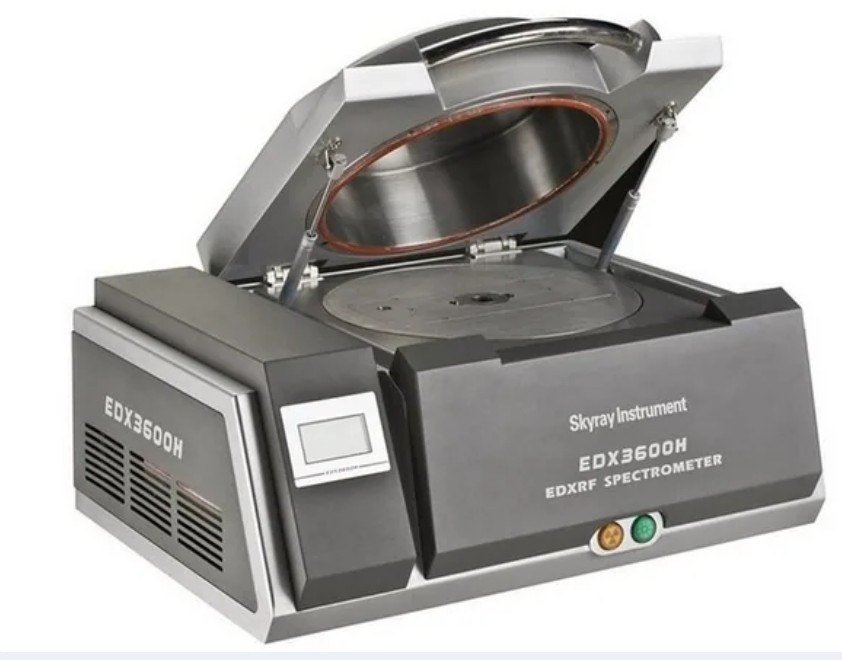

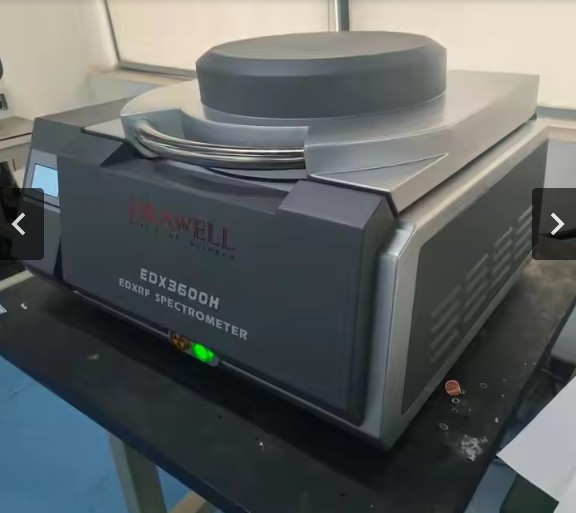

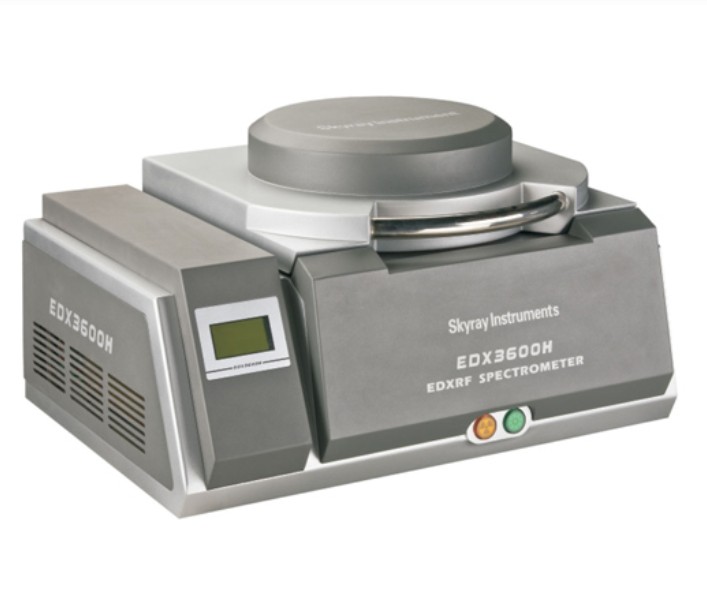

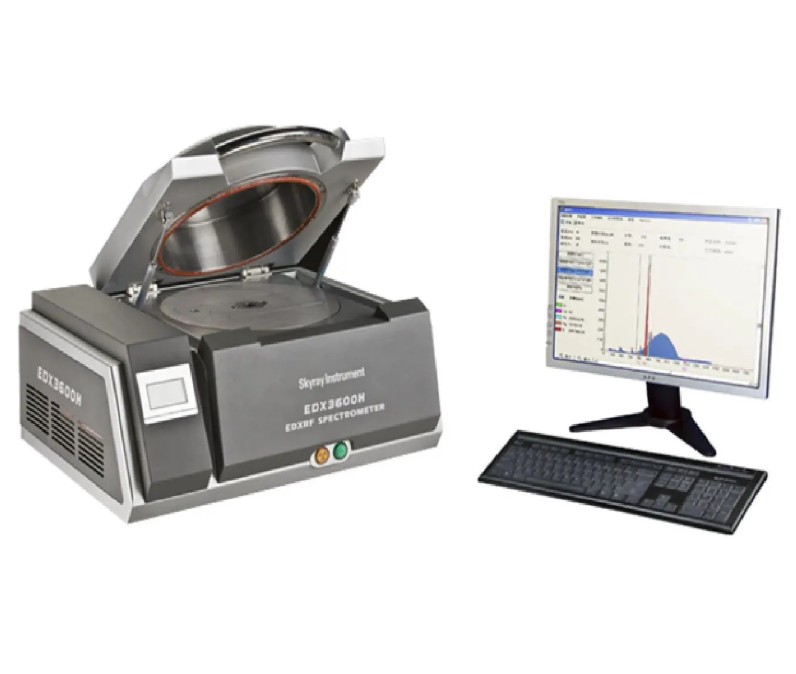

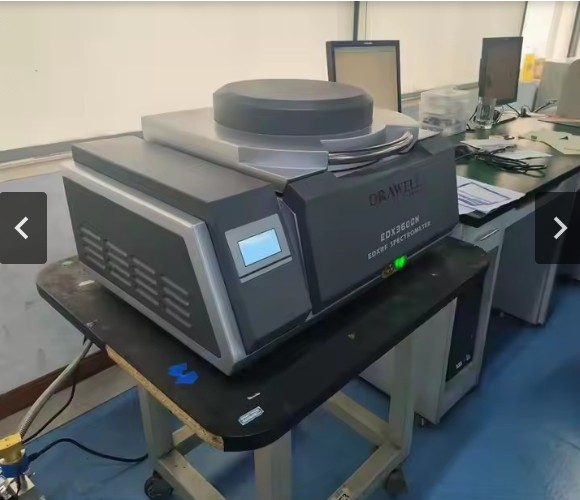

EDX3600H Benchtop EDXRF Fluorescence Spectrometer X-Ray Analyzer
Fluorescence Spectrometer (荧光光谱仪)
EDXRF Spectrometer (能量色散X射线荧光光谱仪)
X-Ray Fluorescence Analyzer (X射线荧光分析仪)
Benchtop XRF Analyzer (台式XRF分析仪)
Desktop Metal Analyzer (桌面式金属分析仪)
RoHS Environmental Testing (RoHS环保指令检测)
Halogen Free Screening (无卤检测)
Metal Alloy Analysis (金属合金成分分析)
Light Element Detection Cl S P (Cl/S/P轻元素检测)
Precious Metal Gold Purity Testing (贵金属/黄金纯度检测)
Desktop X Fluorescence Alloy Analyzer EDX3600H, which integrates alloy analysis technology, is equipped with intelligent vacuum system, and uses low-energy light tube to cooperate with vacuum test, which can effectively reduce interference, improve light element resolution, and greatly improve the trace amount of Al, Si, P in the alloy. The detection effect of iso-light elements.
EDX3600H Mining Analyzer is specially designed for geology and mining industries. This instrument features high precision, fast testing speed and easy operation etc.
The high-performance desktop XRF geology and mining analyzer--EDX 3600H is equipped with globally advanced analysis technology, intelligent vacuum system and developed electronic technology. Combined with low-energy tube, vacuum system and Laboao patent low background technology, it efficiently reduces testing interference, and improves energy resolution of Mg，Al，Si, P and other light elements in geology and minerals.
At the same time, it has the functions of alloy testing, alloy number analysis, harmful element analysis, soil analyzer, and precious metal analysis.
Test samples include all alloys from sodium to uranium, metal workpieces, minerals, slag, rocks, etc., in the form of solid, liquid, powder, etc
FEATURES
1. Bear several testing modes, including alloy analysis, soil analysis, precious analysis, RoHS analysis
2. Testing samples includes minerals, slag, rocks, etc. Analytical content is from Na to U. Testing samples can be solids, liquids, and powders
3. Highly efficient super-thin window x-ray light tube， which is specially developed for mineral testing, reaches the international advanced level
4. Silicon Drift Detector (SDD), provides better energy linearity, resolution, spectrum characteristics and higher peak/base ratio
5. Signal-to-Noise Enhancer(SNE), improves the signal processing ability by 25 times or more
6. Built-in CMOS HD camera
7. Automatic switch of collimator and filter according to different samples, it eliminates the troublesome manual operation
8. Triple x-ray protection design
(1)Machanical protection: segregate x-ray
(2)Electronical protection: Automatic shut-down of x-ray when opening the cover during testing
(3)Software protection: Automatic shut-down of software program when opening the cover during testing
9. LCD screen directly shows the important parameters: tube voltage, tube current and vacuum degree
10. 2L vacuum pump
CONFIGURATION LIST
1. Highly efficient super-thin window x-ray light tube
2. High-performance electronic cooling UHRD detector
3. Signal-to-Noise Enhancer
4. CMOS HD camera
5. Collimator and filter
6. Triple safety protection mode
7. 90mm×70mm LCD
8. Vacuum Pump
WHY CHOOSE US
Factory direct sales with competitive price.
Premium quality with CE & ISO certification.
Strong product OEM & ODM customization capability.
Promise production & on-time delivery.
Perfect after-sales service, free product accessories.
15 years of experience in R&D and production of x-ray fluorescence spectrometer(xrf) machine.
