Phased Array Flaw Detector with TFM and 4 Channel TOFD
12.1" high brightness TFT LCD, 1024x768 pixels
365 x 270 x 115 mm 6 kg with 2 batteries

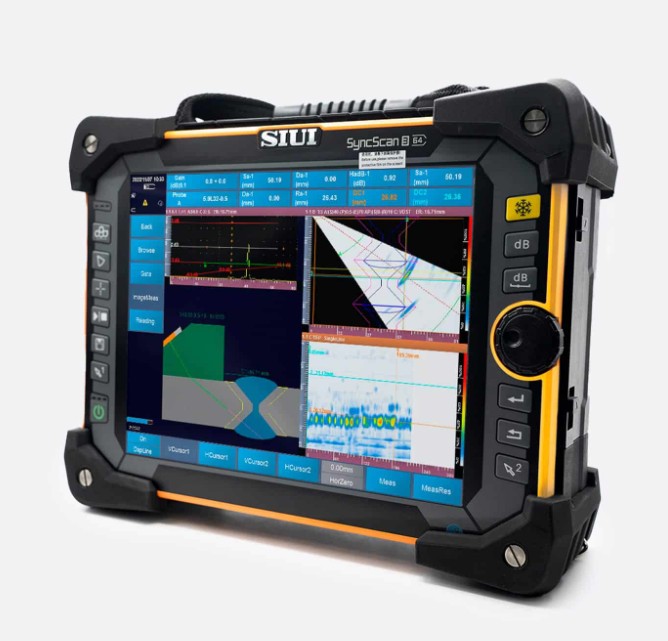

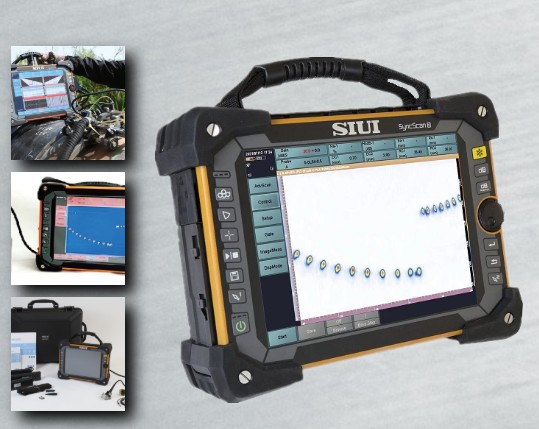

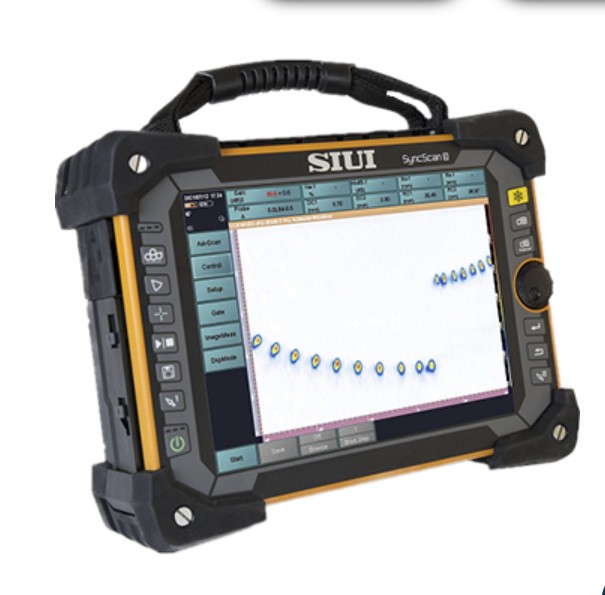

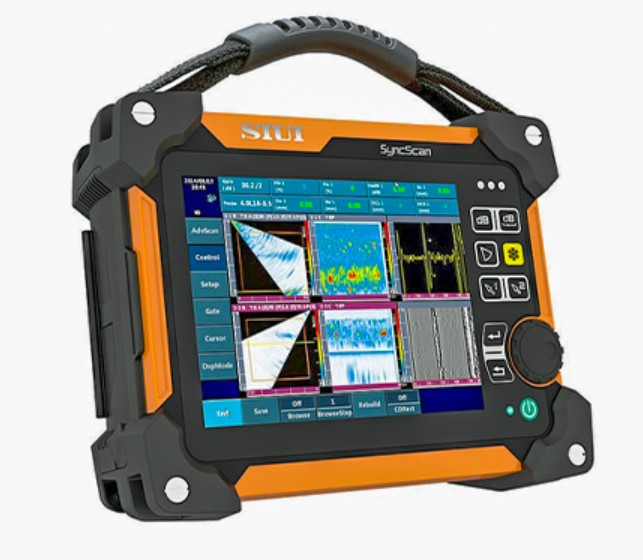

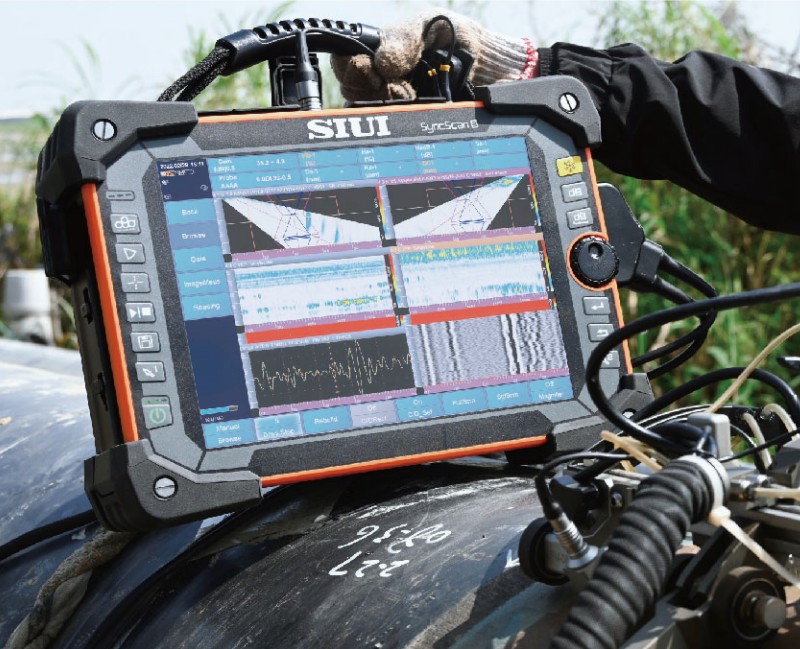

SIUI SyncScan 3 Phased Array Flaw Detector Phased Array Flaw Detector with TFM and 4 Channel TOFD
Overview
The SyncScan 3 is 64:128PR PAUT flaw detector with total focusing method (TFM) and 4 channel TOFD, bringing more possibilities for your inspection in oil & gas, transportation, aerospace, shipbuilding, and manufacturing industries. Using a special algorithm, the SyncScan 3 achieves live TFM high-speed imaging based on reducing data transmission and computing resources. The envelope processing provides more stable amplitude and removes noises, further improving TFM performance and ensuring the shape and size of defects are characterized clearly. With 64 PA channels, 4 TOFD channels, and a special PA to TOFD adapter to convert to 5 channel TOFD, the SyncScan 3 provides better coverage and accuracy for demanding inspections.
SIUI SyncScan 3
SyncScan 3
SIUI Flaw Detector
SIUI PAUT
SyncScan 3 Price
SIUI Ultrasonic Tester
Ultrasonic Flaw Detector (超声波探伤仪)
Phased Array Flaw Detector (相控阵探伤仪)
NDT Equipment (无损检测设备)
Ultrasonic Testing Equipment (超声检测设备)
Weld Flaw Detector (焊缝探伤仪)
Features
One touch smart keys for measurement, scanning, saving, and NDT Ultracloud access
IP65 rating
Lightweight and portable - 13.2 lbs and 14.3" x 10.6" x 4.5"
12.1" touch screen, 1024x768 pixels
Special algorithm for faster live TFM and up to 6 TFM modes at one time
Higher configuration for demanding inspections - complex composite materials, corrosion-resistant alloys, austenitic materials, thick welds up to 400mm, etc.
Supports raw data analysis (FMC) - raw data can be recorded during full matrix capture scanning, realizing data secondary development
Enhanced wireless transmission - Bluetooth module allows the SyncScan 3 to control an automatic crawler wirelessly and WIFI assists data acquisition and transfer
Test Wizard guides users during the entire testing process with a friendly, easy to use experience. In TFM, the upgraded rectangle frame visualizes detection coverage, enabling users to finish testing setup more quickly.

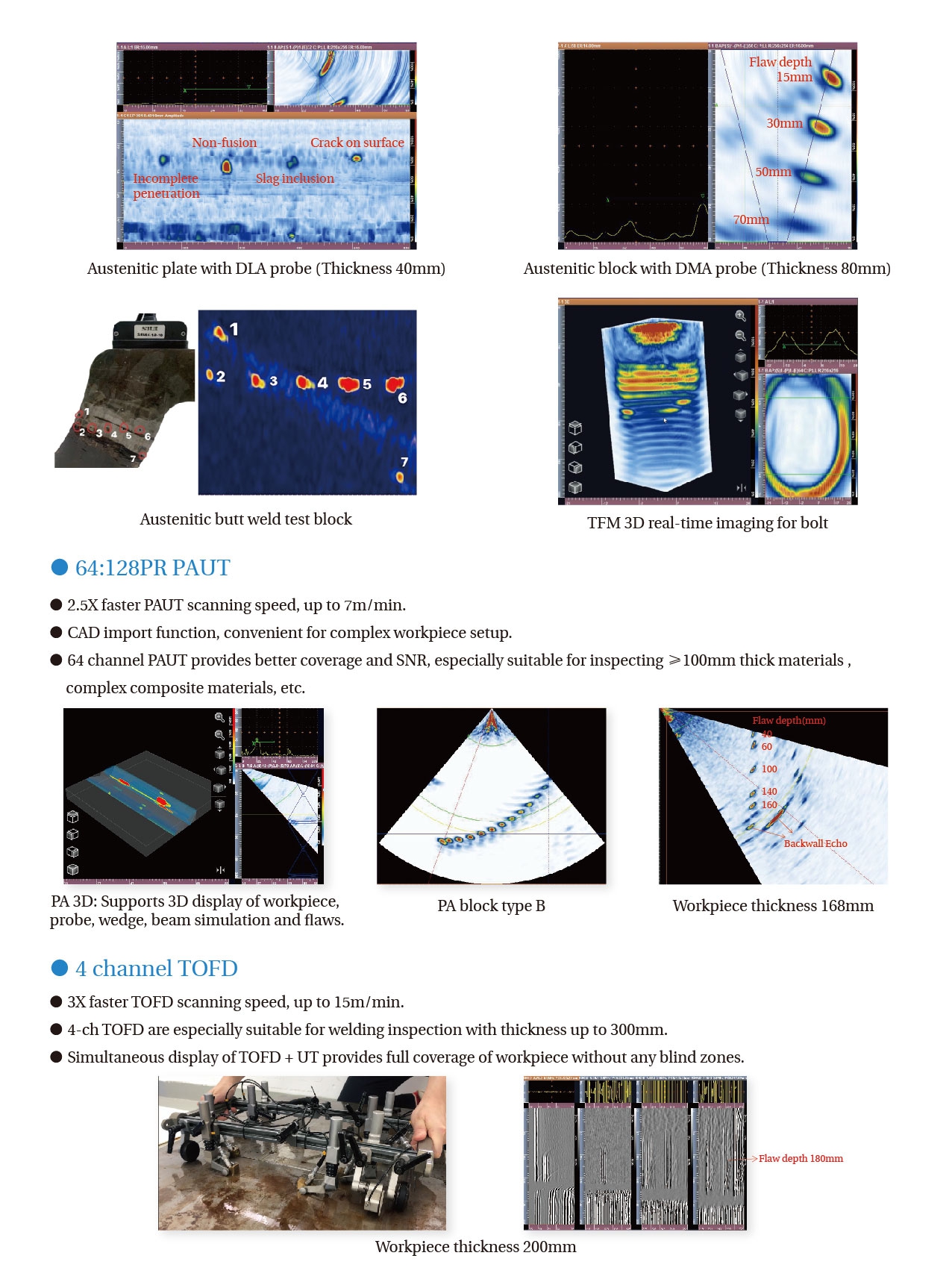

TFM
Fitting Curve Algorithm in TFM (Published patent)
Free selection of TFM image resolution and support up to 1024x1024
TFM 3D real-time imaging, with higher resolution & more intuitive result
Up to 6 propagation modes can be displayed simultaneously to better identify and size flaws
64:128PR PAUT
2.5X faster PAUT scanning speed
64 channel PAUT provides better coverage and SNR, especially suitable for inspecting ≥100mm thick materials ,complex composite materials, etc.
CAD import function for fast setup workpiece
PA 3D for 3D display of workpiece, probe, wedge, beam simulation and flaws
4 Channel TOFD
3X faster TOFD scanning speed
4-ch TOFD are especially suitable for welding inspection with thickness up to 300mm
Simultaneous display of TOFD + UT provides full coverage of workpiece without blind zones
