Mindray WATO EX-35 Anesthesia Machine Surgical Operating Room Equipment
Anesthesia Machine
Anesthesia Workstation
Surgical Anesthesia Equipment
Operating Room Anesthesia System
Veterinary Anesthesia Machine
Vet Anesthesia Equipment
Animal Anesthesia System
Pet Surgery Anesthesia Machine
The Mindray Veterinary Wato EX35 Anesthesia Machine is designed with a focus on precise ventilation control and stable anesthesia delivery, tailored for veterinary applications. It supports a comprehensive range of controlled and supportive modes of ventilation, including dynamic tidal volume compensation with tidal volumes as low as 5 mL, and integrates intelligent ventilation modes to avoid lung injury.
The Mindray Veterinary Wato EX35 Anesthesia Machine is meticulously engineered for precise ventilation control and stable anesthesia delivery in veterinary applications. It supports a comprehensive range of ventilation modes, including dynamic tidal volume compensation with volumes as low as 5 mL, and integrates intelligent modes to prevent lung injury. With extensive physiological monitoring, up to three waveforms can be displayed simultaneously, covering parameters such as airway pressures and tidal volume. The machine features a calibration-free V60 Vaporizer, a user-friendly 10.4-inch touch screen for seamless settings adjustment, and an integrated breathing system for quick transitions between manual and mechanical ventilation. Additionally, it offers options for passive or active gas scavenging solutions to minimize waste gases. It's worth noting that it's specifically tailored for animals weighing under 200 pounds.
The Mindray WATO EX-65 / EX-65 Pro is an ICU-grade anesthesia machine designed for patients ranging from neonates to adults
Key Features & Specifications
Display & Interface: 12.1-inch to 15.1-inch high-resolution color touch screen with an intuitive, flat-menu user interface.
Ventilation Modes: Includes VCV, PCV, PCV-VG (Pressure Control Volume Guaranteed), SIMV, SIMV-VG, PS, CPAP/PS.
Tidal Volume & Rate: Tidal volume range of 5–1500 mL and respiratory rate of 4–100 bpm.
Breathing System: Integrated, heated, autoclavable breathing circuit that prevents condensation (rain-out), improves flow sensor accuracy, and stabilizes tidal volume delivery.
Advanced Functions:
Fresh Gas Flow Optimizer: Suggests recommended flow rates to support safe low-flow anesthesia and minimize agent/gas waste.
Lung Recruitment: Features dual optional maneuvers and evaluation metrics to lower the risk of postoperative pulmonary complications.
High Flow Nasal Cannula (HFNC): Available on the Pro model for safe apneic oxygenation and easier intubation.

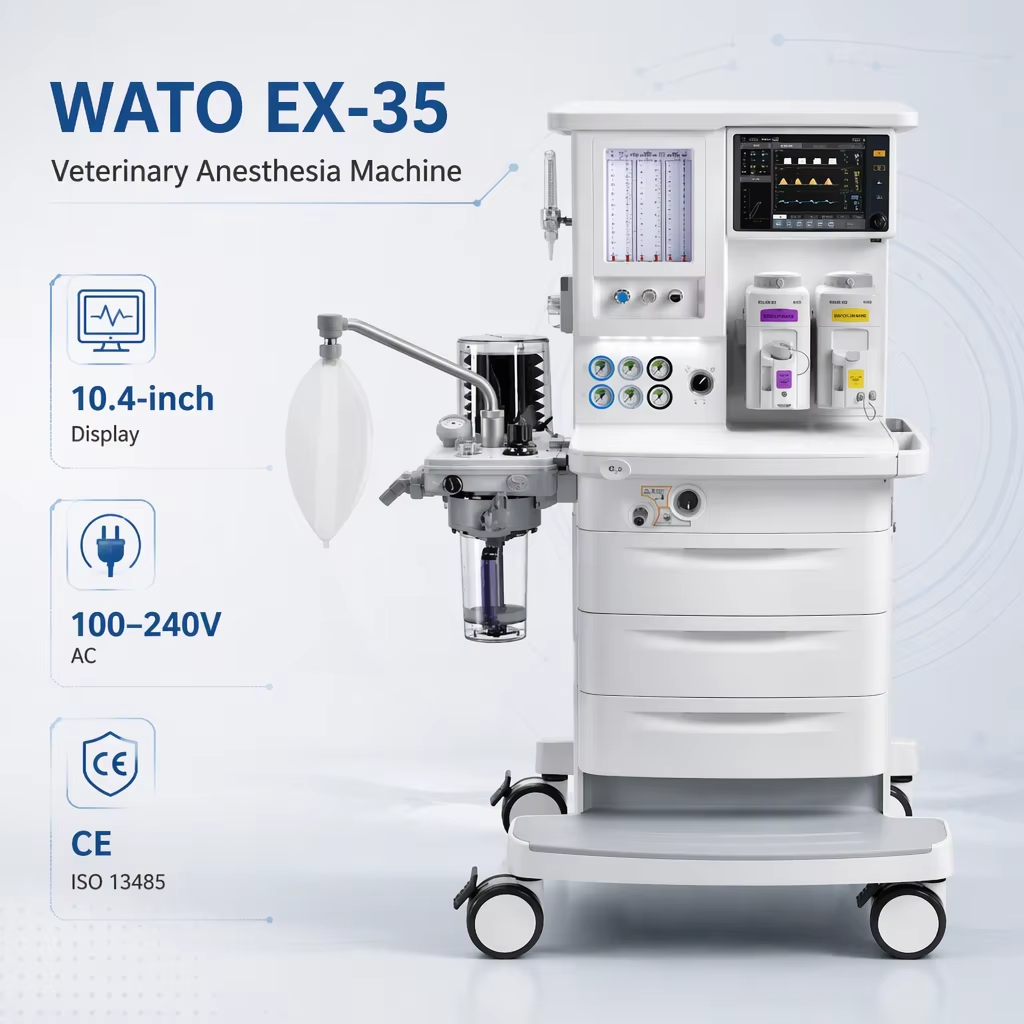

The Mindray WATO EX-35 Anesthesia Machine is a feature-rich, ergonomic anesthesia delivery and monitoring system designed for patients ranging from neonates to adults (and a dedicated veterinary variant, the WATO EX-35Vet)
Key Specifications & Features

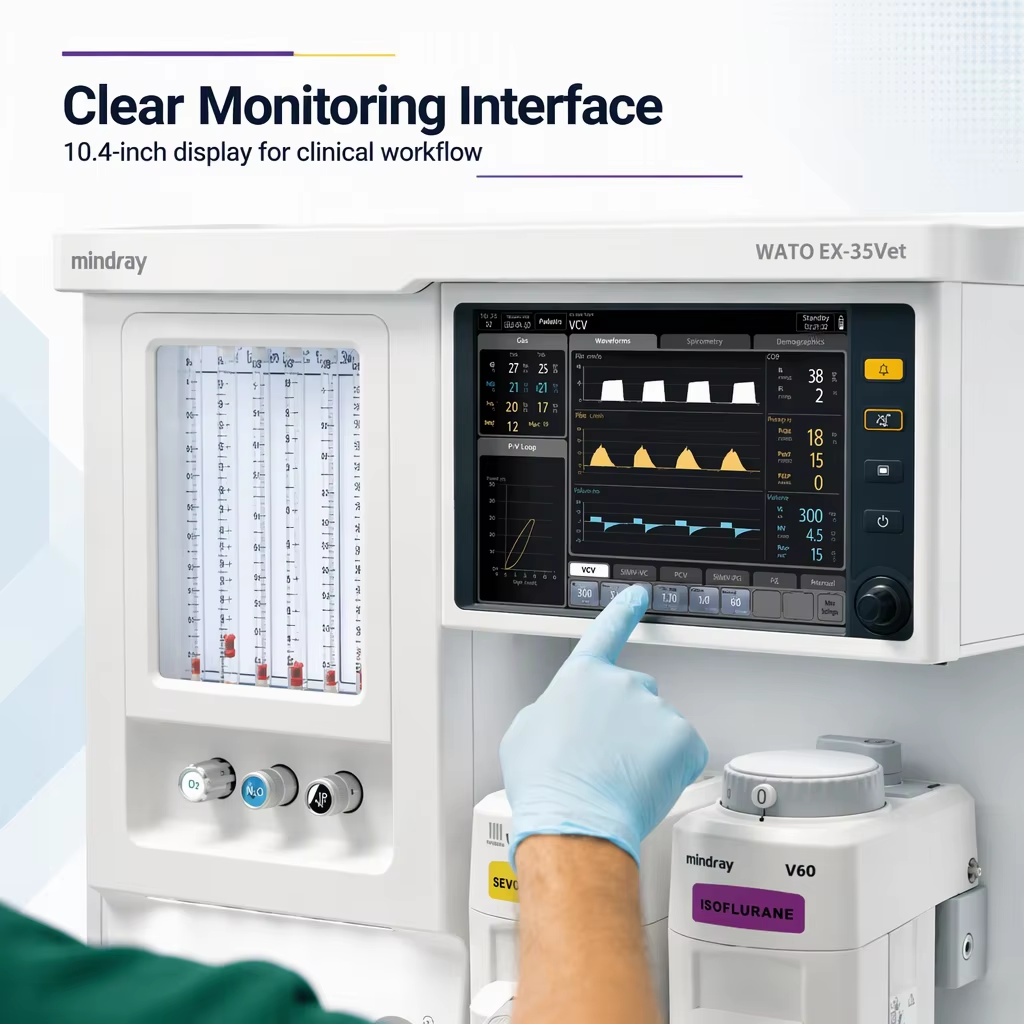

Display & Interface: Features a 10.4-inch high-resolution color touch-screen with a flat menu design, quick-access parameter controls, and real-time Smart Alarm management.
Ventilator Modes: Supports controlled and support modes including VCV (Volume Control Ventilation), PCV (Pressure Control Ventilation), SIMV, PS (Pressure Support), and manual/spontaneous modes.
Tidal Volume Range: 20 mL to 1500 mL with dynamic tidal volume compensation (down to 5 mL on the veterinary version
Physical & Electrical:
Dimensions: 1410 x 945 x 690 mm
Weight: Under 145 kg
