Aeonmed 7200A both pediatric and adult patients.
8.4" TFT Color Screen
Dimensions(H*W*D):

1356*845*620mm

Ventilation mode:

IPPV, PLV, SIMV,PS and Manual

Parameters monitored:

P-T, F-T, V-T waveforms & P-V, F-V loops

Consult Now Product PDF
Products
Ultrasound System
Laboratory Equipment
Operating Theater Equipment
Ward Room Products
Endoscopy/CPAP
Ophthalmic equipment
PRODUCT DETAILS

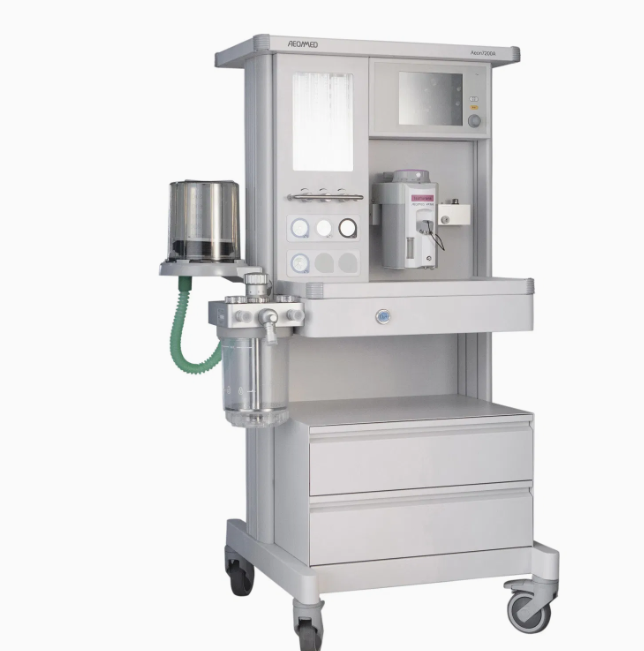

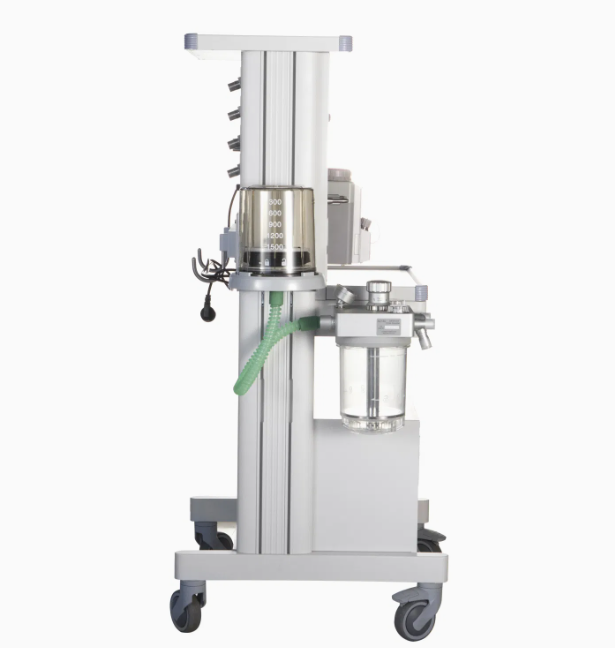

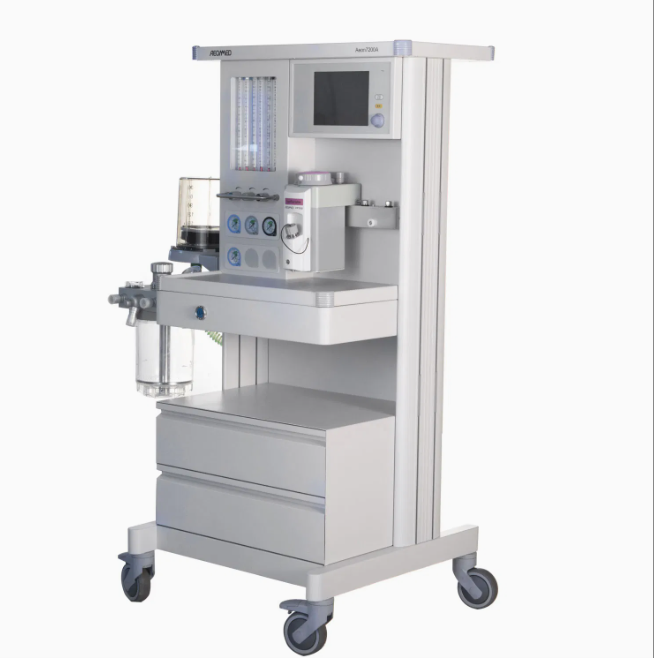

Aeonmed 7200A Multi-Function Workstation Anesthesia Machine with CE for Operating


Description

Product Description


Aeon 7200A

Anesthesia Machine

  • High speed digital servo-controlled, volume constant system

  • Monitor manifold parameters, suitable for adult & paediatric

  • Compliance and leakage compensation system

  • TFT screen display

  • Self testing, troubleshooting and warning system

  • High quality vaporizers: Low, temperature and pressure compensation

  • Low resistance, compact absorber system

  • Special designed bellows joint for easy installation

  • Precision processing

  • High reliability and durability

  • Main Unit


Mode: Semi-open, semi-closed or closed system

  • Gas supply: O2/N2O, Pressure: 0.3 to 0.5 MPa

  • Flowmeter: O2/N2O four-tube flowmeter, 0 to 10 L/min

  • (With inter-lock protection devicesensuring the oxygen concentration > 25 %)

  • O2flush: 35 to 75 L/min

  • O2deficiency: Audible alarm for at least 7 seconds when O2supply down

  • MV220 Ventilator


Patient type: Adult, Paediatric

  • Driven mode: Pneumatically driven electronically controlled

  • Display mode: 5.7″TFT screen display

  • Ventilation mode: Volume, Manual

  • Tidal volume: 0 to 1500 ml

  • Breath rate: 4 to 99 bpm

  • I: E ratio: 1: 0.5 to 1: 6

  • Pause time: 0 to 50% ( increments of 5% )

  • PEEP: 0.3 to 2 kPa (optional)

  • Alarm silence: ≤120 seconds

  • Monitoring: Tidal volume, MV, Breath rate, Airway pressure waveform, Flow waveform, Airway pressure(peak, plat, average), Dynamic compliance, O2concentration, PEEP (optional)

  • Alarm: High/Low airway pressure, Vt high, Airway failure, MV high/low, Apnea, AC powerfailure

  • Safety valve: ≤6 kPa

  • VP200 Vaporizer


  • Capacity: 120 ml (Max. )

  • Dry wick Volume: 20 ml

  • Flow range: 0.2 to 15 L/min

  • Concentration: 0 to 5.0%

  • Work Temp.: 15to 35

  • Storage Temp.: – 40to 70

  • Dimension: 155 mm*94 mm*189 mm(D*W*H)

  • Weight: 5 kg

  • Operation Environment


  • Power supply: 110to 240 V; 50to 60 Hz

  • Power consumption: ≤50 VA

  • Operation Temp.: 10to40

  • Storage Temp.: – 10to 55

  • Humidity: ≤ 93%

  • Dimension and Weight

  • Dimension: 620 mm*910 mm*1387 mm(D*W*H)

  • Weight: 97 kg
