B, 2B, 4B, B/M, B/BC, CFM, PW, Power Doppler/Directional PD, Instant
366mm*355mm*72mm 5.5Kg
2 years

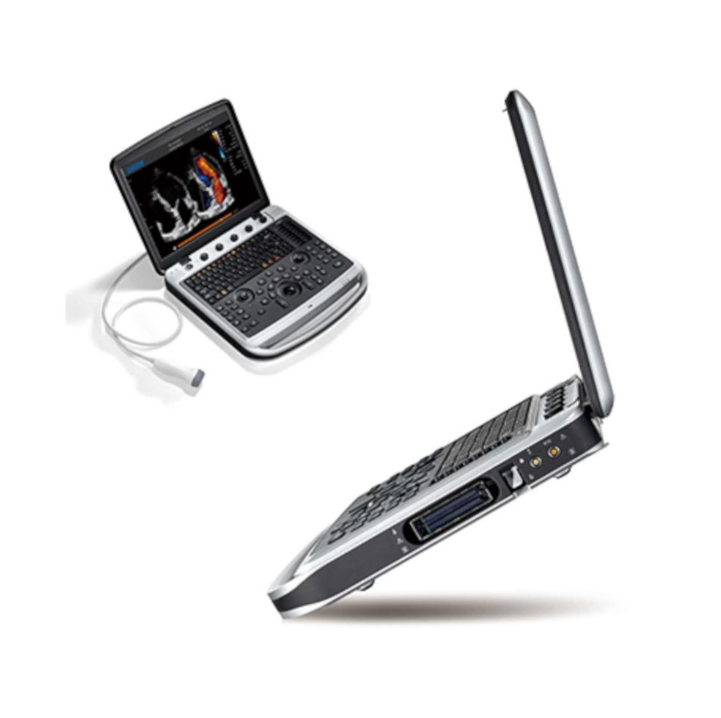

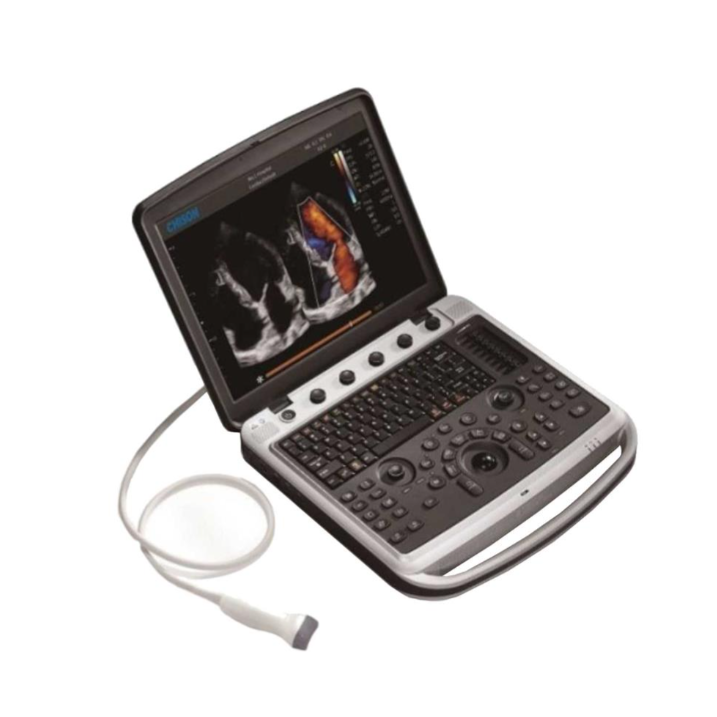

SONOBOOK 6
A budget-friendly compact ultrasound system combines with advanced features, remarkable imaging performance and intuitive workflow.

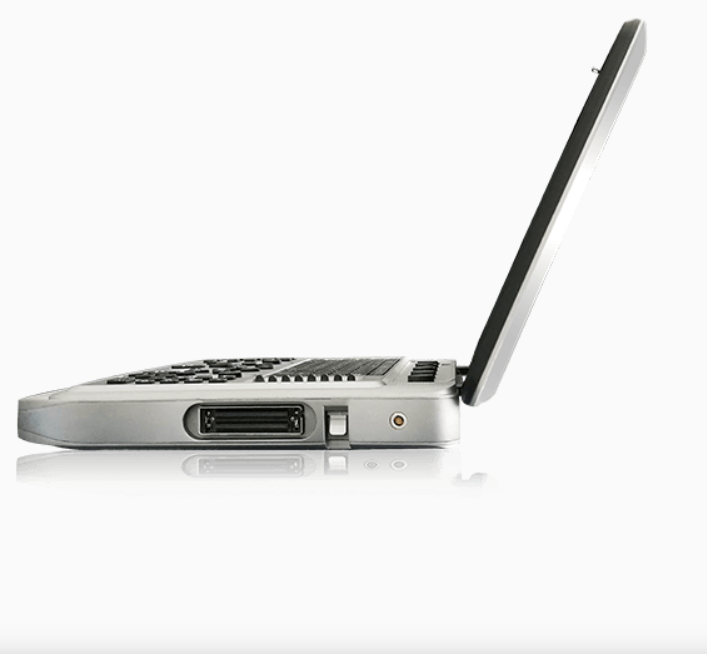

Featured with compact laptop based design for easy mobility, provide solutions when fast reaction is needed.
Combined with productive features, crisp imaging performance and intuitive workflow, SONOBOOK 6 could support excellent patient care, and offer economic clinical value.
Productive features
Main unit with 15" high resolution LED monitor
32G harddisk ; 3 built-in USB ports
B, 2B, 4B, B/M, B/BC, CFM, PW, Power Doppler/Directional PD, Instant
Triplex, Duplex, Trapezoidal, Chroma B&M&PW
Automatic PW trace and measurement
Super Image module: FHI, Multiple Compound Imaging, SRA (Speckle
Reduction Algorithm),X-contrast,Q-beam,Q-flow
Auto IMT
Q-Image (intelligent image optimization)
Measurement & calculation software packages: General, OB&GYN, Cardiac
C3-V : 3.0 MHz Convex probe
L7-V : 4.0 MHz – 15.0 MHz linear probe (40mm)
Elastography
Display the elasticity of different tissues in different color
Provide more clinical information, especially for breast tumor, thyroid, liver and prostate
Strain ratio measurement quantitatively gives the ratio between the average strain of the selected region and the nearby normal tissue region.
Auto IMT
The automatic intima-media thickness measurement for fast carotid exam, providing the detailed result of the intima-media thickness, help to make the diagnosis automatically
Super needle
Enhance the needle displayong in image, without distortion of the needle
Decrease the complicated rate, increase the succesful rate

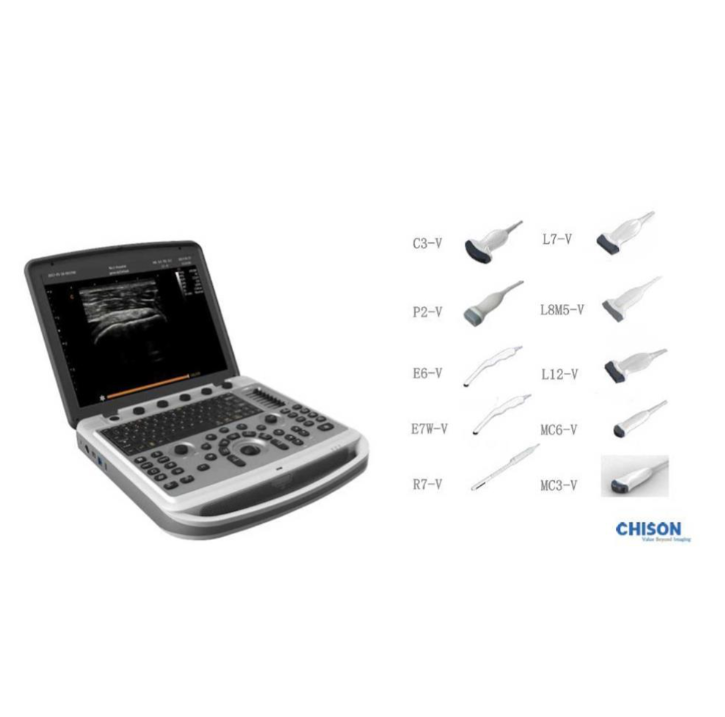

Transducers
C3-V : 3.0MHz convex probe
L7-V : 4.0MHz – 15.0 MHz linear probe
L12-V : 7.0 MHz-18.0 MHz Linear probe (40mm)
L8M5-V : 5.0 MHz-14.0 MHz Linear probe (50mm)
P2-V : 2.5 MHz Phased array probe (Adult)
E6-V : 6.0 MHz Trans-vaginal probe
E7W-V : 7.5 MHz Trans-vaginal probe
R7-V : 7.5 MHz transrectal probe
MC6-V : 6.0 MHz Micro-Convex probe
MC3-V : 3.0 MHz Micro-convex probe
Options Hardware

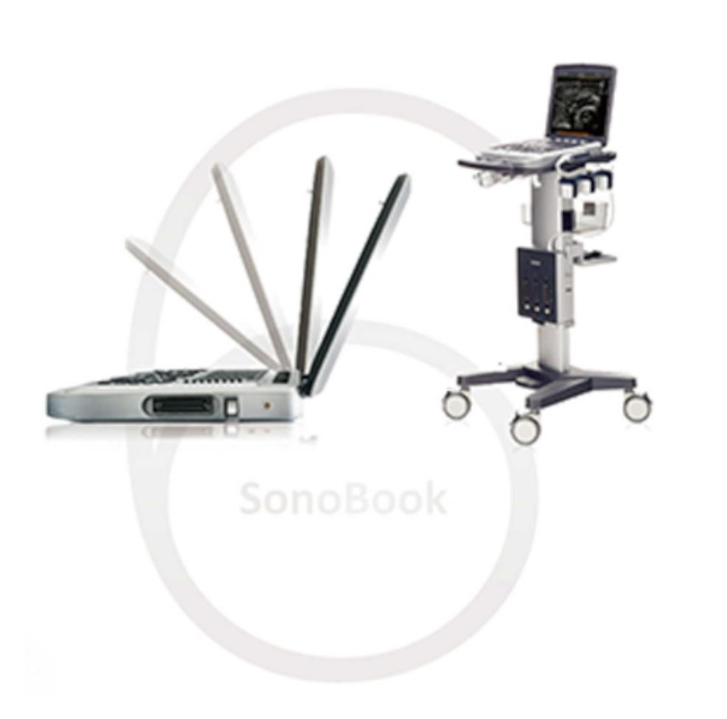

SONODocking
TR-20 : Trolley
SonoTriple Connector
BG-20 Carrying case
BT-3000 Battery BT-3000
BC04-A Biopsy kit for C3-V
BC06-A Biopsy kit for MC3-V
BL03-A : Biopsy kit for L7-V, L12-V
BC03-A : Biopsy kit for MC6-V
BT03-A : Biopsy kit for E6-V
BT04-A : Biopsy kit for E7W-V
BT02-A : Biopsy kit for R7-V
Foot – switch (must be connected with SONODocking)
SonoECG Lead
SONY X898MD B&W Video Printer
Options-Software
2D Steer
Elastography
Super Needle
Extended cardiac package : ECG Software, CW, Color M, TDI
DICOM 3.0
