GRAPHNET advance High Flow Oxygen Therapy (HFOT/ HFNC)
Dedicated Neonatal & Infant Ventilator
Product Details

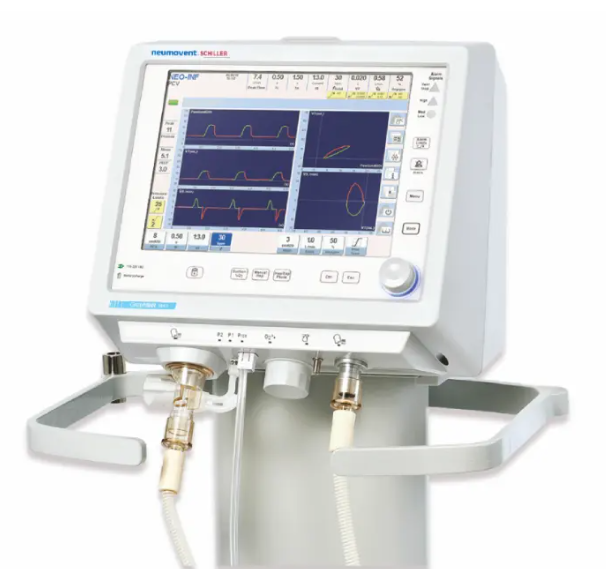

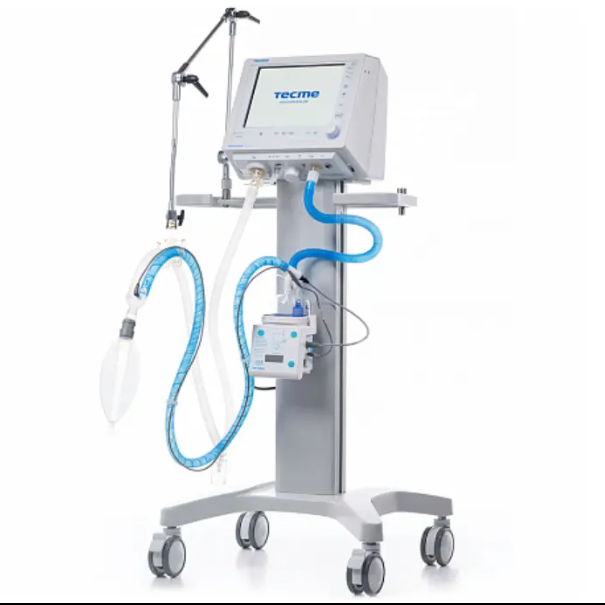

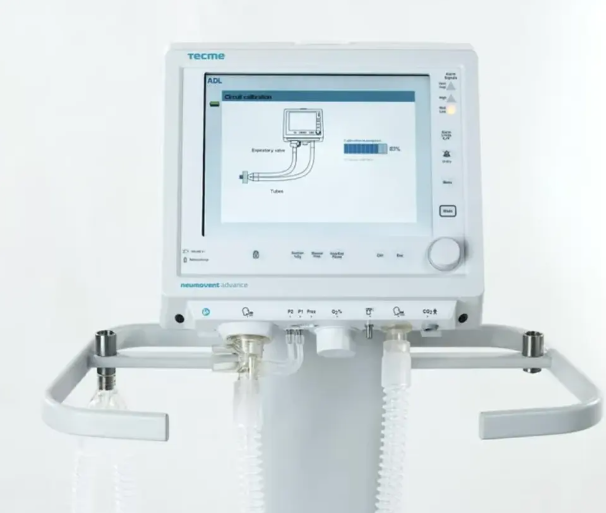

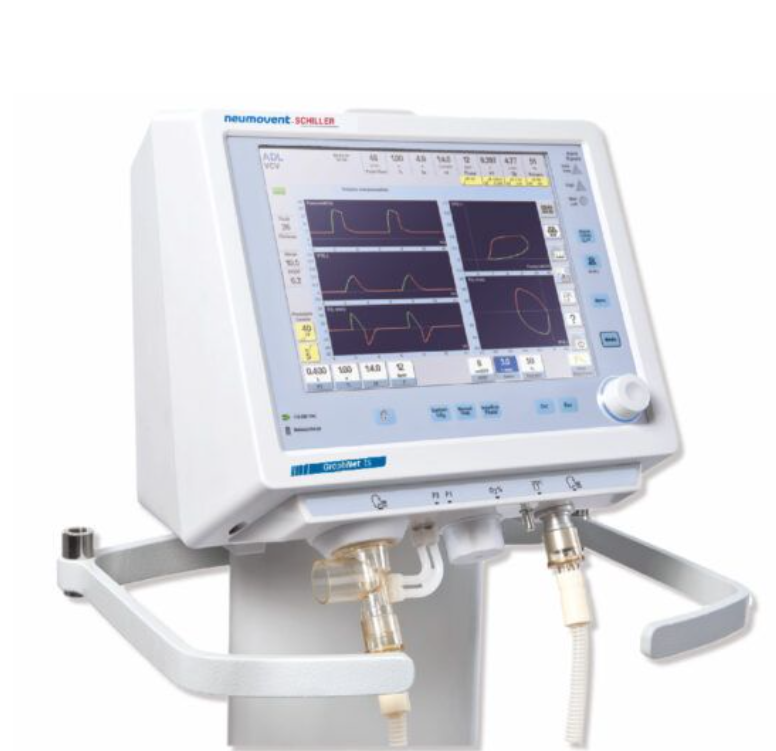

Mechanical ventilator that provides invasive and non-invasive ventilation for adult and paediatric patients, and for neonatal patients (Optional).
Product Specifications
eonatal ventilation is available as option (installed or retrofit)
12.1″ TFT- LED colour touchscreen display to view waveforms & loops simultaneously
Tidal Volume correction according to BTPS leak compensation in all modes
Altitude and circuit compliance compensation with Leakage Compensation possible in all modes
Advanced modes like APRV, MMV+ Pressure Support, PSV+ assured Volume
PRVC – Pressure Regulated Volume Control, SIMV (PRVC)+ PSV, VSV
Selectable apnea back up ventilation (Volume or Pressure type)
72 hours trend display
User adjustable ideal body weight factor
Integrated nebulizer (Volume compensated & Inspiratory Synchronize)
Advanced Lung Mechanism calculations: Auto-PEEP and trapped Volume, WOBi, Exp. Time Constant, P/V Flex Monitoring, Slow Vital Capacity,Pi Max (NIF)
Suction % O2 for suction sequence with variable FiO2 Non-Invasive Ventilation available
Optional
Neonatal Ventilation with special modes available
AVA – Adaptive Ventilatory Assistance
SBT – Spontaneous Breathing Trial and Stress Index
Oxygen Index PaFi
High Flow Oxygen Therapy (HFOT/ HFNC)
Capnography (Mainstream) – Curves of CO2 / Time and Volumetric Capnography (CO2 / VT), Measurements of
EtCO2 Alveolar Ventilation, Dead Space, CO2 Elimination (VCO2 ), VD / VT Ratio, CO2 expired volume (VTCO2 )
