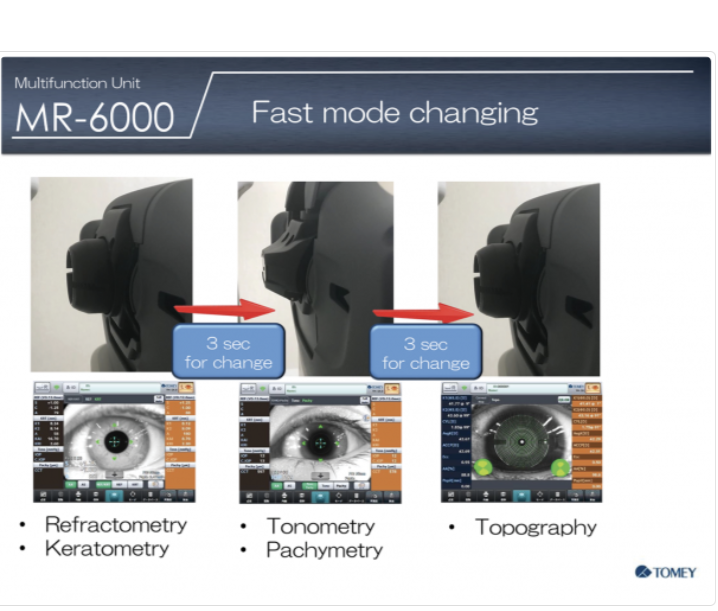

Easy operating: Auto alignment and familiar user interface Space saving: Five systems in one device Time-saving: Change between the different modes in just 3 seconds High accuracy: Combined data of different measurements for precise results (e.g. Tono + Pachy) Improved features: friendly air puff control and enhanced refraction function Complete dry eye analysis: Combination of 6 different measurements of blinking, tear film, Meibomian glands, and conjunctiva
312 x 491 x 450 mm 23kg

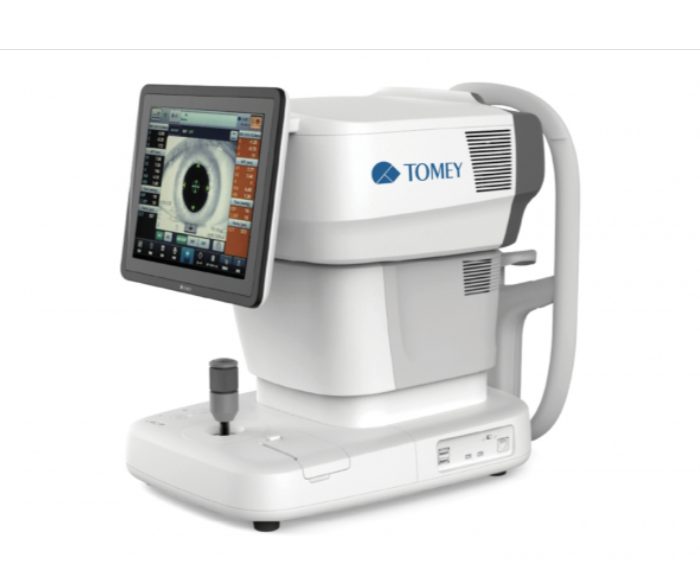

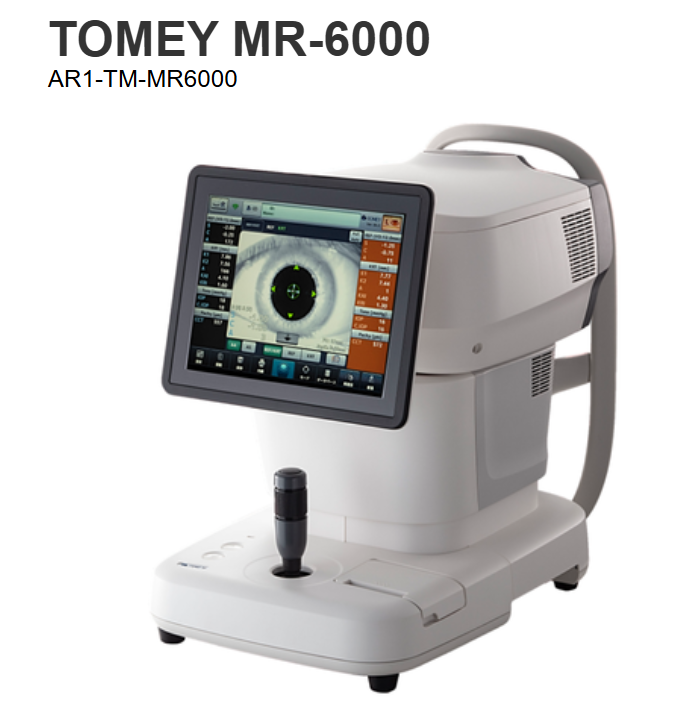

#Tomey MR-6000 6-in-1 Multifunction Unit With Dry Eye Analysis
What results from years of dedication, research, and development? The Tomey MR-6000 6-in-1 Multifunction unit. The MR-6000 is the most advanced multifunction unit available today featuring six different products in one streamlined easy to use machine. Experience hands free fully automated Refraction, Keratometry, Tonometry, Pachymetry, Topography, and 4 different Dry Eye analysis tools all at the single touch of a button.
OMEY Auto Refkeratometer, RC-6000, offers a well diversed refraction mode which allows refraction values within seconds despite fixation loss e.g. for patients with nystagmus, children or uncooperative patients. Minimises your examination time down to just 90 seconds for measurements of Refraction + Keratometry + Tonometry + Pachymetry + Topography.
Features
Determine the objective refraction

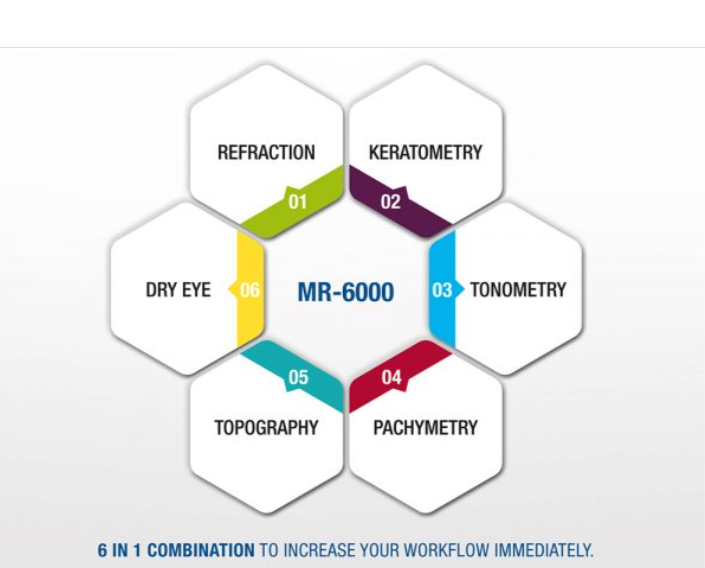

Six functions in one system
Provides bright and clear images
Visualise the corneal shape
Detect Anomalies
Assess the IOP and C.IOP (glaucoma screening)
Measure the central corneal thickness
Quick and Automatic Cutting Printer
Auto alignment + auto measurements
Observes the dry-eye
Refractive Power Measurement
| SPHERICAL POWER | -30.00 D to +25.00 D (at VD = 12.00 mm) |
| CYLINDRICAL POWER | 0.00 D to ± 12.50 D (at VD = 12.00 mm) |
| ASTIGMATIC AXIS | 0° to 180° |
| Keratometry Measurements | |
| CORNEAL CURVATURE RADIUS | 5.00 mm to 13.00 mm |
| CORNEAL ASTIGMATIC AXIS | 0° to 180° |
| Pachymetery Measurement | |
| MEASUREMENT RANGE | 300 μm to 800 μm |
| Intraocular Pressure Measurement | |
| MEASUREMENT RANGE | 1mm Hg to 60mm Hg(1 hPa to 80 hPa) |
| Topography Measurement | |
| CORNEAL CURVUTURE RADIUS | 5.50 mm to 10.00 mm |
| CORNEAL ASTIGMATIC AXIS | 0° to 180° |
| Data Management | |
| INTERNAL DATABASE | Integrated SD card |
| PRINTER | Integrated thermal printer |
| DATA OUTPUT TYPE | 3x USB 2.0, 1x Ethernet, 1x SD card slot, 1x WLAN (not available in all countries) |
| EXPORT FORMAT | DCM, XML, CSV, JPG, PDF |
| Auxiliary Function | |
| INTERPUPILLARY DISTANCE | 20 mm to 85 mm |
| CORNEAL AND PUPIL DIAMETER | 1.00 mm to 14.00 mm |
| DRY-EYE APPLICATION | Blinking frequency, tear meniscus height, hyperemia, Meibomian glands |
| Dimension & Electrical | |
| DIMENSION WDH | 312 x 491 x 450 mm |
| WEIGHT | 23KG |
| VOLTAGE | 100 VAC to 240 VAC |
| FREQUENCY | 50/60 Hz |
| POWER CONSUMPTION | 110 VA |
| LASER CLASS | Class 1 |
