10.4“ Wide touch screen monitor Database Save data of 52,000 eyes Outstanding optic measurement results Ultrasonic A/B Scanner and Pachymeter Display TFT LCD .............
310(W)×214(D)×326(H) mm 6.0 kg

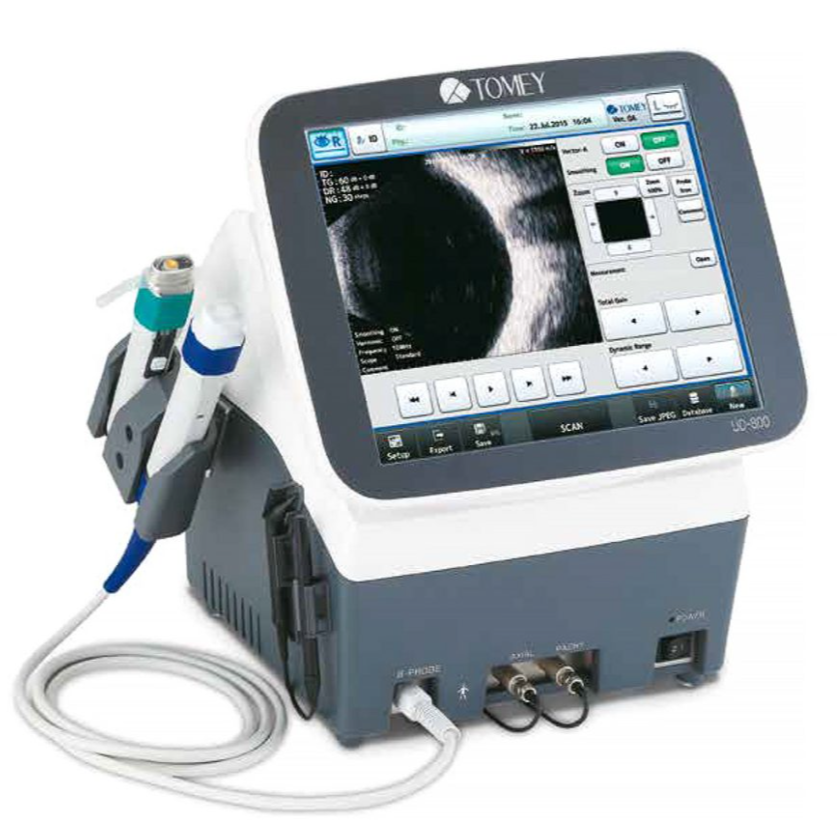

@TOMEY Ultrasound UD-800 AB TOMEY Ultrasound UD-800 AB, features diagnosis A-Scan , Biometry Pachymetry B-Scan comes with a 10 MHz B-Scan probe, and 4 more options are selectable. It has a intuitive software which guides all measurement results possible to save data with USB memory (up to 52,000 eyes with a 32GB USB memory).
TOMEY Ultrasound UD-800 AB is a compact all-in-one device with high resolution. In addition to the main B-scan, you can add UBM, Biometry, Pachymetry and A-Scan Diagnosis as options. Harmonic function is also available with B-Scan.
Features：

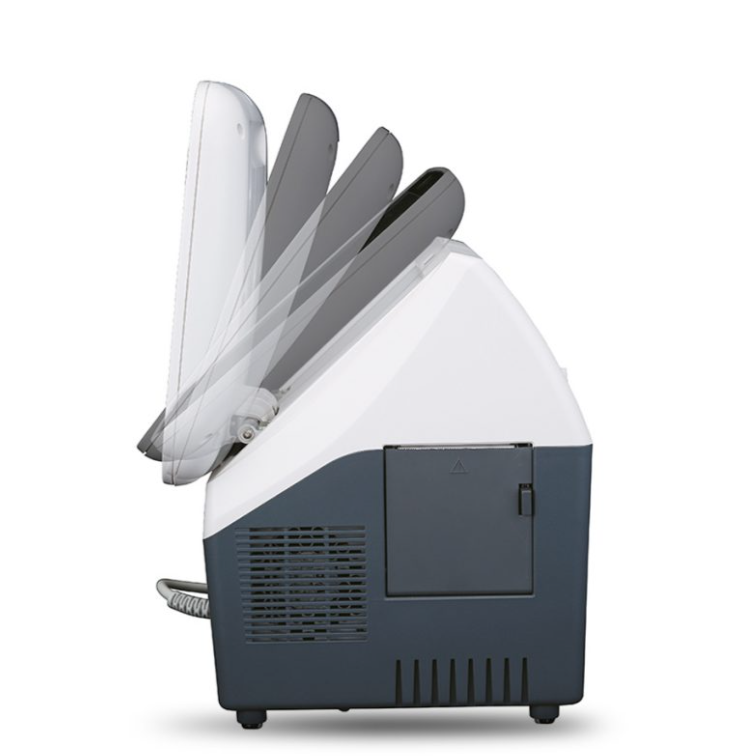

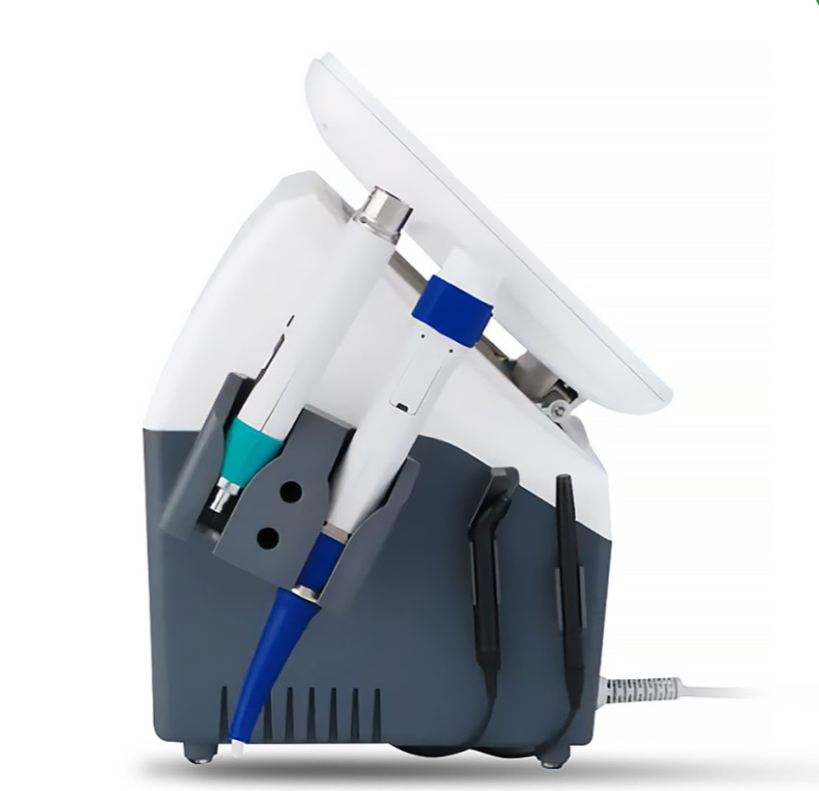

Light and Compact
10.4“ Wide touch screen monitor
Database Save data of 52,000 eyes
Outstanding optic measurement results
Ultrasonic A/B Scanner and Pachymeter
Display TFT LCD
Open data and an intuitive user interface
Improved refractive outcomes

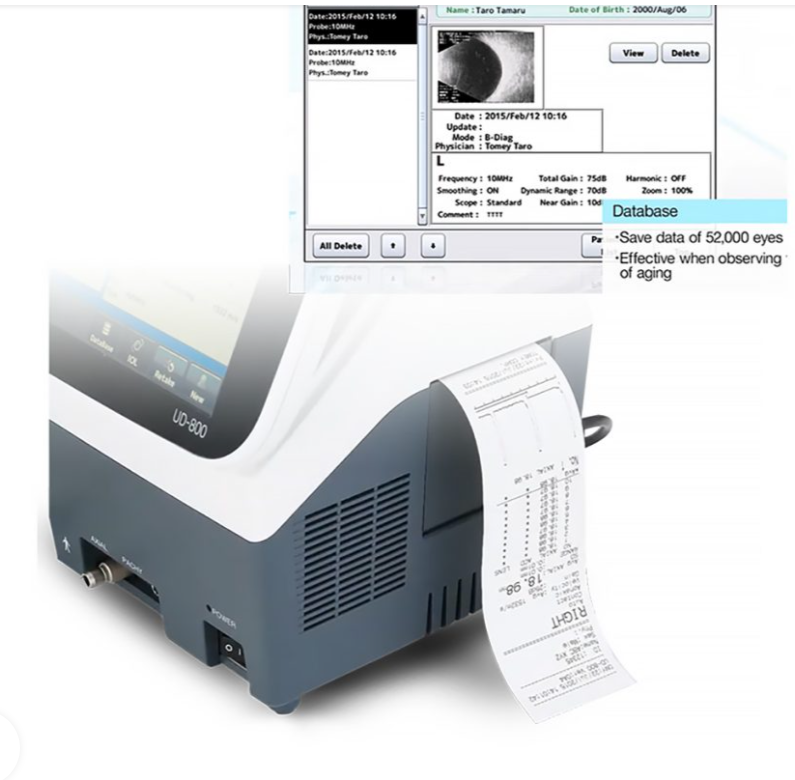

Database & Data Export
Hit the target any time
New Compact All-in-one Ultrasound A/B Scan
Fast, precise and comprehensive refractive results
Software：
Modular configurable
Internal database (via USB Stick)
Biometer A-scan 10 MHZ
10 MHZ 2-ring array B-probe
Pachvmetry (optional)
UBM 40 MHz B-probe (optional)

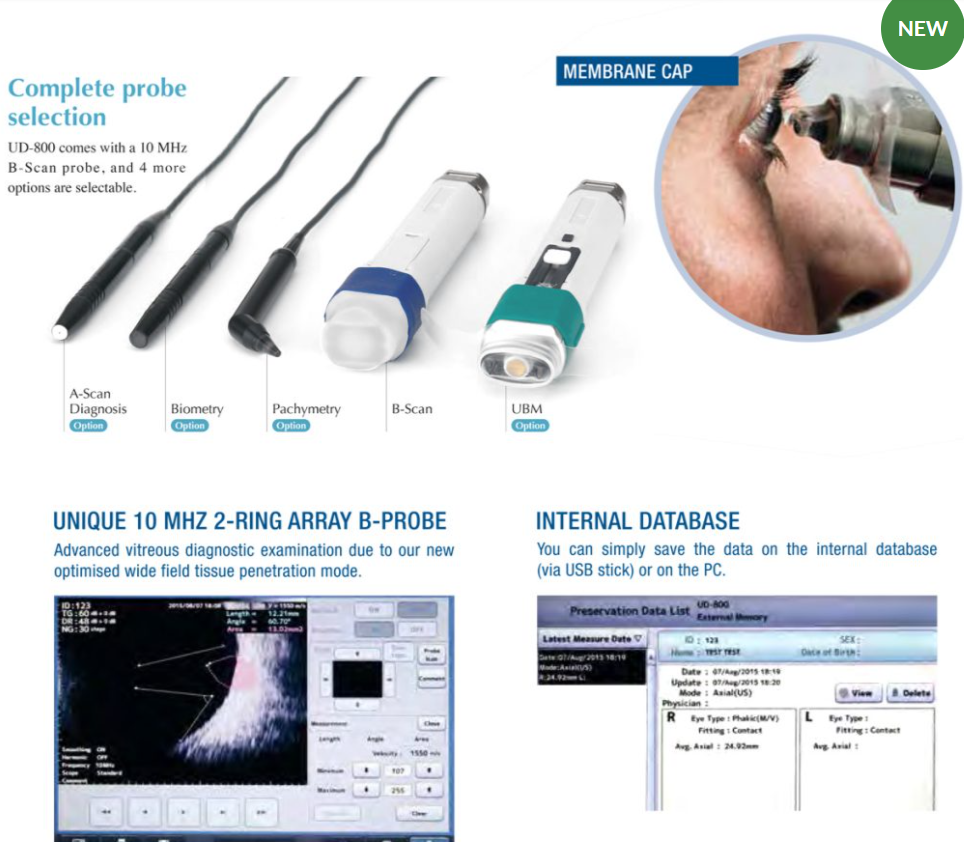

Probe selection B-Scan
UBM / Biometry / Pachymetry / A-Scan Diagnosis
10 MHz B-Probe
| FRAME RATE | 20 frames / sec |
| MAXIMUM PAGES IN A MOVIE | 200 pages × 2 |
| IMAGES DISPLAY RANGE | Standard 35.2 mm / 52° and Wide 48.0 mm / 52°(at ultrasound velocity = 1550 m / sec) |
| COLOR SCALE | 256 scale level |
| SCALE TYPE | Sector Scanning |
| TRANSDUCER TYPE | 2-Ring |
| SCALE FREQUENCY | 10 MHz |
| 40 MHz UBM Probe | |
| FRAME RATE | 10 frames / sec |
| MAXIMUM PAGES IN A MOVIE | 100 pages × 2 |
| IMAGES DISPLAY RANGE | 9 mm (W)×7 mm (D)(at ultrasound velocity = 1550 m / sec) |
| COLOR SCALE | 256 scale level |
| SCALE TYPE | Linear Scanning |
| TRANSDUCER TYPE | Single |
| SCALE FREQUENCY | 40 MHz |

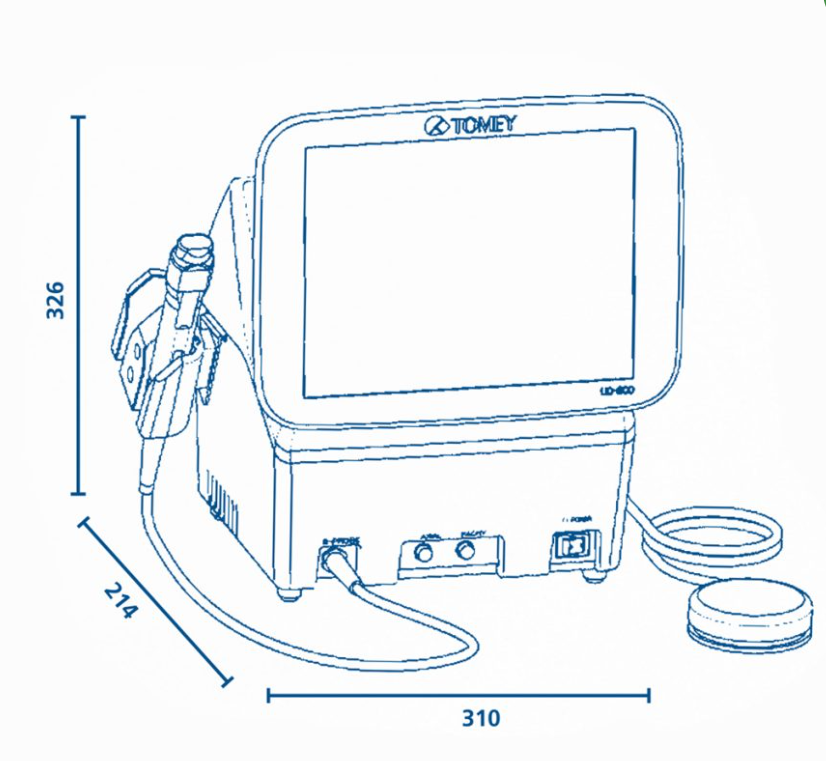

Dimensions and Weights | |
| DIMENSION | 310(W)×214(D)×326(H) mm |
| WEIGHT | 6 Kg |
| TFT LCD | 10.4 inch, color touch screen |
