Automated Measurement & Large Data Storage Automatic Detection of Progressive Lenses Expanded MEasurement Range (+/-80) fo r Lens Blanks Prisms Measurement with Total Prism Display PD Measurement Measurement of UV Transmittance Contact Lens Mode 5.7” Color Touch Panel Operation Display Built-in-Printer
#Dioptromierz elektroniczny TOMEY TL-3000C
New Generation of Auto Lensmeters

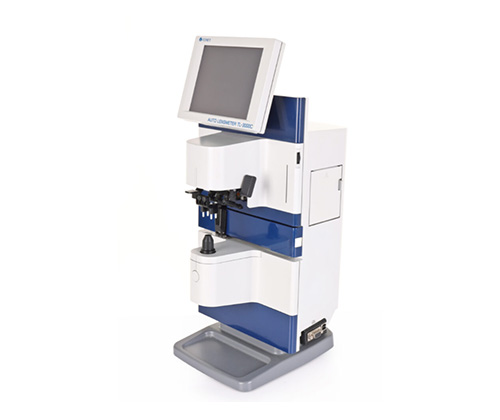

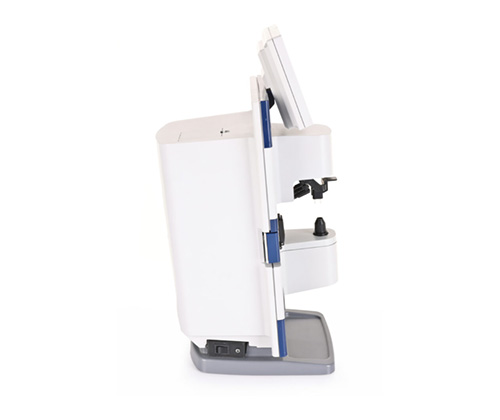

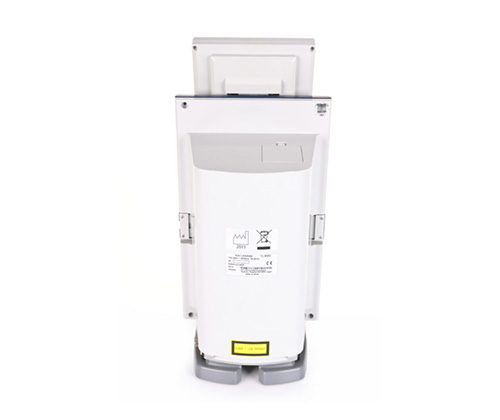

The TOMEY TL-3000C Auto Lensmeter is designed for fast & easy operation. The 5.7 inches color touch panel makes it easier to operate. In AUTO mode, the readings are automatically held when the lens is properly aligned. Multi-Focal lenses are automatically detected by TL-3000C and alignment system guides you to correctly position the lens. The color touch panel display is clearly visible in virtually all environments and able to change three types of color design. Prism can be displayed in rectangular coordinates, polar coordinates or displacement from the optical center. The Abbe number can be adjusted to examine high index lenses. The results can be printed with the built-in printer The TL-3000C is equipped with an RS-232C port for data transmission to a computer.
Dioptromierz TL-3000 C
Kolorowy ekran dotykowy 5.7 cala
Jednoczesny pomiar transmisji UV oraz mocy soczewki (TL-3000 C)
Pomiar PD (TL-3000 C)
Kalkulacja indeksu refrakcyjnego
Nowoczesny tryb progresywny
Bardzo precyzyjny system znaczenia szkieł (metal+4 markery)

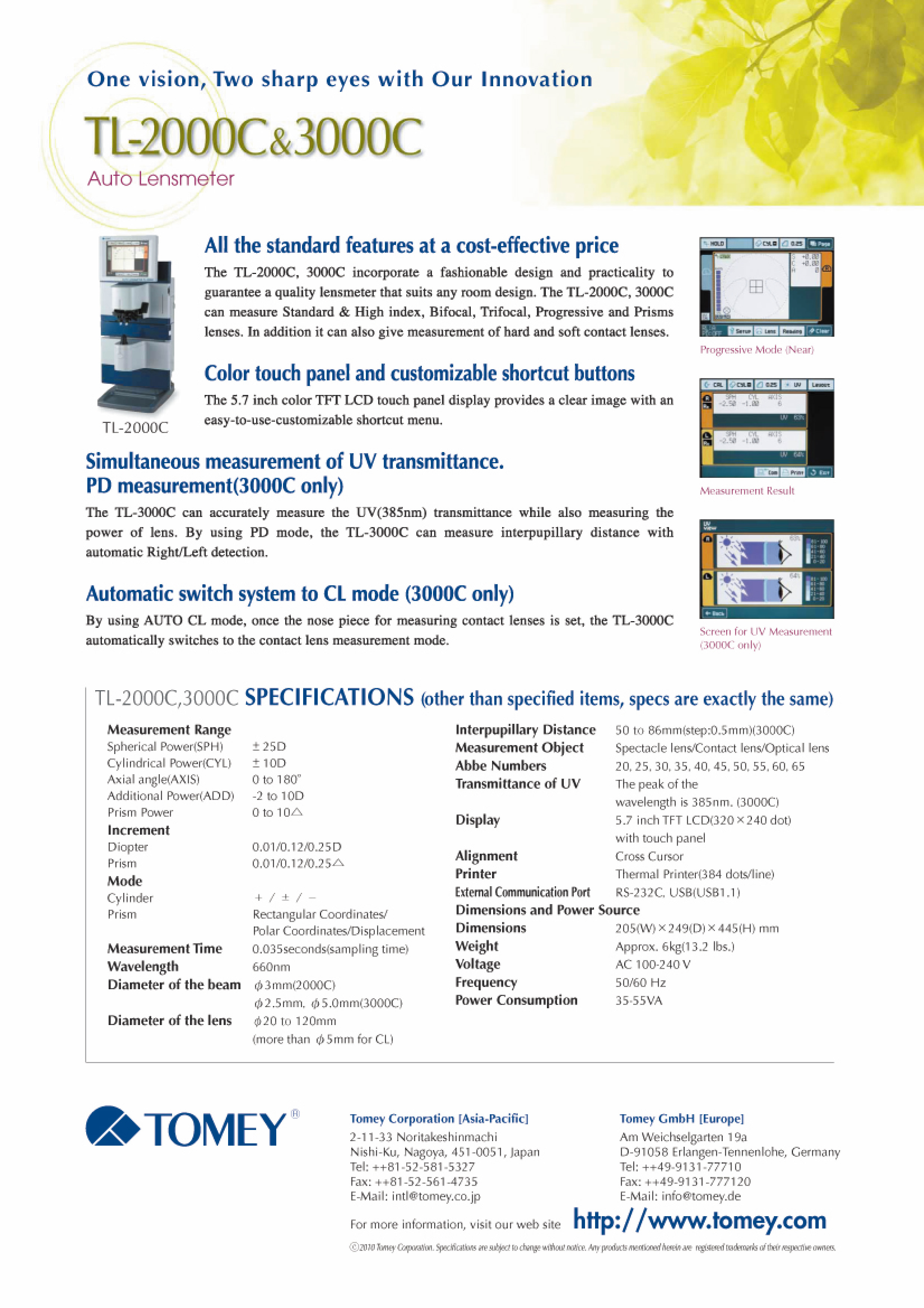

Tomey USA has unveiled its latest devices, the TL-2000C and TL-3000C auto lensmeters. The TL-2000C and 3000C incorporate a fashionable design and practicality to guarantee a quality lensmeter that suits any room design. The TL-2000C and 3000C can measure standard and high-index, bifocal, trifocal, progressive and prism lenses. In addition they can measure hard and soft contact lenses.
The 5.7-inch color touch-panel display provides a clear image with an easy-to-use customizable shortcut menu. The TL-3000C can accurately measure the UV transmittance while also measuring the power of the lens. By using PD mode, the TL-3000C can measure interpupillary distance with automatic right/left detection. By using Auto CL mode, once the nose piece for measuring contact lenses is set, the TL-3000C automatically switches to the contact lens measurement mode. Call 1 (888) 449-4045 or visit tomeyusa.com.
AIT's WAM-5500 for Objective Accommodation Measurements
In an age when objective measure-ment findings are preferred, AIT says its WAM-5500 provides an easy, clinical manner to achieve reliable pre-test, pre-surgery and post-surgery measurements. Using the WAM-5500 you can objectively measure your patient's ability to accommodate. Objective accommodation measurement is especially useful for elderly and pediatric patients.
Some features at a glance:
• A.M. Mode, an advanced function to measure pupil constriction to more objectively measure accommodation;
• measurement with both eyes provides a more natural condition eliminating instrument myopia
• easier measurement with open view window allows you to choose a target that best suits your patients such as toys or cartoons for children;
• Hi Speed Mode allows the connection to a PC using dedicated software to measure the SE value and pupil diameter at 0.2 seconds per step;
• on-screen indication of spherical equivalent;
• measurement can be made easily with patients with contacts, glasses or IOLs;
• data output in the form of video or through a RS-232C interface to our dedicated software; and
• easy mode change.
Flexibility
TL-3000C Auto Lensmeter measures standard & high index lenses; Bifocal & Progressive Lenses; & Prism. Since there is more variety of progressive lenses, TL-3000C uses the latest technology to measure normal progressive lenses, mid-distance progressive lenses, and near distance progressive lenses. The system also easily measure hard & soft contact lenses (in dry mode).
Advanced Features
A bar graph displays the UV-light transmittance of the lenses. The original design of interpupillary distance (PD) measurement aids in correctly fitting spectacles. The TL-3000C is also programmed with refractive index calculation. Simply enter the value of refraction of both surface of lens and automatically calculate the index.
