Wavefront technology with Hartmann sensor (117 points) Simultaneous measurement of UV/blue light and lens power Lens mark recognition support Simple power-mapping WiFi, LAN, and RS-232C connection PD measurement
188 mm x 240 mm x 430 mm (when LCD is tilted) approx. 5.5 kg

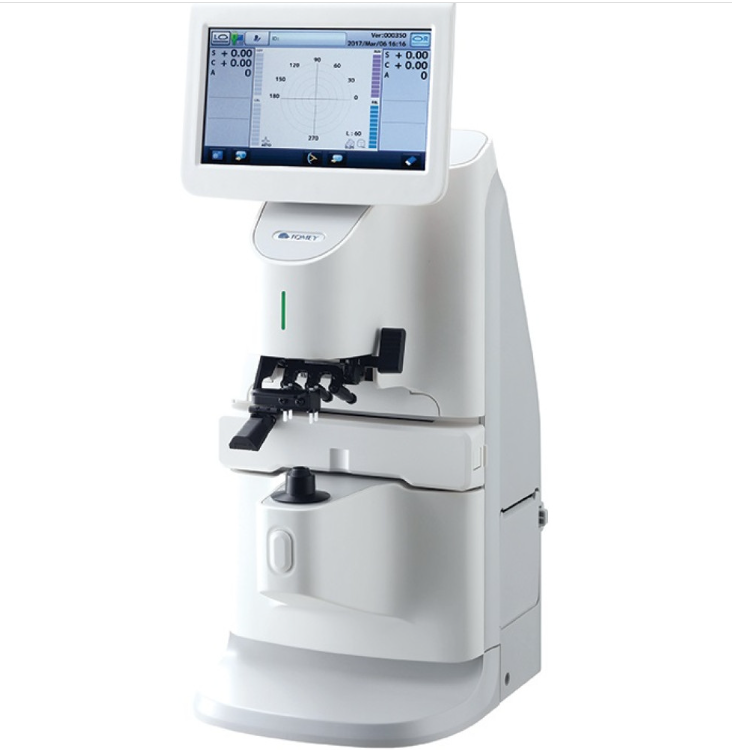

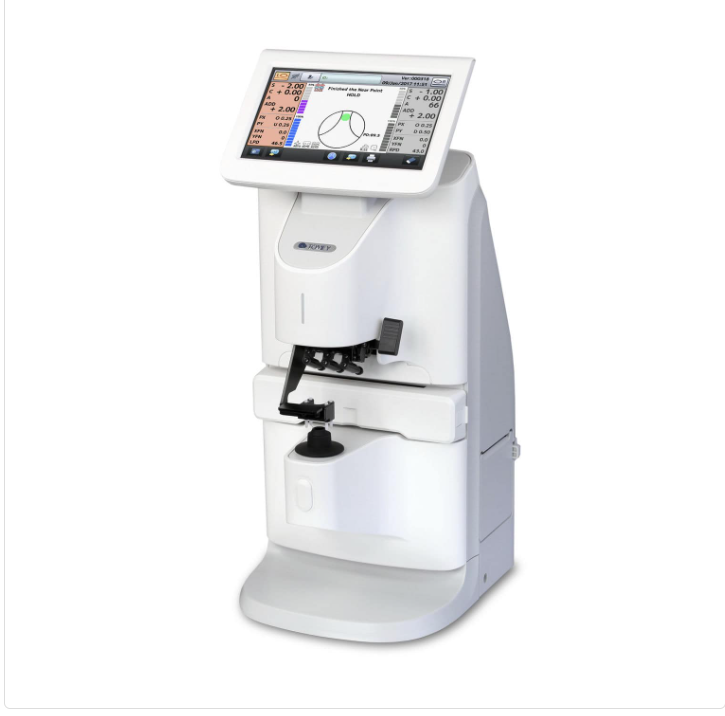

#Tomey TL-6000/TL-7000 Automated Lensmeter
The latest in innovation from Tomey Corporation. The all new Tomey TL6000/7000 series automated lensmeters. Featuring 117 point Hartmann sensor wavefront technology for improved accuracy, lens mark recognition with selectable grid patterns, and on screen simple power mapping.
Precise measurement using new measurement technology
Hartmann sensor wavefront technology
UV/Blue light measurement
Lens mark recognition support
Simple power mapping (TL-7000 recommended)
LAN and RS-232C connection

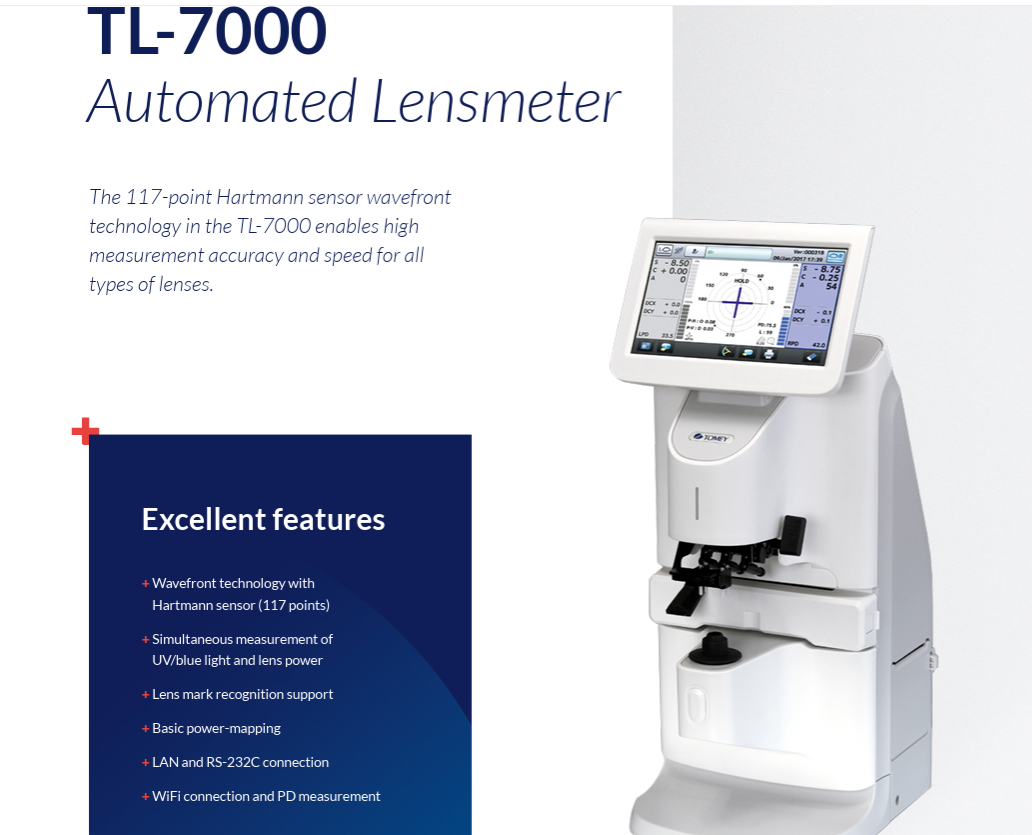

Wavefront technology with Hartmann sensor (117 points)
Using 117 point Hartmann sensor wavefront technology in the TL-7000/6000, measurement accuracy of vertically narrow progressive lenses has markedly improved.
Simultaneous measurement of UV/Blue light and power
By emitting measurement light, UV light (375nm) and Blue light (465 nm) simultaneously, it is possible to check UV/Blue light transmittance as well as conduct power measurements.
Lens mark recognition support
Displaying the grid patterns on the screen will help recognition of lens marks. Grid patterns are selectable.
SPECIFICATIONS (other than specified items, specs are exactly the same)
| Spherical power (SPH) | +/- 25D |
| Cylindrical power (CYL) | +/- 10D |
| Axial angle (AXIS) | 0 to 180 degrees |
| Additional power | -2 to +10D |
| Prism power | 0 to 15 |
| Increment | |
| Diopter | 0.01/0.06/0.12/0.25D |
| Prism | 0.01/0.06/0.12/0.25△ |
| Wavelength | 535nm |
| Diameter of the lens | φ20 to 120 mm more than φ5mm for CL |
| Pupillary Distance | 40 to 86 mm (step:0.5mm) (for TL-7000 only) |
| Measurement Object | Spectacle lens, Contact lens, Optical lens |
| Transmittance of UV | The peak of the wavelength is 375nm |
| Transmittance of Blue light | The peak of the wavelength is 465nm |
| Display | 7-inch-wide color TFT with touch panel |
| Printer | Thermal printer, Paper width 58mm |
| External communication port | RS-232C, USB3.0, Ethernet |
| Dimensions | 188(W) x 240(D) x 430(H) mm |
| Weight | Approx. 5.5kg (12.1lb) |
